Parking Brake, Inspection and Adjustment: Inspection

  1. Parking Brake - Inspect

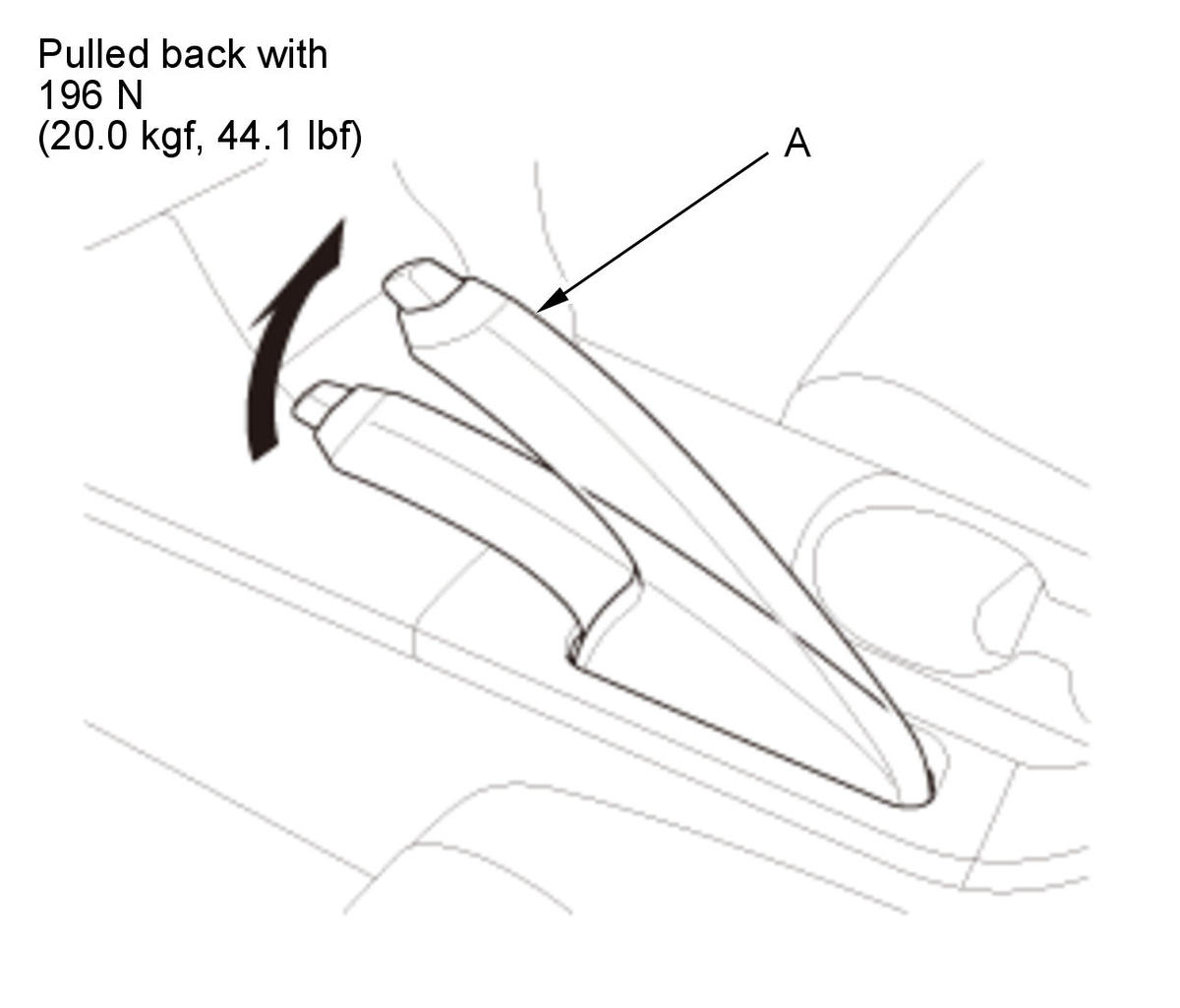

    GHH473604Courtesy of HONDA, U.S.A., INC.
    		 1. Pull the parking brake lever (A) with 196 N (20.0 kgf, 44.1 lbf) of force to fully apply the parking brake.

    2. The parking brake lever should be locked within the specified number of clicks.Lever locked clicks: 6 to 8 clicks

    3. If the number of lever clicks is not as specified, adjust the parking brake.
