Auto High-Beam (High-Beam Support System) - System Diagram (2019 2020 2021 2022)

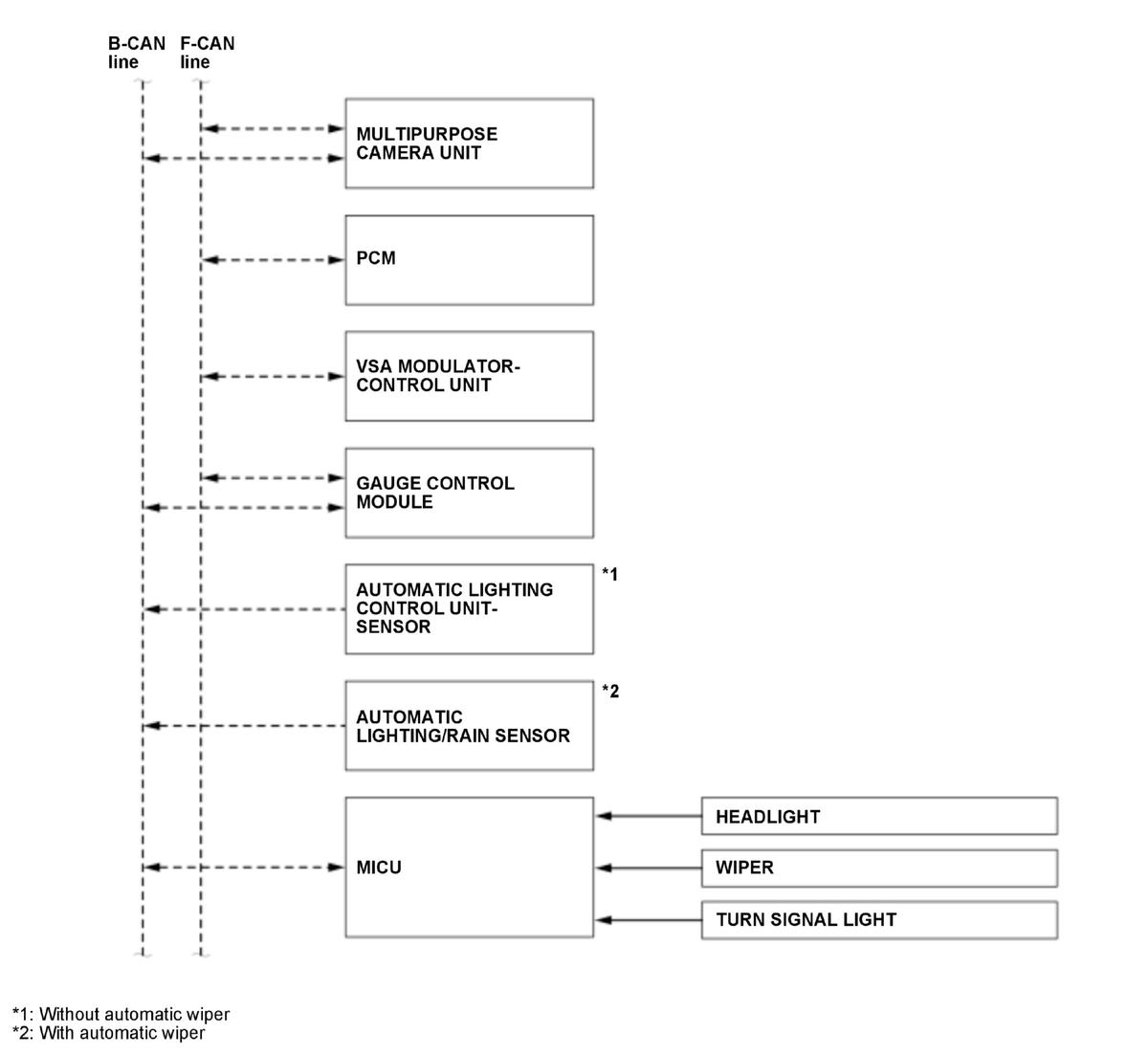

The system diagram of the Auto High-Beam is shown below.
For locations of each component on the vehicle, refer to Component Location Index:
- Without automatic wiper: automatic lighting control unit-sensor
- With automatic wiper: automatic lighting/rain sensor
- Gauge control module
- MICU
- Multipurpose camera unit
- PCM
- VSA modulator-control unit
