DTC U0100, U0101, U0104, U0114, U0122, U0127, U0128, U0131, U0151, U1100, U129D: Gauge control module lost communication (V6, Gauge Control Module) (2018-19)

DTC (Gauge Control Module)

NOTE

• Before you troubleshoot, review the general troubleshooting information - Refer to: How to Troubleshoot the Fuel and Emissions Systems (L4), or How to Troubleshoot the Dual Clutch Transmission (DCT), or How to Troubleshoot the Brake Booster Pressure Monitoring System (With Auto Idle Stop System), or How to Troubleshoot the Fuel and Emissions Systems (V6, Without Auto Idle Stop System), or How to Troubleshoot the Fuel and Emissions Systems (V6, With Auto Idle Stop System) .
• According to the detected DTC (s), check for the power circuit and the ground circuit of the control unit which cannot communicate with the gauge control module.
• Refer to the DTC shown on the display, then inspect the connectors and terminals based on the instructions.

1. Problem verification

   -1. Clear the DTCs with the HDS.

   - 2. Turn the vehicle to the OFF (LOCK) mode and then the ON mode.

   - 3. Wait for at least 6 seconds.

   - 4. Check for DTCs with the HDS.

   DTC Description	DTC
   U0100 Gauge control module lost communication with ENG/AT
   U0101 Gauge control module lost communication with AT
   U0104 Gauge Control Module Lost Communication With Driving Support System Control Unit
   U0114 Gauge control module lost communication with SH-AWD control unit
   U0122 Gauge control module lost communication with VSA modulator-control unit
   U0127 Gauge control module lost communication with TPMS control unit
   U0128 Gauge control module lost communication with EPB
   U0131 Gauge control module lost communication with EPS Unit
   U0151 Gauge control module lost communication with SRS unit
   U1100 Gauge Control Module Lost Communication With Driving Support System Control Unit
   U129D Gauge control module lost communication with precision all wheel steer control unit

   Are any DTCs indicated?

   YES

   Go to step 2.

   NO

   Intermittent failure, the system is OK at this time. Check for poor connections or loose terminals.

2. CAN gateway system DTC check

   -1. Turn the vehicle to the ON mode.

   - 2. Check for CAN gateway system DTCs with the HDS.

   DTC Description	DTC
   U0029-00 CAN Gateway F-CAN ch A Bus Off
   U0047-00 CAN Gateway F-CAN ch B Bus Off
   U3000-49 CAN Gateway Internal Failure

   DTC (CAN Gateway)

   Is DTC U0029-00, U0047-00, and/or U3000-49 indicated?

   YES

   Go to the troubleshooting for CAN gateway system DTC (s) - Refer to: Communication Systems DTC Troubleshooting Index (V6, With CAN gateway) (2015-17) or Communication Systems DTC Troubleshooting Index (2018-19) .

   NO

   Go to step 3.

3. F-CAN circuit communication check (Receiving control unit)

   -1. Select the FUNCTION TEST in the CAN gateway with the HDS, then select the F-CAN Bus Connected Unit Check.

   F-CAN Bus Connected Unit Check

   Does the receiving control unit detect the CAN gateway Bus channels A?

   Bus A is Not Available

   Go to step 4.

   Bus A is Available

   Go to step 5.

4. Open wire check (F-CAN A lines)

   -1. Turn the vehicle to the OFF (LOCK) mode.

   - 2. Disconnect the following connectors.

   CAN gateway 16P connector Gauge control module 32P connector

   - 3. Check for continuity between test points 1 and 2.

   Test condition	Vehicle OFF (LOCK) mode CAN gateway 16P connector: disconnected Gauge control module 32P connector: disconnected

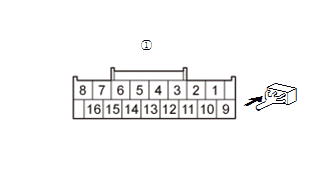

   Test point 1	CAN gateway 16P connector (female terminals) No. 3:
   Test point 2	Gauge control module 32P connector No. 27 - Refer to: Gauge Control Module Connector For Inputs And Outputs (Without SH-AWD) (2015-17), or Gauge Control Module Connector For Inputs And Outputs (With SH-AWD) (2015-17), or Gauge Control Module Connector for Inputs and Outputs (2018-19)

   Test point 1	CAN gateway 16P connector (female terminals) No. 11:
   Test point 2	Gauge control module 32P connector No. 28 - Refer to: Gauge Control Module Connector For Inputs And Outputs (Without SH-AWD) (2015-17), or Gauge Control Module Connector For Inputs And Outputs (With SH-AWD) (2015-17), or Gauge Control Module Connector for Inputs and Outputs (2018-19)

   Courtesy of HONDA, U.S.A., INC.

   Is there continuity?

   YES

   The F-CAN A_H and F-CAN A_L wires are OK. Replace the gauge control module .

   NO

   Repair an open in F-CAN A_H or F-CAN A_L wire.

5. F-CAN circuit communication check (Transmitting control unit)

   -1. Select the FUNCTION TEST in the CAN gateway with the HDS, then select the F-CAN Bus Connected Unit Check.

   F-CAN Bus Connected Unit Check

   According to the detected DTC on the following table, make sure that the transmitting control unit detects the CAN gateway Bus channel (s) normally.

   DTC	Transmitting control unit	Detected CAN gateway Bus channel (s) at normal
   U0100	PCM	A, B
   U0101	TCM	A, B
   U0104	Multipurpose camera unit	A
   U0114	SH-AWD control unit	B
   U0122	VSA modulator-control unit	A, B
   U0127	Keyless access/TPMS control unit	B
   U0128	Electric parking brake control unit	A
   U0131	EPS control unit	A
   U0151	SRS unit	A
   U1100	Multipurpose camera unit	A
   U129D	Precision all wheel steer control unit	A

   Is it detected normally?

   Detected normal

   Intermittent failure, the system is OK at this time. Check for poor connections or loose terminals at the transmitting control unit and the CAN gateway.

   U0100: PCM is Not Available for Bus A

   Go to step 6.

   U0100: PCM is Not Available for Bus B

   Go to step 7.

   U0101: TCM is Not Available for Bus A

   Go to step 6.

   U0101: TCM is Not Available for Bus B

   Go to step 7.

   U0104: Multipurpose camera unit is Not Available for Bus A

   Go to step 6.

   U0114: SH-AWD control unit is Not Available for Bus B

   Go to step 7.

   U0122: VSA modulator-control unit is Not Available for Bus A

   Go to step 6.

   U0122: VSA modulator-control unit is Not Available for Bus B

   Go to step 7.

   U0127: Keyless access/TPMS control unit is Not Available for Bus B

   Go to step 7.

   U0128: Electric parking brake control unit is Not Available for Bus A

   Go to step 6.

   U0131: EPS control unit is Not Available for Bus A

   Go to step 6.

   U0151: SRS unit is Not Available for Bus A

   Go to step 6.

   U1100: Multipurpose camera unit is Not Available for Bus A

   Go to step 6.

   U129D: Precision all wheel steer control unit is Not Available for Bus A

   Go to step 6.

6. Open wire check (F-CAN A lines)

   -1. Turn the vehicle to the OFF (LOCK) mode.

   - 2. U0100 or U0101: Jump the SCS line with the HDS, and wait more than 1 minute.

   - 3. According to the detected DTC on the following table, disconnect the transmitting control unit connector (s).

   DTC	Connector
   -	CAN gateway 24P connector
   U0100	PCM connector A (51P)
   U0101	TCM 35P connector
   U0104	Multipurpose camera unit 20P connector
   U0122	VSA modulator-control unit 38P connector
   U0128	Electric parking brake control unit 30P connector
   U0131	EPS control unit connector A (11P)
   U0151	SRS unit connector A (39P)
   U1100	Multipurpose camera unit 20P connector
   U129D	Precision all wheel steer control unit connector A (16P)

   - 4. Check for continuity between test points 1 and 2.

   Test condition

   Vehicle OFF (LOCK) mode CAN gateway 16P connector: disconnected Transmitting control unit connector (s) for indicated DTCs: disconnected

   DTC	Circuit name	Test point 1 (Receiving control unit)		Test point 2 (Transmitting control unit)
   		Connector	Terminal	Connector	Terminal

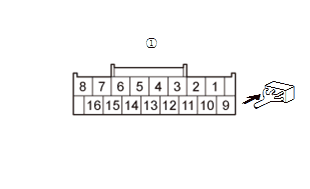

   U0100	F-CAN A_H	CAN gateway 16P connector (female terminals):	No. 3	PCM connector A (51P) - Refer to: PCM Connector for Inputs and Outputs (L4) (2015-17) or PCM Connector for Inputs and Outputs (V6, Without Auto Idle Stop System) (2015-17) or PCM Connector for Inputs and Outputs (V6, With Auto Idle Stop System) (2015-17), or PCM Connector for Inputs and Outputs (L4) (2018-19), or PCM Connector for Inputs and Outputs (V6) (2018-19)	No. 9
   	F-CAN A_L		No. 11		No. 10
   U0101	F-CAN A_H	CAN gateway 16P connector (female terminals):	No. 3	TCM 58P connector	No. 34
   	F-CAN A_L		No. 11		No. 47
   U0104 U1100	F-CAN A_H	CAN gateway 16P connector (female terminals):	No. 3	Multipurpose camera unit 20 P connector - Refer to: Multipurpose Camera Unit Connector for Inputs and Outputs (2015-17) or Multipurpose Camera Unit Connector for Inputs and Outputs (2018-19)	No. 2
   	F-CAN A_L		No. 11		No. 13
   U0122	F-CAN A_H	CAN gateway 16P connector (female terminals):	No. 3	VSA modulator-control unit 38P connector - Refer to: VSA Modulator-Control Unit Connector For Inputs And Outputs (With Auto Idle Stop System) (2015-17) or VSA Modulator-Control Unit Connector For Inputs And Outputs (Without Auto Idle Stop System) (2015-17) or VSA Modulator-Control Unit Connector for Inputs and Outputs (2018-19)	No. 38
   	F-CAN A_L		No. 11		No. 26
   U0128	F-CAN A_H	CAN gateway 16P connector (female terminals):	No. 3	Electric parking brake control unit 30P connector - Refer to: Electric Parking Brake Control Unit Connector for Inputs and Outputs (2015-17) or Electric Parking Brake Control Unit Connector for Inputs and Outputs (2018-19)	No. 30
   	F-CAN A_L		No. 11		No. 29
   U0131	F-CAN A_H	CAN gateway 16P connector (female terminals):	No. 3	EPS control unit connector A (11P) - Refer to: EPS Control Unit Connector for Inputs and Outputs (With Auto Idle Stop System) (2015-17) or EPS Control Unit Connector for Inputs and Outputs (Without Auto Idle Stop System) (2015-17) or EPS Control Unit Connector for Inputs and Outputs (2018-19)	No. 10
   	F-CAN A_L		No. 11		No. 11
   U0151	F-CAN A_H	CAN gateway 16P connector (female terminals):	No. 3	SRS unit connector A (39P) - Refer to: SRS Unit Connector For Inputs And Outputs (2015-17) or SRS Unit Connector for Inputs and Outputs (2018-19)	No. 34
   	F-CAN A_L		No. 11		No. 35
   U129D	F-CAN A_H	CAN gateway 16P connector (female terminals):	No. 3	Precision all wheel steer control unit connector A (16P) - Refer to: Precision All Wheel Steer Control Unit Connector for Inputs and Outputs (2015-17) or Precision All Wheel Steer Control Unit Connector for Inputs and Outputs (2018-19)	No. 6
   	F-CAN A_L		No. 11		No. 14

   Courtesy of HONDA, U.S.A., INC.

   Is there continuity?

   YES

   The F-CAN A_H wire and the F-CAN A_L wire are OK.

   According to the detected DTC on the following table replace the correspond control unit.

   DTC	Operation for transmitting control unit
   U0100	Substitute a known-good PCM - Refer to: PCM Removal and Installation (With SH-AWD), or PCM Removal and Installation (Without SH-AWD) , then recheck. If DTC U0100 goes away after substitution, replace the original PCM - Refer to: PCM Removal and Installation (With SH-AWD), or PCM Removal and Installation (Without SH-AWD) .
   U0101	Substitute a known-good TCM , then recheck. If DTC U0101 goes away after substitution, replace the original TCM .
   U0104 U1100	Substitute a known-good multipurpose camera unit , then recheck. If DTC U0104 and U1100 go away after substitution, replace the original multipurpose camera unit .
   U0122	Replace the VSA modulator-control unit - Refer to: VSA Modulator-Control Unit Removal and Installation (With SH-AWD), or VSA Modulator-Control Unit Removal and Installation (Without SH-AWD)
   U0128	Substitute a known-good electric parking brake control unit , then recheck. If DTC U0128 goes away after substitution, replace the original electric parking brake control unit .
   U0131	Substitute a known-good EPS control unit , then recheck. If DTC U0131 goes away after substitution, replace the original EPS control unit .
   U0151	Substitute a known-good SRS unit - Refer to: SRS Unit Removal and Installation (2015-17) or SRS Unit Removal and Installation (2018-19) , then recheck. If DTC U0151 goes away after substitution, replace the original SRS unit - Refer to: SRS Unit Removal and Installation (2015-17) or SRS Unit Removal and Installation (2018-19) .
   U129D	Substitute a known-good precision all wheel steer control unit , then recheck. If DTC U129D goes away after substitution, replace the original precision all wheel steer control unit .

   NO

   Repair an open in F-CAN A_H or F-CAN A_L wire.

7. Open wire check (F-CAN B lines)

   -1. Turn the vehicle to the OFF (LOCK) mode.

   - 2. U0100: Jump the SCS line with the HDS, and wait more than 1 minute.

   - 3. According to the detected DTC on the following table, disconnect the transmitting control unit connector (s).

   DTC	Connector
   -	CAN gateway 16P connector
   U0100	PCM connector A (51P)
   U0101	TCM 58P connector
   U0114	SH-AWD control unit 24P connector
   U0122	VSA modulator-control unit 38P connector
   U0127	Keyless access/TPMS control unit connector C (20P)

   - 4. Check for continuity between test points 1 and 2.

   Test condition

   Vehicle OFF (LOCK) mode CAN gateway 16P connector: disconnected Transmitting control unit connector (s) for indicated DTCs: disconnected

   DTC	Circuit name	Test point 1 (Receiving control unit)		Test point 2 (Transmitting control unit)
   		Connector	Terminal	Connector	Terminal

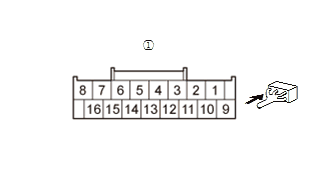

   U0100	F-CAN B_H	CAN gateway 16P connector (female terminals):	No. 6	PCM connector A (51P) - Refer to: PCM Connector for Inputs and Outputs (L4) (2015-17) or PCM Connector for Inputs and Outputs (V6, Without Auto Idle Stop System) (2015-17) or PCM Connector for Inputs and Outputs (V6, With Auto Idle Stop System) (2015-17), or PCM Connector for Inputs and Outputs (L4) (2018-19), or PCM Connector for Inputs and Outputs (V6) (2018-19)	No. 11
   	F-CAN B_L		No. 14		No. 12
   U0101	F-CAN B_H	CAN gateway 16P connector (female terminals):	No. 6	TCM 58P connector	No. 7
   	F-CAN B_L		No. 14		No. 20
   U0114	F-CAN B_H	CAN gateway 16P connector (female terminals):	No. 6	SH-AWD control unit 24P connector	No. 14
   	F-CAN B_L		No. 14		No. 24
   U0122	F-CAN B_H	CAN gateway 16P connector (female terminals):	No. 6	VSA modulator-control unit 38P connector - Refer to: VSA Modulator-Control Unit Connector For Inputs And Outputs (With Auto Idle Stop System) (2015-17) or VSA Modulator-Control Unit Connector For Inputs And Outputs (Without Auto Idle Stop System) (2015-17) or VSA Modulator-Control Unit Connector for Inputs and Outputs (2018-19)	No. 31
   	F-CAN B_L		No. 14		No. 20
   U0127	F-CAN B_H	CAN gateway 16P connector (female terminals):	No. 6	Keyless access/TPMS control unit connector C (20P) - Refer to: Keyless Access/TPMS Control Unit Connector For Inputs And Outputs (2015-17) or Keyless Access/TPMS Control Unit Connector for Inputs and Outputs (2018-19)	No. 2
   	F-CAN B_L		No. 14		No. 12

   Courtesy of HONDA, U.S.A., INC.

   Is there continuity?

   YES

   The F-CAN B_H wire and the F-CAN B_L wire are OK.

   According to the detected DTC on the following table replace the correspond control unit.

   DTC	Operation for transmitting control unit
   U0100	Substitute a known-good PCM - Refer to: PCM Removal and Installation (With SH-AWD), or PCM Removal and Installation (Without SH-AWD) , then recheck. If DTC U0100 goes away after substitution, replace the original PCM - Refer to: PCM Removal and Installation (With SH-AWD), or PCM Removal and Installation (Without SH-AWD) .
   U0101	Substitute a known-good TCM , then recheck. If DTC U0101 goes away after substitution, replace the original TCM .
   U0114	Substitute a known-good SH-AWD control unit , then recheck. If DTC U0114 goes away after substitution, replace the original SH-AWD control unit .
   U0122	Replace the VSA modulator-control unit - Refer to: VSA Modulator-Control Unit Removal and Installation (With SH-AWD), or VSA Modulator-Control Unit Removal and Installation (Without SH-AWD)
   U0127	Substitute a known-good keyless access/TPMS control unit , the recheck. If DTC U0127 goes away after substitution, replace the keyless access/TPMS control unit .

   NO

   Repair an open in F-CAN B_H or F-CAN B_L wire.
