Interior Trim / Sunshade - Testing & Troubleshooting (Except Hybrid)
>>
Component Location Index
>>

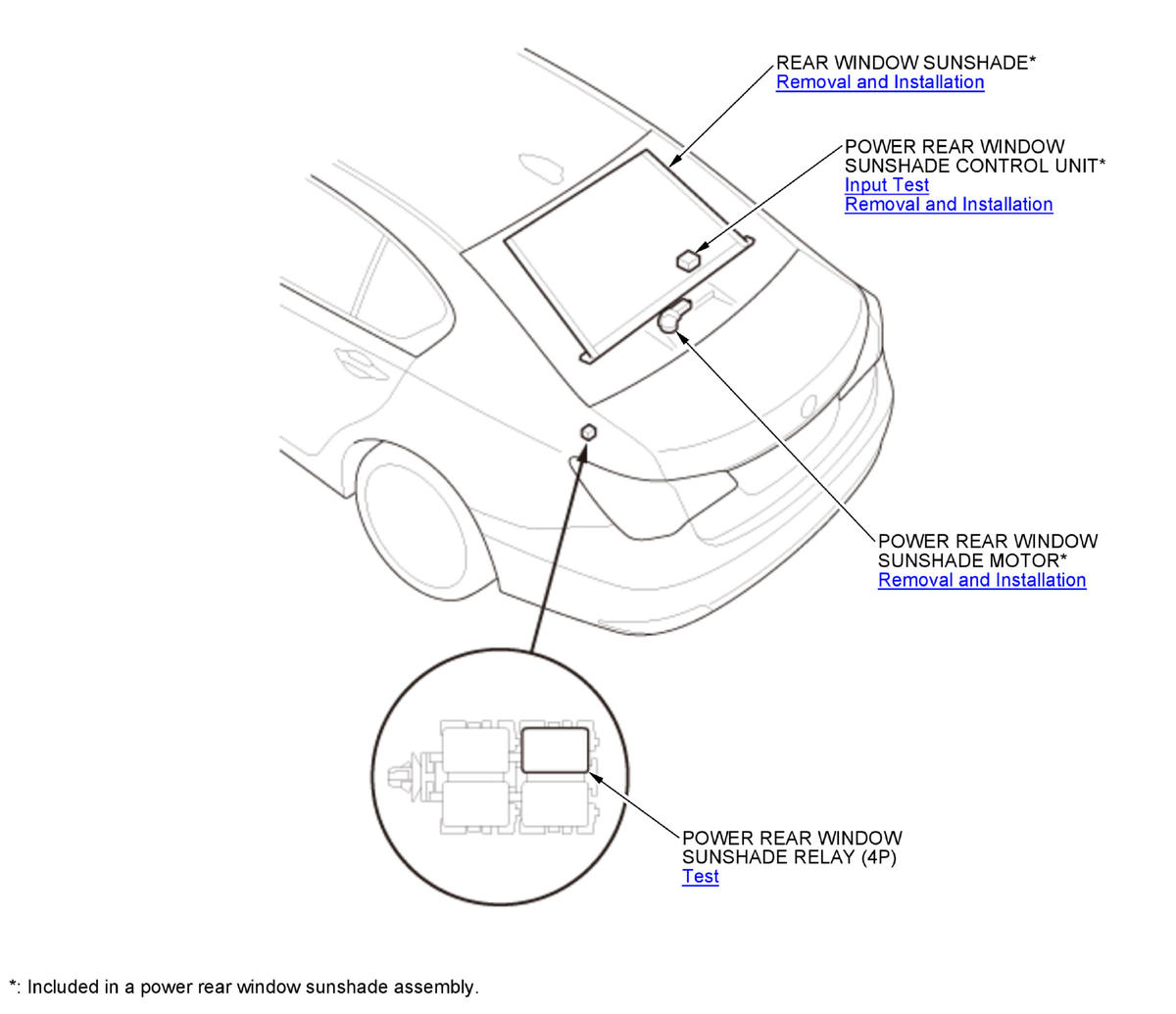

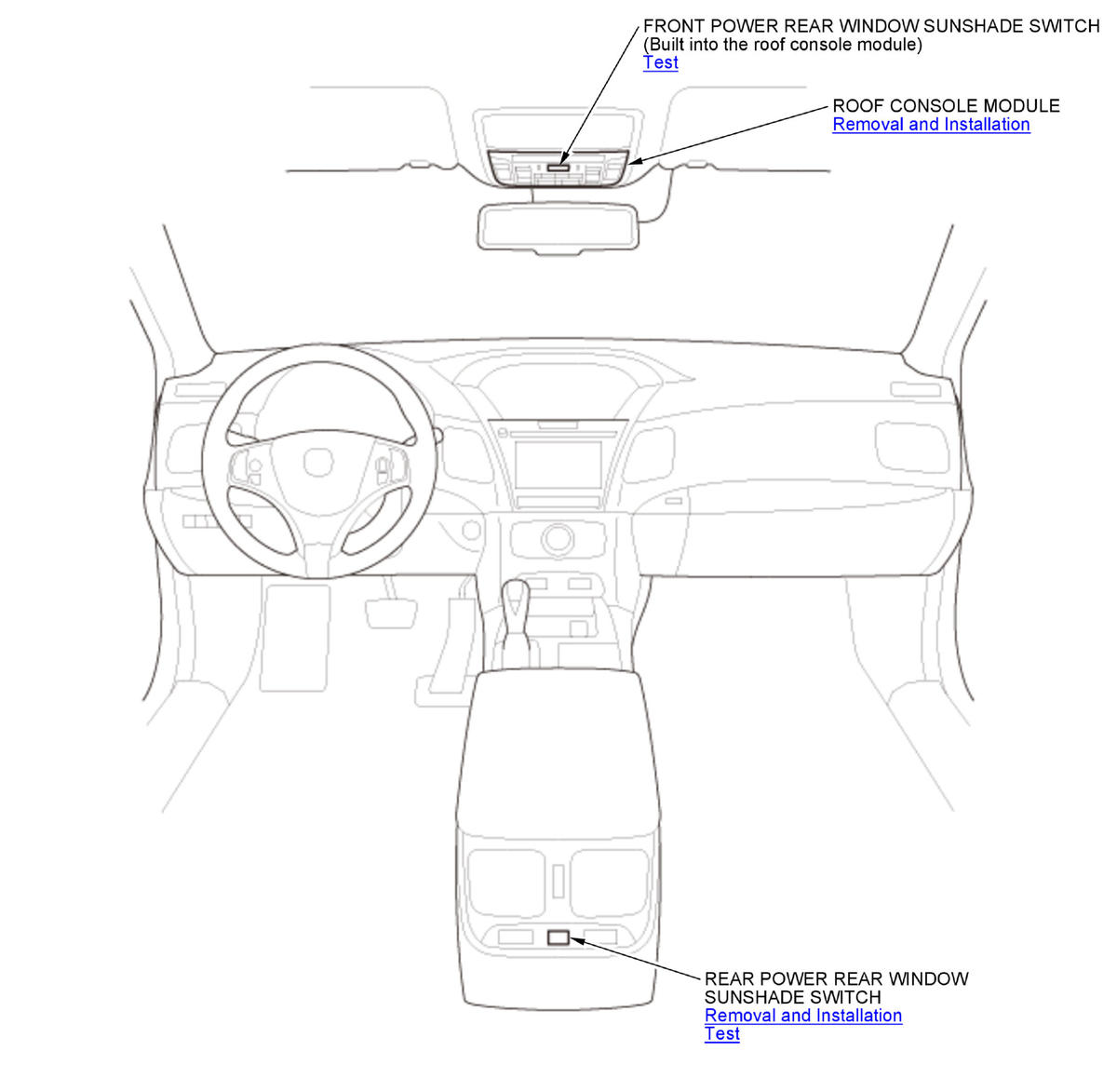

Power Rear Window Sunshade Component Location Index (2014 2015)
Power Rear Window Sunshade Component Location Index (2014 2015)
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
