Interior Trim / Sunshade - Testing & Troubleshooting (Except Hybrid)
>>
Circuit Diagram
>>

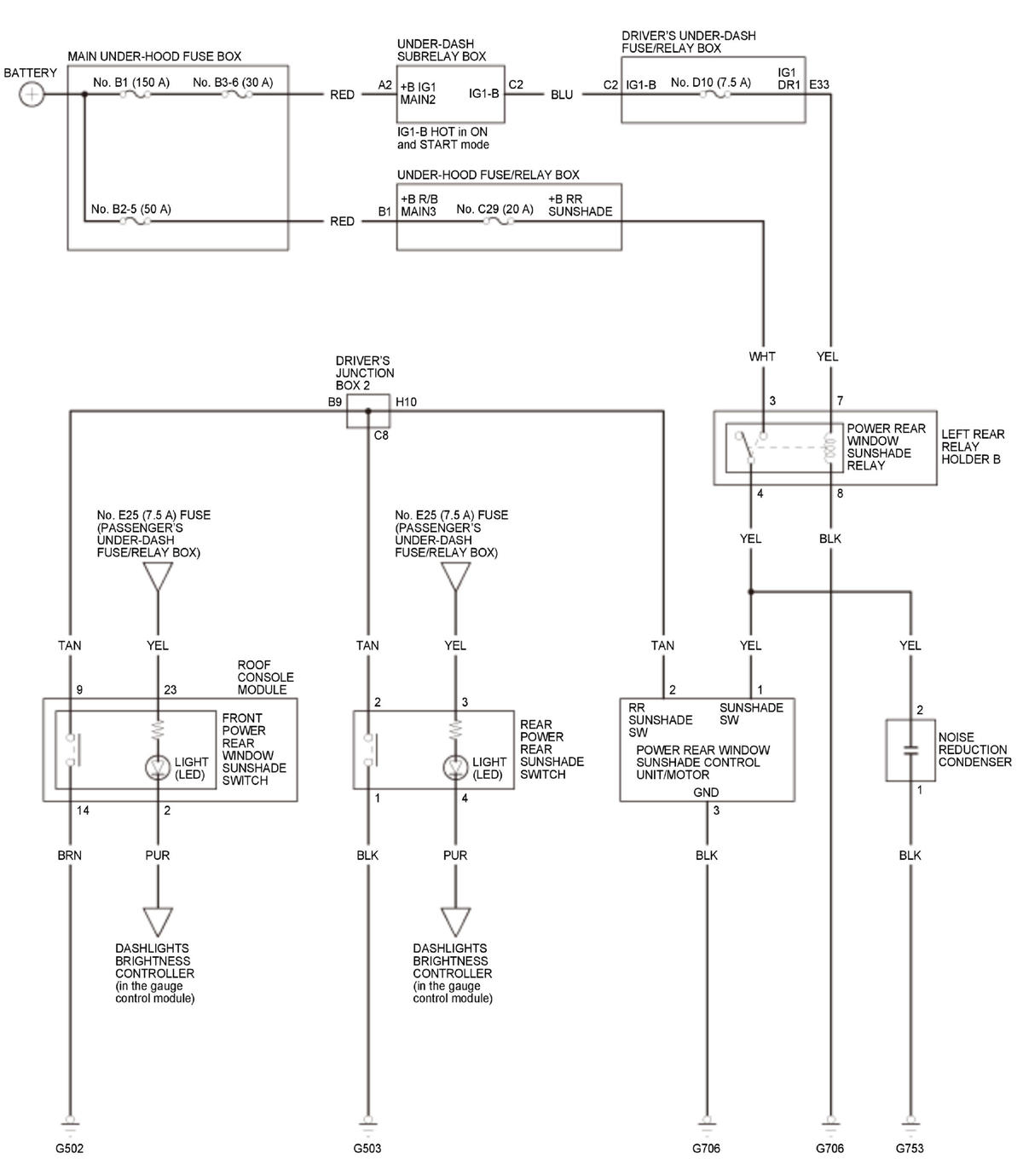

Power Rear Window Sunshade Circuit Diagram (2016 2017 2018 2019 2020)
Power Rear Window Sunshade Circuit Diagram (2016 2017 2018 2019 2020)
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
