Interior Trim / Sunshade - Testing & Troubleshooting (Except Hybrid)
>>
Circuit Diagram
>>

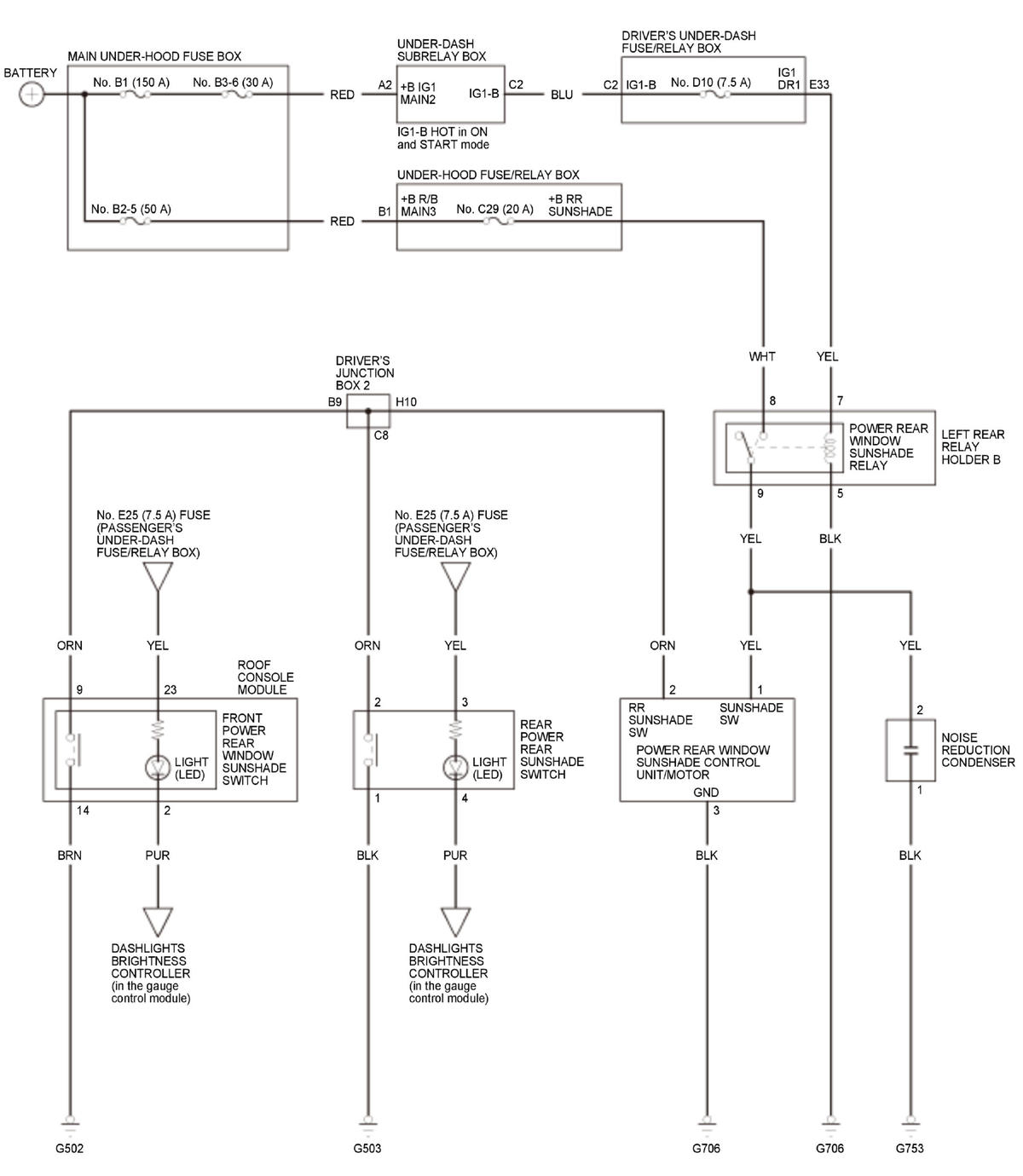

Power Rear Window Sunshade Circuit Diagram (2014 2015)
Power Rear Window Sunshade Circuit Diagram (2014 2015)
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
