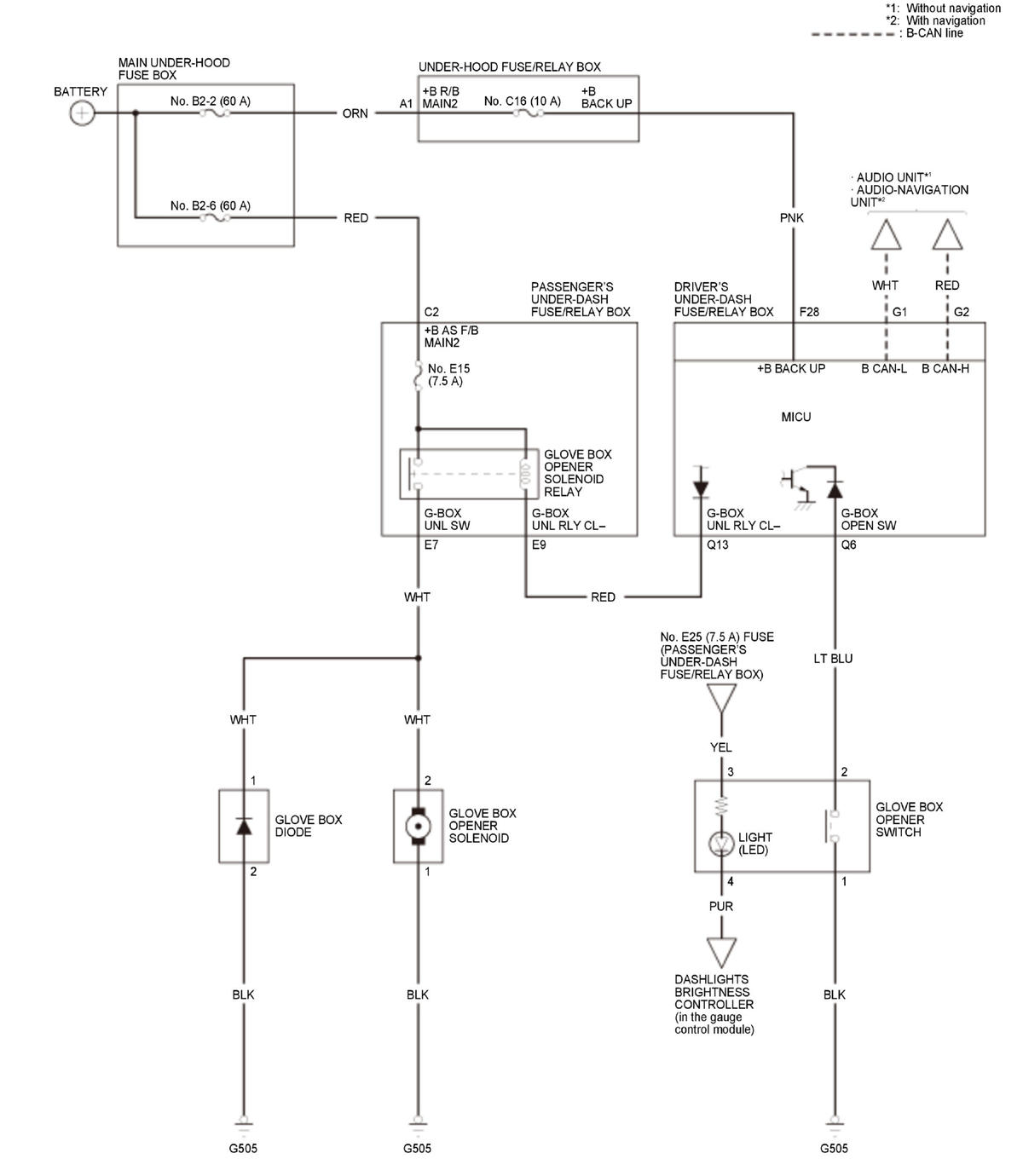

Home >> Acura >> 2020 >> RLX Base >> Repair and Diagnosis >> Accessories & Equipment >> Interior/Exterior Trim >> Interior Trim / Sunshade - Testing & Troubleshooting (Except Hybrid) >> Circuit Diagram >> Glove Box Opener Circuit Diagram
