Removal and Installation

  1. Center Console Panel - Remove - Refer to: Center Console Removal and Installation
  2. Integrated Dynamics System Switch - Remove

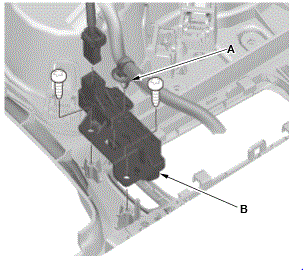

    G00600031Courtesy of HONDA, U.S.A., INC.
    		 1. Disconnect the integrated dynamics system switch connector.

    2. Remove the clip (A).

    3. Remove the screws with a TORX T20 bit.

    4. Remove the integrated dynamics system switch (B).
  3. All Removed Parts - Install
    1. Install the parts in the reverse order of removal.
