DTC P2623 (1.5 L Engine)

WARNING: This page is about a different car, the 2022 Honda Accord, 2021 Honda Accord, 2020 Honda Accord, 2019 Honda Accord, and 2018 Honda Accord. However, it is still accessible from the selected car via links, so may be relevant.

DTC P2623  : High Pressure Fuel Pump Spill Valve Malfunction

NOTE:  Before you troubleshoot, review the general troubleshooting information .

DTC Description Confirmed DTC Pending DTC
P2623 High Pressure Fuel Pump Spill Valve Malfunction

DTC (PGM-FI)

  1. Problem verification

    -1. Turn the vehicle to the ON mode.

    -2. Clear the DTC with the HDS.

    -3. Start the engine (If the engine does not start, crank the engine for 20 seconds).

    -4. Check for Pending or Confirmed DTCs with the HDS.

    DTC Description Confirmed DTC Pending DTC
    P0201 No. 1 Cylinder Injector Circuit Malfunction
    P0202 No. 2 Cylinder Injector Circuit Malfunction
    P0203 No. 3 Cylinder Injector Circuit Malfunction
    P0204 No. 4 Cylinder Injector Circuit Malfunction
    P2623 High Pressure Fuel Pump Spill Valve Malfunction

    Are DTC P2623 and P0201, P0202, P0203, or P0204 indicated at the same time?

    YES

    Go to step 2.

    NO

    Go to step 9.

    NO

    Intermittent failure, the system is OK at this time. Check for poor connections or loose terminals at the high pressure fuel pump and the PCM. If the on-board snapshot of this DTC is recorded, try to reproduce the failure under the same conditions with the on-board snapshot .

  2. Relay check

    -1. Turn the vehicle to the OFF (LOCK) mode.

    -2. Remove the injector relay .

    -3. Test the injector relay .

    Is the relay OK?

    YES

    Go to step 3.

    NO

    Replace the injector relay.

  3. Open wire check (+B IGP line)

    -1. Measure the voltage between test points 1 and 2.

    Test condition Vehicle OFF (LOCK) mode
    Injector relay: disconnected

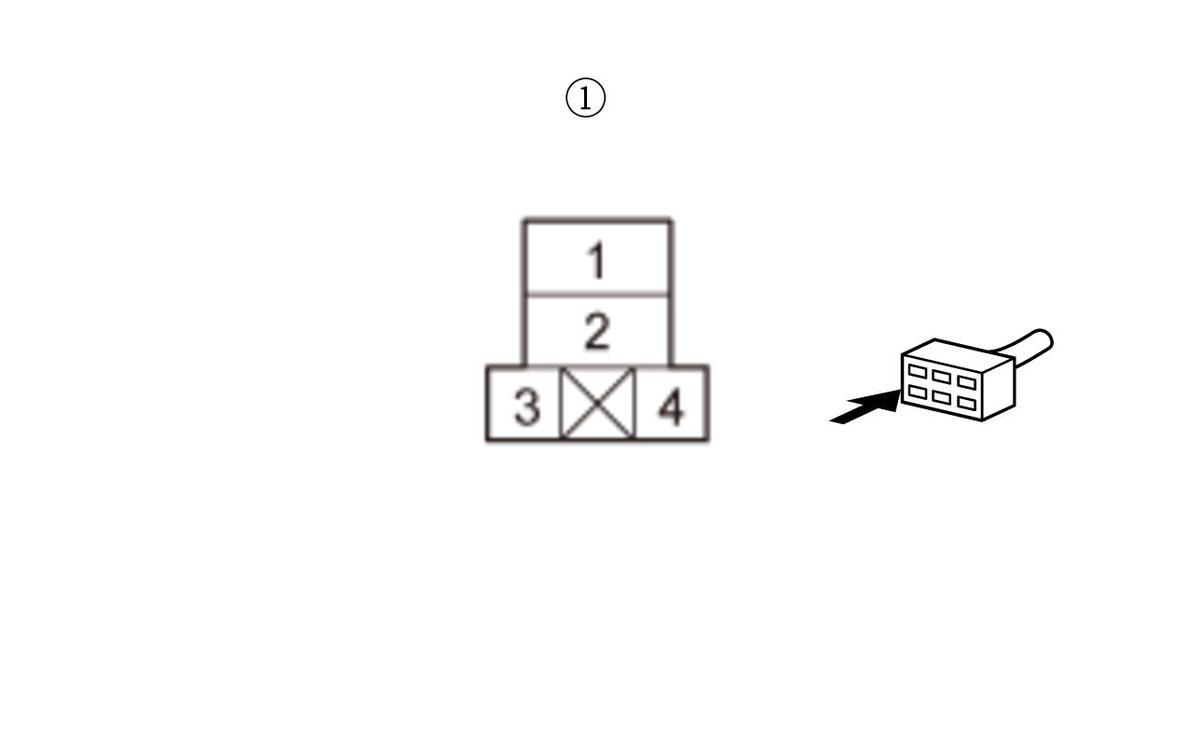

    Test point 1 Injector relay 4P socket (female terminals) No. 3:
    Test point 2 Body ground
    GHH394066Courtesy of HONDA, U.S.A., INC.

    Is there battery voltage?

    YES

    The +B IGP wire is OK. Go to step 4.

    NO

    Repair an open in the +B IGP wire between the No. A13 fuse and the injector relay.

  4. Open wire check (+B INJ line)

    -1. Measure the voltage between test points 1 and 2.

    Test condition Vehicle OFF (LOCK) mode
    Injector relay: disconnected
    Test point 1 Injector relay 4P socket (female terminals) No. 1:
    Test point 2 Body ground
    GHH394068Courtesy of HONDA, U.S.A., INC.

    Is there battery voltage?

    YES

    The +B INJ wire is OK. Go to step 6.

    NO

    Go to step 5.

  5. Fuse check

    -1. Check the following fuse.

    Fuse No. A11

    Is the fuse OK?

    YES

    Repair an open in the +B INJ wire between the No. A11 fuse and the injector relay. If needed, replace the under-hood fuse/relay box .

    NO

    Repair a short in the +B INJ wire between the No. A11 fuse and the injector relay. Also replace the No. A11 fuse. If needed, replace the under-hood fuse/relay box .

  6. Determine possible failure area (FI MAIN RLY CL- line, others)

    -1. Turn the vehicle to the ON mode.

    -2. Measure the voltage between test points 1 and 2.

    Test condition Vehicle in ON mode
    Injector relay: disconnected
    Test point 1 Injector relay 4P socket (female terminals) No. 3:
    Test point 2 Injector relay 4P socket (female terminals) No. 4:
    GHH394071Courtesy of HONDA, U.S.A., INC.

    Is there battery voltage?

    YES

    Go to step 8.

    NO

    Go to step 7.

  7. Open wire check (FI MAIN RLY CL- line)

    -1. Turn the vehicle to the OFF (LOCK) mode.

    -2. Jump the SCS line with the HDS, and wait more than 1 minute.

    -3. Disconnect the following connector.

    PCM connector A (50P)

    -4. Check for continuity between test points 1 and 2.

    Test condition Vehicle OFF (LOCK) mode
    Injector relay: disconnected
    PCM connector A (50P): disconnected
    Test point 1 Injector relay 4P socket (female terminals) No. 4:
    Test point 2 PCM connector A (50P) No. 5
    GHH394073Courtesy of HONDA, U.S.A., INC.

    Is there continuity?

    YES

    The FI MAIN RLY CL- wire is OK. Check for any authorized service information related to the DTCs or symptoms you are troubleshooting, or substitute a known-good PCM .

    NO

    Repair an open in the FI MAIN RLY CL- wire between the PCM (A5) and the injector relay.

  8. Open wire check (INJ RLY OUT line)

    -1. Turn the vehicle to the OFF (LOCK) mode.

    -2. Connect terminals A and B with a jumper wire.

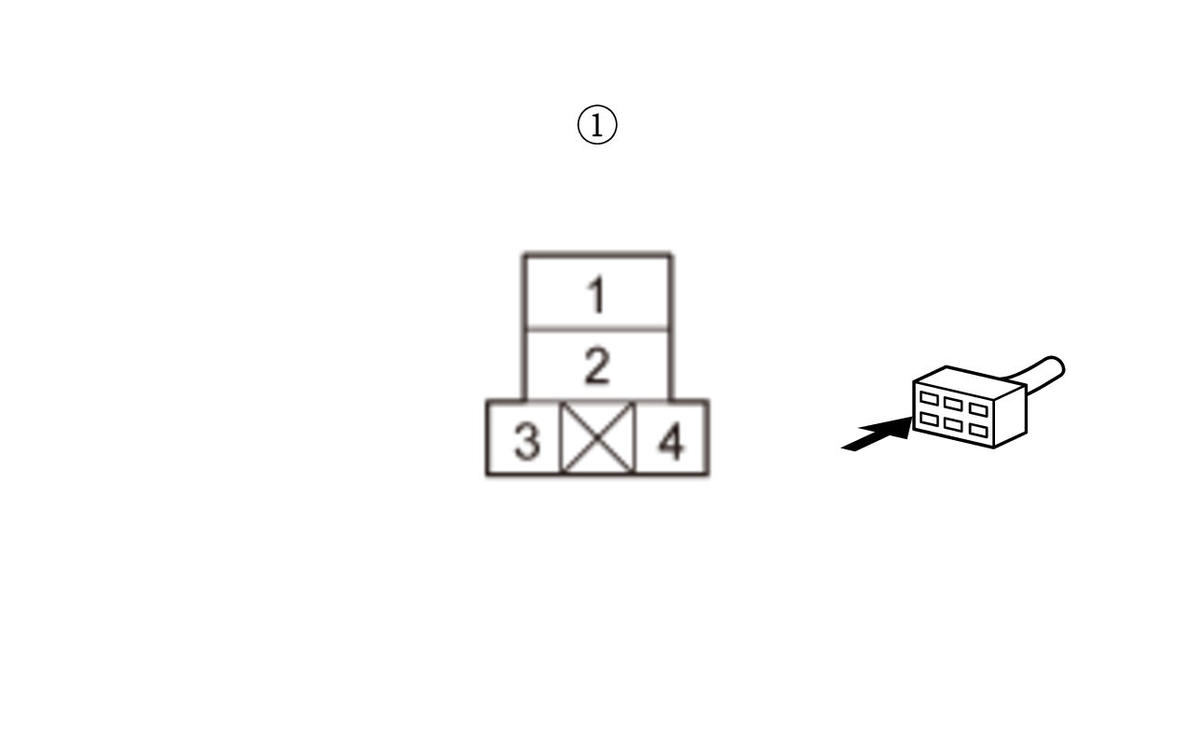

    Terminal A Injector relay 4P socket (female terminals) No. 1:
    Terminal B Injector relay 4P socket (female terminals) No. 2:
    GHH394076Courtesy of HONDA, U.S.A., INC.

    -3. Jump the SCS line with the HDS, and wait more than 1 minute.

    -4. Disconnect the following connector.

    PCM connector A (50P)

    -5. Measure the voltage between test points 1 and 2.

    Test condition Vehicle OFF (LOCK) mode
    Injector relay: disconnected
    Injector relay 4P socket No. 1 and No. 2: jumped
    PCM connector A (50P): disconnected
    Test point 1 PCM connector A (50P) No. 1
    Test point 2 Body ground
    Test point 1 PCM connector A (50P) No. 2
    Test point 2 Body ground

    Is there battery voltage?

    YES

    Go to step 9.

    NO

    Repair an open in the INJ RLY OUT wire between the PCM (A1, A2) and the injector relay.

  9. Open wire check (HPUMP H line, HPUMP L line)

    -1. Turn the vehicle to the OFF (LOCK) mode.

    -2. Remove the jumper wire from the injector relay 4P socket as needed.

    -3. Reinstall the injector relay.

    -4. Jump the SCS line with the HDS, and wait more than 1 minute.

    -5. Disconnect the following connector.

    PCM connector E (80P)

    -6. Check for continuity between test points 1 and 2.

    Test condition Vehicle OFF (LOCK) mode
    PCM connector A (50P): disconnected
    PCM connector E (80P): disconnected
    Test point 1 PCM connector E (80P) No. 1
    Test point 2 PCM connector E (80P) No. 14

    Is there continuity?

    YES

    Go to step 12.

    NO

    Go to step 10.

  10. Open wire check (HPUMP H line)

    -1. Disconnect the following connector.

    High pressure fuel pump 2P connector

    -2. Check for continuity between test points 1 and 2.

    Test condition Vehicle OFF (LOCK) mode
    PCM connector A (50P): disconnected
    PCM connector E (80P): disconnected
    High pressure fuel pump 2P connector: disconnected

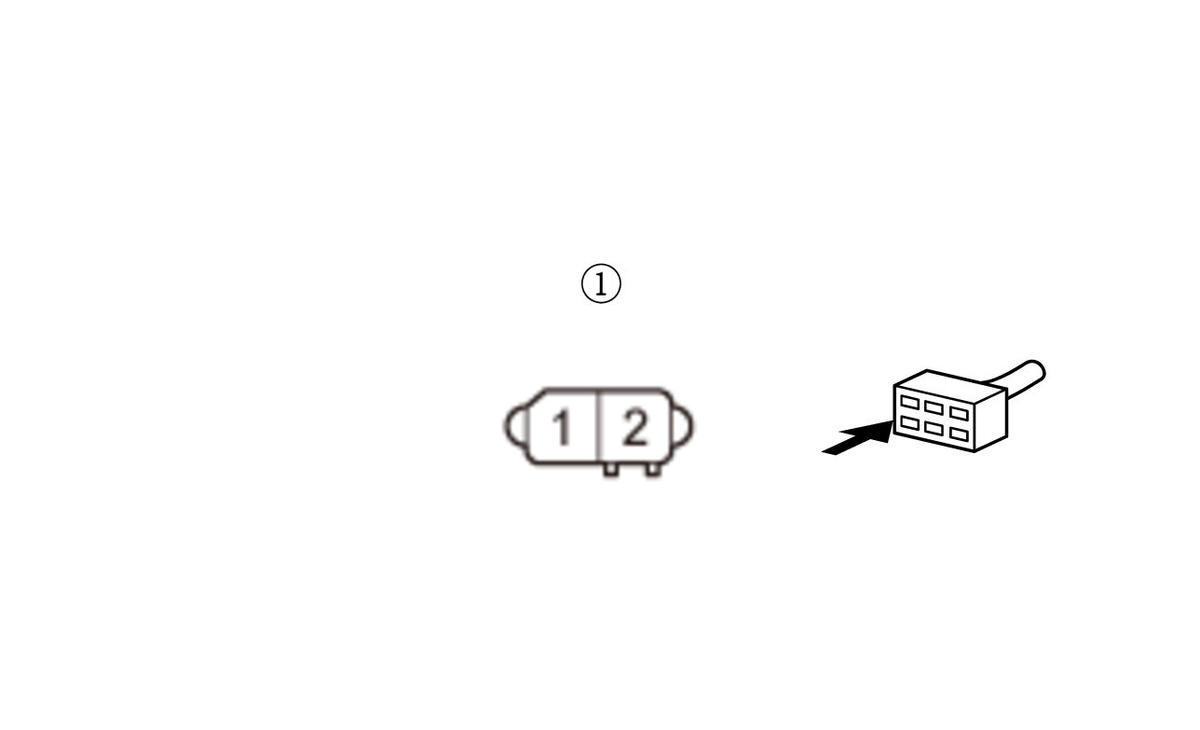

    Test point 1 High pressure fuel pump 2P connector (female terminals) No. 1:
    Test point 2 PCM connector E (80P) No. 1
    GHH394078Courtesy of HONDA, U.S.A., INC.

    Is there continuity?

    YES

    Go to step 11.

    NO

    Repair an open in the HPUMP H wire between the PCM (E1) and the high pressure fuel pump.

  11. Open wire check (HPUMP L line)

    -1. Check for continuity between test points 1 and 2.

    Test condition Vehicle OFF (LOCK) mode
    PCM connector A (50P): disconnected
    PCM connector E (80P): disconnected
    High pressure fuel pump 2P connector: disconnected
    Test point 1 High pressure fuel pump 2P connector (female terminals) No. 2:
    Test point 2 PCM connector E (80P) No. 14
    GHH394080Courtesy of HONDA, U.S.A., INC.

    Is there continuity?

    YES

    The HPUMP L wire is OK. Replace the high pressure fuel pump .

    NO

    Repair an open in the HPUMP L wire between the PCM (E14) and the high pressure fuel pump.

  12. Shorted wire check (HPUMP H line to power)

    -1. Disconnect the following connector.

    High pressure fuel pump 2P connector

    -2. Exit the SCS mode with the HDS.

    -3. Turn the vehicle to the ON mode.

    -4. Measure the voltage between test points 1 and 2.

    Test condition Vehicle ON mode
    PCM connector A (50P): disconnected
    PCM connector E (80P): disconnected
    High pressure fuel pump 2P connector: disconnected
    Test point 1 PCM connector E (80P) No. 1
    Test point 2 Body ground

    Is there any voltage?

    YES

    Repair a short to power in the HPUMP H wire between the PCM (E1) and the high pressure fuel pump.

    NO

    Go to step 13.

  13. Shorted wire check (HPUMP L line to power)

    -1. Measure the voltage between test points 1 and 2.

    Test condition Vehicle ON mode
    PCM connector A (50P): disconnected
    PCM connector E (80P): disconnected
    High pressure fuel pump 2P connector: disconnected
    Test point 1 PCM connector E (80P) No. 14
    Test point 2 Body ground

    Is there any voltage?

    YES

    Repair a short to power in the HPUMP L wire between the PCM (E14) and the high pressure fuel pump.

    NO

    Go to step 14.

  14. Shorted wire check (HPUMP H line to ground)

    -1. Turn the vehicle to the OFF (LOCK) mode.

    -2. Check for continuity between test points 1 and 2.

    Test condition Vehicle OFF (LOCK) mode
    PCM connector A (50P): disconnected
    PCM connector E (80P): disconnected
    High pressure fuel pump 2P connector: disconnected
    Test point 1 PCM connector E (80P) No. 1
    Test point 2 Body ground

    Is there continuity?

    YES

    Repair a short to ground in the HPUMP H wire between the PCM (E1) and the high pressure fuel pump.

    NO

    Go to step 15.

  15. Shorted wire check (HPUMP L line to ground)

    -1. Check for continuity between test points 1 and 2.

    Test condition Vehicle OFF (LOCK) mode
    PCM connector A (50P): disconnected
    PCM connector E (80P): disconnected
    High pressure fuel pump 2P connector: disconnected
    Test point 1 PCM connector E (80P) No. 14
    Test point 2 Body ground

    Is there continuity?

    YES

    Repair a short to ground in the HPUMP L wire between the PCM (E14) and the high pressure fuel pump.

    NO

    The HPUMP L wire is OK. Check for any authorized service information related to the DTCs or symptoms you are troubleshooting, or substitute a known-good PCM .
