DTC P0115 (1.5 L Engine)

WARNING: This page is about a different car, the 2022 Honda Accord, 2021 Honda Accord, 2020 Honda Accord, 2019 Honda Accord, and 2018 Honda Accord. However, it is still accessible from the selected car via links, so may be relevant.

DTC P0115  : ECT Sensor 1 Out of Range

NOTE:  Before you troubleshoot, review the general troubleshooting information .

DTC Description Confirmed DTC Pending DTC
P0115 ECT Sensor1 Out of Range

DTC (PGM-FI)

  1. Problem verification 1

    -1. Turn the vehicle to the ON mode.

    -2. Check the parameter (s) below with the HDS.

    Signal Threshold Current conditions
    Values Unit Values Unit
    ECT Sensor 1 Voltage 0.14 or less V

    Do the current condition (s) match the threshold?

    YES

    The failure is duplicated. Go to step 3.

    NO

    Go to step 2.

  2. Problem verification 2

    -1. Check the parameter (s) below with the HDS.

    Signal Threshold Current conditions
    Values Unit Values Unit
    ECT Sensor 1 Voltage 4.99 or more V

    Do the current condition (s) match the threshold?

    YES

    The failure is duplicated. Go to step 5.

    NO

    Intermittent failure, the system is OK at this time. Check for poor connections or loose terminals at ECT sensor 1 and the PCM. If the on-board snapshot of this DTC is recorded, try to reproduce the failure under the same conditions with the on-board snapshot .

  3. Determine possible failure area (ECT sensor 1, others)

    -1. Turn the vehicle to the OFF (LOCK) mode.

    -2. Disconnect the following connector.

    ECT sensor 1 2P connector

    -3. Turn the vehicle to the ON mode.

    -4. Check the parameter (s) below with the HDS.

    Signal Threshold Current conditions
    Values Unit Values Unit
    ECT Sensor 1 Voltage 0.14 or less V

    Do the current condition (s) match the threshold?

    YES

    Go to step 4.

    NO

    Replace ECT sensor 1 .

  4. Shorted wire check (TW line)

    -1. Turn the vehicle to the OFF (LOCK) mode.

    -2. Jump the SCS line with the HDS, and wait more than 1 minute.

    -3. Disconnect the following connector.

    PCM connector E (80P)

    -4. Check for continuity between test points 1 and 2.

    Test condition Vehicle OFF (LOCK) mode
      ECT sensor 1 2P connector: disconnected
      PCM connector E (80P): disconnected
    Test point 1 ECT sensor 1 2P connector (female terminals) No. 2:
    Test point 2 Body ground

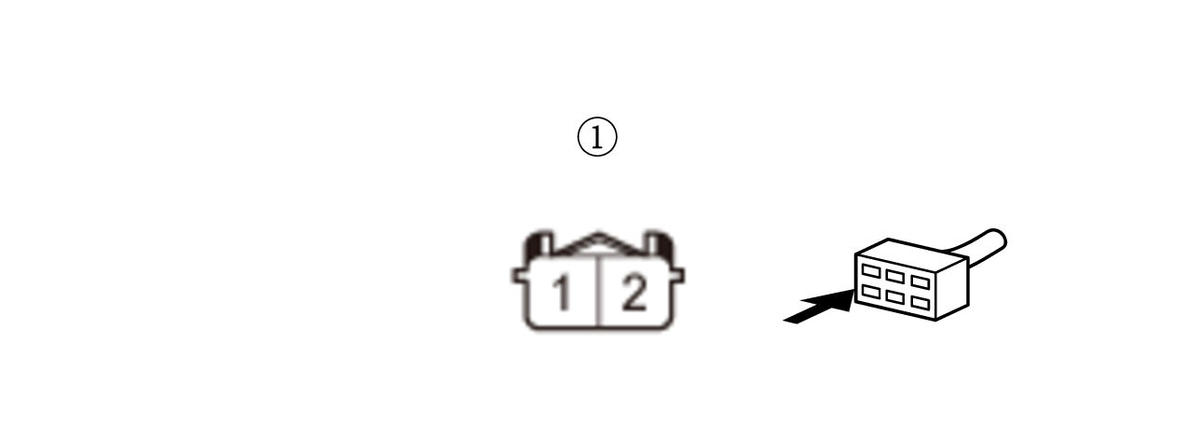

    GHH392550Courtesy of HONDA, U.S.A., INC.

    Is there continuity?

    YES

    Repair a short in the TW wire between the PCM (E52) and ECT sensor 1.

    NO

    The TW wire is OK. Check for any authorized service information related to the DTCs or symptoms you are troubleshooting, or substitute a known-good PCM .

  5. Determine possible failure area (ECT sensor 1, others)

    -1. Turn the vehicle to the OFF (LOCK) mode.

    -2. Disconnect the following connector.

    ECT sensor 1 2P connector

    -3. Connect terminals A and B with a jumper wire.

    Terminal A ECT sensor 1 2P connector (female terminals) No. 1:
    Terminal B ECT sensor 1 2P connector (female terminals) No. 2:
    GHH392553Courtesy of HONDA, U.S.A., INC.

    -4. Turn the vehicle to the ON mode.

    -5. Check the parameter (s) below with the HDS.

    Signal Threshold Current conditions
    Values Unit Values Unit
    ECT Sensor 1 Voltage 4.99 or more V

    Do the current condition (s) match the threshold?

    YES

    Go to step 6.

    NO

    Replace ECT sensor 1 .

  6. Determine possible failure area (TW line, others)

    -1. Turn the vehicle to the OFF (LOCK) mode.

    -2. Remove the jumper wire from the ECT sensor 1 2P connector.

    -3. Turn the vehicle to the ON mode.

    -4. Measure the voltage between test points 1 and 2.

    Test condition Vehicle ON mode
      ECT sensor 1 2P connector: disconnected
    Test point 1 ECT sensor 1 2P connector (female terminals) No. 2:
    Test point 2 Body ground
    GHH392555Courtesy of HONDA, U.S.A., INC.

    Is there about 5.0 V?

    YES

    Go to step 7.

    NO

    Go to step 8.

  7. Open wire check (SG2 line)

    -1. Turn the vehicle to the OFF (LOCK) mode.

    -2. Jump the SCS line with the HDS, and wait more than 1 minute.

    -3. Disconnect the following connector.

    PCM connector E (80P)

    -4. Check for continuity between test points 1 and 2.

    Test condition Vehicle OFF (LOCK) mode
      ECT sensor 1 2P connector: disconnected
      PCM connector E (80P): disconnected
    Test point 1 ECT sensor 1 2P connector (female terminals) No. 1:
    Test point 2 PCM connector E (80P) No. 78
    GHH392557Courtesy of HONDA, U.S.A., INC.

    Is there continuity?

    YES

    The SG2 wire is OK. Check for any authorized service information related to the DTCs or symptoms you are troubleshooting, or substitute a known-good PCM .

    NO

    Repair an open in the SG2 wire between the PCM (E78) and ECT sensor 1.

  8. Open wire check (TW line)

    -1. Turn the vehicle to the OFF (LOCK) mode.

    -2. Jump the SCS line with the HDS, and wait more than 1 minute.

    -3. Disconnect the following connector.

    PCM connector E (80P)

    -4. Check for continuity between test points 1 and 2.

    Test condition Vehicle OFF (LOCK) mode
      ECT sensor 1 2P connector: disconnected
      PCM connector E (80P): disconnected
    Test point 1 ECT sensor 1 2P connector (female terminals) No. 2:
    Test point 2 PCM connector E (80P) No. 52

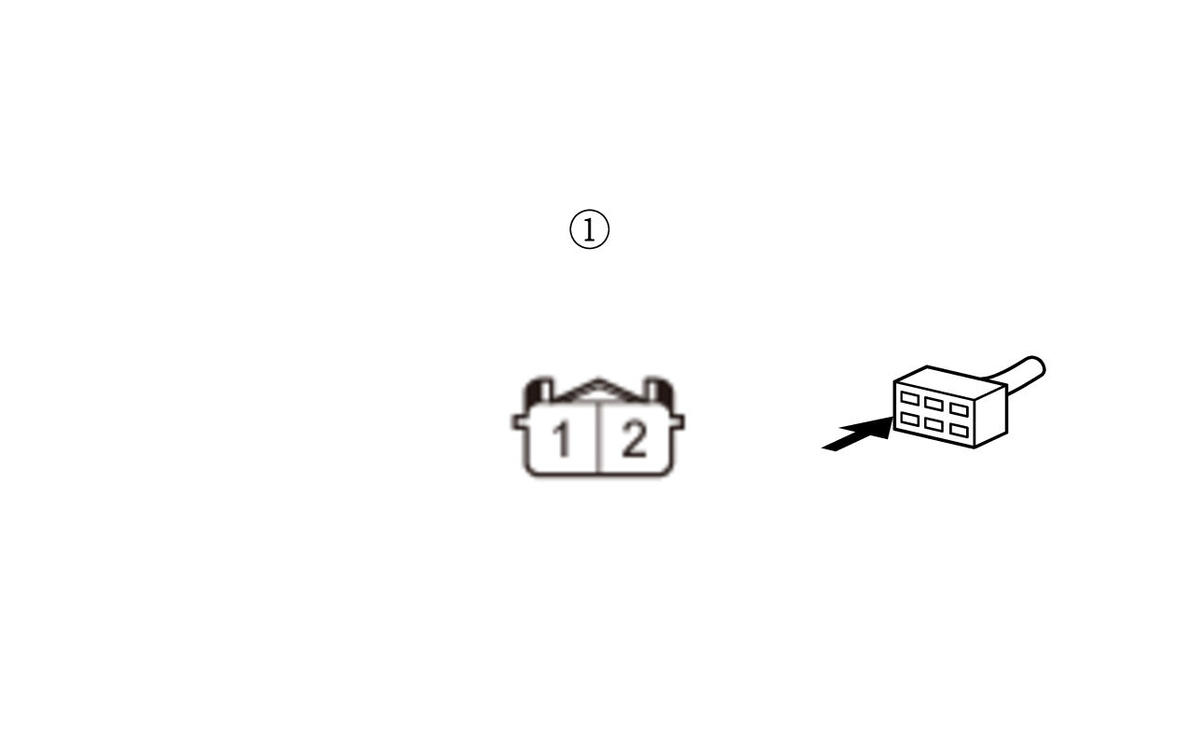

    GHH392559Courtesy of HONDA, U.S.A., INC.

    Is there continuity?

    YES

    The TW wire is OK. Check for any authorized service information related to the DTCs or symptoms you are troubleshooting, or substitute a known-good PCM .

    NO

    Repair an open in the TW wire between the PCM (E52) and ECT sensor 1.
