DTC P2182 (1.5 L Engine)
DTC P2182: Engine Coolant Temperature (ECT) Sensor 2 Out of Range
General Description

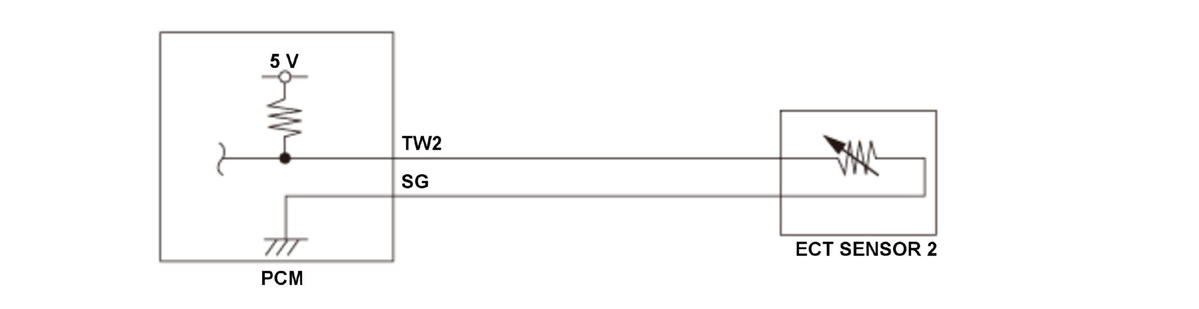

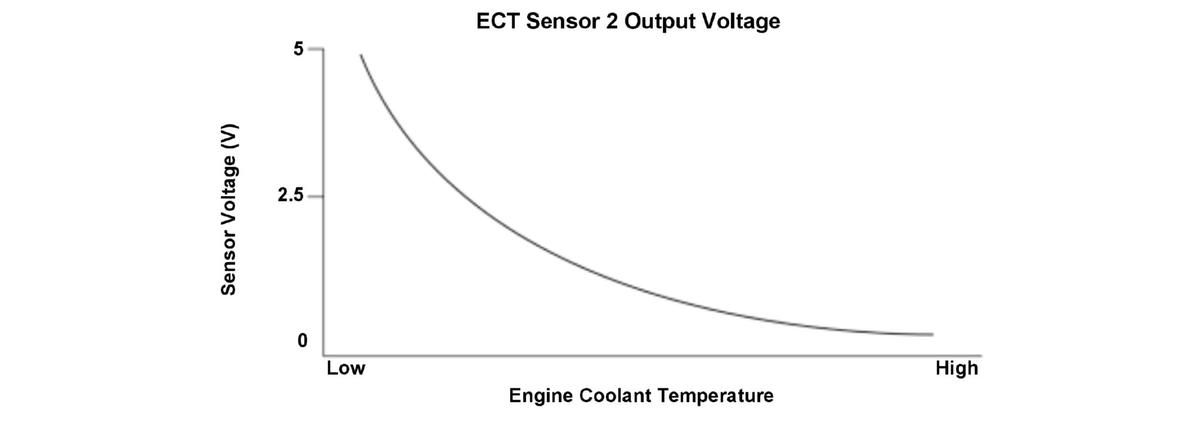

Engine coolant temperature (ECT) sensor 2 is a thermistor attached to the radiator. The powertrain control module (PCM) applies voltage (about 5 V) to the TW2 signal circuit through a pull-up resistor. As the engine coolant temperature cools, the ECT sensor 2 resistance increases, and the PCM detects a high signal voltage. As the engine coolant warms, the ECT sensor 2 resistance decreases, and the PCM detects a low signal voltage. If the ECT sensor 2 output voltage is a set value, the PCM detects a malfunction and stores a DTC.
Monitor Execution, Sequence, Duration, DTC Type
| Execution | Continuous |
| Sequence | None |
| Duration | 6 seconds or more |
| DTC Type | Two drive cycles, MIL on |
Enable Conditions
| Condition | |
|---|---|
| Vehicle | ON mode |
Malfunction Threshold
The ECT sensor 2 output voltage [ECT Sensor 2 Voltage] is 0.14 V or less, or 4.99 V or more for at least 6 seconds.
[ ]: HDS Parameter
Possible Cause
NOTE: The causes shown may not be a complete list of all potential problems, and it is possible that there may be other causes.
- ECT sensor 2 failure
- PCM internal circuit failure
Diagnosis Details
Conditions for setting the DTC
When a malfunction is detected during the first drive cycle, a Pending DTC is stored in the PCM memory. If the malfunction returns in the next (second) drive cycle, the MIL comes on and a Confirmed DTC and the freeze data are stored.
Conditions for clearing the DTC
The MIL is cleared if the malfunction does not return in three consecutive trips in which the diagnostic runs. The MIL, the Pending DTC, the Confirmed DTC, and the freeze data can be cleared with the scan tool Clear command or by disconnecting the 12 volt battery.
