DTC P0501 (PGM-FI System (1.5 L Engine)) (2020 2021)

WARNING: This page is about a different car, the 2022 Honda Accord, 2021 Honda Accord, 2020 Honda Accord, 2019 Honda Accord, and 2018 Honda Accord. However, it is still accessible from the selected car via links, so may be relevant.

DTC P0501: Vehicle Speed Sensor A Out of Range

General Description

Courtesy of HONDA, U.S.A., INC.

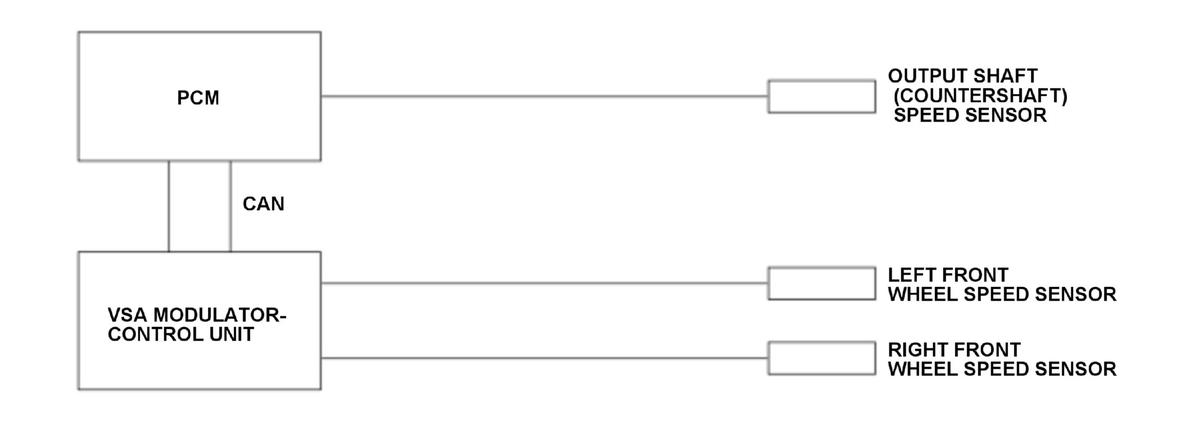

The powertrain control module (PCM) monitors the vehicle speed converted from the wheel speed sensors to detect malfunctions. If the left front wheel speed sensor output is a specified value for a specified duration, the PCM detects a malfunction and stores a DTC.

Monitor Execution, Sequence, Duration, DTC Type

Execution	Continuous
Sequence	None
Duration	6.0 seconds or more
DTC Type	Two drive cycles, MIL on

Enable Conditions

Condition
Vehicle	Running

Malfunction Threshold

The left front wheel speed sensor outputs 156 mph (250 km/h) or more for at least 6.0 seconds.

Possible Cause

NOTE: The causes shown may not be a complete list of all potential problems, and it is possible that there may be other causes.

Left front wheel speed sensor failure
VSA modulator-control unit internal circuit failure

Diagnosis Details

Conditions for setting the DTC

When a malfunction is detected during the first drive cycle, a Pending DTC is stored in the PCM memory. If the malfunction returns in the next (second) drive cycle, the MIL comes on and a Confirmed DTC and the freeze data are stored.

Conditions for clearing the DTC

The MIL is cleared if the malfunction does not return in three consecutive trips in which the diagnostic runs. The MIL, the Pending DTC, the Confirmed DTC, and the freeze data can be cleared with the scan tool clear command or by disconnecting the 12 volt battery.
