DTC P0201, P0202, P0203, P0204 (1.5 L Engine)

WARNING: This page is about a different car, the 2022 Honda Accord, 2021 Honda Accord, 2020 Honda Accord, 2019 Honda Accord, and 2018 Honda Accord. However, it is still accessible from the selected car via links, so may be relevant.

DTC P0201: No. 1 Cylinder Injector Circuit Malfunction DTC P0202: No. 2 Cylinder Injector Circuit Malfunction DTC P0203: No. 3 Cylinder Injector Circuit Malfunction DTC P0204: No. 4 Cylinder Injector Circuit Malfunction

General Description

Courtesy of HONDA, U.S.A., INC.

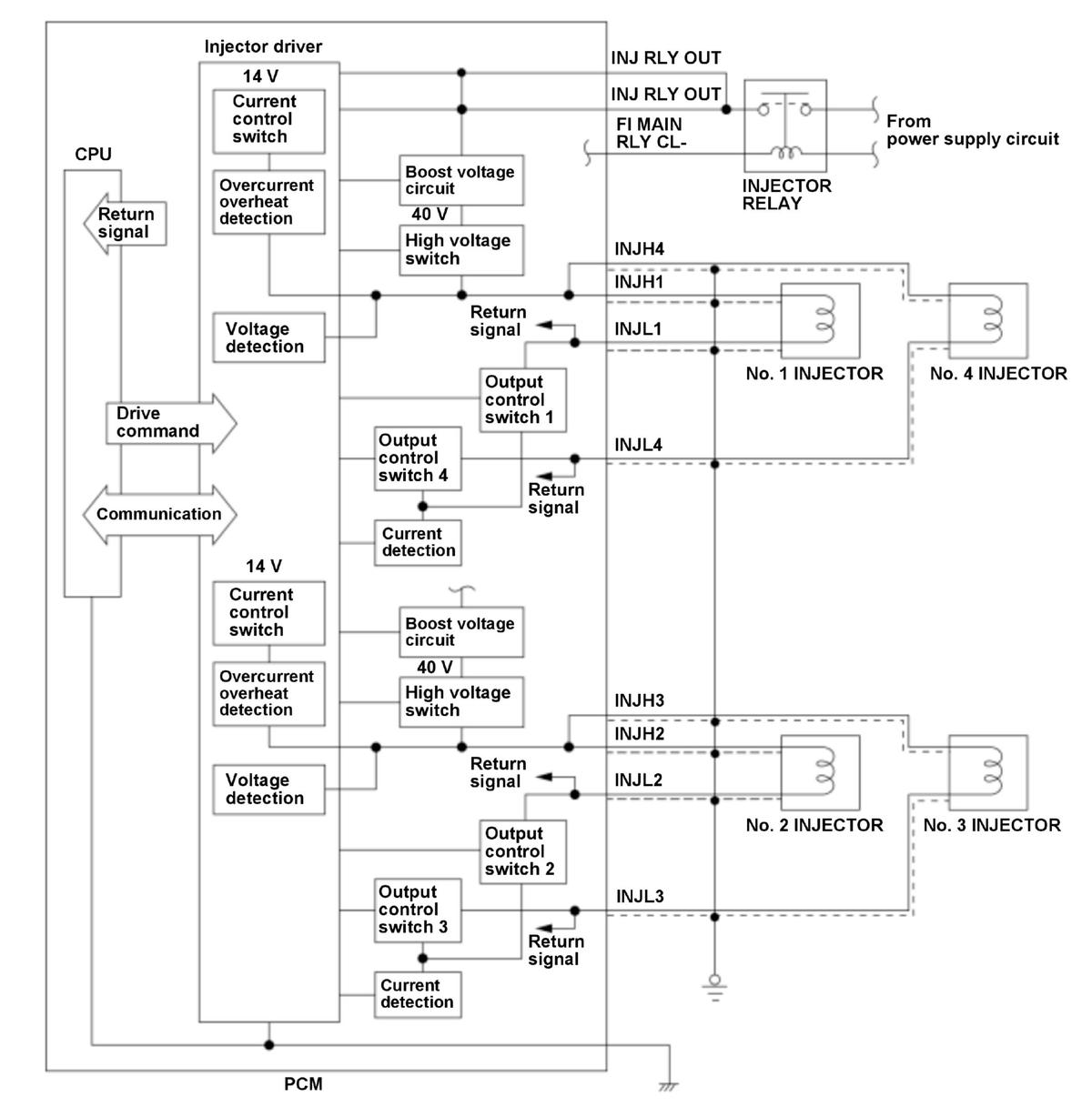

The injector supplies fuel to the engine and is controlled by the powertrain control module (PCM) ON/OFF command. In the PCM, the injector driver receives a drive commands from the CPU and drives the injector. The injector driver monitors injector currents and a terminal voltage of PCM and transmits results to the CPU. If the monitored conditions are abnormal for a specified time, the PCM detects a malfunction and stores a DTC.

Monitor Execution, Sequence, Duration, DTC Type

Execution	Continuous
Sequence	None

Duration	-
DTC Type	One drive cycle, MIL on

Enable Conditions

Condition	Minimum	Maximum
12 volt battery voltage [BATTERY]	10 V	-
State of the engine	Running
Crankshaft position (CKP) sensor	Normal
Camshaft position (CMP) sensor	Normal
Other	Other than during fuel cut-off operation

[ ]: HDS Parameter

Malfunction Threshold

Either of the conditions occurs at least 30 times (counts once per engine cycle):

Symptom: Injector current not flowing
The injector current is 0.2 to 1 A* or less.
Symptom: Injector overcurrent
The injector current is 12 to 20 A* or more.
Symptom: PCM terminal (to injector) short to ground
The PCM terminal (to injector) voltage is 1 to 1.3 V* or less.
Symptom: PCM terminal (to injector) short to power
The PCM terminal (to injector) voltage is 4.6 to 5 V* or more.
Symptom: Return signal abnormal
The return signal does not change.

*: Varies with driving condition.

Possible Cause

NOTE: The causes shown may not be a complete list of all potential problems, and it is possible that there may be other causes.

DTC: P0201

No. 1 injector line open
No. 1 injector line short to ground
No. 1 injector line short to power
No. 4 injector line short to ground
No. 1 injector failure

DTC: P0202

No. 2 injector line open
No. 2 injector line short to ground
No. 2 injector line short to power
No. 3 injector line short to ground
No. 2 injector failure

DTC: P0203

No. 3 injector line open
No. 3 injector line short to ground
No. 3 injector line short to power
No. 2 injector line short to ground
No. 3 injector failure

DTC: P0204

No. 4 injector line open
No. 4 injector line short to ground
No. 4 injector line short to power
No. 1 injector line short to ground
No. 4 injector failure

Common

Injector relay failure
PCM internal circuit failure (injector driver power supply line open)
High pressure fuel pump failure

Diagnosis Details

Conditions for setting the DTC

When a malfunction is detected, the MIL comes on and a Pending DTC, a Confirmed DTC, and the freeze data are stored in the PCM memory.

Conditions for clearing the DTC

The MIL is cleared if the malfunction does not return in three consecutive trips in which the diagnostic runs. The MIL, the Pending DTC, the Confirmed DTC, and the freeze data can be cleared with the scan tool Clear command.
