Adaptive Damper Control Unit Connector for Inputs and Outputs
WARNING: This page is about a different car, the 2022 Honda Accord, 2021 Honda Accord, 2020 Honda Accord, 2019 Honda Accord, and 2018 Honda Accord. However, it is still accessible from the selected car via links, so may be relevant.

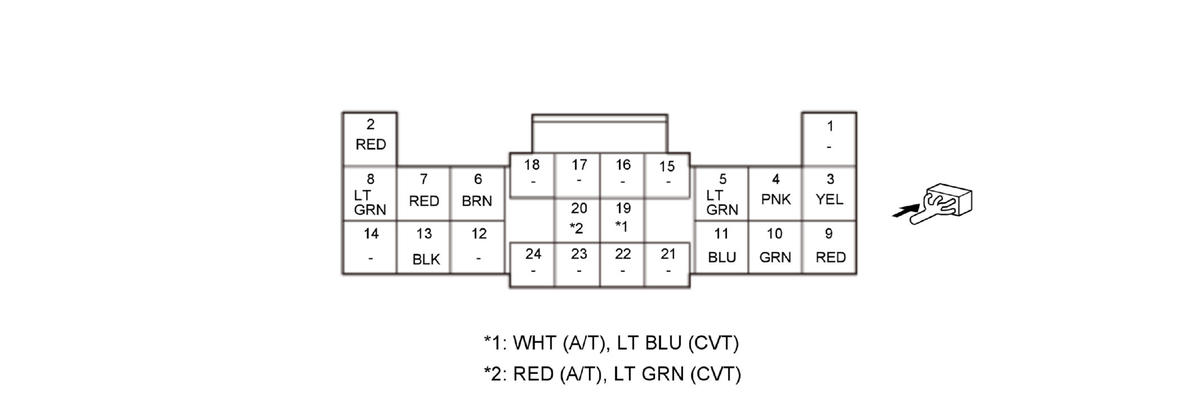

Adaptive Damper Control Unit Inputs and Outputs for 24P Connector (female terminals)
| Terminal Number | Terminal sign | Description |
|---|---|---|
| 1 | Not used | --- |
| 2 | IG1 OPTION | Power source for the adaptive damper control unit |
| 3 | ADS COIL OUT FL H | Drives left-front damper coil |
| 4 | ADS COIL OUT FL L | Ground for the left-front damper coil |
| 5 | ADS COIL OUT RL H | Drives left-rear damper coil |
| 6 | ADS COIL OUT RR L | Ground for the right-rear damper coil |
| 7 | ADS COIL OUT RR H | Drives right-rear damper coil |
| 8 | +B ADS | Power source for the fail-safe relay |
| 9 | ADS COIL OUT FR L | Ground for the right-front damper coil |
| 10 | ADS COIL OUT FR H | Drives right-front damper coil |
| 11 | ADS COIL OUT RL L | Ground for the left-rear damper coil |
| 12 | Not used | --- |
| 13 | GND | Ground for the adaptive damper control unit |
| 14 | Not used | --- |
| 15 | Not used | --- |
| 16 | Not used | --- |
| 17 | Not used | --- |
| 18 | Not used | --- |
| 19 | F-CAN A_H *1F-CAN B_H *2 | F-CAN communication circuit |
| 20 | F-CAN A_L *1F-CAN B_L *2 | F-CAN communication circuit |
| 21 | Not used | --- |
| 22 | Not used | --- |
| 23 | Not used | --- |
| 24 | Not used | --- |
*1: A/T
*2: CVT
