Multipurpose Camera Unit Connector for Inputs and Outputs
WARNING: This page is about a different car, the 2022 Honda Accord, 2021 Honda Accord, 2020 Honda Accord, 2019 Honda Accord, and 2018 Honda Accord. However, it is still accessible from the selected car via links, so may be relevant.

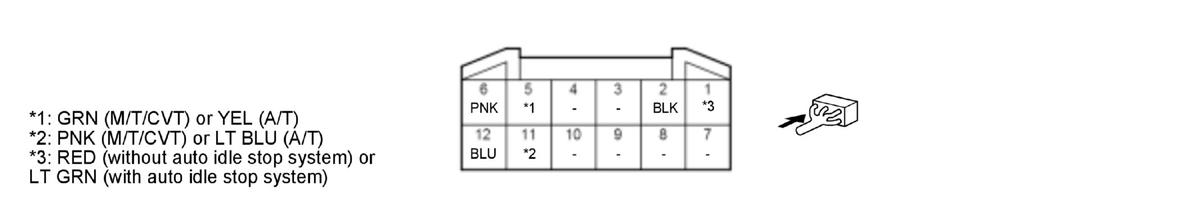

Multipurpose Camera Unit 12P Connector (female terminals)
| Terminal number | Terminal name | Description |
| 1 *3 | IG1 OPTION | Power source for the multipurpose camera unit |
| 1 *4 | IG1 VSA 2 | Power source for the multipurpose camera unit |
| 2 | GND | Ground circuit for the multipurpose camera unit |
| 3 | Not used | - |
| 4 | Not used | - |
| 5 | F-CAN D_L *1F-CAN E_L *2 | F-CAN communication (low) circuit |
| 6 | ACC-CAN_L | ACC-CAN communication (low) circuit |
| 7 | Not used | - |
| 8 | Not used | - |
| 9 | Not used | - |
| 10 | Not used | - |
| 11 | F-CAN D_H *1F-CAN E_H *2 | F-CAN communication (high) circuit |
| 12 | ACC-CAN_H | ACC-CAN communication (high) circuit |
*1: M/T or CVT
*2: A/T
*3: Without auto idle stop system
*4: With auto idle stop system
