Millimeter Wave Radar Connector for Inputs and Outputs
WARNING: This page is about a different car, the 2022 Honda Accord, 2021 Honda Accord, 2020 Honda Accord, 2019 Honda Accord, and 2018 Honda Accord. However, it is still accessible from the selected car via links, so may be relevant.

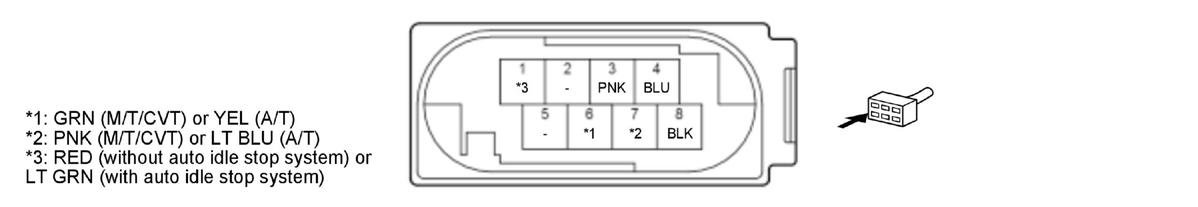

Millimeter Wave Radar 8P Connector (female terminals)
| Terminal number | Terminal name | Description |
| 1 *3 | IG1 OPTION | Power source for the millimeter wave radar |
| 1 *4 | IG1 VSA 2 | Power source for the millimeter wave radar |
| 2 | Not used | - |
| 3 | ACC-CAN_L | ACC-CAN communication (low) circuit |
| 4 | ACC-CAN_H | ACC-CAN communication (high) circuit |
| 5 | Not used | - |
| 6 | F-CAN D_L *1F-CAN E_L *2 | F-CAN communication (low) circuit |
| 7 | F-CAN D_H *1F-CAN E_H *2 | F-CAN communication (high) circuit |
| 8 | GND | Ground circuit for the millimeter wave radar |
*1: M/T or CVT
*2: A/T
*3: Without auto idle stop system
*4: With auto idle stop system
