Power Window Master Switch Connector for Inputs and Outputs

WARNING: This page is about a different car, the 2022 Honda Accord, 2021 Honda Accord, 2020 Honda Accord, 2019 Honda Accord, and 2018 Honda Accord. However, it is still accessible from the selected car via links, so may be relevant.

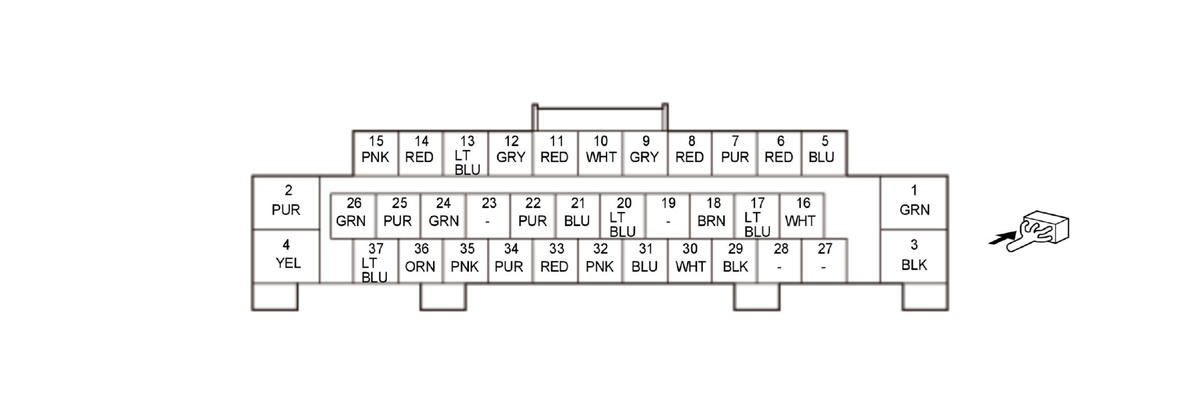

Power Window Master Switch 37P Connector (female terminals)

Courtesy of HONDA, U.S.A., INC.

Terminal number	Terminal name	Description	Signal
1	P/W DR MTR DOWN	Drives driver's power window motor	With driver's power window motor DOWN operation: about battery voltageIf none of the above conditions are met: less than 0.2 V
2	P/W DR MTR UP	Drives driver's power window motor	With driver's power window motor UP operation: about battery voltageIf none of the above conditions are met: less than 0.2 V
3	GND	Ground for power window master switch	Less than 0.2 V at all times
4	+B P/W DR	+B power source	About battery voltage at all times
5 *1	DR MEMORY SEAT SW POS1	Detects driving position memory switch position 1 signal	With driving position memory switch POSITION 1 ON: less than 0.2 VWith driving position memory switch POSITION 1 OFF: about battery voltage
6 *1	DR MEMORY SEAT SW POS2	Detects driving position memory switch position 2 signal	With driving position memory switch POSITION 2 ON: less than 0.2 VWith driving position memory switch POSITION 2 OFF: about battery voltage
7	DR KEY CYL LOCK	Detects driver's door key cylinder switch (LOCK) signal	With driver's door key cylinder switch UNLOCK: about battery voltageWith driver's door key cylinder switch LOCK: less than 0.2 V
8	DR KEY CYL UNLOCK	Detects driver's door key cylinder switch (UNLOCK) signal	With driver's door key cylinder switch LOCK: about battery voltageWith driver's door key cylinder switch UNLOCK: less than 0.2 V
9	TRUNK OPEN SW(INTR)	Detects trunk lid opener switch signal	With trunk lid opener switch ON: less than 0.2 VWith trunk lid opener switch OFF: about battery voltage
10	MIRROR R COM	Detects power mirror DOWN or LEFT function signal	With vehicle in ON mode and right power mirror DOWN or LEFT function: about battery voltage
11	MIRROR R LR	Detects power mirror DOWN or RIGHT function signal	With vehicle in ON mode and right power mirror DOWN or RIGHT function: about battery voltage
12	MIRROR UD	Detects power mirror UP or LEFT function signal	With vehicle in ON mode and power mirror UP or LEFT function: about battery voltage
13	P/W RR L SW RLY UP	Drives left rear power window motor	With left rear power window moving to UP using power window master switch: about battery voltageIf none of above conditions are met: less than 0.2 V

*1: With DPMS

*2: With mirror defogger

*3: With reverse tilt mirror

Terminal number	Terminal name	Description	Signal
14	P/W RR L SW RLY DOWN	Drives left rear power window motor	With left rear power window moving to DOWN using power window master switch: about battery voltageIf none of above conditions are met: less than 0.2 V
15 *2	H/MIRROR	Drives left power mirror defogger	With mirror defogger ON: about battery voltage
16 *3	R/C MIRROR SEL L-R	Detects power mirror reverse tilt function signal	With vehicle in ON mode and power mirror reverse tilt function: about battery voltage
17 *1	DR MEMORY SEAT SW MEMORY	Detects driving position memory switch (SET) signal	With driving position memory switch SET ON: less than 0.2 VWith driving position memory switch SET OFF: about battery voltage
18	IG2 A/C	IG2 power source	With vehicle in ON mode: about battery voltage
19	Not used	---	---
20	DR SILCON UNLOCK	Detects driver's door lock knob switch (UNLOCK) signal	With driver's door lock knob switch LOCK: about battery voltageWith driver's door lock knob switch UNLOCK: less than 0.2 V
21	DR SILCON LOCK	Detects driver's door lock knob switch (LOCK) signal	With driver's door lock knob switch UNLOCK: about battery voltageWith driver's door lock knob switch LOCK: less than 0.2 V
22 *1	DR MEMORY SEAT SW IND1	Outputs driving position memory switch indicator 1 signal	Indicator 1 ON: pulse (depending on indicator brightness)Indicator 1 OFF: less than 0.2 V
23	Not used	---	---
24 *1	DR MEMORY SEAT SW IND2	Outputs driving position memory switch indicator 2 signal	Indicator 2 ON: pulse (depending on indicator brightness)Indicator 2 OFF: less than 0.2 V
25	P/W RR R SW RLY DOWN	Drives right rear power window motor	With right rear power window moving to DOWN using power window master switch: about battery voltageIf none of above conditions are met: less than 0.2 V
26	P/W RR R SW RLY UP	Drives right rear power window motor	With right rear power window moving to UP using power window master switch: about battery voltageIf none of above conditions are met: less than 0.2 V
27	Not used	---	---
28	Not used	---	---
29	GND	Ground for power window master switch	Less than 0.2 V at all times
30	P/W SW ILLUMI	Outputs illumination signal	With combination light switch PARKING: about battery voltageWith combination light switch OFF: less than 0.2 V
31	B-CAN_L	Communication line	---
32	B-CAN_H	Communication line	---
33	P/W DR MTR PLSA	Detects driver's power window motor hall IC unit (pulser) signal	---
34	P/W DR MTR VCC	Drives driver's power window motor hall IC (pulser) unit	With door multiplex control unit is wake-up mode and driver's power window motor operation: about battery voltageIf none of above conditions are met: less than 0.2 V
35	P/W DR MTR PLSB	Detects driver's power window motor hall IC unit (pulser) signal	---
36	LIN(P/W)	Communication line	---
37	+B BACK UP	+B power source	About battery voltage at all times

*1: With DPMSr

*2: With mirror defogge

*3: With reverse tilt mirror
