Front Passenger's Power Window Switch Connector for Inputs and Outputs
WARNING: This page is about a different car, the 2022 Honda Accord, 2021 Honda Accord, 2020 Honda Accord, 2019 Honda Accord, and 2018 Honda Accord. However, it is still accessible from the selected car via links, so may be relevant.

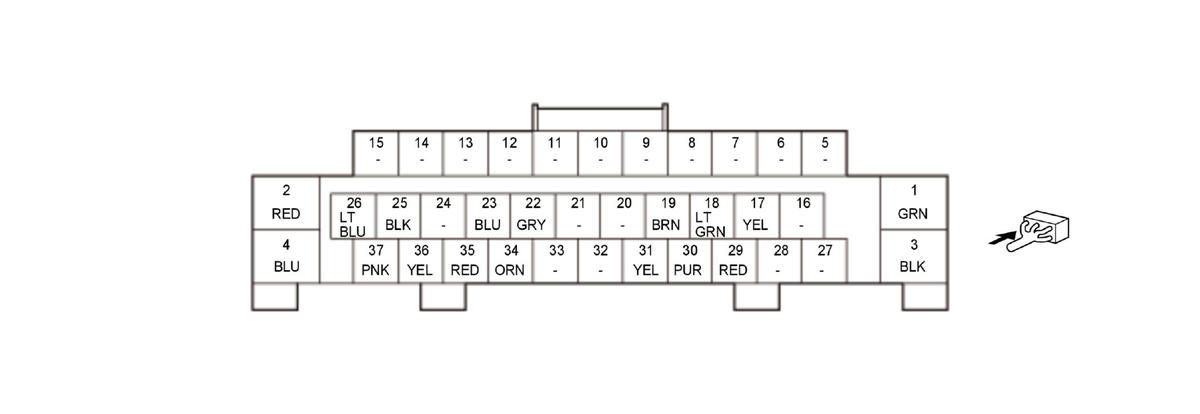

Front Passenger's Power Window Switch 37P Connector (female terminals)
| Terminal number | Terminal name | Description | Signal |
|---|---|---|---|
| 1 | +B P/W AS | +B power source | About battery voltage at all times |
| 2 | P/W AS MTR DOWN | Drives front passenger's power window motor | With front passenger's power window motor DOWN operation: about battery voltageIf none of above conditions are met: less than 0.2 V |
| 3 | GND | Ground for front passenger's power window switch | Less than 0.2 V at all times |
| 4 | P/W AS MTR UP | Drives front passenger's power window motor | With front passenger's power window motor UP operation: about battery voltageIf none of above conditions are met: less than 0.2 V |
| 5 | Not used | --- | --- |
| 6 | Not used | --- | --- |
| 7 | Not used | --- | --- |
| 8 | Not used | --- | --- |
| 9 | Not used | --- | --- |
| 10 | Not used | --- | --- |
| 11 | Not used | --- | --- |
| 12 | Not used | --- | --- |
| 13 | Not used | --- | --- |
| 14 | Not used | --- | --- |
| 15 | Not used | --- | --- |
| 16 | Not used | --- | --- |
| 17 | AS MIRROR COM | Detects power mirror DOWN or LEFT function signal | With vehicle in ON mode and right power mirror DOWN or LEFT function: about battery voltage |
| 18 | AS MIRROR UD | Detects power mirror UP or LEFT function signal | With vehicle in ON mode and right power mirror UP or LEFT function: about battery voltage |
| 19 | AS MIRROR LR | Detects power mirror DOWN or RIGHT function signal | With vehicle in ON mode and right power mirror DOWN or RIGHT function: about battery voltage |
| 20 | Not used | --- | --- |
| 21 | Not used | --- | --- |
| 22 * 1 | AS MIRROR VREF | Outputs AS MIRROR VREF signal | When front passenger's power window control unit is wake-up mode: about 5 V |
| 23 *2 | H/MIRROR AS | Drives right power mirror defogger | With power mirror defogger ON: about battery voltage |
*1: With reverse tilt mirror
*2: With mirror defogger
| Terminal number | Terminal name | Description | Signal |
|---|---|---|---|
| 24 | Not used | --- | --- |
| 25 | P/W AS MTR SGND | Ground for front passenger's power window motor pulser | Less than 0.2 V at all times |
| 26 *1 | AS MIRROR AGND | Ground for power mirror position sensor | Less than 0.2 V at all times |
| 27 | Not used | --- | --- |
| 28 | Not used | --- | --- |
| 29 *1 | AS MIRROR HLSE | Detects AS MIRROR HLSE signal | About 0 - 5 V (depending on power mirror horizontal position) |
| 30 *1 | AS MIRROR VLSE | Detects AS MIRROR VLSE signal | About 0 - 5 V (depending on power mirror vertical position) |
| 31 | P/W AS MTR VCC | Drives front passenger's power window motor hall IC (pulser) unit | With front passenger's power window control unit is wake-up mode and front passenger's power window motor operation: about battery voltageIf none of above conditions are met: less than 0.2 V |
| 32 | Not used | --- | --- |
| 33 | Not used | --- | --- |
| 34 | LIN (P/W) | Communication line | --- |
| 35 | P/W AS MTR PLSA | Detects front passenger's power window motor hall IC (pulser) unit signal | --- |
| 36 | AS SILCON UNLOCK | Detects front passenger's door lock knob switch (UNLOCK) signal | With front passenger's door lock knob switch LOCK: about battery voltageWith front passenger's door lock knob switch UNLOCK: less than 0.2 V |
| 37 | P/W AS MTR PLSB | Detects front passenger's power window motor hall IC (pulser) unit signal | --- |
*1: With reverse tilt mirror
*2: With mirror defogger
