DTC U1260 (CVT (TCM))

WARNING: This page is about a different car, the 2022 Honda Accord, 2021 Honda Accord, 2020 Honda Accord, 2019 Honda Accord, and 2018 Honda Accord. However, it is still accessible from the selected car via links, so may be relevant.

DTC U1260  : Lost Communication With Auxiliary Transmission Fluid Pump

NOTE:

DTC Description Confirmed DTC Pending DTC Freeze Frame
U1260 Lost Communication With Auxiliary Transmission Fluid Pump

DTC (CVT)

  1. Determine possible failure area (PGM-FI system, others)

    -1. Turn the vehicle to the ON mode.

    -2. Check for Pending or Confirmed DTCs in the PGM-FI system with the HDS.

    DTC Description Confirmed DTC Pending DTC
    P0A94 DC-DC Converter Performance Problem

    Is DTC P0A94 indicated?

    YES

    Go to the troubleshooting for DTC P0A94 in the PGM-FI system .

    NO

    Go to step 2.

  2. Problem verification

    -1. Select the Electrical Oil Pump Activation in the Function Test Menu, and drive the auxiliary transmission fluid pump for at least 5 seconds with the HDS.

    -2. Check for Pending or Confirmed DTCs with the HDS.

    DTC Description Confirmed DTC Pending DTC Freeze Frame
    U1260 Lost Communication With Auxiliary Transmission Fluid Pump

    Is DTC U1260 indicated?

    YES

    The failure is duplicated. Go to step 3.

    NO

    Intermittent failure, the system is OK at this time. Check for poor connections and loose terminals between the auxiliary transmission fluid pump and the TCM. If the freeze data/on-board snapshot of this DTC is recorded, try to reproduce the failure under the same conditions with the freeze data/on-board snapshot.

  3. Determine possible failure area (power circuit, others)

    -1. Clear the DTC with the HDS.

    -2. Turn the vehicle to the OFF (LOCK) mode.

    -3. Disconnect the following connector.

    Auxiliary transmission fluid pump 4P connector

    -4. Turn the vehicle to the ON mode.

    -5. Measure the voltage between test points 1 and 2.

    Test condition Vehicle ON mode
      Auxiliary transmission fluid pump 4P connector: disconnected
    Test point 1 Auxiliary transmission fluid pump 4P connector (female terminals) No. 1:
    Test point 2 Auxiliary transmission fluid pump 4P connector (female terminals) No. 4:
    GHH390043Courtesy of HONDA, U.S.A., INC.

    Is there battery voltage?

    YES

    Go to step 4.

    NO

    Go to step 10.

  4. Determine possible failure area (EOPSTS line, others)

    -1. Measure the voltage between test points 1 and 2.

    Test condition Vehicle ON mode
      Auxiliary transmission fluid pump 4P connector: disconnected
    Test point 1 Auxiliary transmission fluid pump 4P connector (female terminals) No. 2:
    Test point 2 Body ground

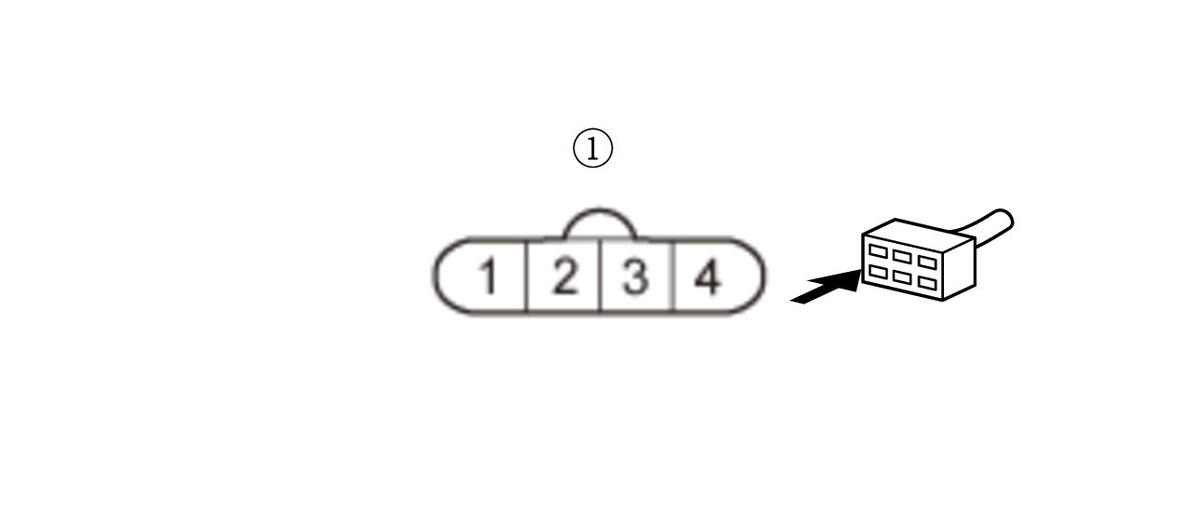

    GHH390045Courtesy of HONDA, U.S.A., INC.

    Is there about 5 V?

    YES

    Go to step 5.

    NO

    Go to step 8.

  5. Open wire check (EOPSIG line)

    -1. Turn the vehicle to the OFF (LOCK) mode.

    -2. Disconnect the following connector.

    TCM 50P connector

    -3. Check for continuity between test points 1 and 2.

    Test condition Vehicle OFF (LOCK) mode
      Auxiliary transmission fluid pump 4P connector: disconnected
      TCM 50P connector: disconnected
    Test point 1 Auxiliary transmission fluid pump 4P connector (female terminals) No. 3:
    Test point 2 TCM 50P connector No. 40
    GHH390047Courtesy of HONDA, U.S.A., INC.

    Is there continuity?

    YES

    The EOPSIG wire is not open. Go to step 6.

    NO

    Repair an open in the EOPSIG wire between the auxiliary transmission fluid pump and the TCM.

  6. Shorted wire check (EOPSIG line)

    -1. Check for continuity between test points 1 and 2.

    Test condition Vehicle OFF (LOCK) mode
      Auxiliary transmission fluid pump 4P connector: disconnected
      TCM 50P connector: disconnected
    Test point 1 Auxiliary transmission fluid pump 4P connector (female terminals) No. 3:
    Test point 2 Body ground
    GHH390049Courtesy of HONDA, U.S.A., INC.

    Is there continuity?

    YES

    Repair a short to ground in the EOPSIG wire between the auxiliary transmission fluid pump and the TCM.

    NO

    The EOPSIG wire is OK. Go to step 7.

  7. Auxiliary transmission fluid pump check

    -1. Reconnect all connectors.

    -2. Test the auxiliary transmission fluid pump .

    Is the auxiliary transmission fluid pump OK?

    YES

    The auxiliary transmission fluid pump is OK. Check for any authorized service information related to the DTCs or symptoms you are troubleshooting, replace the original TCM .

    NO

    Replace the auxiliary transmission fluid pump .

  8. Shorted wire check (EOPSTS line)

    -1. Turn the vehicle to the OFF (LOCK) mode.

    -2. Disconnect the following connector.

    TCM 50P connector

    -3. Check for continuity between test points 1 and 2.

    Test condition Vehicle OFF (LOCK) mode
      Auxiliary transmission fluid pump 4P connector: disconnected
      TCM 50P connector: disconnected
    Test point 1 Auxiliary transmission fluid pump 4P connector (female terminals) No. 2:
    Test point 2 Body ground
    GHH390051Courtesy of HONDA, U.S.A., INC.

    Is there continuity?

    YES

    Repair a short to ground in the EOPSTS wire between the auxiliary transmission fluid pump and the TCM.

    NO

    The EOPSTS wire is not shorted. Go to step 9.

  9. Open wire check (EOPSTS line)

    -1. Check for continuity between test points 1 and 2.

    Test condition Vehicle OFF (LOCK) mode
      Auxiliary transmission fluid pump 4P connector: disconnected
      TCM 50P connector: disconnected
    Test point 1 Auxiliary transmission fluid pump 4P connector (female terminals) No. 2:
    Test point 2 TCM 50P connector No. 50
    GHH390053Courtesy of HONDA, U.S.A., INC.

    Is there continuity?

    YES

    The EOPSTS wire is OK. Check for any authorized service information related to the DTCs or symptoms you are troubleshooting, replace the original TCM .

    NO

    Repair an open in the EOPSTS wire between the auxiliary transmission fluid pump and the TCM.

  10. Open wire check (EOPGND line)

    -1. Turn the vehicle to the OFF (LOCK) mode.

    -2. Check for continuity between test points 1 and 2.

    Test condition Vehicle OFF (LOCK) mode
      Auxiliary transmission fluid pump 4P connector: disconnected
    Test point 1 Auxiliary transmission fluid pump 4P connector (female terminals) No. 1:
    Test point 2 Body ground
    GHH390055Courtesy of HONDA, U.S.A., INC.

    Is there continuity?

    YES

    The EOPGND wire is OK. Go to step 11.

    NO

    Repair an open in the EOPGND wire between the auxiliary transmission fluid pump and ground (G201), or repair poor ground (G201).

  11. Fuse check

    -1. Check the following fuse.

    Fuse No. C3

    Is the fuse OK?

    YES

    The fuse is OK. Reinstall the fuse, then go to step 12.

    NO

    Replace the fuse, and recheck. If the fuse blows again, repair a short to ground in the No. C3 fuse circuit.

  12. Relay check

    -1. Remove the auxiliary transmission fluid pump relay .

    -2. Test the auxiliary transmission fluid pump relay .

    Is the relay OK?

    YES

    The auxiliary transmission fluid pump relay is OK. Go to step 13.

    NO

    Replace the auxiliary transmission fluid pump relay.

  13. Open wire check (+B EOP line)

    -1. Turn the vehicle to the ON mode.

    -2. Measure the voltage between the following test points and body ground individually.

    Test condition Vehicle ON mode
      Auxiliary transmission fluid pump relay 4P socket: disconnected
      Auxiliary transmission fluid pump 4P connector: disconnected
    Connector Terminal
    Auxiliary transmission fluid pump relay 4P socket (female terminals): No. 2
    No. 4
    GHH390057Courtesy of HONDA, U.S.A., INC.

    Is there battery voltage?

    YES

    The +B EOP wire is OK. Go to step 14.

    NO

    Repair an open in the +B EOP wire between the auxiliary transmission fluid pump relay and the DC-DC converter.

  14. Open wire check (EOPRLY/EOP RLY CL- line)

    -1. Turn the vehicle to the OFF (LOCK) mode.

    -2. Disconnect the following connector.

    TCM 50P connector

    -3. Check for continuity between test points 1 and 2.

    Test condition Vehicle OFF (LOCK) mode
      Auxiliary transmission fluid pump relay 4P socket: disconnected
      Auxiliary transmission fluid pump 4P connector: disconnected
      TCM 50P connector: disconnected
    Test point 1 Auxiliary transmission fluid pump relay 4P socket (female terminals) No. 3:
    Test point 2 TCM 50P connector No. 27

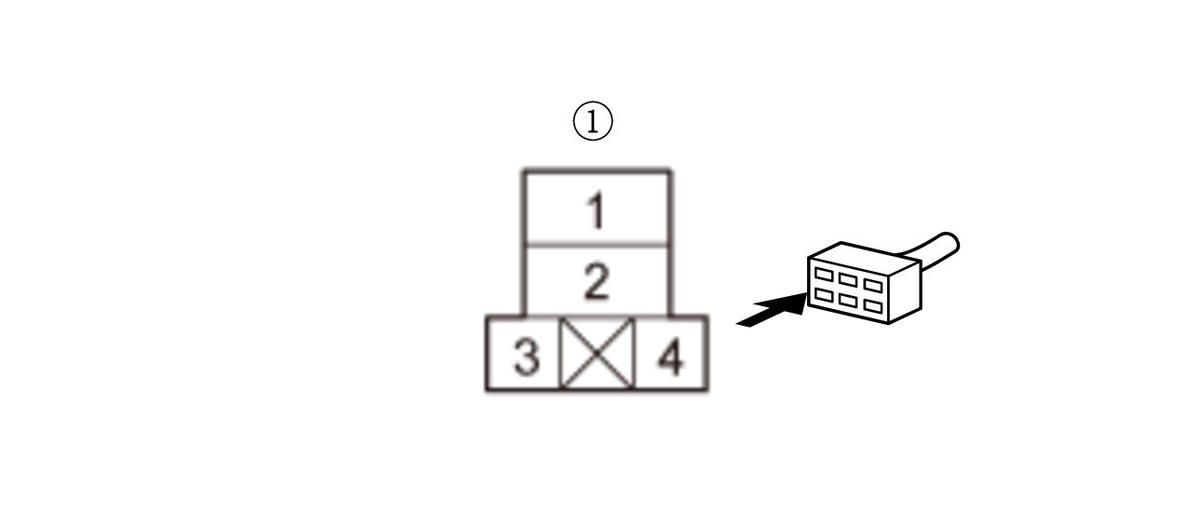

    GHH390059Courtesy of HONDA, U.S.A., INC.

    Is there continuity?

    YES

    The EOPRLY/EOP RLY CL- wire is OK. Go to step 15.

    NO

    Repair an open in the EOPRLY/EOP RLY CL- wire between the auxiliary transmission fluid pump relay and TCM.

  15. Open wire check (EOPVB/EOP RLY OUT line)

    -1. Check for continuity between test points 1 and 2.

    Test condition Vehicle OFF (LOCK) mode
      Auxiliary transmission fluid pump relay 4P socket: disconnected
      Auxiliary transmission fluid pump 4P connector: disconnected
      TCM 50P connector: disconnected
    Test point 1 Auxiliary transmission fluid pump relay 4P socket (female terminals) No. 1:
    Test point 2 Auxiliary transmission fluid pump 4P connector (female terminals) No. 4:
    GHH390062Courtesy of HONDA, U.S.A., INC.
    GHH390063Courtesy of HONDA, U.S.A., INC.

    Is there continuity?

    YES

    The EOPVB/EOP RLY OUT wire is OK. Check for any authorized service information related to the DTCs or symptoms you are troubleshooting, replace the original TCM .

    NO

    Repair an open in the EOPVB/EOP RLY OUT wire between the auxiliary transmission fluid pump relay and the auxiliary transmission fluid pump.
