Audio-Navigation Unit Connector for Inputs and Outputs (2018 2019 2020)
WARNING: This page is about a different car, the 2022 Honda Accord, 2021 Honda Accord, 2020 Honda Accord, 2019 Honda Accord, and 2018 Honda Accord. However, it is still accessible from the selected car via links, so may be relevant.
| Connector Index |
|---|
| Audio-Navigation Unit Connector A (24P) |
| Audio-Navigation Unit Connector C (6P) |
| Audio-Navigation Unit Connector D (16P) |
| Audio-Navigation Unit Connector E (36P) (Without telematics control unit) |
| Audio-Navigation Unit Connector E (36P) (With telematics control unit) |
| Audio-Navigation Unit Connector F (36P) |
| Audio-Navigation Unit Connector G (10P) |
| Audio-Navigation Unit Connector H (6P) |
| Audio-Navigation Unit Connector J (2P) |
| Audio-Navigation Unit Connector K (2P) |
| Audio-Navigation Unit Connector M (10P) (With telematics control unit) |
| Audio-Navigation Unit Connector N (2P) (With XM) |

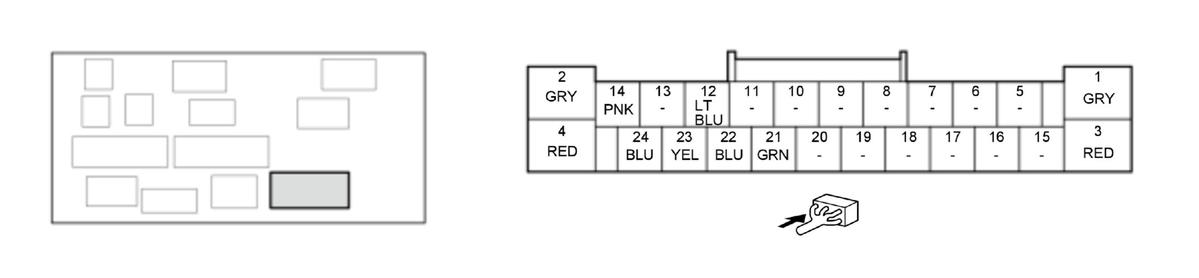

Audio-Navigation Unit Connector A (24P) (female terminals)
Audio-Navigation Unit Connector A (24P) (female terminals)
| Cavity | Terminal Name | Description |
|---|---|---|
| A1 | GND | Ground for audio-navigation unit (G504) |
| A2 | GND | Ground for audio-navigation unit (G504) |
| A3 | +B AUDIO | Continuous power source |
| A4 | +B AUDIO SUB | Continuous power source |
| A5 | Not used | --- |
| A6 | Not used | --- |
| A7 | Not used | --- |
| A8 | Not used | --- |
| A9 | Not used | --- |
| A10 | Not used | --- |
| A11 | Not used | --- |
| A12 | K LINE | Detects scan tool signal (serial data) |
| A13 | Not used | --- |
| A14 | B-CAN_H | Communication signal |
| A15 | Not used | --- |
| A16 | Not used | --- |
| A17 | Not used | --- |
| A18 | Not used | --- |
| A19 | Not used | --- |
| A20 | Not used | --- |
| A21 | SWD+B | Outputs signal for stereo amplifier and active noise cancellation unit switching on/off |
| A22 | VSP | Inputs vehicle speed pulse |
| A23 | IG1 WITH DIODE FMVSS | Power source for accessories |
| A24 | B-CAN_L | Communication signal |

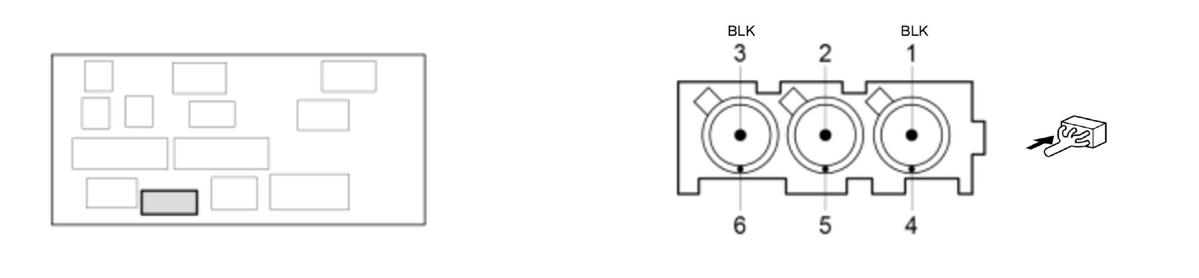

Audio-Navigation Unit Connector C (6P) (female terminals)
Audio-Navigation Unit Connector C (6P) (female terminals)
| Cavity | Terminal Name | Description |
|---|---|---|
| C1 | SPDIF2 SIG | Communication signal for stereo amplifier |
| C2 | Not used | --- |
| C3 | SPDIF1 SIG | Communication signal for tuner unit |
| C4 | SH (SPDIF2) | Shield for terminals No. 1 |
| C5 | Not used | --- |
| C6 | SH (SPDIF1) | Shield for terminals No. 3 |

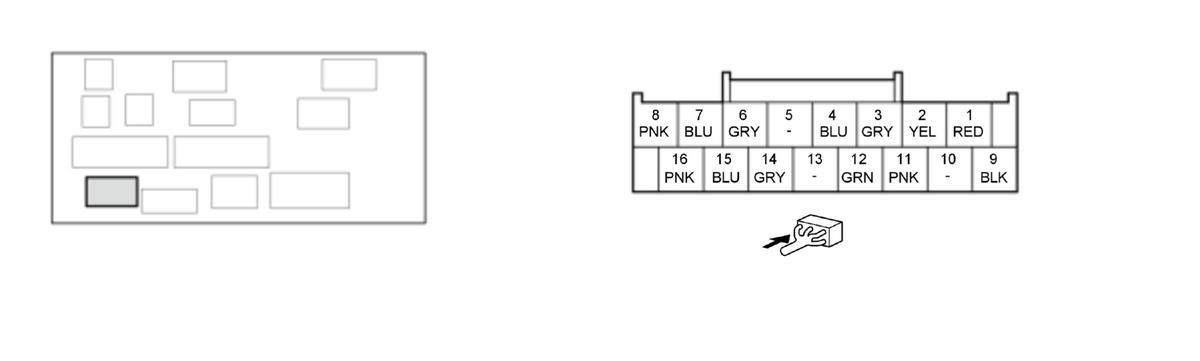

Audio-Navigation Unit Connector D (16P) (female terminals)
Audio-Navigation Unit Connector D (16P) (female terminals)
| Cavity | Terminal Name | Description |
|---|---|---|
| D1 | TUNER 6V | Power source for tuner unit |
| D2 | TUNER 9V | Power source for tuner unit |
| D3 | AUX NAVI SH | Shield for terminals No. 4, No. 11 and No. 12 |
| D4 | AUX NAVI GND | Basis ground for terminal No. 11 and No. 12 |
| D5 | Not used | --- |
| D6 | AMP RS485 SH | Shield for terminals No. 7 and No. 8 |
| D7 | RS485+ | Communication signal for stereo amplifier |
| D8 | RS485- | Communication signal for stereo amplifier |
| D9 | TUNER GND | Ground for tuner unit |
| D10 | Not used | --- |
| D11 | AUX BEEP | Outputs sound signal for beep |
| D12 | AUX NAVI | Outputs sound signal |
| D13 | Not used | --- |
| D14 | TUNER RS485 SH | Shield for terminals No. 15 and No. 16 |
| D15 | TUNER RS485+ | Communication signal for tuner unit |
| D16 | TUNER RS485- | Communication signal for tuner unit |

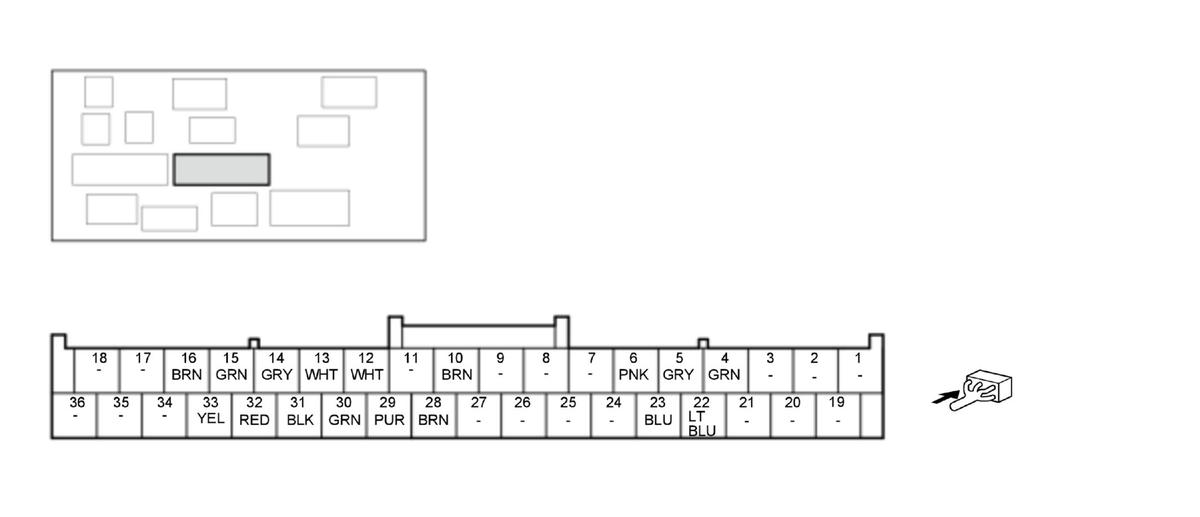

Audio-Navigation Unit Connector E (36P) (female terminals) (Without telematics control unit)
Audio-Navigation Unit Connector E (36P) (female terminals) (Without telematics control unit)
| Cavity | Terminal Name | Description |
|---|---|---|
| E1 | Not used | --- |
| E2 | Not used | --- |
| E3 | Not used | --- |
| E4 | HFT MUTE | Outputs front HFL microphone directivity switching signal |
| E5 | SH MIC | Shield for terminals No. 6 and No. 23 |
| E6 | MIC GND | Ground for front HFL-ANC microphone |
| E7 | Not used | --- |
| E8 | Not used | --- |
| E9 | Not used | --- |
| E10 | PARK BUSY | Detects parking brake on signal |
| E11 | Not used | --- |
| E12 | DISP CONT | Outputs signal for center display unit switching on/off |
| E13 | CAMERA GND | Communication signal |
| E14 | SH CAMERA | Shield for terminals No. 13, No. 15, No. 31, No. 32 and No. 33 |
| E15 | CAMERA BIT0 | Outputs mode select signal for rearview camera |
| E16 | CAMERA ADPT | Outputs mode select signal for rearview camera |
| E17 | Not used | --- |
| E18 | Not used | --- |
| E19 | Not used | --- |
| E20 | Not used | --- |
| E21 | Not used | --- |
| E22 | MIC PWR | Power source for front HFL-ANC microphone |
| E23 | MIC+ | Inputs sound signal from front HFL microphone |
| E24 | Not used | --- |
| E25 | Not used | --- |
| E26 | Not used | --- |
| E27 | Not used | --- |
| E28 | PARK BUSY | Detects parking brake on signal |
| E29 | F-CAN C_H | Communication signal |
| E30 | F-CAN C_L | Communication signal |
| E31 | CAMERA VCC | Power source for rearview camera |
| E32 | CAMERA V | Inputs NTSC video signal from rearview camera |
| E33 | CAMERA BIT1 | Outputs mode select signal for rearview camera |
| E34 | Not used | --- |
| E35 | Not used | --- |
| E36 | Not used | --- |
Audio-Navigation Unit Connector E (36P) (female terminals) (With telematics control unit)
Audio-Navigation Unit Connector E (36P) (female terminals) (With telematics control unit)
| Cavity | Terminal Name | Description |
|---|---|---|
| E1 | Not used | --- |
| E2 | Not used | --- |
| E3 | Not used | --- |
| E4 | ECALL HFT MUTE | Outputs telematics control unit directivity switching signal |
| E5 | SH ECALL NAVI MIC | Shield for terminals No. 6 and No. 23 |
| E6 | ECALL NAVI MIC- | Ground for telematics control unit |
| E7 | Not used | --- |
| E8 | Not used | --- |
| E9 | Not used | --- |
| E10 | PARK BUSY | Detects parking brake on signal |
| E11 | Not used | --- |
| E12 | DISP CONT | Outputs signal for center display unit switching on/off |
| E13 | CAMERA GND | Communication signal |
| E14 | SH CAMERA | Shield for terminals No. 13, No. 15, No. 31, No. 32 and No. 33 |
| E15 | CAMERA BIT0 | Outputs mode select signal for rearview camera |
| E16 | CAMERA ADPT | Outputs mode select signal for rearview camera |
| E17 | Not used | --- |
| E18 | Not used | --- |
| E19 | Not used | --- |
| E20 | Not used | --- |
| E21 | Not used | --- |
| E22 | Not used | --- |
| E23 | ECALL NAVI MIC+ | Inputs sound signal from telematics control unit |
| E24 | Not used | --- |
| E25 | Not used | --- |
| E26 | Not used | --- |
| E27 | Not used | --- |
| E28 | PARK BUSY | Detects parking brake on signal |
| E29 | F-CAN C_H | Communication signal |
| E30 | F-CAN C_L | Communication signal |
| E31 | CAMERA VCC | Power source for rearview camera |
| E32 | CAMERA V | Inputs NTSC video signal from rearview camera |
| E33 | CAMERA BIT1 | Outputs mode select signal for rearview camera |
| E34 | Not used | --- |
| E35 | Not used | --- |
| E36 | Not used | --- |

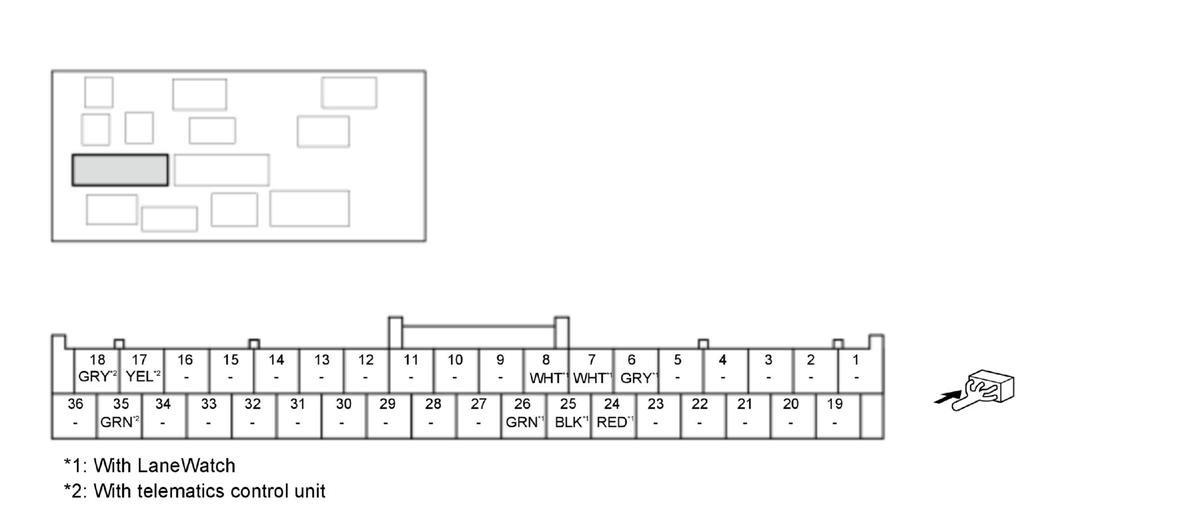

Audio-Navigation Unit Connector F (36P) (female terminals)
Audio-Navigation Unit Connector F (36P) (female terminals)
| Cavity | Terminal Name | Description |
|---|---|---|
| F1 | Not used | --- |
| F2 | Not used | --- |
| F3 | Not used | --- |
| F4 | Not used | --- |
| F5 | Not used | --- |
| F6*1 | SH LWC CAM | Shield for terminals No. 7, No. 24, No. 25, and No. 26 |
| F7*1 | LWC CAM VGND | Ground for LaneWatch camera |
| F8*1 | LANEWATCH SW | Detects LaneWatch on/off signal from LaneWatch switch |
| F9 | Not used | --- |
| F10 | Not used | --- |
| F11 | Not used | --- |
| F12 | Not used | --- |
| F13 | Not used | --- |
| F14 | Not used | --- |
| F15 | Not used | --- |
| F16 | Not used | --- |
| F17*2 | TELEM SIG- | Outputs sound prompts |
| F18*2 | SH TELEM SIG | Shield for terminals No. 17 and No. 35 |
| F19 | Not used | --- |
| F20 | Not used | --- |
| F21 | Not used | --- |
| F22 | Not used | --- |
| F23 | Not used | --- |
| F24*1 | LWC CAM VCC | Power source for LaneWatch camera |
| F25*1 | LWC CAM VID | Inputs video signal from LaneWatch camera |
| F26*1 | LWC UART AS | Communication signal for LaneWatch camera |
| F27 | Not used | --- |
| F28 | Not used | --- |
| F29 | Not used | --- |
| F30 | Not used | --- |
| F31 | Not used | --- |
| F32 | Not used | --- |
| F33 | Not used | --- |
| F34 | Not used | --- |
| F35*2 | TELEM SIG+ | Outputs sound prompts |
| F36 | Not used | --- |
*1: With LaneWatch
*2: With telematics control unit

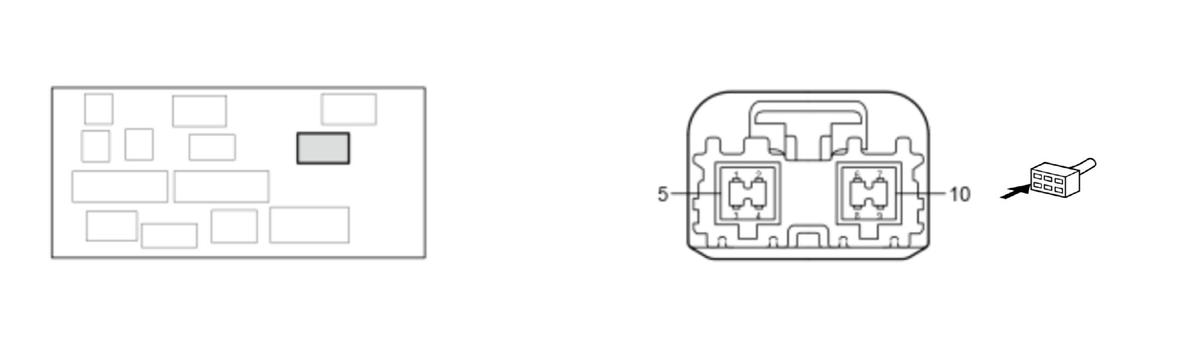

Audio-Navigation Unit Connector G (10P) (female terminals)
Audio-Navigation Unit Connector G (10P) (female terminals)
| Cavity | Terminal Name | Description |
|---|---|---|
| G1 | USB1 GND | Ground for USB port A |
| G2 | USB1 VBUS | Outputs power source for USB port A |
| G3 | USB1 DATA+ | Communication signal |
| G4 | USB1 DATA- | Communication signal |
| G5 | USB1 SH | Shield for terminals No. 1, No. 2, No. 3, and No. 4 |
| G6 | USB2 GND | Ground for USB port B |
| G7 | USB2 VBUS | Outputs power source for USB port B |
| G8 | USB2 DATA+ | Communication signal |
| G9 | USB2 DATA- | Communication signal |
| G10 | USB2 SH | Shield for terminals No. 6, No. 7, No. 8, and No. 9 |

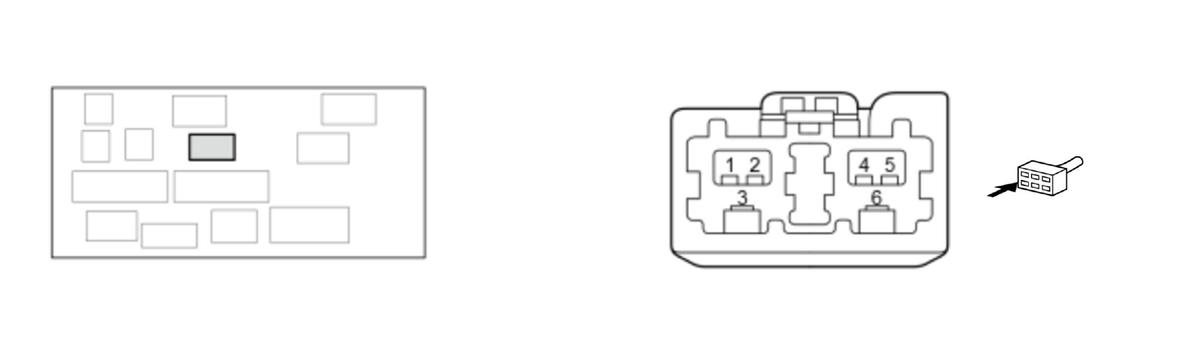

Audio-Navigation Unit Connector H (6P) (female terminals)
Audio-Navigation Unit Connector H (6P) (female terminals)
| Cavity | Terminal Name | Description |
|---|---|---|
| H1 | LVDS2+ | Communication signal for gauge control module |
| H2 | LVDS2- | Communication signal for gauge control module |
| H3 | LVDS2 SH | Shield for terminals No. 1 and No. 2 |
| H4 | LVDS1+ | Communication signal for center display unit |
| H5 | LVDS1- | Communication signal for center display unit |
| H6 | LVDS1 SH | Shield for terminals No. 4 and No. 5 |

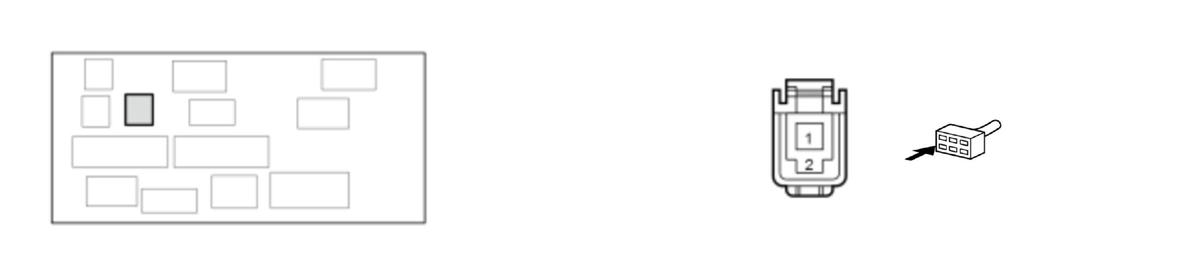

Audio-Navigation Unit Connector J (2P) (female terminals)
Audio-Navigation Unit Connector J (2P) (female terminals)
| Cavity | Terminal Name | Description |
|---|---|---|
| J1 | GPS | Inputs GPS signal |
| J2 | SH (GPS) | Shield for terminal No. 1 |

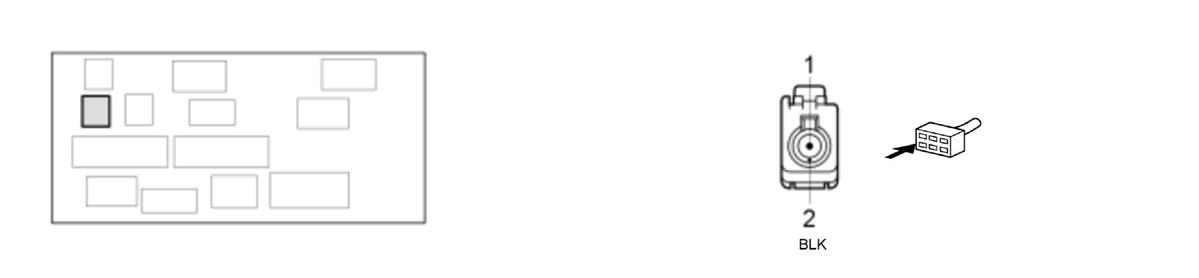

Audio-Navigation Unit Connector K (2P) (female terminals)
Audio-Navigation Unit Connector K (2P) (female terminals)
| Cavity | Terminal Name | Description |
|---|---|---|
| K1 | Wi-Fi | Inputs Wi-Fi signal |
| K2 | SH (Wi-Fi) | Shield for terminal No. 1 |

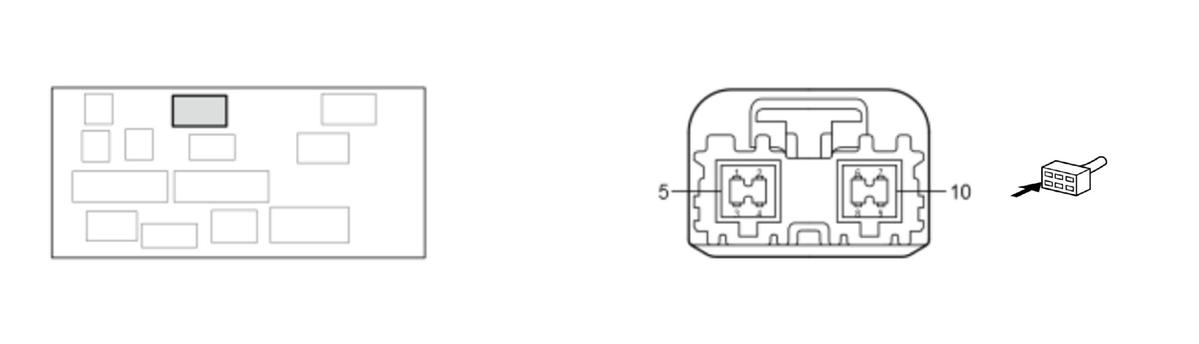

Audio-Navigation Unit Connector M (10P) (female terminals) (With telematics control unit)
Audio-Navigation Unit Connector M (10P) (female terminals) (With telematics control unit)
| Cavity | Terminal Name | Description |
|---|---|---|
| M1 | USB3 GND | Ground for near field communication unit |
| M2 | USB3 VBUS | Outputs power source for near field communication unit |
| M3 | USB3 DATA+ | Communication signal |
| M4 | USB3 DATA- | Communication signal |
| M5 | USB3 SH | Shield for terminals No. 1, No. 2, No. 3, and No. 4 |
| M6 | TEL USB GND | Ground for USB |
| M7 | TEL USB VBUS | Outputs power source for USB |
| M8 | TEL USB DATA+ | Communication signal |
| M9 | TEL USB DATA- | Communication signal |
| M10 | TEL USB SH | Shield for terminals No. 6, No. 7, No. 8, and No. 9 |
Audio-Navigation Unit Connector N (2P) (female terminals) (With XM)
Audio-Navigation Unit Connector N (2P) (female terminals) (With XM)
| Cavity | Terminal Name | Description |
|---|---|---|
| N1 | SAT/TER | Inputs satellite/terrestrial signal |
| N2 | SH (SAT/TER) | Shield for terminal No. 1 |
