Audio Remote-HFL Switch Connector for Inputs and Outputs
WARNING: This page is about a different car, the 2022 Honda Accord, 2021 Honda Accord, 2020 Honda Accord, 2019 Honda Accord, and 2018 Honda Accord. However, it is still accessible from the selected car via links, so may be relevant.

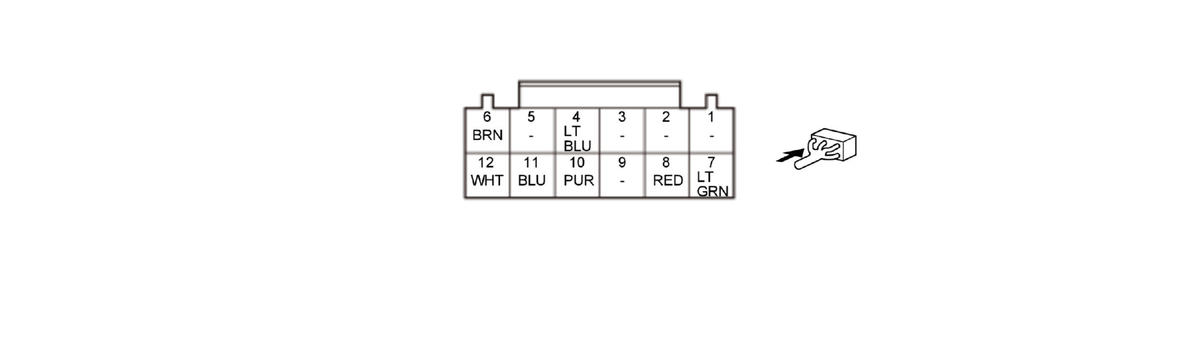

Audio Remote-HFL Switch 12P Connector (female terminals) (without multi-information display)
Audio Remote-HFL Switch 12P Connector (female terminals) (without multi-information display)
| Cavity | Terminal Name | Description |
|---|---|---|
| 1 | Not used | --- |
| 2 | Not used | --- |
| 3 | Not used | --- |
| 4 | ILLUMI-(LED) | Outputs illumination control signal |
| 5 | Not used | --- |
| 6 | REMOTE SW GND | Audio remote-HFL switch ground |
| 7 | ILLUMI+ | Outputs illumination signal |
| 8 | ILLUMI+ | Outputs illumination signal |
| 9 | Not used | --- |
| 10 | ILLUMI-(LED) | Outputs illumination control signal |
| 11 | AUDIO REMOTE SW | Outputs control signal from audio remote-HFL switch |
| 12 | HFT/NAVI REMOTE SW | Outputs control signal from HFL switch |

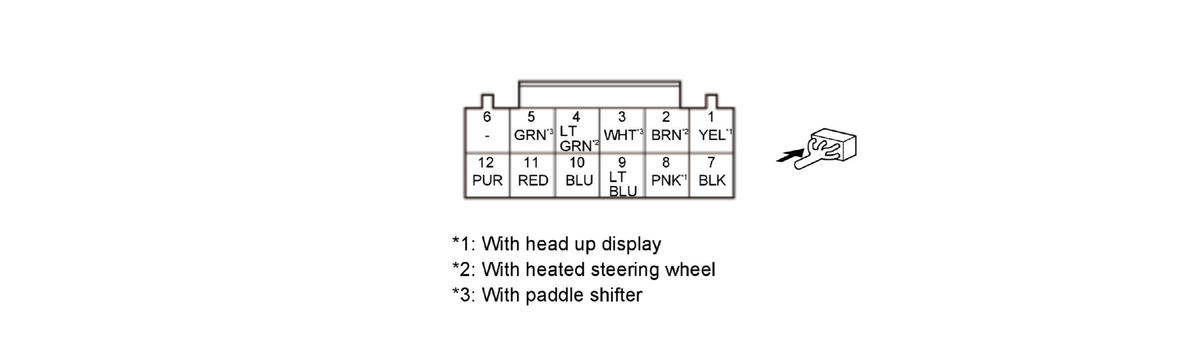

Audio Remote-HFL Switch 12P Connector (female terminals) (with multi-information display)
Audio Remote-HFL Switch 12P Connector (female terminals) (with multi-information display)
| Cavity | Terminal Name | Description |
|---|---|---|
| 1*1 | HUD+ | Power source for head up display sub switch |
| 2*2 | STRG GND | Ground for heated steering wheel control unit |
| 3*3 | ILLUMI-(LED) | Outputs illumination control signal |
| 4*2 | HSW LIN | Communication signal |
| 5*3 | ILLUMI+ | Outputs illumination signal |
| 6 | Not used | --- |
| 7 | STRG GND | Ground for audio remote-HFL switch (G502) |
| 8*1 | HUD- | Ground for head up display sub switch |
| 9 | ILLUMI-(LED) | Outputs illumination control signal |
| 10 | STRG SW LIN | Communication signal |
| 11 | ILLUMI+ | Outputs illumination signal |
| 12 | +B | +B power source |
*1: With head up display
*2: With heated steering wheel
*3: With paddle shifter
