Active Noise Cancellation Unit Connector for Inputs and Outputs
WARNING: This page is about a different car, the 2022 Honda Accord, 2021 Honda Accord, 2020 Honda Accord, 2019 Honda Accord, and 2018 Honda Accord. However, it is still accessible from the selected car via links, so may be relevant.
| Connector Index |
|---|
| Active Noise Cancellation Unit 20P Connector (female terminals) (Without ACC) |
| Active Noise Cancellation Unit 20P Connector (female terminals) (With ACC) |
Active Noise Cancellation Unit 20P Connector (female terminals) (Without ACC)

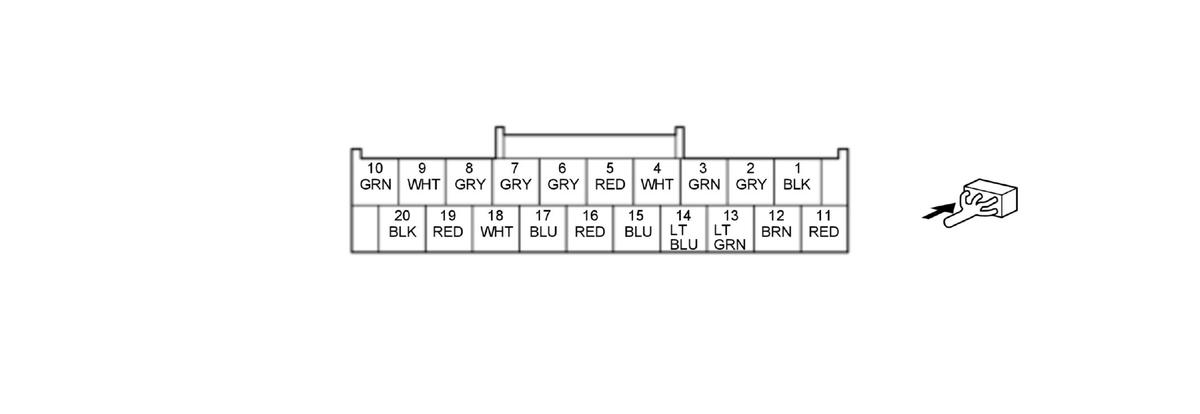

Active Noise Cancellation Unit 20P Connector (female terminals) (Without ACC)
| Cavity | Terminal Name | Description |
|---|---|---|
| 1 | GND | Ground for active noise cancellation unit (G503) |
| 2 | SH ANC M MIC | Shield for terminals No. 13 |
| 3 | SWD+B | Inputs signal for active noise cancellation unit switching on/off |
| 4 | F-CAN A_H | Communication signal |
| 5 | F-CAN A_L | Communication signal |
| 6 | SH ANC R MIC | Shield for terminal No. 17 |
| 7 | SH ANC F MIC | Shield for terminal No. 18 |
| 8 | ANC SH | Shield for terminals No. 9, No. 10, No. 19, and No. 20 |
| 9 | ANC R- | Outputs noise cancelling signal |
| 10 | ANC F- | Outputs noise cancelling signal |
| 11 | +B RADIO | Continuous power source |
| 12 | IG1 METER | IG1 power source |
| 13 | ANC M MIC+8V | Inputs sound signal from middle active noise cancellation microphone |
| 14 | K LINE | Detects scan tool signal (serial data) |
| 15 | AUD F MIX GND | Basis ground for terminal No. 16 |
| 16 | AUD F MIX | Inputs audio mixing signal for front channels |
| 17 | ANC R MIC+8V | Inputs sound signal from rear active noise cancellation microphone |
| 18 | ANC F MIC+8V | Inputs sound signal from front active noise cancellation microphone |
| 19 | ANC R+ | Outputs noise cancelling signal |
| 20 | ANC F+ | Outputs noise cancelling signal |
Active Noise Cancellation Unit 20P Connector (female terminals) (With ACC)

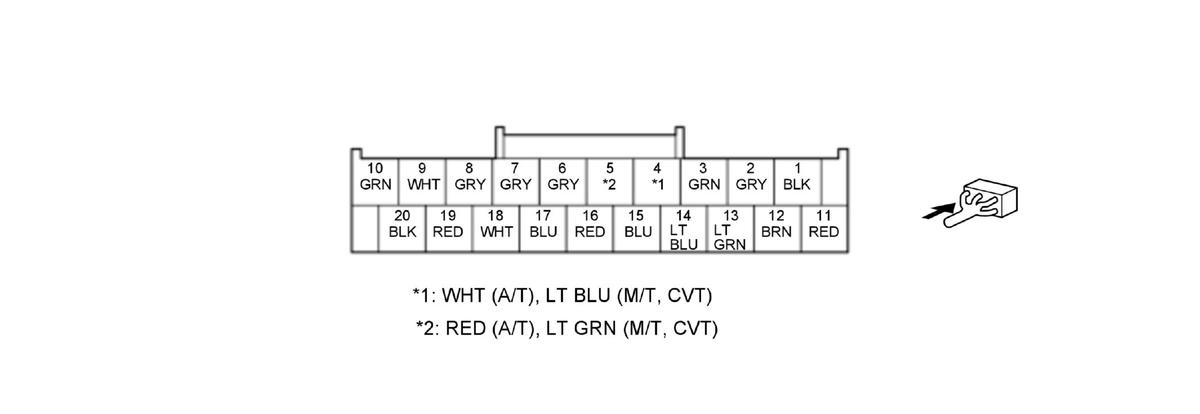

Active Noise Cancellation Unit 20P Connector (female terminals) (With ACC)
| Cavity | Terminal Name | Description |
|---|---|---|
| 1 | GND | Ground for active noise cancellation unit (G503) |
| 2 | SH ANC M MIC | Shield for terminals No. 13 |
| 3 | SWD+B | Inputs signal for active noise cancellation unit switching on/off |
| 4 | F-CAN A_H*3 | Communication signal |
| F-CAN B_H*1*2 | ||
| 5 | F-CAN A_L*3 | Communication signal |
| F-CAN B_L*1*2 | ||
| 6 | SH ANC R MIC | Shield for terminal No. 17 |
| 7 | SH ANC F MIC | Shield for terminal No. 18 |
| 8 | ANC SH | Shield for terminals No. 9, No. 10, No. 19, and No. 20 |
| 9 | ANC R- | Outputs noise cancelling signal |
| 10 | ANC F- | Outputs noise cancelling signal |
| 11 | +B RADIO | Continuous power source |
| 12 | IG1 METER | IG1 power source |
| 13 | ANC M MIC+8V | Inputs sound signal from middle active noise cancellation microphone |
| 14 | K LINE | Detects scan tool signal (serial data) |
| 15 | AUD F MIX GND | Basis ground for terminal No. 16 |
| 16 | AUD F MIX | Inputs audio mixing signal for front channels |
| 17 | ANC R MIC+8V | Inputs sound signal from rear active noise cancellation microphone |
| 18 | ANC F MIC+8V | Inputs sound signal from front active noise cancellation microphone |
| 19 | ANC R+ | Outputs noise cancelling signal |
| 20 | ANC F+ | Outputs noise cancelling signal |
*1: M/T
*2: CVT
*3: A/T
