DTC B0052-12 : Short to Power in the Front Passenger's Seat Belt Buckle Switch

NOTE:

Before doing this troubleshooting procedure, find out if the vehicle was in a collision. If so, verify that all the required components were replaced with new components of the correct part number and were properly installed .
Before doing this troubleshooting procedure, review SRS Precautions and Procedures , General Troubleshooting Information , and 12 Volt Battery Terminal Disconnection and Reconnection .

DTC Description	DTC
B0052-12 Short to power in the front passenger's seat belt buckle switch

DTC (SRS)

Problem verification

-1. Apply the parking brake.

-2. Clear the DTCs with the HDS.

-3. Turn the vehicle to the ON mode, then wait for 10 seconds.

-4. Check for DTCs with the HDS.

DTC Description	DTC
B0052-12 Short to power in the front passenger's seat belt buckle switch

Is DTC B0052-12 indicated?

YES

The failure is duplicated. Go to step 2.

Intermittent failure, the system is OK at this time. Go to Troubleshooting Intermittent Failures. If another DTC is indicated, troubleshoot the DTC.

Shorted wire check (FRBC line to power)

-1. Turn the vehicle to the OFF (LOCK) mode.

-2. Disconnect the negative cable from the 12 volt battery, then wait at least 3 minutes.

-3. Disconnect the following connector.

SRS unit connector B (57P)

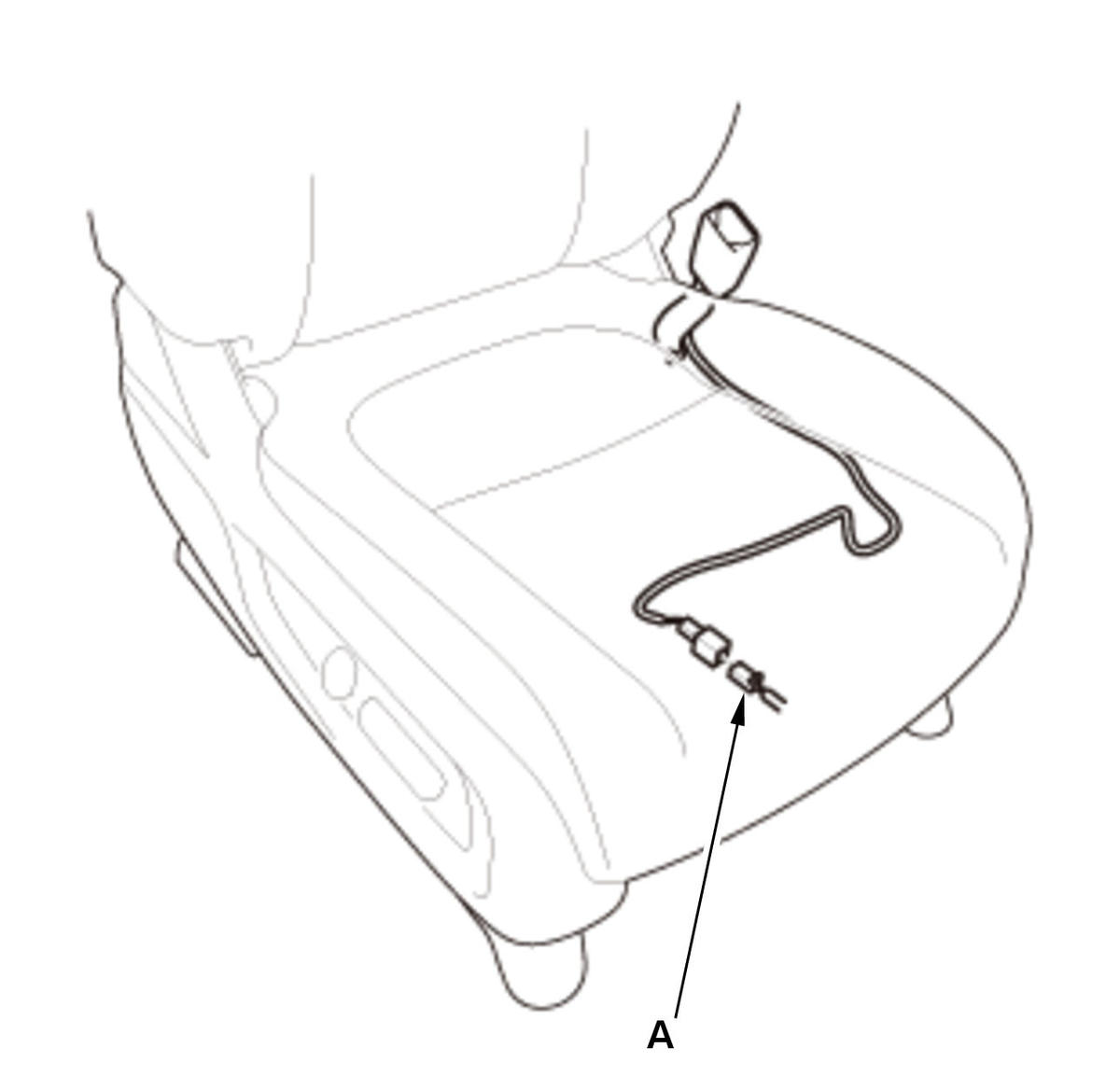

-4. Disconnect the front passenger's seat belt buckle switch 2P connector (A) on the floor wire harness or the front passenger's seat wire harness.

Courtesy of HONDA, U.S.A., INC.

-5. Reconnect the negative cable to the 12 volt battery.

-6. Turn the vehicle to the ON mode.

-7. Measure the voltage between test points 1 and 2.

Test condition	Vehicle ON mode
	SRS unit connector B (57P): disconnected
	Front passenger's seat belt buckle switch 2P connector (on the floor wire harness or the front passenger's seat wire harness): disconnected
Test point 1	SRS unit connector B (57P) No. 35
Test point 2	Body ground

Is there 0.2 V or less?

YES

The FRBC wire is OK. Faulty SRS unit or poor connection at SRS unit connector B (57P) and the SRS unit. Check the connection; if the connection is OK, check for any authorized service information related to the DTCs or symptoms you are troubleshooting or replace the SRS unit . If the DTC does not clear, replace the floor wire harness or the front passenger's seat wire harness.

Short to power in the floor wire harness or the front passenger's seat wire harness; replace the faulty harness, then clear the DTC.
