DTC C1120-14

DTC C1120-14  : Electric Parking Brake Switch Circuit Malfunction

NOTE: Before you troubleshoot, review the general troubleshooting information .

DTC (VSA)

1. Problem verification

   -1. Turn the vehicle to the ON mode.

   -2. Clear the DTC with the HDS.

   -3. Turn the vehicle to the OFF (LOCK) mode, then to the ON mode.

   -4. Check the parameter (s) below with the HDS.

   Signal	Current conditions
   	Values	Unit
   Electric Parking Brake Switch Status

   Is there INVALID indicated?

   YES

   The failure is duplicated. Go to step 2.

   NO

   Intermittent failure, the system is OK at this time. Refer to intermittent failures troubleshooting .

2. Electric parking brake switch check

   -1. Turn the vehicle to the OFF (LOCK) mode.

   -2. Check the electric parking brake switch .

   Is the electric parking brake switch OK?

   YES

   Go to step 3.

   NO

   Replace the electric parking brake switch .

3. Shorted wire check (SW1, SW3, SW4, SW6 lines)

   -1. Disconnect the following connectors.

   Electric parking brake switch 10P connector *1

   Electric parking brake switch 12P connector *2

   VSA modulator-control unit 46P connector

   *1: Electric parking brake switch 10P connector type

   *2: Electric parking brake switch 12P connector type

   -2. Check for continuity between the following test points and body ground individually.

   Test condition	Vehicle OFF (LOCK) mode
   	Electric parking brake switch 10P connector *1: disconnected
   	Electric parking brake switch 12P connector *2: disconnected
   	VSA modulator-control unit 46P connector: disconnected

   *1: Electric parking brake switch 10P connector type

   *2: Electric parking brake switch 12P connector type

   Connector	Test circuit	Terminal
   VSA modulator-control unit 46P connector	SW1	No. 26
   	SW3	No. 27
   	SW4	No. 28
   	SW6	No. 29

   Is there continuity?

   YES

   Repair a short to body ground in the wires between the VSA modulator-control unit and the electric parking brake switch.

   NO

   The SW1, SW3, SW4, SW6 wires are not shorted. Go to step 4.

4. Open wire check (SW1, SW3, SW4, SW6 lines)

   -1. Check for continuity between test points 1 and 2.

   Test condition	Vehicle OFF (LOCK) mode
   	Electric parking brake switch 10P connector *1: disconnected
   	Electric parking brake switch 12P connector *2: disconnected
   	VSA modulator-control unit 46P connector: disconnected
   Test point 1	Electric parking brake switch 10P connector (female terminals) No. 6 *1: Electric parking brake switch 12P connector (female terminals) No. 4 *2:
   Test point 2	VSA modulator-control unit 46P connector No. 26

   Test point 1	Electric parking brake switch 10P connector (female terminals) No. 9 *1: Electric parking brake switch 12P connector (female terminals) No. 1 *2:
   Test point 2	VSA modulator-control unit 46P connector No. 27

   Test point 1	Electric parking brake switch 10P connector (female terminals) No. 8 *1: Electric parking brake switch 12P connector (female terminals) No. 5 *2:
   Test point 2	VSA modulator-control unit 46P connector No. 28

   Test point 1	Electric parking brake switch 10P connector (female terminals) No. 7 *1: Electric parking brake switch 12P connector (female terminals) No. 10 *2:
   Test point 2	VSA modulator-control unit 46P connector No. 29

   *1: Electric parking brake switch 10P connector type

   *2: Electric parking brake switch 12P connector type

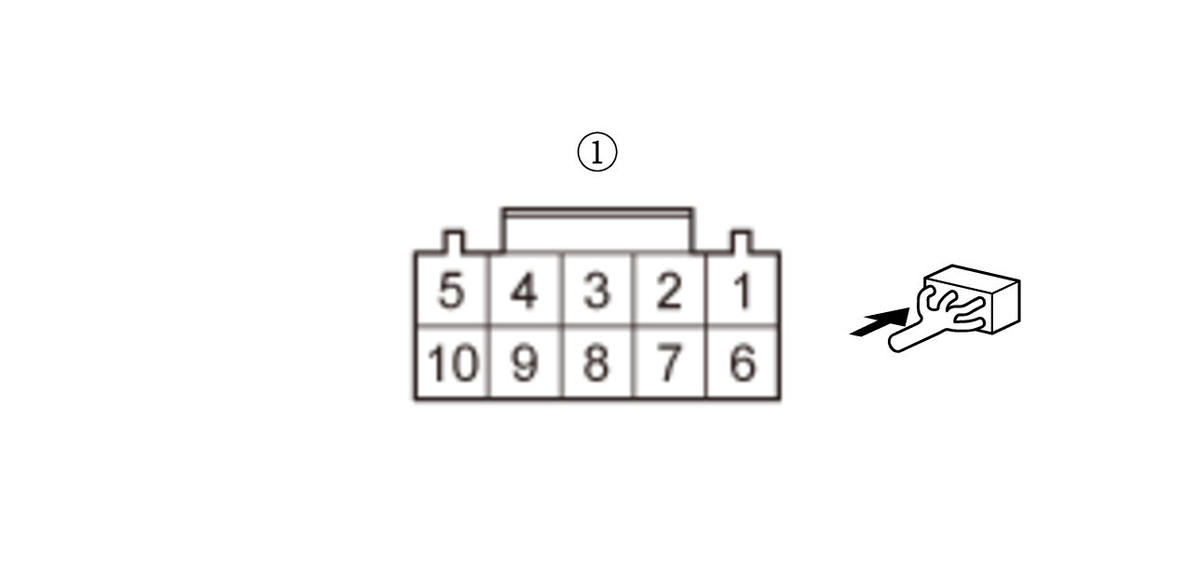

   Electric parking brake switch 10P connector type

   Courtesy of HONDA, U.S.A., INC.

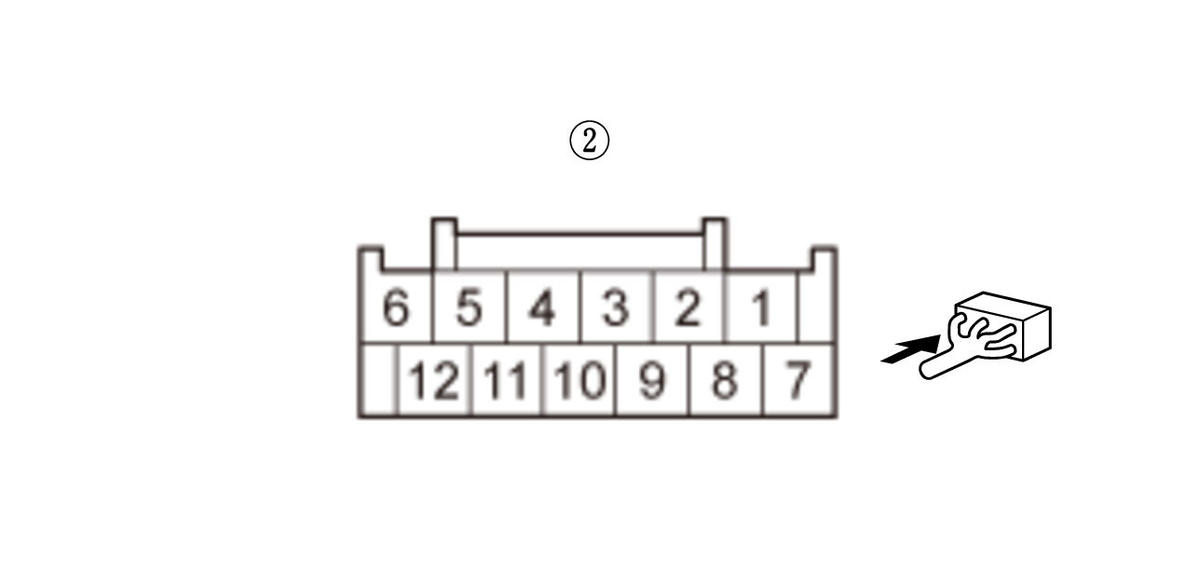

   Electric parking brake switch 12P connector type

   Courtesy of HONDA, U.S.A., INC.

   Is there continuity?

   YES

   Check for loose terminals and poor connections in the VSA modulator-control unit 46P connector. Check for any authorized service information related to the DTCs or symptoms you are troubleshooting. If they are OK, replace the VSA modulator-control unit .

   NO

   Repair an open in the wires between the VSA modulator-control unit and the electric parking brake switch.
