DTC C1110-13, C1111-13

DTC C1110-13  : Left Rear Electric Parking Brake Actuator Circuit Open DTC C1111-13  : Right Rear Electric Parking Brake Actuator Circuit Open

NOTE: Before you troubleshoot, review the general troubleshooting information .

DTC (VSA)

1. Problem verification

   -1. Turn the vehicle to the ON mode.

   -2. Clear the DTC with the HDS.

   -3. Turn the vehicle to the OFF (LOCK) mode, then to the ON mode.

   -4. Apply and release the parking brake several times.

   -5. Check for DTCs with the HDS.

   DTC Description	DTC
   C1110-13 Left Rear Electric Parking Brake Actuator Circuit Open
   C1111-13 Right Rear Electric Parking Brake Actuator Circuit Open

   Is DTC C1110-13 or C1111-13 indicated?

   YES

   The failure is duplicated. Go to step 2.

   NO

   Intermittent failure, the system is OK at this time. Refer to intermittent failures troubleshooting .

2. Open wire check (EPB L ACT+, EPB L ACT-, EPB R ACT+, or EPB R ACT- lines)

   -1. Turn the vehicle to the OFF (LOCK) mode.

   -2. Disconnect the following connectors.

   Appropriate electric parking brake actuator 2P connector

   VSA modulator-control unit 46P connector

   -3. Check for continuity between test points 1 and 2.

   Test condition	Vehicle OFF (LOCK) mode
   	Appropriate electric parking brake actuator 2P connector: disconnected
   	VSA modulator-control unit 46P connector: disconnected

   DTC	Test point 1	Test point 2

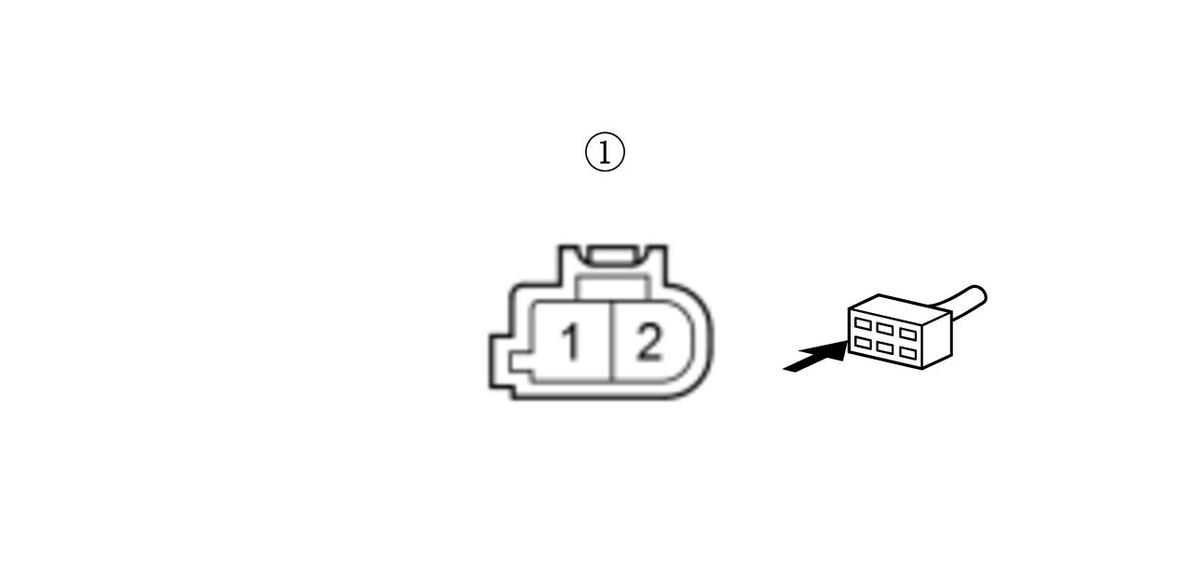

   C1110-13	Left electric parking brake actuator 2P connector (female terminals) No. 1:	VSA modulator-control unit 46P connector No. 8
   	Left electric parking brake actuator 2P connector (female terminals) No. 2:	VSA modulator-control unit 46P connector No. 7
   C1111-13	Right electric parking brake actuator 2P connector (female terminals) No. 1:	VSA modulator-control unit 46P connector No. 5
   	Right electric parking brake actuator 2P connector (female terminals) No. 2:	VSA modulator-control unit 46P connector No. 6

   Courtesy of HONDA, U.S.A., INC.

   Is there continuity?

   YES

   Go to step 3.

   NO

   Repair an open in the wire between the VSA modulator-control unit and the appropriate electric parking brake actuator.

3. Electric parking brake actuator check (substitution)

   -1. Substitute a known-good electric parking brake actuator .

   -2. Reconnect the following connectors.

   VSA modulator-control unit 46P connector

   Appropriate electric parking brake actuator 2P connector

   -3. Turn the vehicle to the ON mode.

   -4. Clear the DTC with the HDS.

   -5. Turn the vehicle to the OFF (LOCK) mode, then to the ON mode.

   -6. Apply and release the parking brake several times.

   -7. Check for DTCs with the HDS.

   DTC Description	DTC
   C1110-13 Left Rear Electric Parking Brake Actuator Circuit Open
   C1111-13 Right Rear Electric Parking Brake Actuator Circuit Open

   Is DTC C1110-13 or C1111-13 indicated?

   YES

   Check for loose terminals and poor connections in the VSA modulator-control unit 46P connector. Check for any authorized service information related to the DTCs or symptoms you are troubleshooting. If they are OK, replace the VSA modulator-control unit .

   NO

   Replace the appropriate electric parking brake actuator .
