DTC B1825

WARNING: This page is about a different car, the 2022 Honda Accord, 2021 Honda Accord, 2020 Honda Accord, 2019 Honda Accord, and 2018 Honda Accord. However, it is still accessible from the selected car via links, so may be relevant.

DTC B1825  : Slide Pulse Error (No Change in Pulse for 1 Second)

NOTE:
  • If you are troubleshooting multiple DTCs, be sure to follow the instructions in B-CAN System Diagnosis Test Mode A .
  • If DTC B1825 and B1826 are both indicated, check for a blown No. B33 fuse . If the fuse blows again, check for a short to ground in the slide motor circuit.
DTC Description DTC
B1825 Slide pulse error (no change in pulse for 1 second)

DTC (Power Seat Control Unit)

  1. Problem verification

    -1. Clear the DTCs with the HDS.

    -2. Press the engine start/stop button at least 20 times, then wait for at least 20 seconds.

    -3. Operate the power seat to its most forward and then to its most rearward position.

    NOTE: DTC B1825 is stored when the slide switch is operated more than 1 second after the seat moves to the most forward or backward position, even when the system is OK.

    -4. Check for DTCs with the HDS.

    DTC Description DTC
    B1825 Slide pulse error (no change in pulse for 1 second)
    B1826 Front height pulse error (no change in pulse for 1 second)
    B1827 Rear height pulse error (no change in pulse for 1 second)
    B1828 Driver seat recline motor pulse error
    B1836 Power seat position sensor circuit short

    Any of DTC are indicated at the same time with DTC B1825?

    YES: DTC B1825 is indicated only

    Go to step 2.

    YES: DTC B1836 is also indicated

    Go to DTC B1836 troubleshooting .

    YES: DTC B1826, B1827, and/or B1828 are also indicated

    Go to step 6.

    NO

    Intermittent failure, the system is OK at this time. Check for loose or poor connections.

  2. Determine possible failure area (motor operation, motor sensor)

    -1. Turn the vehicle to the OFF (LOCK) mode and then the ON mode.

    -2. Operate the slide switch for 2 seconds, and check the slide motor operation.

    Does the slide motor run smoothly?

    YES

    Go to step 3.

    NO

    Go to step 8.

  3. Open wire check (SLSE, SEG lines)

    -1. Turn the vehicle to the OFF (LOCK) mode.

    -2. Disconnect the following connectors.

    Slide motor/position sensor 5P connector
    Power seat control unit connector A (20P)

    -3. Check for continuity between test points 1 and 2 respectively.

    Test condition Vehicle OFF (LOCK) mode
    Slide motor/position sensor 5P connector: disconnected
    Power seat control unit connector A (20P): disconnected
    Test point 1 Slide motor/position sensor 5P connector (female terminals) No. 2:
    Test point 2 Power seat control unit connector A (20P) No. 8
    Test point 1 Slide motor/position sensor 5P connector (female terminals) No. 3:
    Test point 2 Power seat control unit connector A (20P) No. 19

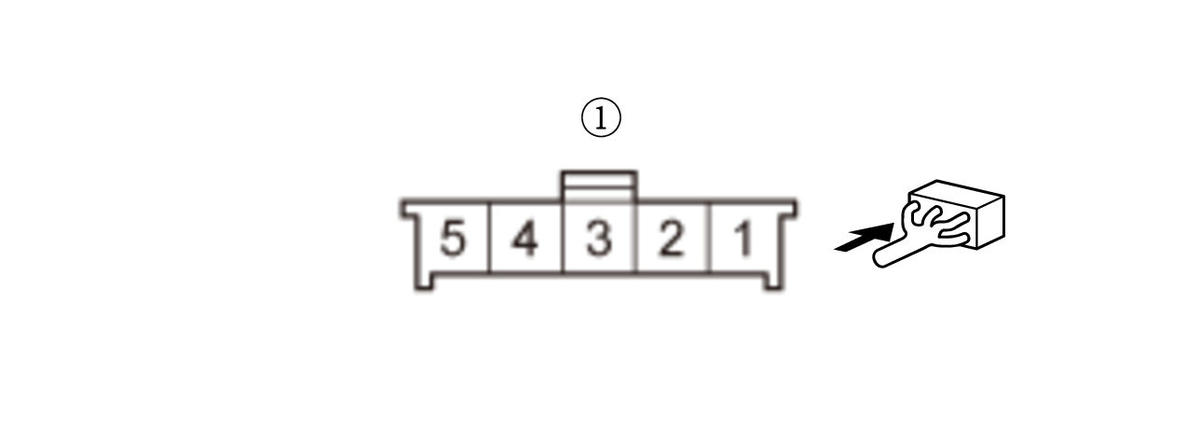

    GHH397537Courtesy of HONDA, U.S.A., INC.

    Is there continuity?

    YES

    The SLSE, SEG wires are not open. Go to step 4.

    NO

    Repair an open or high resistance in the wire.

  4. Shorted wire check (SLSE line)

    -1. Check for continuity between test points 1 and 2.

    Test condition Vehicle OFF (LOCK) mode
    Slide motor/position sensor 5P connector: disconnected
    Power seat control unit connector A (20P): disconnected
    Test point 1 Power seat control unit connector A (20P) No. 8
    Test point 2 Body ground

    Is there continuity?

    YES

    Repair a short to ground in the wire.

    NO

    The SLSE wire is not shorted. Go to step 5.

  5. Slide position sensor check

    -1. Reconnect the following connector.

    Power seat control unit connector A (20P)

    -2. Turn the vehicle to the ON mode.

    -3. Measure the voltage between test points 1 (+) and 2 (-).

    Test condition Vehicle ON mode
    Slide motor/position sensor 5P connector: disconnected
    Test point 1 Slide motor/position sensor 5P connector (female terminals) No. 2 (+):
    Test point 2 Slide motor/position sensor 5P connector (female terminals) No. 3 (-):

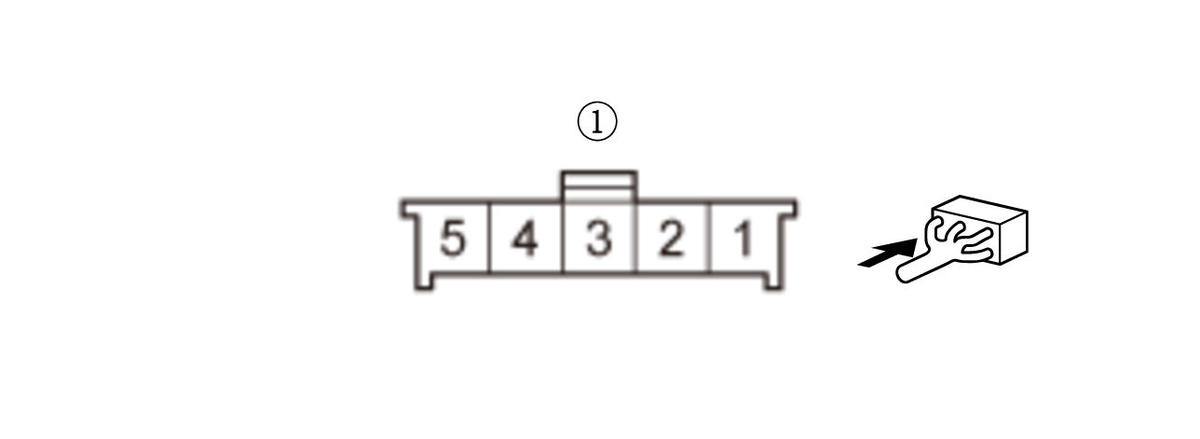

    GHH397540Courtesy of HONDA, U.S.A., INC.

    Is there about 5 V?

    About 5 V

    Faulty slide motor/position sensor; replace the seat frame assembly .

    No voltage

    Replace the power seat control unit .

    Battery voltage

    Repair a short to power in the wire (sensor line).

  6. Open wire check (SVCC, SEG lines)

    -1. Turn the vehicle to the OFF (LOCK) mode.

    -2. Disconnect the following connectors.

    Slide motor/position sensor 5P connector
    Power seat control unit connector A (20P)

    -3. Check for continuity between test points 1 and 2 respectively.

    Test condition Vehicle OFF (LOCK) mode
    Slide motor/position sensor 5P connector: disconnected
    Power seat control unit connector A (20P): disconnected
    Test point 1 Slide motor/position sensor 5P connector (female terminals) No. 4:
    Test point 2 Power seat control unit connector A (20P) No. 6
    Test point 1 Slide motor/position sensor 5P connector (female terminals) No. 3:
    Test point 2 Power seat control unit connector A (20P) No. 19

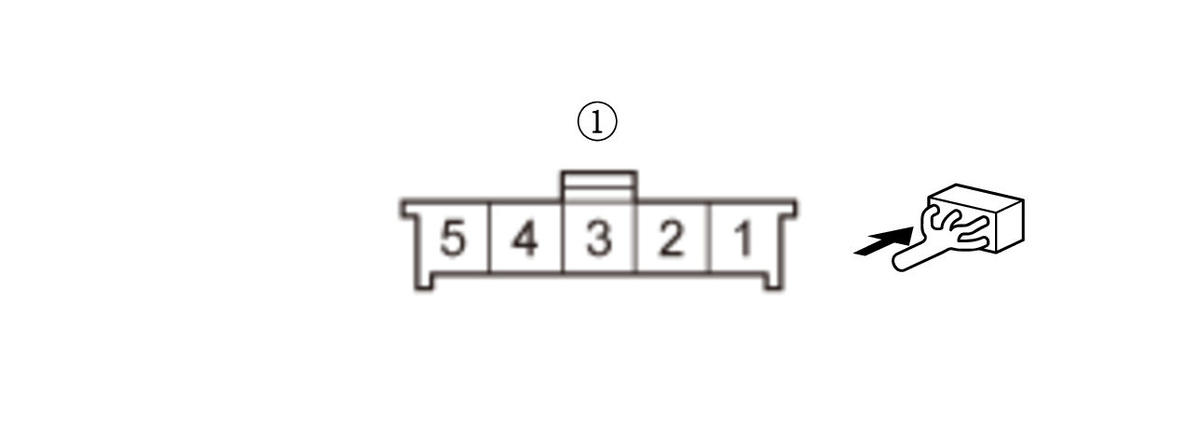

    GHH397543Courtesy of HONDA, U.S.A., INC.

    Is there continuity?

    YES

    The SVCC and SEG wires are OK. Go to step 7.

    NO

    Repair an open or high resistance in the wire.

  7. Power seat control unit check

    -1. Reconnect the following connector.

    Power seat control unit connector A (20P)

    -2. Turn the vehicle to the ON mode.

    -3. Measure the voltage between test points 1 and 2.

    Test condition Vehicle ON mode
    Slide motor/position sensor 5P connector: disconnected
    Test point 1 Power seat control unit connector A (20P) No. 6
    Test point 2 Power seat control unit connector A (20P) No. 19

    Is there battery voltage when the slide switch is operated?

    YES

    Faulty slide motor/position sensor; replace the seat frame assembly .

    NO

    Replace the power seat control unit .

  8. Fuse check

    -1. Turn the vehicle to the OFF (LOCK) mode.

    -2. Check the following fuse.

    Fuse No. B33

    Is the fuse OK?

    YES

    Go to step 9.

    NO

    Replace the fuse. If the fuse blows again, repair the short to ground in the No. B33 fuse circuit.

  9. Open wire check (+B DR P/SEAT SLIDE/+B/P-SEAT1 line)

    -1. Measure the voltage between test points 1 and 2.

    Test condition Vehicle OFF (LOCK) mode
    Test point 1 Power seat control unit connector B (12P) No. 6
    Test point 2 Body ground

    Is there battery voltage?

    YES

    The +B DR P/SEAT SLIDE/+B/P-SEAT1 wire is not open. Go to step 10.

    NO

    Repair an open or high resistance in the wire.

  10. Open wire check (GND/P-SEAT1 line)

    -1. Measure the voltage between test points 1 and 2.

    Test condition Vehicle OFF (LOCK) mode
    Test point 1 Power seat control unit connector B (12P) No. 2
    Test point 2 Body ground

    Is there 0.2 V or more?

    YES

    Repair an open or high resistance in the ground wire or poor ground (G601).

    NO

    The GND/P-SEAT1 wire is not open. Go to step 11.

  11. Open wire check (SLIDE FR, SLIDE RR lines)

    -1. Disconnect the following connectors.

    Slide motor/position sensor 5P connector
    Power seat control unit connector B (12P)

    -2. Check for continuity between test points 1 and 2 respectively.

    Test condition Vehicle OFF (LOCK) mode
    Slide motor/position sensor 5P connector: disconnected
    Power seat control unit connector B (12P): disconnected
    Test point 1 Slide motor/position sensor 5P connector (female terminals) No. 5:
    Test point 2 Power seat control unit connector B (12P) No. 3
    Test point 1 Slide motor/position sensor 5P connector (female terminals) No. 1:
    Test point 2 Power seat control unit connector B (12P) No. 1

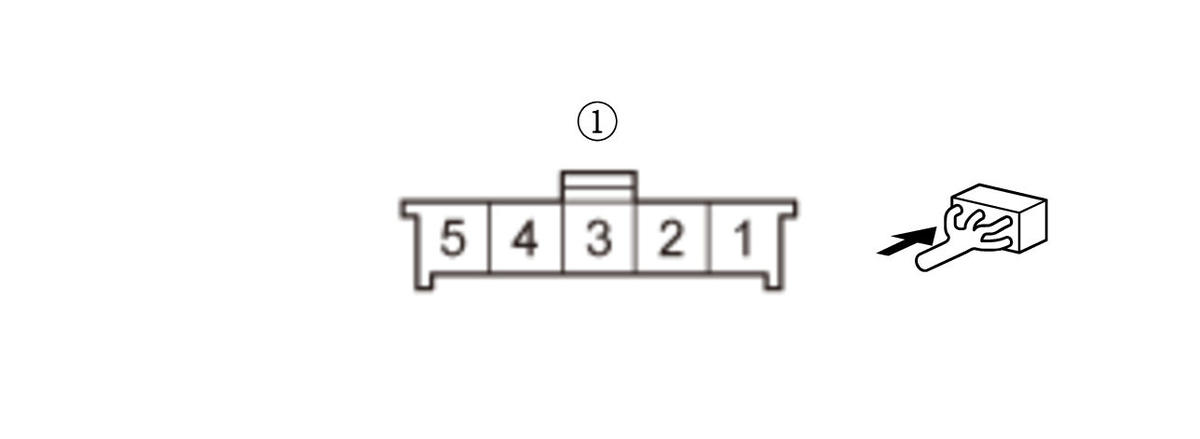

    GHH397546Courtesy of HONDA, U.S.A., INC.

    Is there continuity?

    YES

    The SLIDE FR and SLIDE RR wires are not open. Go to step 12.

    NO

    Repair an open or high resistance in the wire.

  12. Shorted wire check (SLIDE FR, SLIDE RR lines)

    -1. Check for continuity between test points 1 and 2 individually.

    Test condition Vehicle OFF (LOCK) mode
    Slide motor/position sensor 5P connector: disconnected
    Power seat control unit connector B (12P): disconnected
    Test point 1 Slide motor/position sensor 5P connector (female terminals) No. 5:
    Test point 2 Body ground
    Test point 1 Slide motor/position sensor 5P connector (female terminals) No. 1:
    Test point 2 Body ground

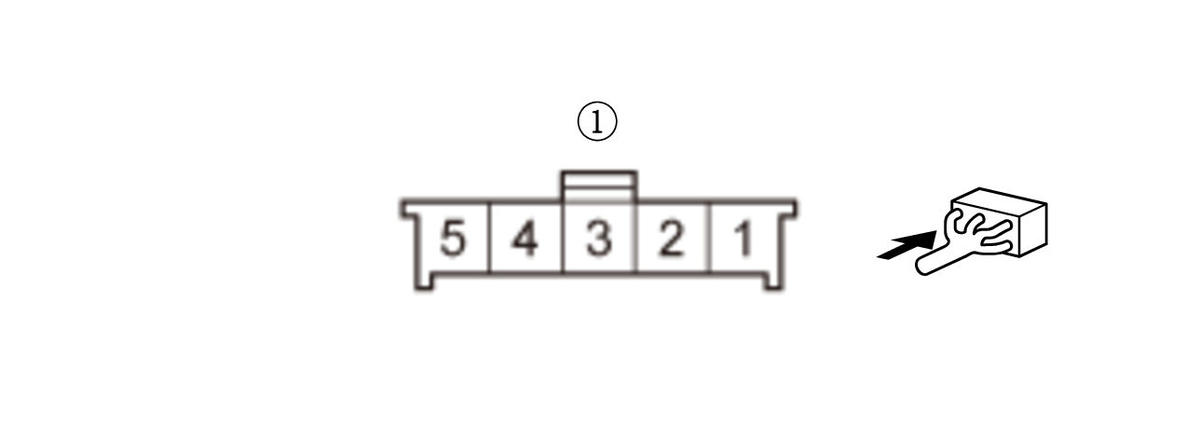

    GHH397549Courtesy of HONDA, U.S.A., INC.

    Is there continuity?

    YES

    Repair a short to ground in the wire.

    NO

    The SLIDE FR and SLIDE RR wires are OK. Go to step 13.

  13. Slide motor check

    -1. Test the slide motor .

    Is the motor OK?

    YES

    Replace the power seat control unit .

    NO

    Faulty slide motor/position sensor; replace the seat frame assembly .
