DTC B12C6

DTC B12C6  : Electric Steering Lock Switch C/D Monitor Circuit Failure

NOTE:  If you are troubleshooting multiple DTCs, be sure to follow the instructions in B-CAN System Diagnosis Test Mode A .

DTC (Power Control Unit)

1. Problem verification

   -1. Clear the DTCs with the HDS.

   -2. Do this procedure 10 times: Turn the vehicle to the OFF (LOCK), ACCESSORY, ON, and OFF (LOCK) mode.

   -3. Check for DTCs with the HDS.

   DTC Description	DTC
   B12C6 Electric steering lock switch C/D monitor circuit failure

   Is DTC B12C6 indicated?

   YES

   Go to step 2.

   NO

   Intermittent failure, the system is OK at this time. Check for loose or poor connections.

2. ESL SW line check 1

   -1. Check the parameter (s) below with the HDS.

   Signal	Threshold		Current conditions
   	Values	Unit	Values	Unit
   Electrical Steering Lock SWITCH C	OFF
   Electrical Steering Lock SWITCH D	OFF

   Are ELECTRICAL STEERING LOCK SWITCH C and ELECTRICAL STEERING LOCK SWITCH D data list values OFF?

   YES

   Go to step 8.

   NO

   Go to step 3.

3. ESL SW line check 2

   -1. Check the parameter (s) below with the HDS.

   Signal	Threshold		Current conditions
   	Values	Unit	Values	Unit
   Electrical Steering Lock SWITCH C	OFF
   Electrical Steering Lock SWITCH D	OFF

   Is ELECTRICAL STEERING LOCK SWITCH C data list value OFF?

   YES

   Go to step 9.

   NO

   Go to step 4.

4. ESL SW line check 3

   -1. Check the parameter (s) below with the HDS.

   Signal	Threshold		Current conditions
   	Values	Unit	Values	Unit
   Electrical Steering Lock SWITCH C	OFF
   Electrical Steering Lock SWITCH D	OFF

   Is ELECTRICAL STEERING LOCK SWITCH D data list value OFF?

   YES

   Go to step 11.

   NO

   Go to step 5.

5. Shorted wire check (ESL SW C line) 1

   -1. Turn the vehicle to the OFF (LOCK) mode.

   -2. Disconnect the following connector.

   Electric steering lock 12P connector

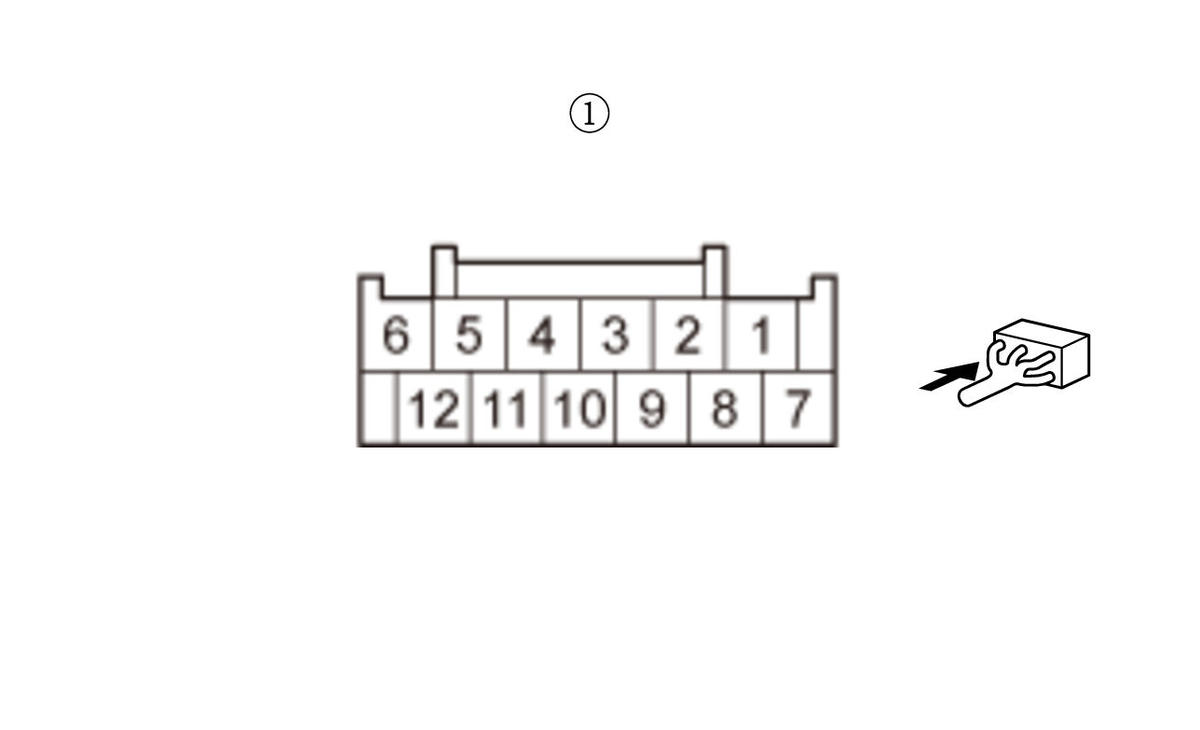

   -3. Check for continuity between test points 1 and 2.

   Test condition	Vehicle OFF (LOCK) mode Electric steering lock 12P connector: disconnected
   Test point 1	Electric steering lock 12P connector (female terminals) No. 9:
   Test point 2	Body ground

   Courtesy of HONDA, U.S.A., INC.

   Is there continuity?

   YES

   Go to step 13.

   NO

   Go to step 6.

6. Shorted wire check (ESL SW D line) 1

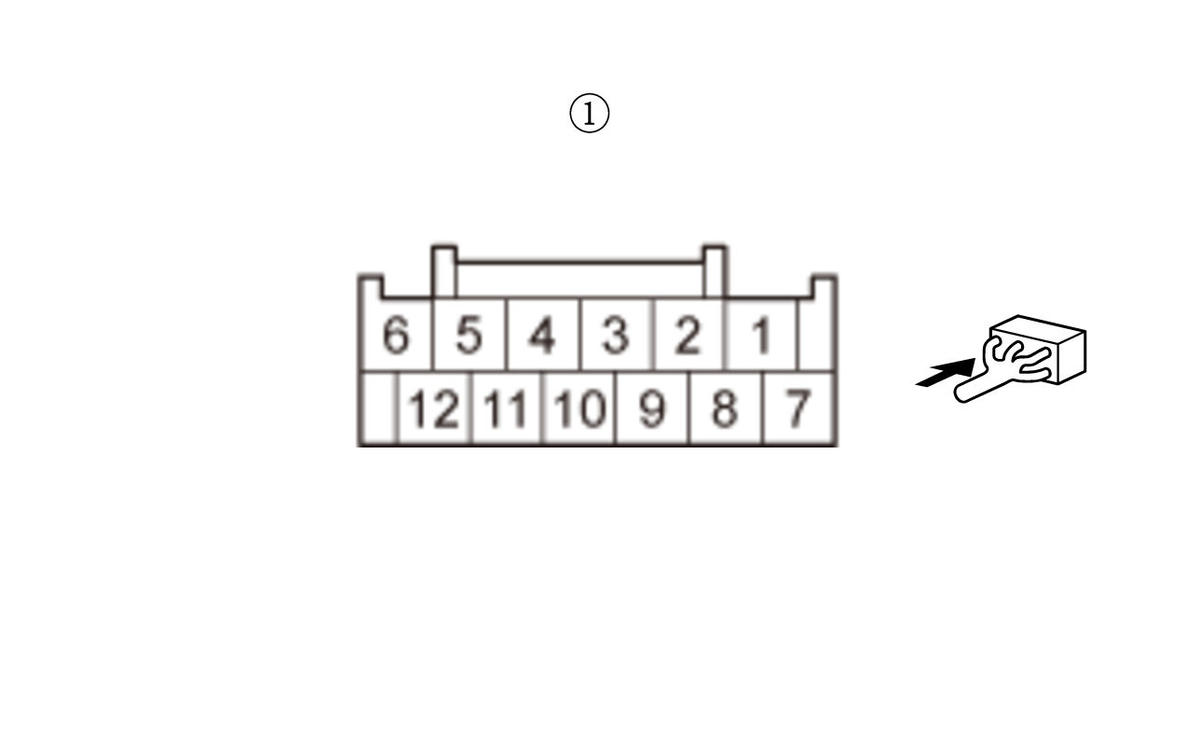

   -1. Check for continuity between test points 1 and 2.

   Test condition	Vehicle OFF (LOCK) mode Electric steering lock 12P connector: disconnected
   Test point 1	Electric steering lock 12P connector (female terminals) No. 10:
   Test point 2	Body ground

   Courtesy of HONDA, U.S.A., INC.

   Is there continuity?

   YES

   Go to step 7.

   NO

   The ESL SW D wire is OK. Replace the steering lock .

7. Shorted wire check (ESL SW D line) 2

   -1. Disconnect the following connector.

   Body control module connector C (66P)

   -2. Check for continuity between test points 1 and 2.

   Test condition	Vehicle OFF (LOCK) mode Electric steering lock 12P connector: disconnected Body control module connector C (66P): disconnected
   Test point 1	Electric steering lock 12P connector (female terminals) No. 10:
   Test point 2	Body ground

   Courtesy of HONDA, U.S.A., INC.

   Is there continuity?

   YES

   Repair a short to ground in the wire.

   NO

   The ESL SW D wire is OK. Replace the body control module .

8. Open wire check (GND line)

   -1. Turn the vehicle to the OFF (LOCK) mode.

   -2. Disconnect the following connector.

   Electric steering lock 12P connector

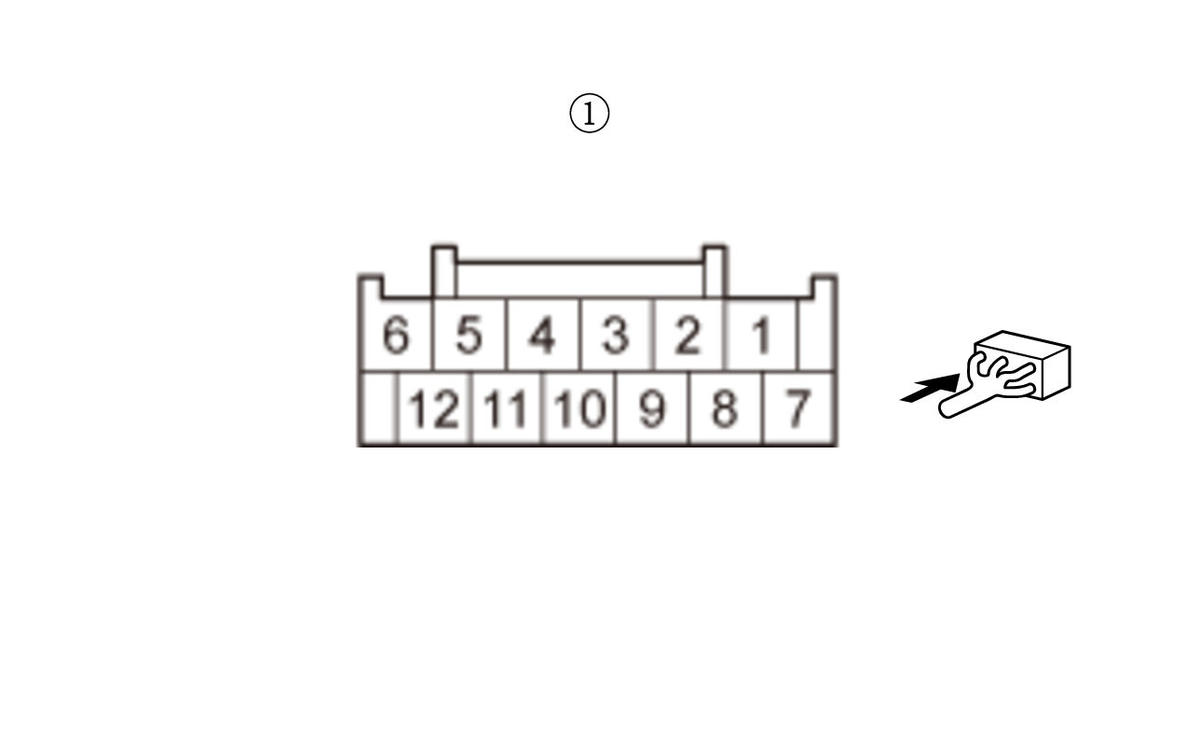

   -3. Check for continuity between test points 1 and 2.

   Test condition	Vehicle OFF (LOCK) mode Electric steering lock 12P connector: disconnected
   Test point 1	Electric steering lock 12P connector (female terminals) No. 7:
   Test point 2	Body ground

   Courtesy of HONDA, U.S.A., INC.

   Is there continuity?

   YES

   The GND wire is OK. Replace the steering lock .

   NO

   Repair an open or high resistance in the ground wire or poor ground (G503).

9. Open wire check (ESL SW C line) 1

   -1. Turn the vehicle to the OFF (LOCK) mode.

   -2. Disconnect the following connector.

   Electric steering lock 12P connector

   -3. Turn the vehicle to the ON mode.

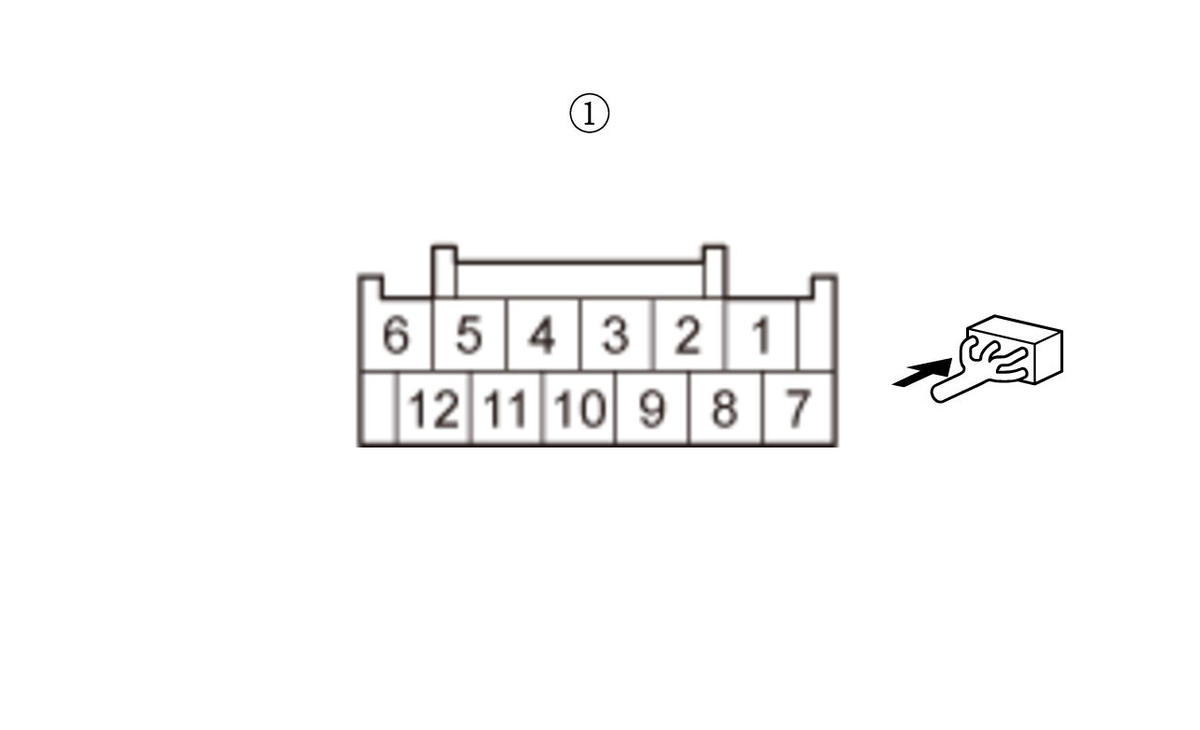

   -4. Measure the voltage between test points 1 and 2.

   Test condition	Vehicle ON mode Electric steering lock 12P connector: disconnected
   Test point 1	Electric steering lock 12P connector (female terminals) No. 9:
   Test point 2	Body ground

   Courtesy of HONDA, U.S.A., INC.

   Is there battery voltage?

   YES

   The ESL SW C wire is OK. Replace the steering lock .

   NO

   Go to step 10.

10. Open wire check (ESL SW C line) 2

    -1. Turn the vehicle to the OFF (LOCK) mode.

    -2. Disconnect the following connector.

    Body control module connector C (66P)

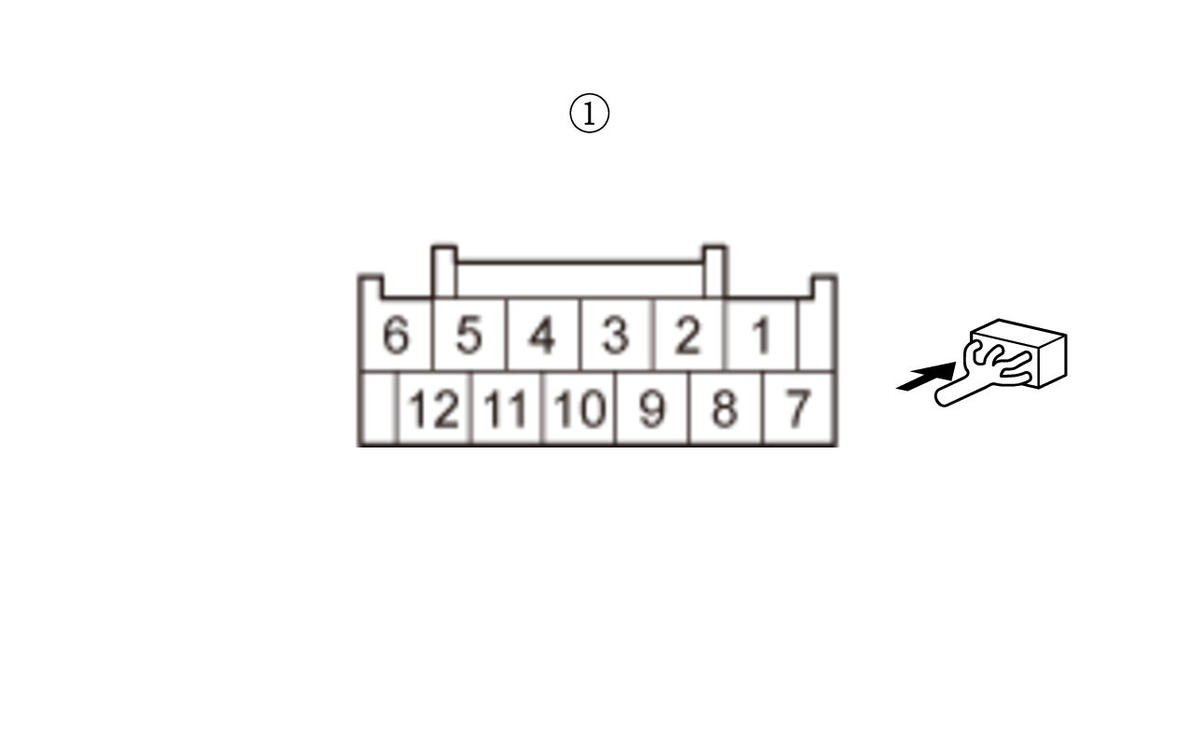

    -3. Check for continuity between test points 1 and 2.

    Test condition	Vehicle OFF (LOCK) mode Electric steering lock 12P connector: disconnected Body control module connector C (66P): disconnected
    Test point 1	Electric steering lock 12P connector (female terminals) No. 9:
    Test point 2	Body control module connector C (66P) No. 45

    Courtesy of HONDA, U.S.A., INC.

    Is there continuity?

    YES

    The ESL SW C wire is OK. Replace the body control module .

    NO

    Repair an open or high resistance in the wire.

11. Open wire check (ESL SW D line) 1

    -1. Turn the vehicle to the OFF (LOCK) mode.

    -2. Disconnect the following connector.

    Electric steering lock 12P connector

    -3. Turn the vehicle to the ON mode.

    -4. Measure the voltage between test points 1 and 2.

    Test condition	Vehicle ON mode Electric steering lock 12P connector: disconnected
    Test point 1	Electric steering lock 12P connector (female terminals) No. 10:
    Test point 2	Body ground

    Courtesy of HONDA, U.S.A., INC.

    Is there battery voltage?

    YES

    The ESL SW D wire is OK. Replace the steering lock .

    NO

    Go to step 12.

12. Open wire check (ESL SW D line) 2

    -1. Turn the vehicle to the OFF (LOCK) mode.

    -2. Disconnect the following connector.

    Body control module connector C (66P)

    -3. Check for continuity between test points 1 and 2 respectively.

    Test condition	Vehicle OFF (LOCK) mode Electric steering lock 12P connector: disconnected Body control module connector C (66P): disconnected
    Test point 1	Electric steering lock 12P connector (female terminals) No. 10:
    Test point 2	Body control module connector C (66P) No. 44

    Courtesy of HONDA, U.S.A., INC.

    Is there continuity?

    YES

    The ESL SW D wire is OK. Replace the body control module .

    NO

    Repair an open or high resistance in the wire.

13. Shorted wire check (ESL SW C line) 2

    -1. Disconnect the following connector.

    Body control module connector C (66P)

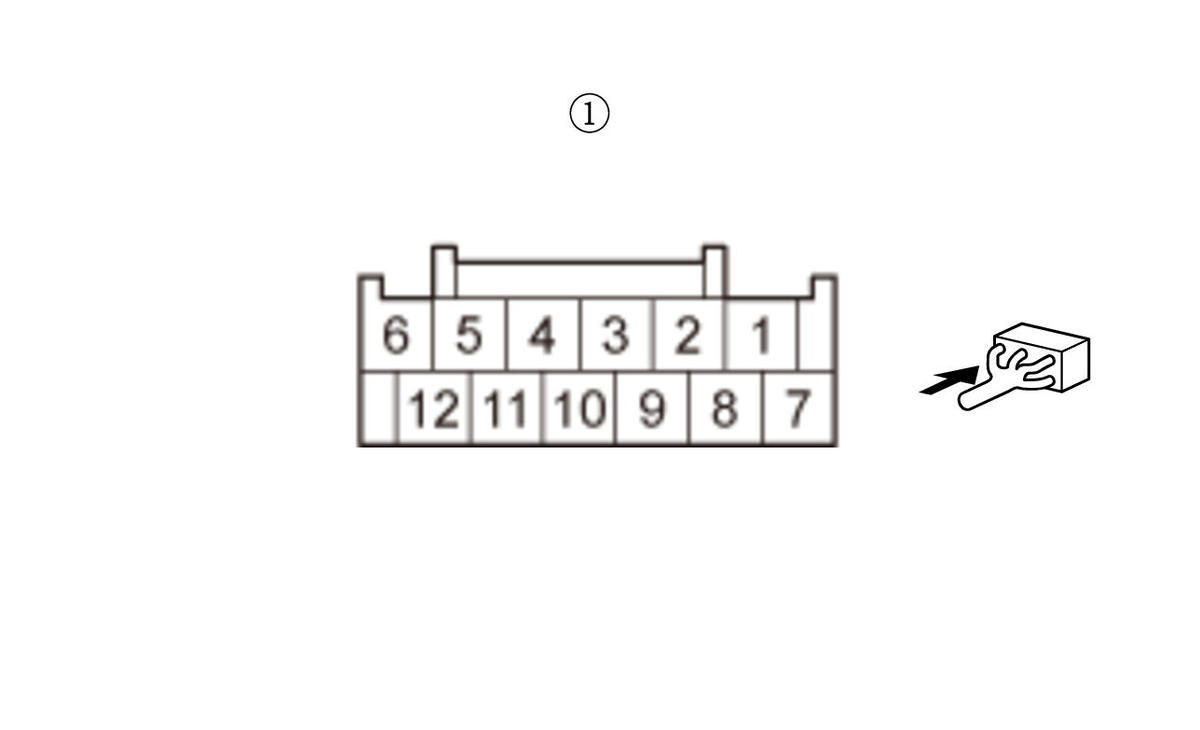

    -2. Check for continuity between test points 1 and 2.

    Test condition	Vehicle OFF (LOCK) mode Electric steering lock 12P connector: disconnected Body control module connector C (66P): disconnected
    Test point 1	Electric steering lock 12P connector (female terminals) No. 9:
    Test point 2	Body ground

    Courtesy of HONDA, U.S.A., INC.

    Is there continuity?

    YES

    Repair a short to ground in the wire.

    NO

    The ESL SW C wire is OK. Replace the body control module .
