Moonroof Motor-Control Unit Connector for Inputs and Outputs
WARNING: This page is about a different car, the 2022 Honda Accord, 2021 Honda Accord, 2020 Honda Accord, 2019 Honda Accord, and 2018 Honda Accord. However, it is still accessible from the selected car via links, so may be relevant.

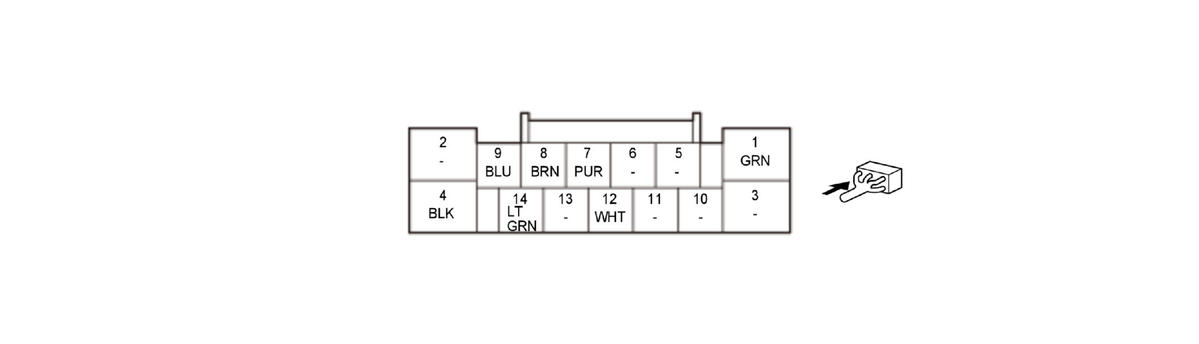

Moonroof Motor-Control Unit 14P Connector (female terminals)
| Terminal number | Terminal name | Description | Signal |
|---|---|---|---|
| 1 | +B SUNROOF | +B power source | About battery voltage at all times |
| 2 | Not used | --- | --- |
| 3 | Not used | --- | --- |
| 4 | GND | Ground for moonroof motor-control unit | Less than 0.2 V at all times |
| 5 | Not used | --- | --- |
| 6 | Not used | --- | --- |
| 7 | S/R SW OPEN | Detects moonroof switch OPEN signal | With moonroof switch OPEN: less than 0.2 VWith moonroof switch any other than OPEN and moonroof motor-control unit is wake-up mode: about battery voltage |
| 8 | S/R SW TILT | Detects moonroof switch TILT signal | With moonroof switch TILT: less than 0.2 VWith moonroof switch any other than TILT and moonroof motor-control unit is wake-up mode: about battery voltage |
| 9 | S/R SW CLOSE | Detects moonroof switch CLOSE signal | With moonroof switch CLOSE: less than 0.2 VWith moonroof switch any other than CLOSE and moonroof motor-control unit is wake-up mode: about battery voltage |
| 10 | Not used | --- | --- |
| 11 | Not used | --- | --- |
| 12 | LIN(P/W) | Communication line | --- |
| 13 | Not used | --- | --- |
| 14 | S/R SW AUTO | Detects moonroof switch AUTO signal | With moonroof switch AUTO: less than 0.2 VWith moonroof switch any other than AUTO and moonroof motor-control unit is wake-up mode: about battery voltage |
