DTC B2986 (55)

DTC B2986 or DTC indicator 55  : An open in the recirculation control motor circuit

DTCs (AC)

1. Problem verification

   -1. Clear the DTCs with the HDS.

   -2. Turn the vehicle to the OFF (LOCK) mode and then the ON mode.

   -3. Do the Self-Diagnostic Function with the HDS or the climate control unit .

   -4. Check for DTCs.

   DTC Description	DTC
   B2986 An open in the recirculation control motor circuit

   Is DTC B2986 or 55 indicated?

   YES

   The failure is duplicated. Go to step 2.

   NO

   Intermittent failure. Check for loose wires or poor connections on the recirculation control motor circuit.

2. Determine possible failure area (RFD-P line, others)

   -1. Turn the vehicle to the OFF (LOCK) mode.

   -2. Disconnect the following connector.

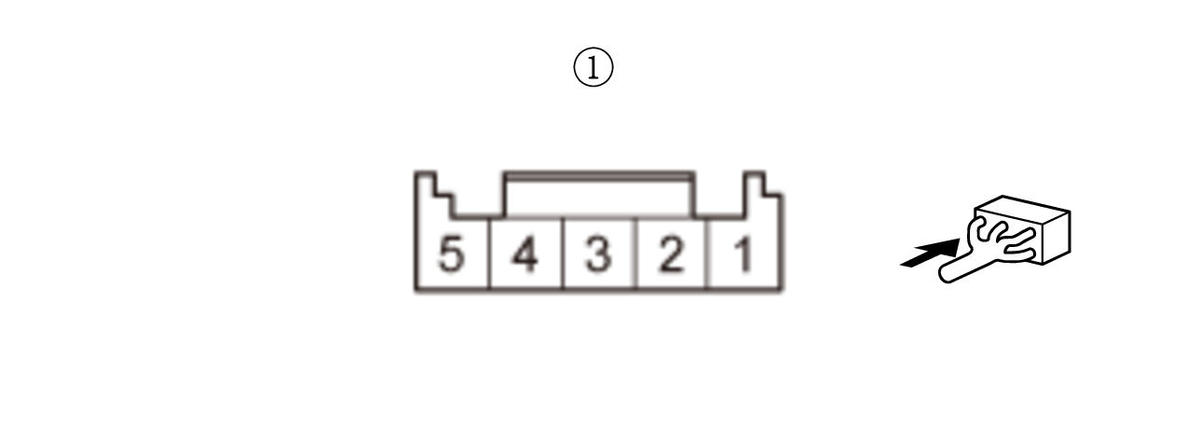

   Recirculation control motor 5P connector

   -3. Turn the vehicle to the ON mode.

   -4. Measure the voltage between test points 1 and 2.

   Test condition	Vehicle ON mode
   	Recirculation control motor 5P connector: disconnected
   Test point 1	Recirculation control motor 5P connector (female terminals) No. 4:
   Test point 2	Body ground

   Courtesy of HONDA, U.S.A., INC.

   Is there about 5 V?

   YES

   The RFD-P wire is OK. Go to step 3.

   NO

   Go to step 4.

3. Open wire check (SENS-COM line)

   -1. Measure the voltage between test points 1 and 2.

   Test condition	Vehicle ON mode
   	Recirculation control motor 5P connector: disconnected
   Test point 1	Recirculation control motor 5P connector (female terminals) No. 3:
   Test point 2	Recirculation control motor 5P connector (female terminals) No. 4:

   Courtesy of HONDA, U.S.A., INC.

   Is there about 5 V?

   YES

   Replace the recirculation control motor .

   NO

   Repair an open in the SENS-COM wire.

4. Open wire check (RFD-P line)

   -1. Measure the voltage between test points 1 and 2.

   Test condition	Vehicle ON mode
   	Recirculation control motor 5P connector: disconnected
   Test point 1	Climate control unit connector B (12P) No. 4
   Test point 2	Body ground

   Is there about 5 V?

   YES

   Repair an open in the RFD-P wire.

   NO

   Replace the climate control unit .
