DTC B1236 (43)

DTC B1236 or DTC indicator 43  : An open in the passenger's air mix control motor circuit

DTCs (AC)

1. Problem verification

   -1. Clear the DTCs with the HDS.

   -2. Turn the vehicle to the OFF (LOCK) mode and then the ON mode.

   -3. Do the Self-Diagnostic Function with the HDS or the climate control unit .

   -4. Check for DTCs.

   DTC Description	DTC
   B1236 An open in the passenger's air mix control motor circuit

   Is DTC B1236 or 43 indicated?

   YES

   The failure is duplicated. Go to step 2.

   NO

   Intermittent failure. Check for loose wires or poor connections on the passenger's air mix control motor circuit.

2. Determine possible failure area (AMD-P-AS line, others)

   -1. Turn the vehicle to the OFF (LOCK) mode.

   -2. Disconnect the following connector.

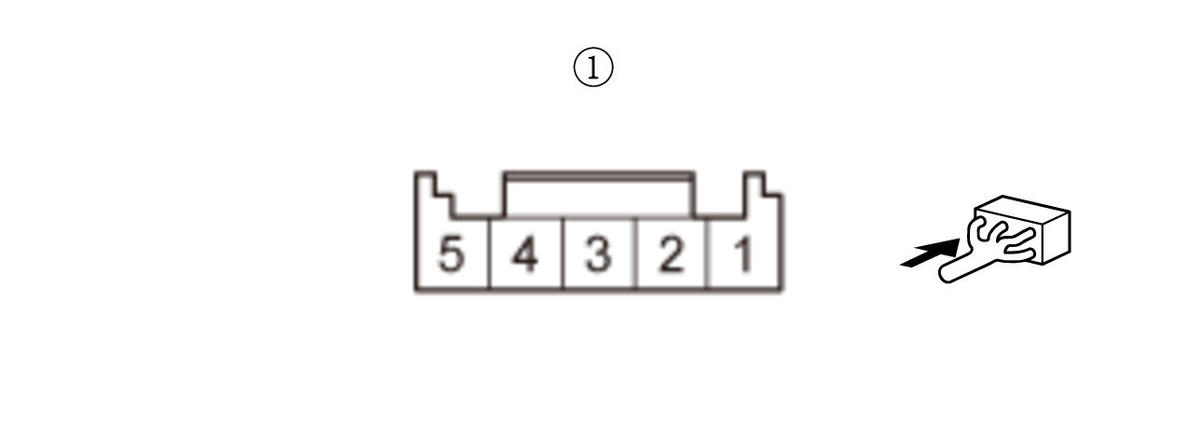

   Passenger's air mix control motor 5P connector

   -3. Turn the vehicle to the ON mode.

   -4. Measure the voltage between test points 1 and 2.

   Test condition	Vehicle ON mode
   	Passenger's air mix control motor 5P connector: disconnected
   Test point 1	Passenger's air mix control motor 5P connector (female terminals) No. 4:
   Test point 2	Body ground

   Courtesy of HONDA, U.S.A., INC.

   Is there about 5 V?

   YES

   The AMD-P-AS wire is OK. Go to step 3.

   NO

   Go to step 4.

3. Open wire check (SENS-COM line)

   -1. Measure the voltage between test points 1 and 2.

   Test condition	Vehicle ON mode
   	Passenger's air mix control motor 5P connector: disconnected
   Test point 1	Passenger's air mix control motor 5P connector (female terminals) No. 3:
   Test point 2	Passenger's air mix control motor 5P connector (female terminals) No. 4:

   Courtesy of HONDA, U.S.A., INC.

   Is there about 5 V?

   YES

   Replace the passenger's air mix control motor .

   NO

   Repair an open in the SENS-COM wire.

4. Open wire check (AMD-P-AS line)

   -1. Measure the voltage between test points 1 and 2.

   Test condition	Vehicle ON mode
   	Passenger's air mix control motor 5P connector: disconnected
   Test point 1	Climate control unit connector B (24P) No. 3
   Test point 2	Body ground

   Is there about 5 V?

   YES

   Repair an open in the AMD-P-AS wire.

   NO

   Replace the climate control unit .
