EPS Control Unit Connector for Inputs and Outputs
WARNING: This page is about a different car, the 2022 Honda Accord, 2021 Honda Accord, 2020 Honda Accord, 2019 Honda Accord, and 2018 Honda Accord. However, it is still accessible from the selected car via links, so may be relevant.
EPS Control Unit Connector for inputs and Outputs
| Connector Index | ||
|---|---|---|
| EPS Control Unit Connector A (2P) | ||
| EPS Control Unit Connector B (6P) |

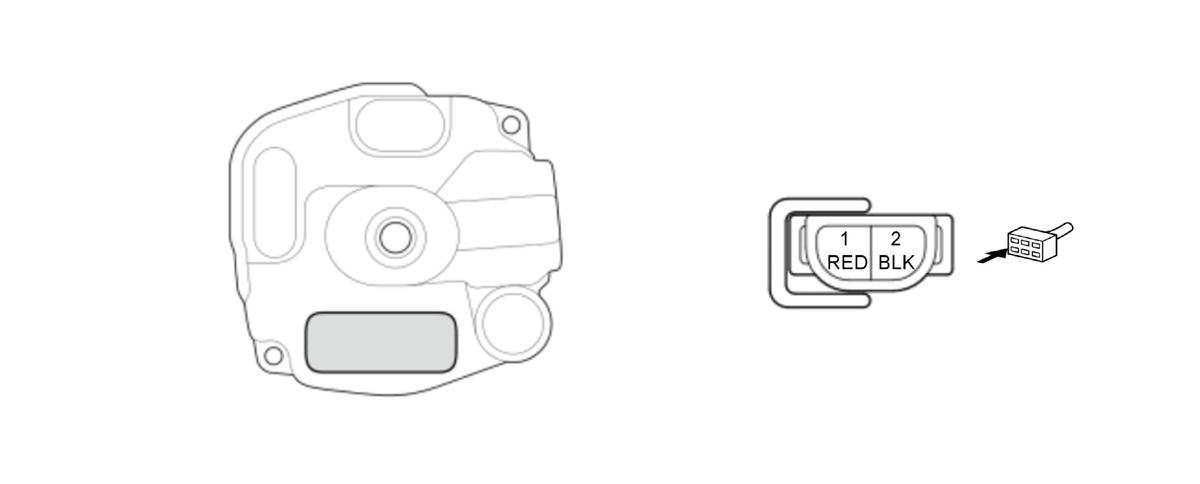

EPS Control Unit Inputs and Outputs for Connector A (2P) (female terminals)
| Terminal number | Terminal sign | Description |
|---|---|---|
| 1 | +B EPS | Power source for the actuator EPS motor |
| 2 | GND | Ground for the EPS control unit |

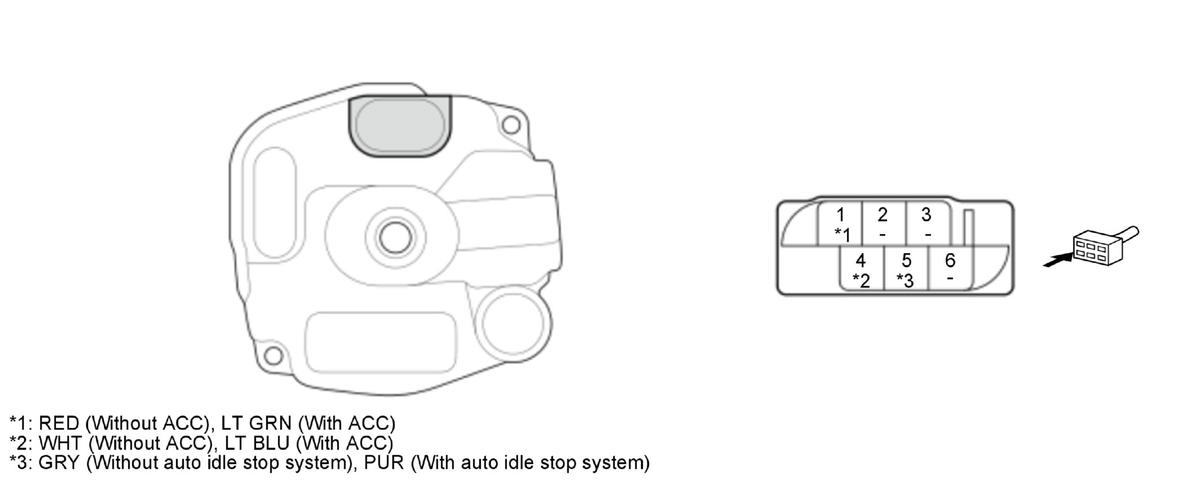

EPS Control Unit Inputs and Outputs for Connector B (6P) (female terminals)
| Terminal number | Terminal sign | Description |
|---|---|---|
| 1 | F-CAN A_L *1F-CAN B_L *2 | F-CAN communication circuit |
| 2 | Not used | --- |
| 3 | Not used | --- |
| 4 | F-CAN A_H *1F-CAN B_H *2 | F-CAN communication circuit |
*1: Without ACC
*2: With ACC
*3: Without auto idle stop system
*4: With auto idle stop system
| Terminal number | Terminal sign | Description |
|---|---|---|
| 5 | IG1 ABS/VSA (or IG1 VSA/ABS) *3IG1 RELAY1 *4 | Power source for activating the system |
| 6 | Not used | --- |
*1: Without ACC
*2: With ACC
*3: Without auto idle stop system
*4: With auto idle stop system
