Rear Brake Pad: Installation
WARNING:
Frequent inhalation of brake pad dust, regardless of material composition, could be hazardous to your health.
- Avoid breathing dust particles.
- Never use an air hose or brush to clean brake assemblies. Use an OSHA-approved vacuum cleaner.
- Brake Pad - Install

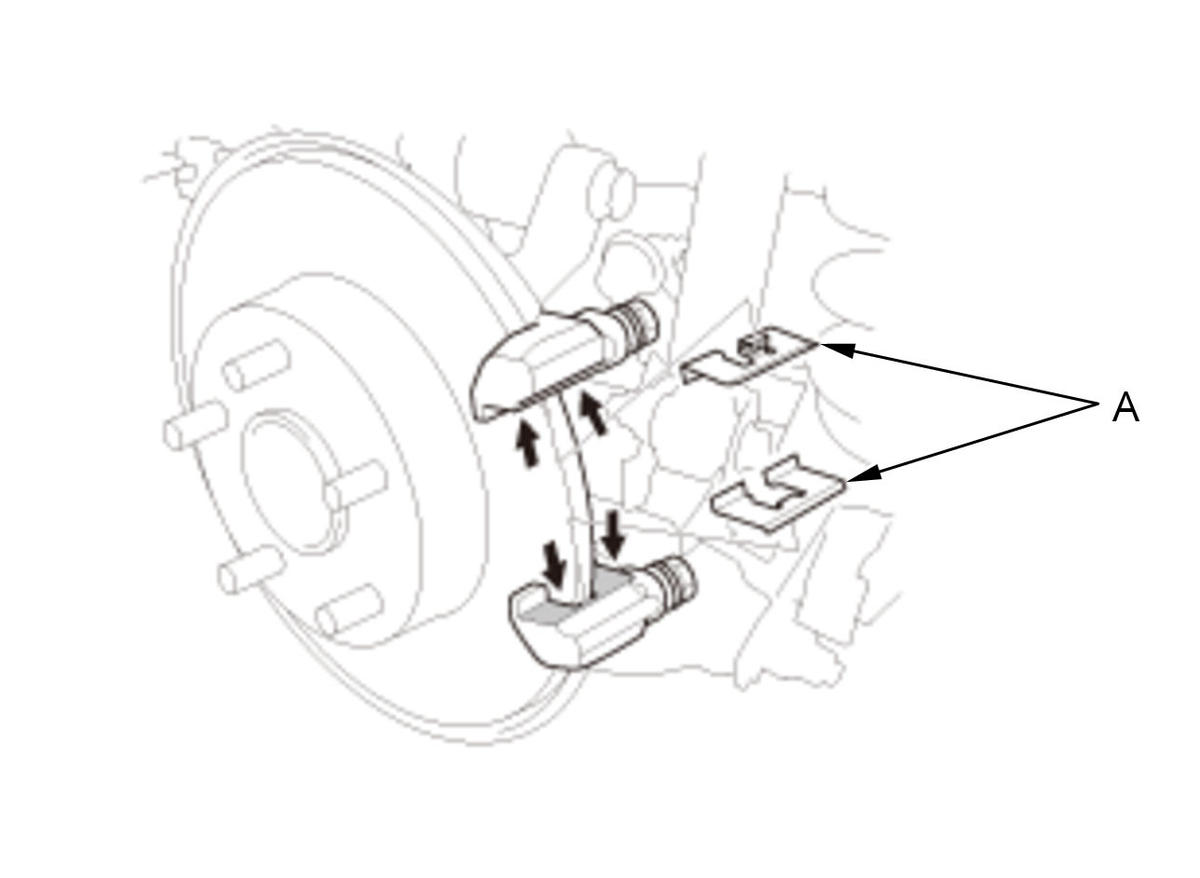

1. Apply a thin coat of M-77 assembly paste (P/N 08798-9010) to the retainer mating surface of the caliper bracket (indicated by the arrows). 2. Install the pad retainers (A).
3. Wipe off the excess assembly paste from the retainers. Keep the assembly paste away from the brake disc and the brake pads.

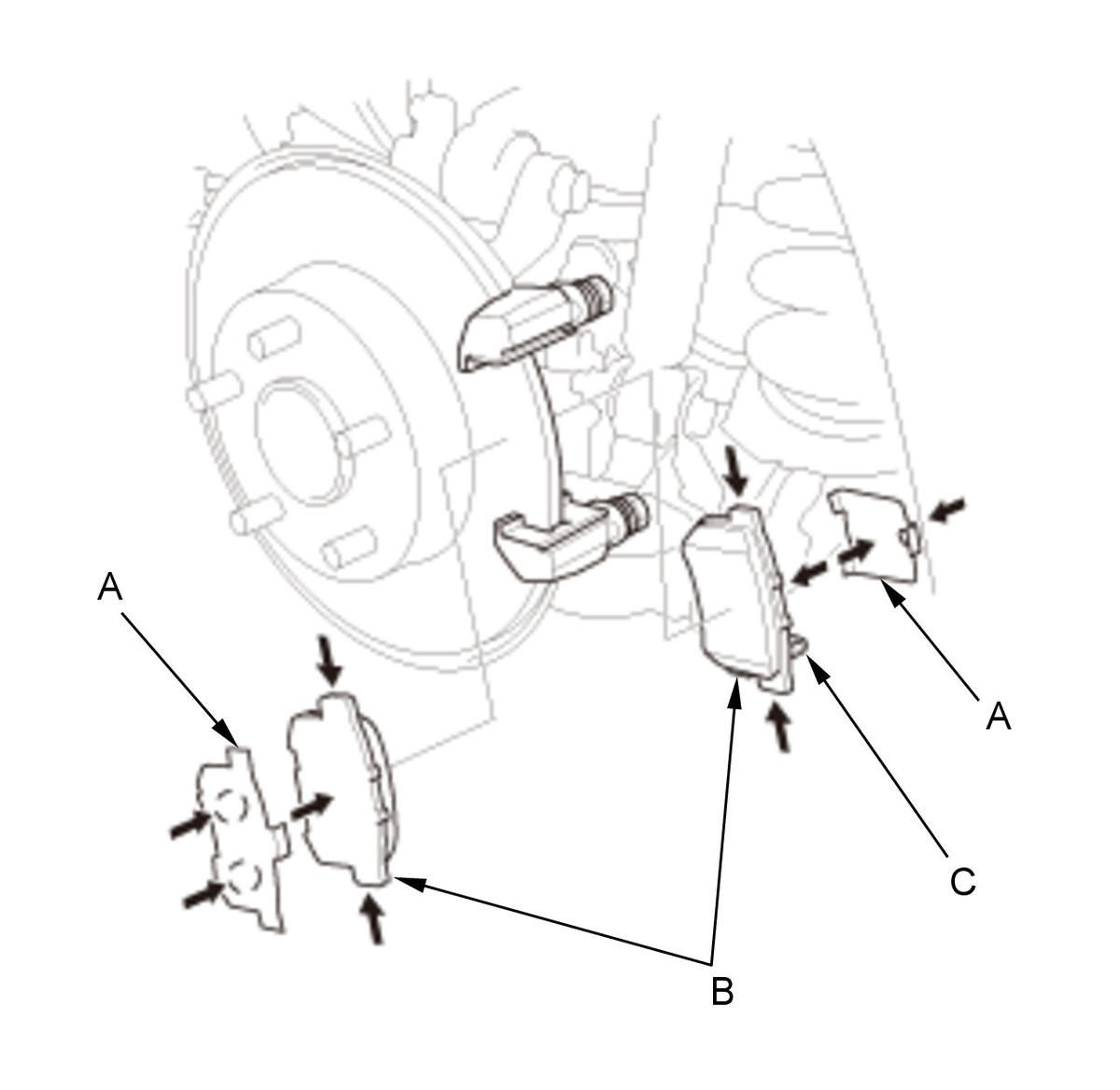

4. Apply a thin coat of M-77 assembly paste (P/N 08798-9010) to the pad side of the shims (A), the back of the brake pads (B), and the other areas indicated by the arrows. 5. Wipe off the excess assembly paste from the pad shims and brake pads friction material. Keep grease and assembly paste away from the brake disc and brake pads. Contaminated brake disc or brake pads reduce stopping ability.
6. Install the brake pads and pad shims correctly. Install the brake pad with the wear indicator (C) on the bottom inside position.
NOTE: If you are reusing the brake pads, always reinstall the brake pads in their original positions to prevent a temporary loss of braking efficiency.

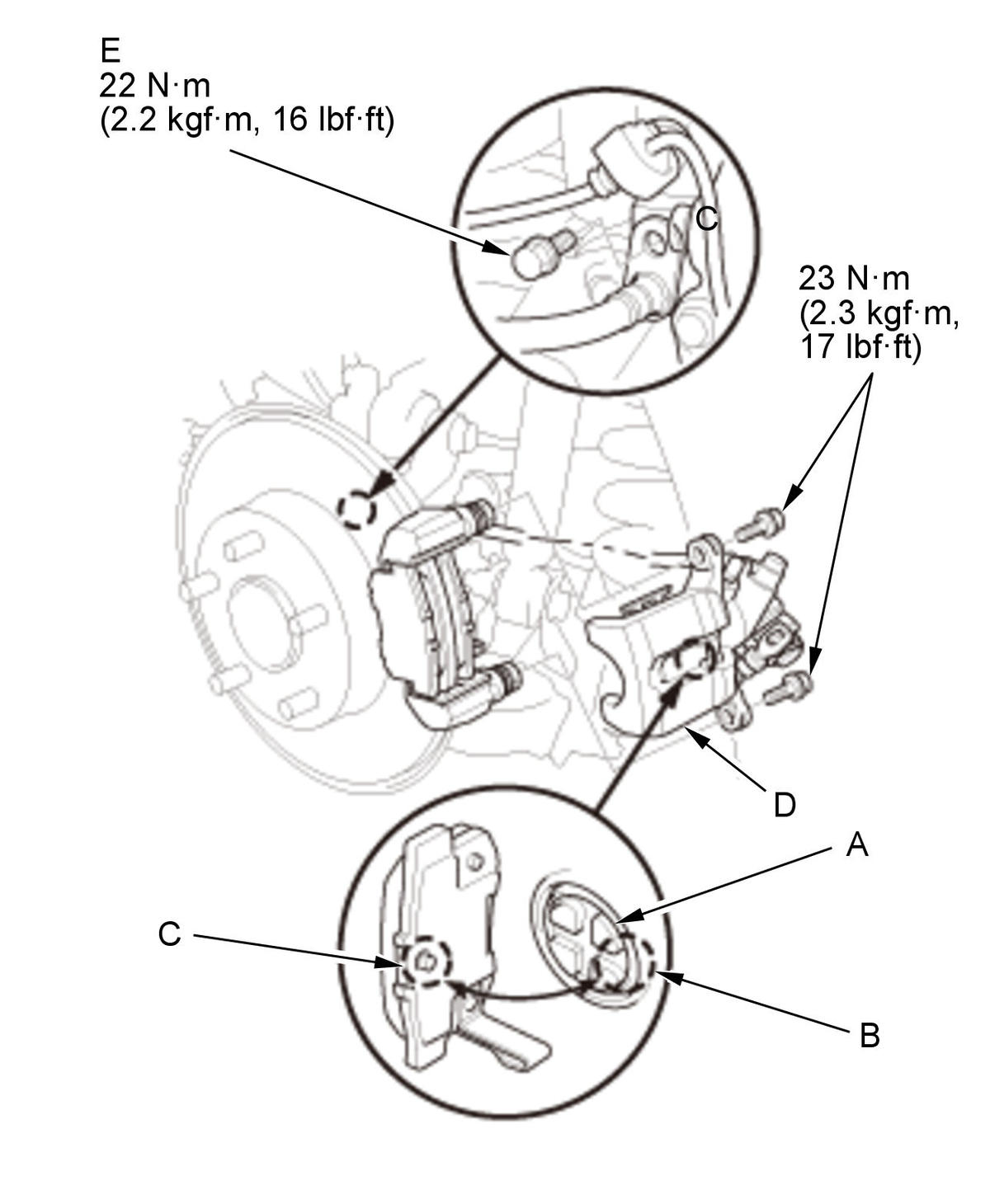

7. Rotate the caliper piston (A) clockwise into the cylinder. 8. Align the cutout (B) in the piston with the tab (C) on the inner pad by turning the piston back.
NOTE: Be careful when moving the piston back in the caliper; brake fluid might overflow from the master cylinder's reservoir. If brake fluid gets on any painted surface, wash it off immediately with water.
9. Install the caliper body (D).
10. Install the brake hose mounting bolt (E).
- Rear Wheels - Install
1. Install both rear wheels . - Brake Fluid - Refill
1. Press the brake pedal several times to make sure the brakes work. NOTE: Engagement may require a greater pedal stroke immediately after the brake pads have been replaced as a set. Several applications of the brake pedal will restore the normal pedal stroke.
2. Add brake fluid as needed.
- Parking Brake - Adjust
1. Adjust the parking brake .
