Rear Brake Disc: Installation

NOTE:  Keep grease away from the brake disc and the brake pads.

1. Brake Disc - Install

   Courtesy of HONDA, U.S.A., INC.

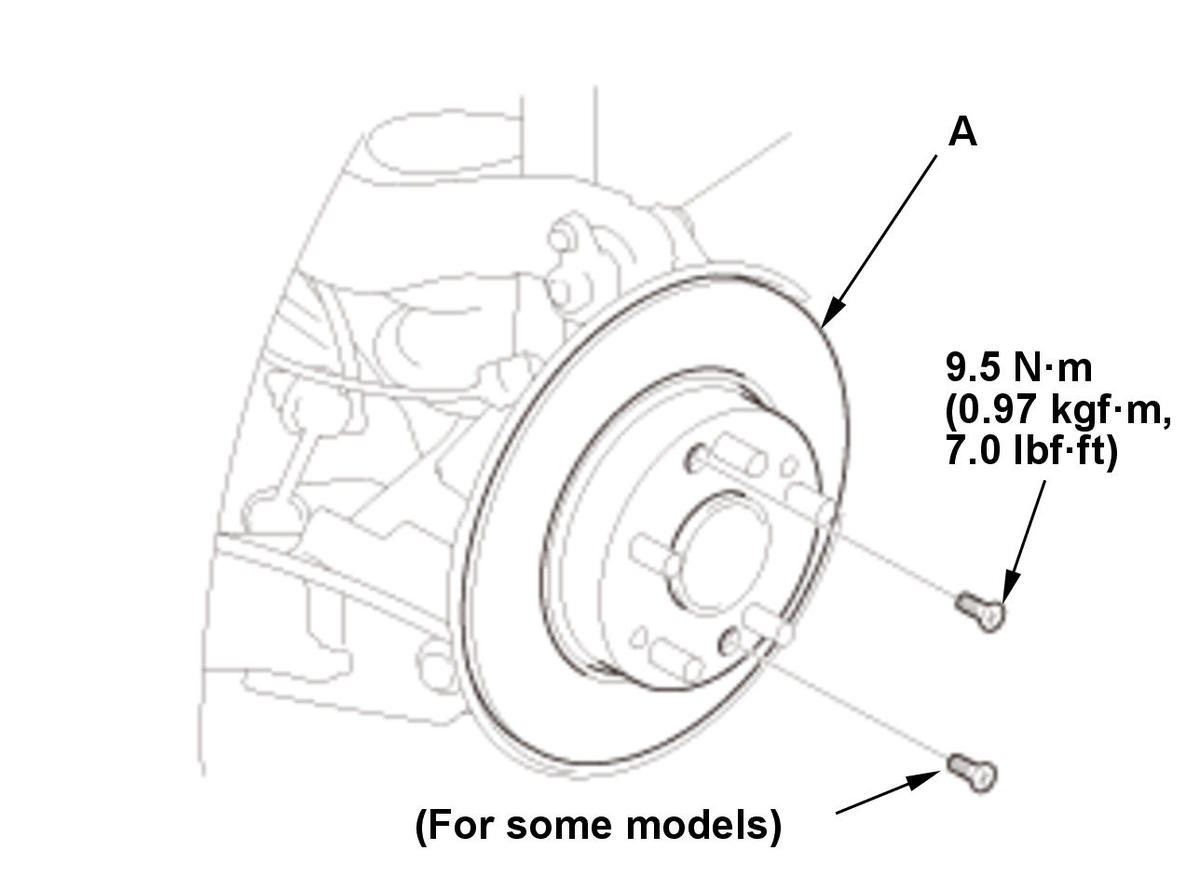

   1. Install the brake disc (A).NOTE:  Before installing the brake disc, clean the mating surfaces between the hub bearing unit and the inside of the brake disc.

2. Brake Caliper - Install

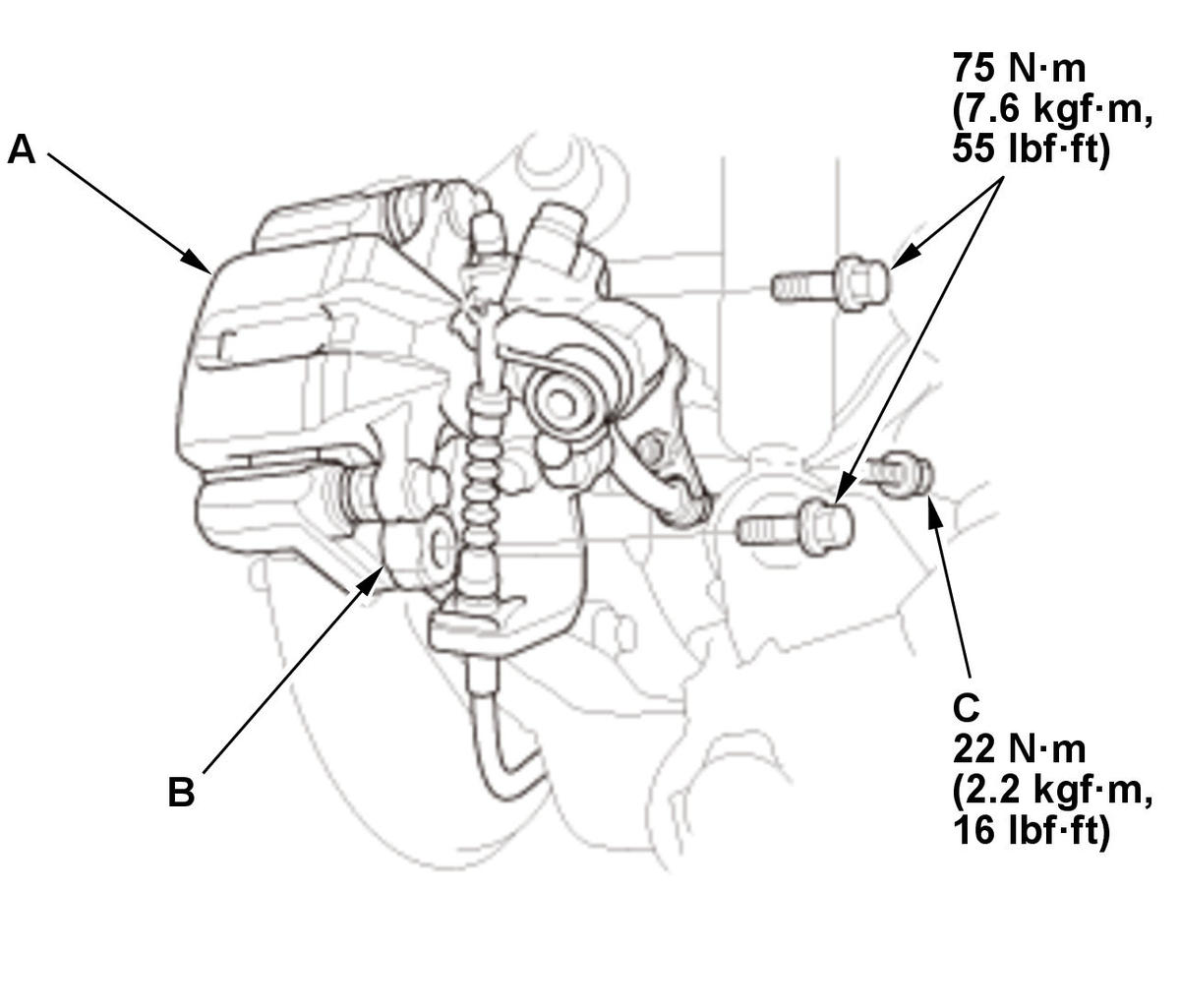

   Fig 1: Brake Caliper With Torque Specifications

   Courtesy of HONDA, U.S.A., INC.

   1. Install the brake caliper assembly (A). NOTE:  Make sure the washers (B) are in position. 2. Install the brake hose mounting bolt (C).

3. Rear Wheel - Install

   1. Install the rear wheel .

4. Parking Brake - Adjust

   1. Adjust the parking brake .
