Front Brake Pad (2013 2014 2015): Installation

WARNING:

Frequent inhalation of brake pad dust, regardless of material composition, could be hazardous to your health.

Avoid breathing dust particles.
Never use an air hose or brush to clean brake assemblies. Use an OSHA-approved vacuum cleaner.

Brake Pad - Install

Courtesy of HONDA, U.S.A., INC.

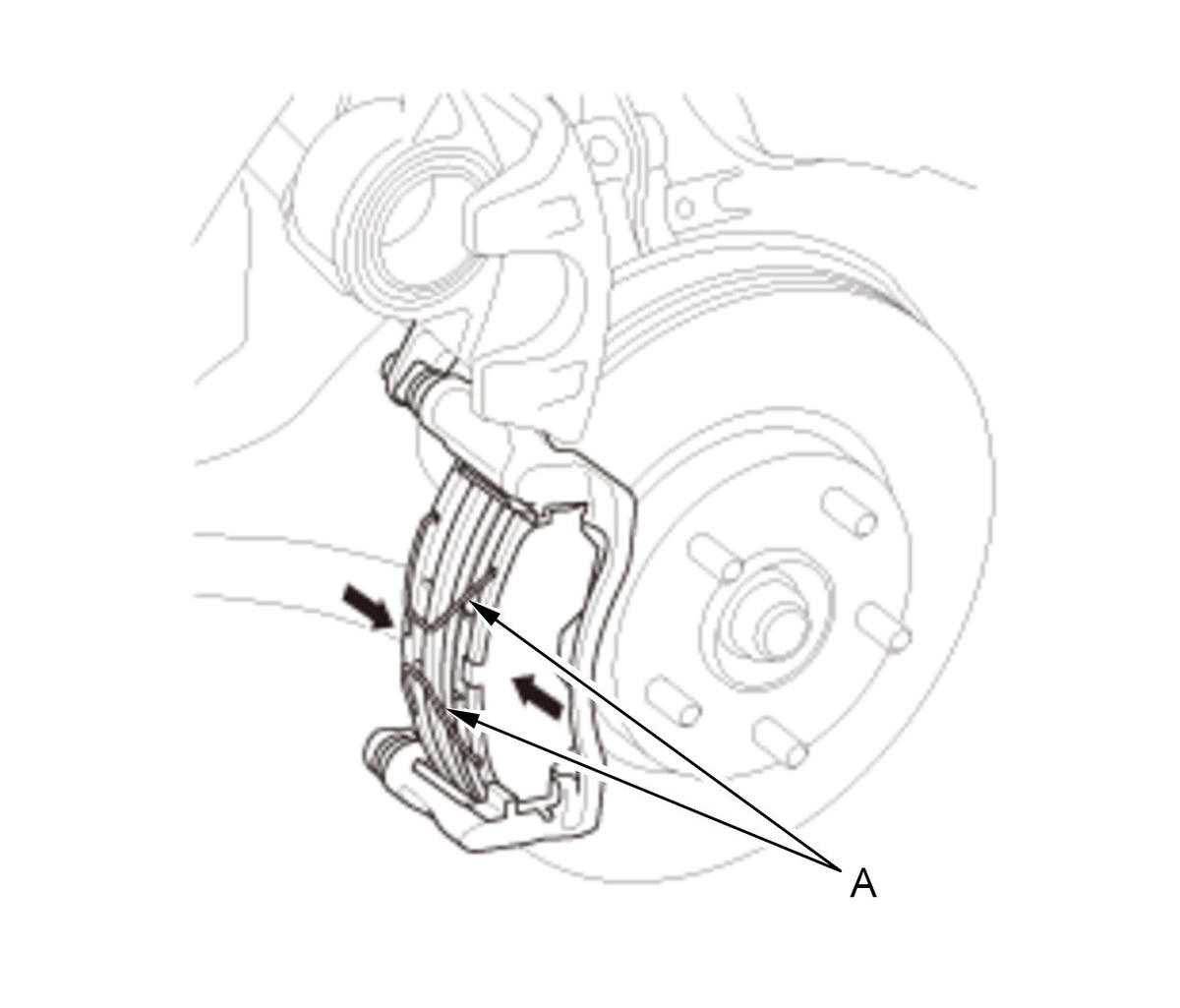

1. Apply a thin coat of M-77 assembly paste (P/N 08798-9010) to the retainer mating surface of the caliper bracket (indicated by the arrows).

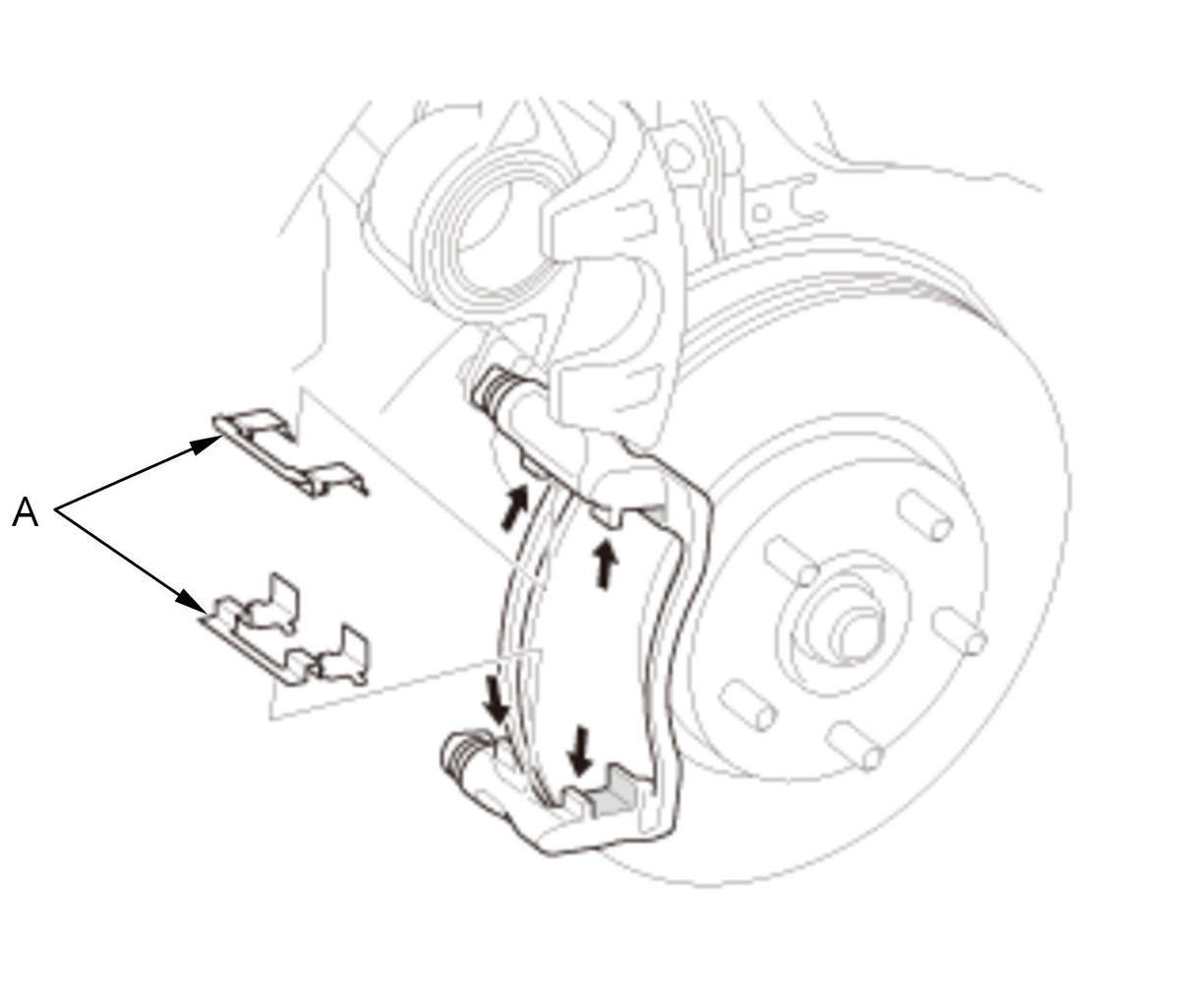

2. Install the pad retainers (A).

NOTE: The upper and lower pad retainers are different. Make sure the pad retainers are in the proper positions.

3. Wipe off the excess assembly paste from the retainers. Keep the assembly paste away from the brake disc and the brake pads.

Courtesy of HONDA, U.S.A., INC.

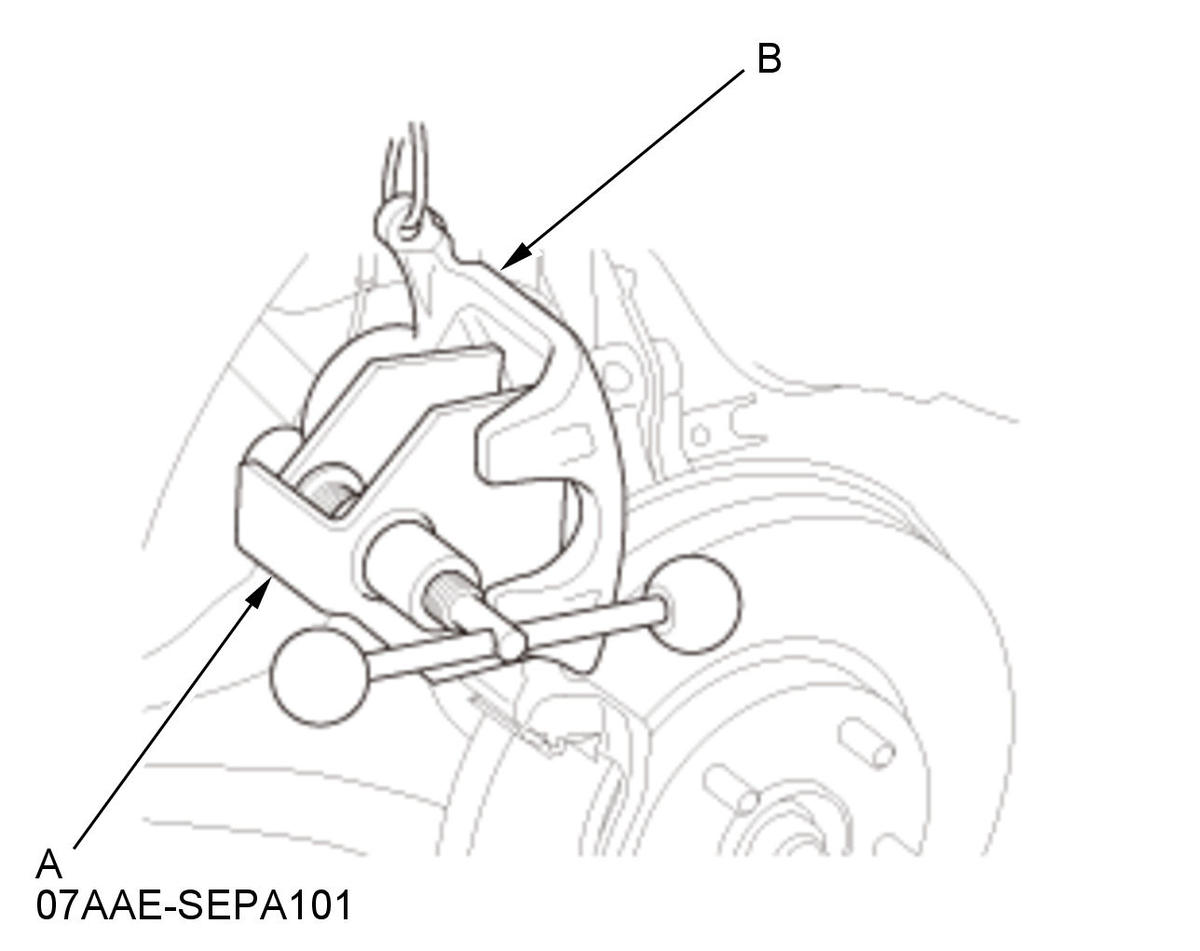

4. Install the brake caliper piston compressor tool (A) on the caliper body (B).

5. Press in the piston with the brake caliper piston compressor tool.

NOTE: Be careful when pressing in the piston; brake fluid might overflow from the master cylinder's reservoir. If brake fluid gets on any painted surface, wash it off immediately with water.

6. Remove the brake caliper piston compressor tool.

Courtesy of HONDA, U.S.A., INC.

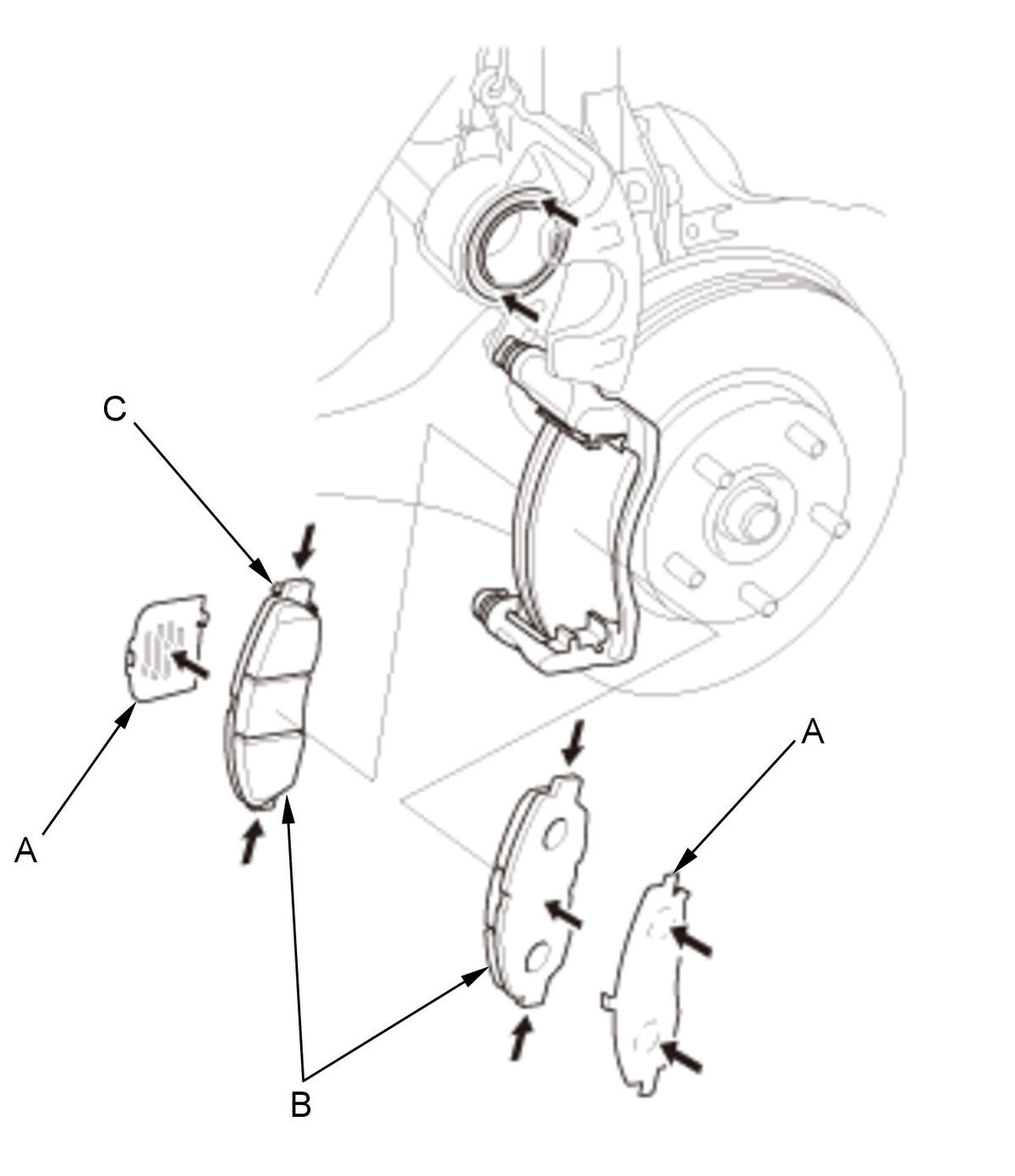

7. Apply a thin coat of M-77 assembly paste (P/N 08798-9010) to the pad side of the shims (A), the back of the brake pads (B), and the other areas indicated by the arrows.

8. Wipe off the excess assembly paste from the pad shims and brake pads friction material. Keep grease and assembly paste away from the brake disc and brake pads. Contaminated brake disc or brake pads reduce stopping ability.

9. Install the brake pads and pad shims correctly. Install the brake pad with the wear indicator (C) on the upper inside position.

NOTE: If you are reusing the brake pads, always reinstall the brake pads in their original positions to prevent a temporary loss of braking efficiency.

Courtesy of HONDA, U.S.A., INC.

10. Install the pad return springs (A).

Fig 1: Caliper Body With Torque Specifications

Courtesy of HONDA, U.S.A., INC.

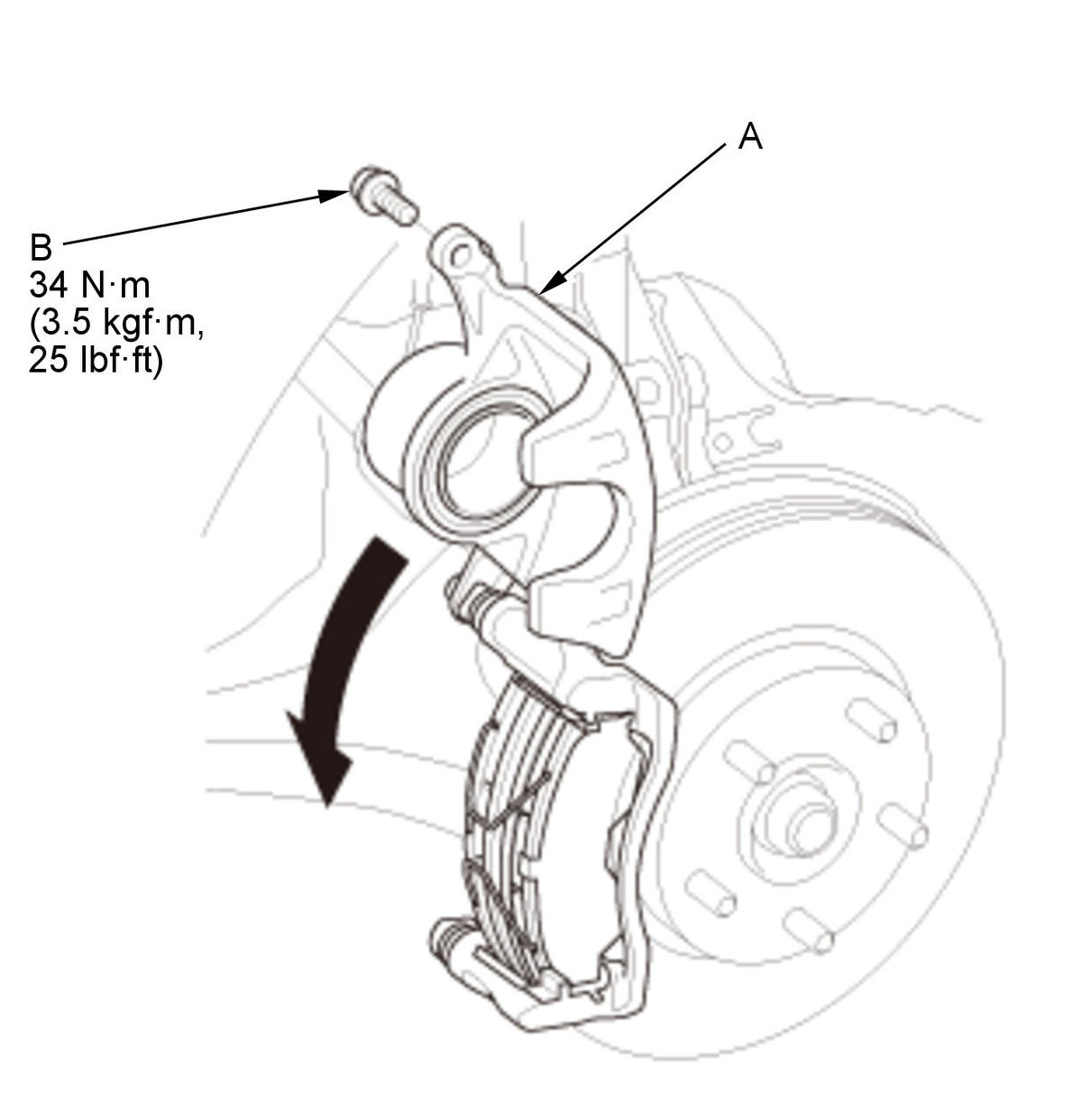

11. Pivot the caliper body (A) down into position.

12. Install the flange bolt (B).

Front Wheels - Install

1. Install both front wheels .

Brake Fluid - Refill

1. Press the brake pedal several times to make sure the brakes work.

NOTE: Engagement may require a greater pedal stroke immediately after the brake pads have been replaced as a set. Several applications of the brake pedal will restore the normal pedal stroke.

2. Add brake fluid as needed.
