Front Brake Disc: Removal

NOTE:  Keep grease away from the brake disc and the brake pads.

1. Vehicle - Lift

   1. Raise and support the vehicle .

2. Front Wheel - Remove

   1. Remove the front wheel .

3. Brake Caliper - Remove

   Courtesy of HONDA, U.S.A., INC.

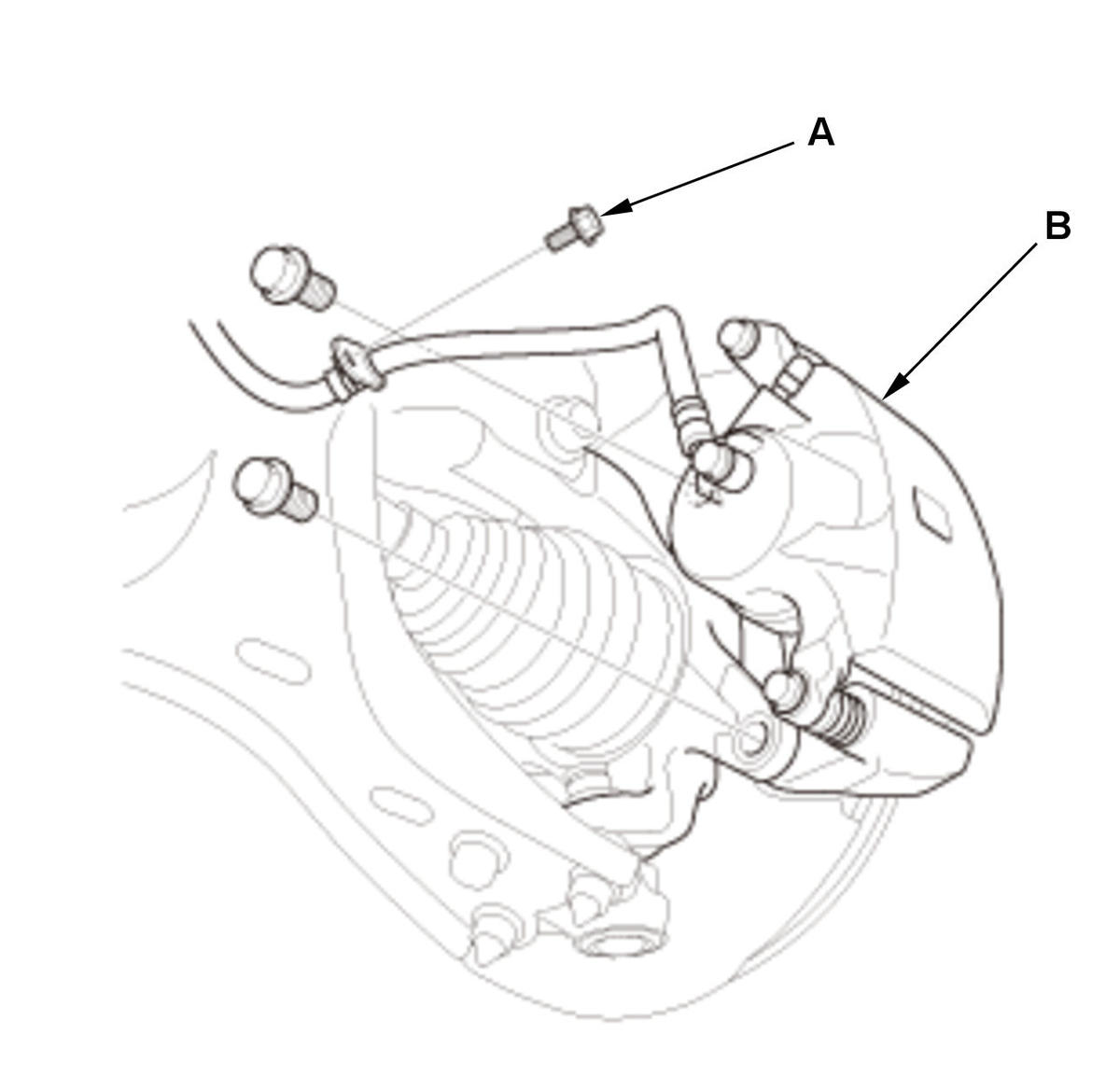

   1. Remove the brake hose mounting bolt (A). 2. Remove the brake caliper assembly (B). NOTE:  To prevent damage to the caliper assembly or brake hose, use a short piece of wire to hang the caliper assembly from the undercarriage. Do not twist the brake hose excessively.

4. Brake Disc - Remove

   Courtesy of HONDA, U.S.A., INC.

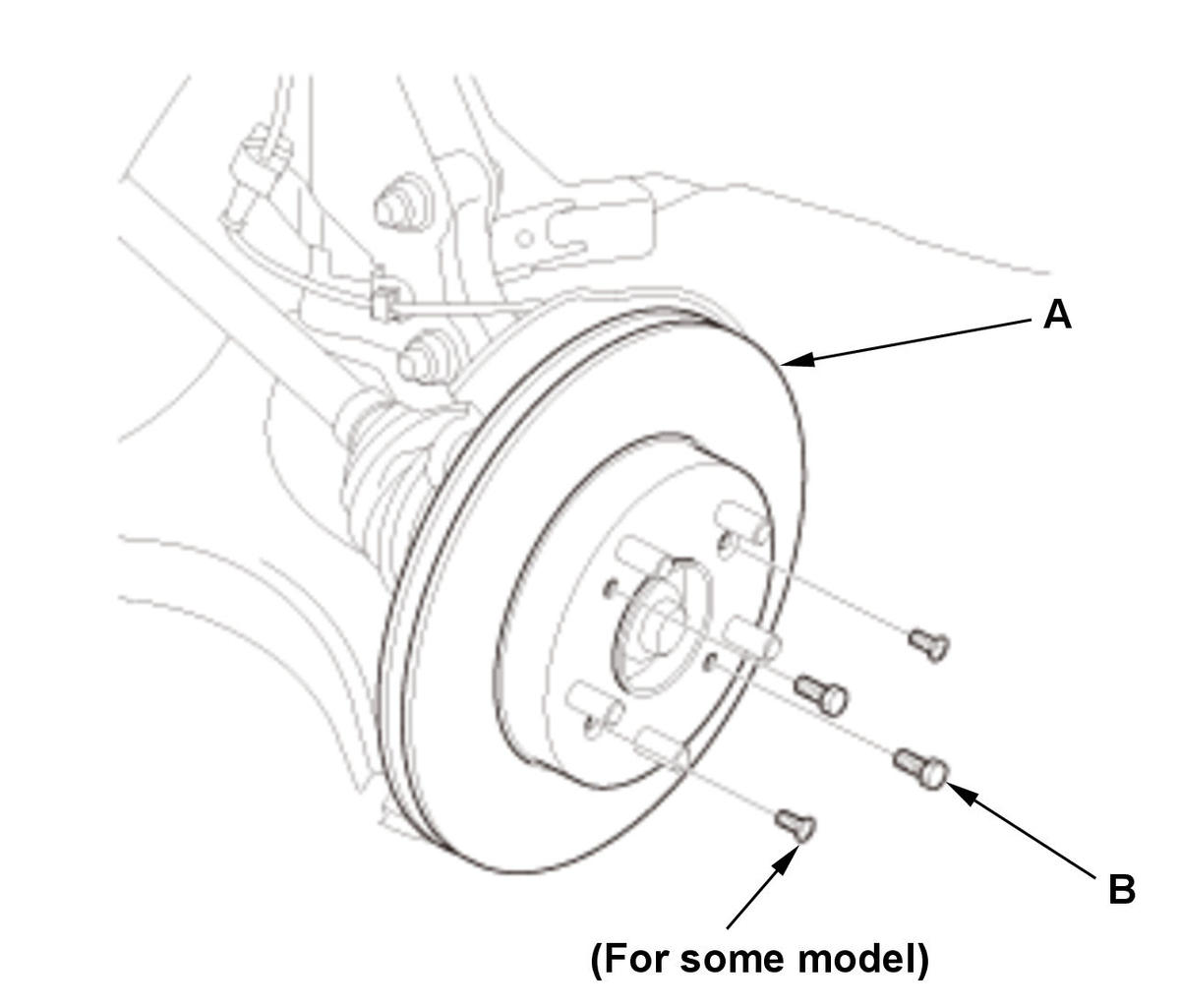

   1. Remove the brake disc (A). NOTE:  If the brake disc is stuck to the front hub, thread two 8 x 1.25 mm bolts (B) into the brake disc to push it away from the front hub. Turn each bolt 90 degrees at a time to prevent the brake disc from binding.
