Front Brake Caliper (2016 2017 2018 2019 2020 2021 2022): Removal

NOTICE:

Do not spill brake fluid on the vehicle; it may damage the paint. If brake fluid does contact the paint, wash it off immediately with water.

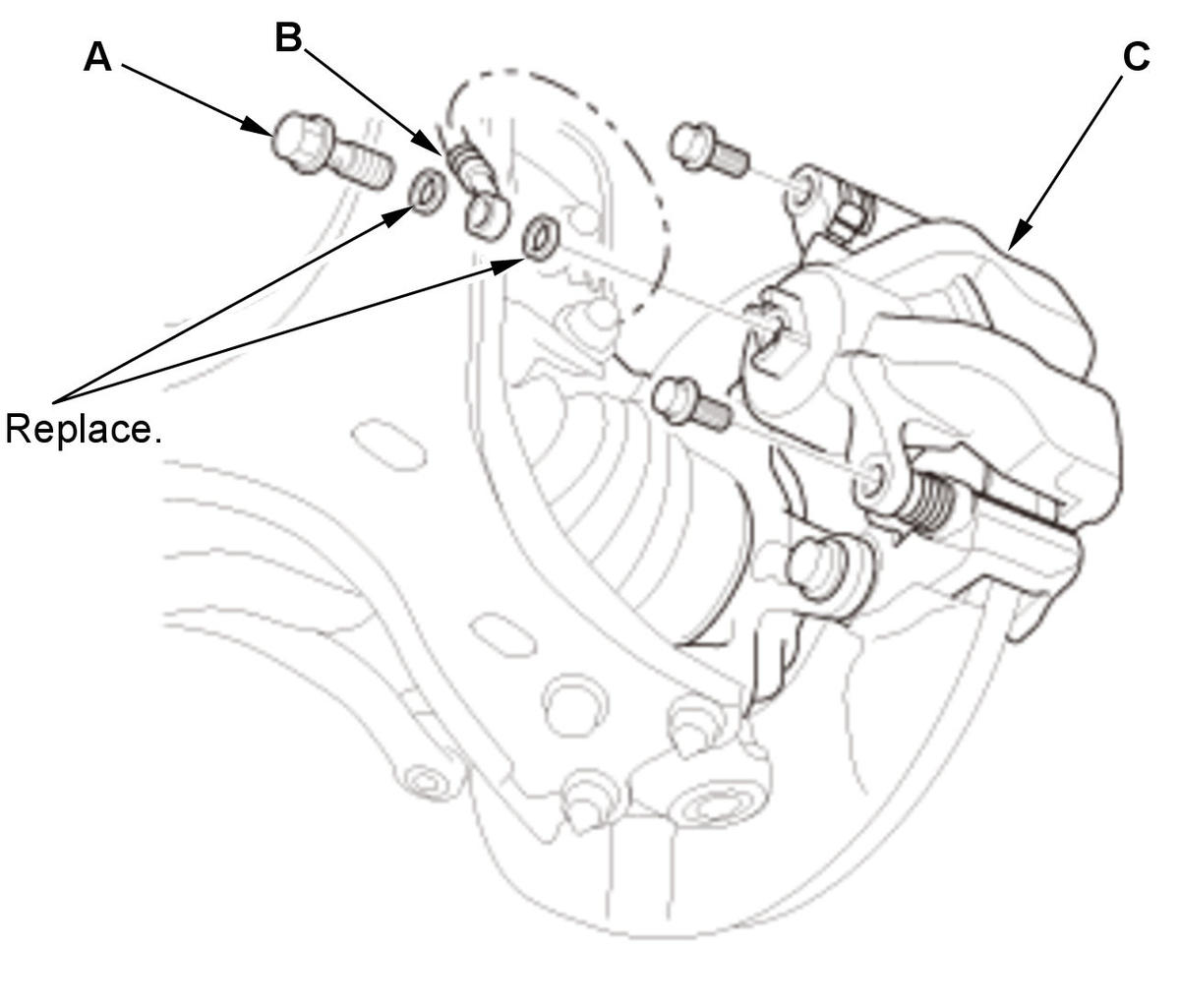

Brake Caliper Body - Remove

Courtesy of HONDA, U.S.A., INC.

NOTE: After removal, plug the ends of the hoses and the joints to prevent spilling brake fluid.

1. Remove the banjo bolt (A), and disconnect the brake hose (B) from the caliper body (C).

2. Remove the caliper body.

NOTE: Be careful when removing the caliper body, or the spring could pop out of position.

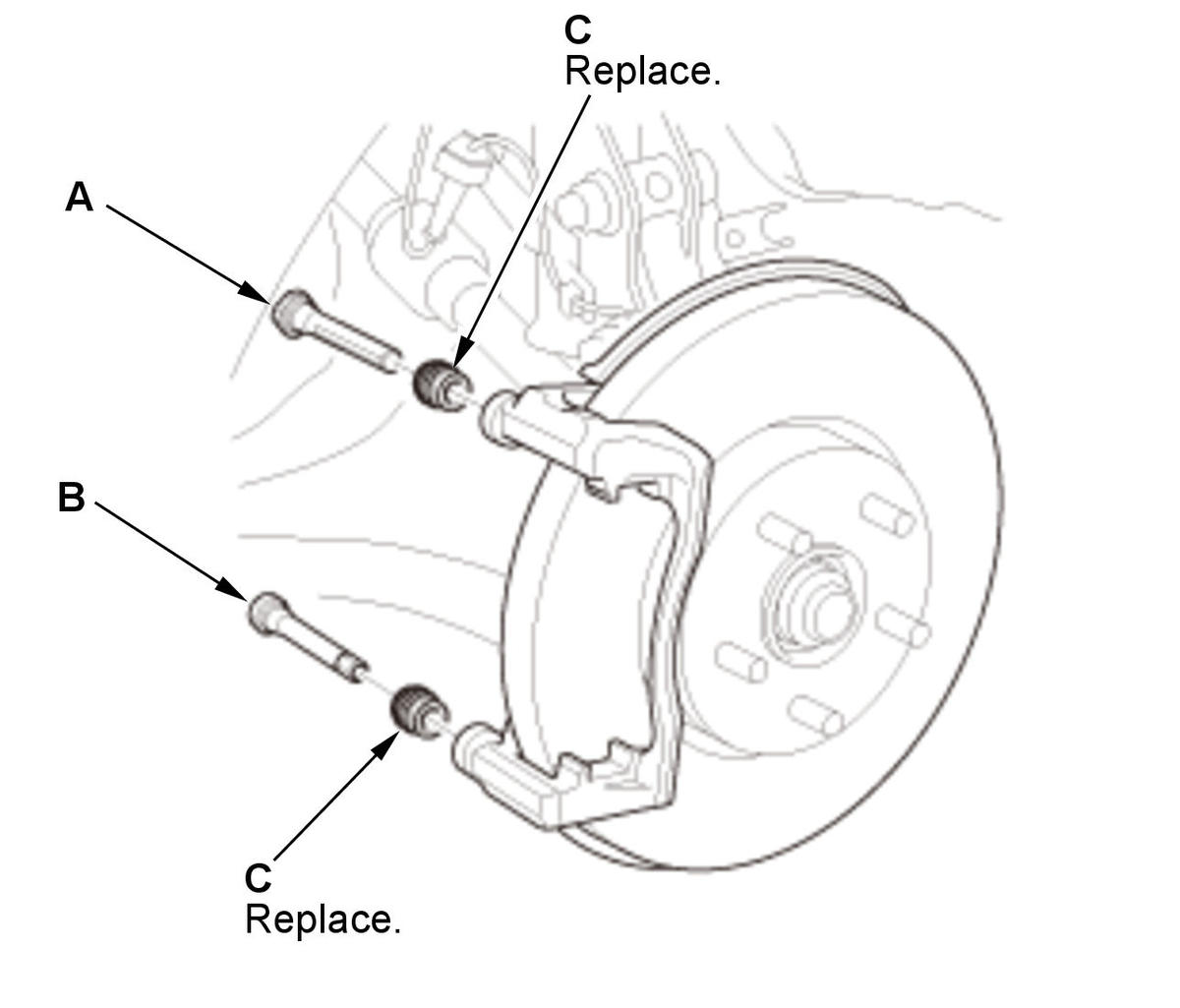

Caliper Pin and Pin Boot - Remove

Courtesy of HONDA, U.S.A., INC.

1. Remove caliper pin A and caliper pin B.NOTE:

The upper and lower caliper pins are different. During installation, make sure the caliper pins are in the proper positions.

2. Remove the pin boots (C).
