Brake Pedal: Removal

Brake Pedal - Remove

Courtesy of HONDA, U.S.A., INC.

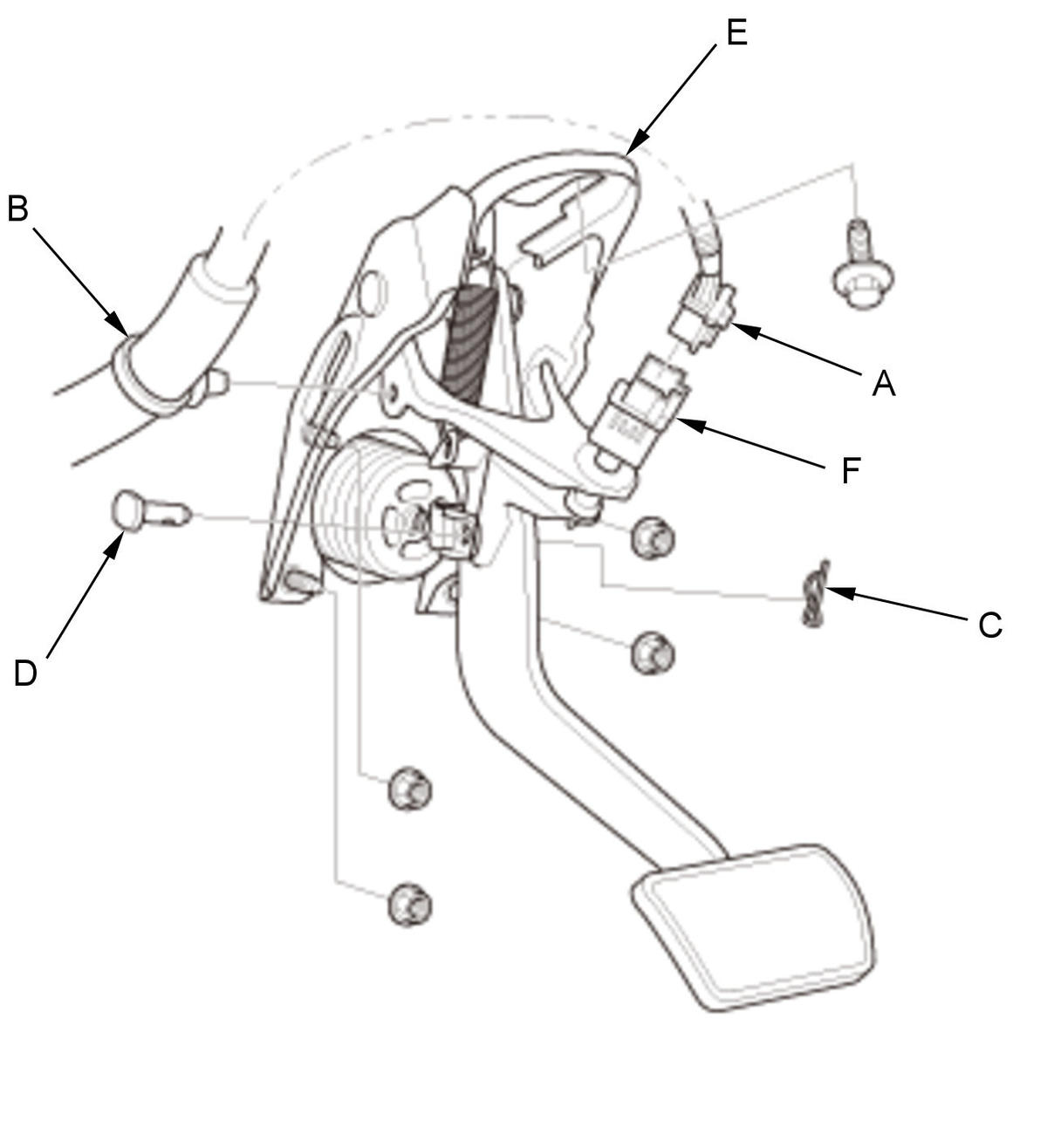

1. Disconnect the brake pedal position switch connector (A).

2. Remove the wire harness clip (B).

3. Remove the lock pin (C).

4. Remove the clevis pin (D).

5. Remove the brake pedal with the bracket (E).

6. Remove the brake pedal position switch (F) by turning it 45 deg. counterclockwise.
