Brake Pedal: Installation

Brake Pedal - Install

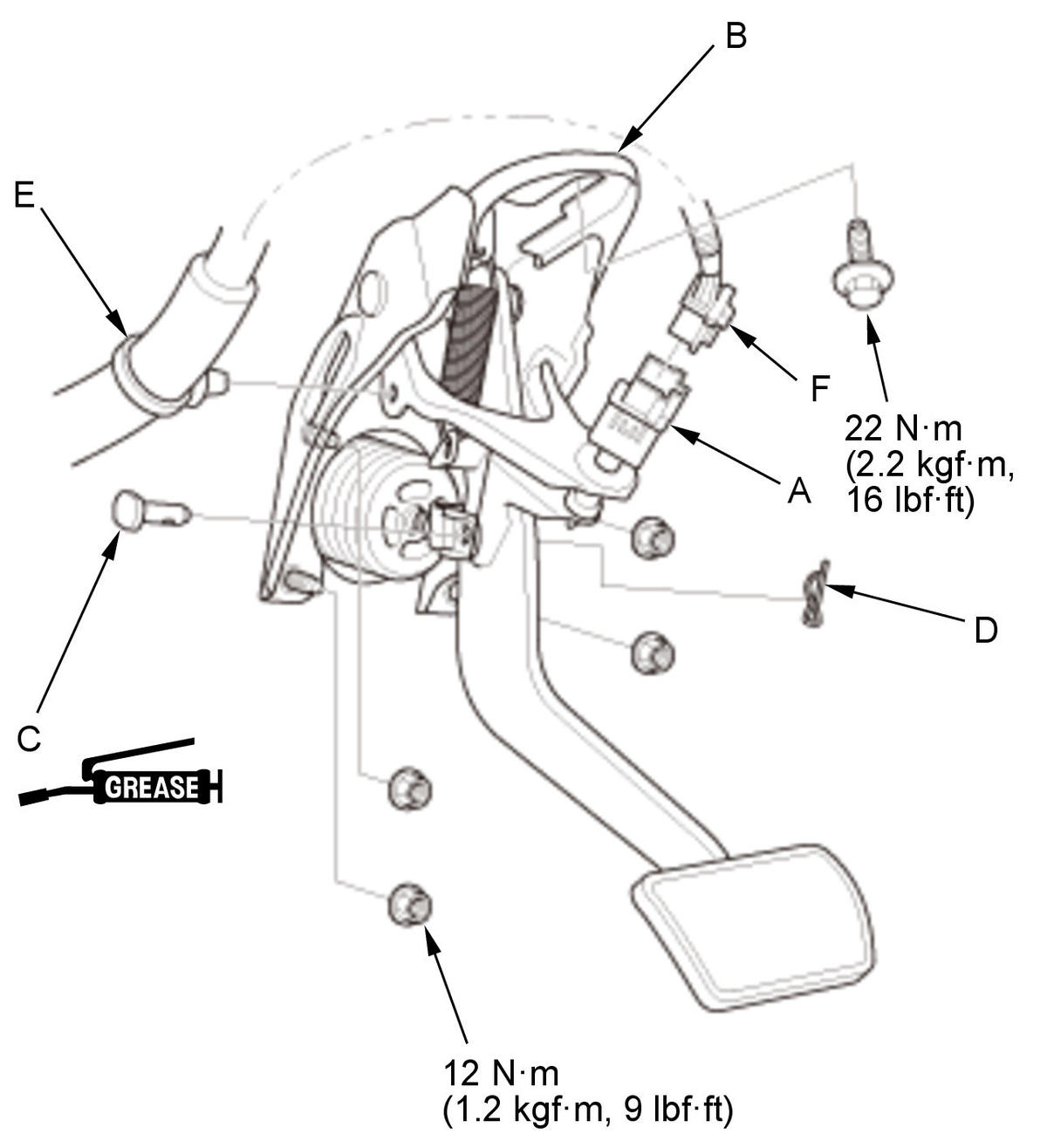

Fig 1: Brake Pedal With Torque Specifications

Courtesy of HONDA, U.S.A., INC.

1. Install the brake pedal position switch (A) by turning it 45 deg. clockwise.

2. Install the brake pedal with the bracket (B).

3. Install the clevis pin (C).

NOTE: Apply multipurpose grease to the clevis pin in the brake pedal.

4. Install the lock pin (D).

5. Install the wire harness clip (E).

6. Connect the brake pedal position switch connector (F).

Brake Pedal and Brake Pedal Position Switch - Adjust

1. Do the brake pedal and brake pedal position switch adjustment .
