Brake Pedal Pad Cover: Removal

Brake Pedal Pad Cover - Remove

Courtesy of HONDA, U.S.A., INC.

1. Cover the carpet under the brake pedal to prevent metal shavings from getting on the carpet.

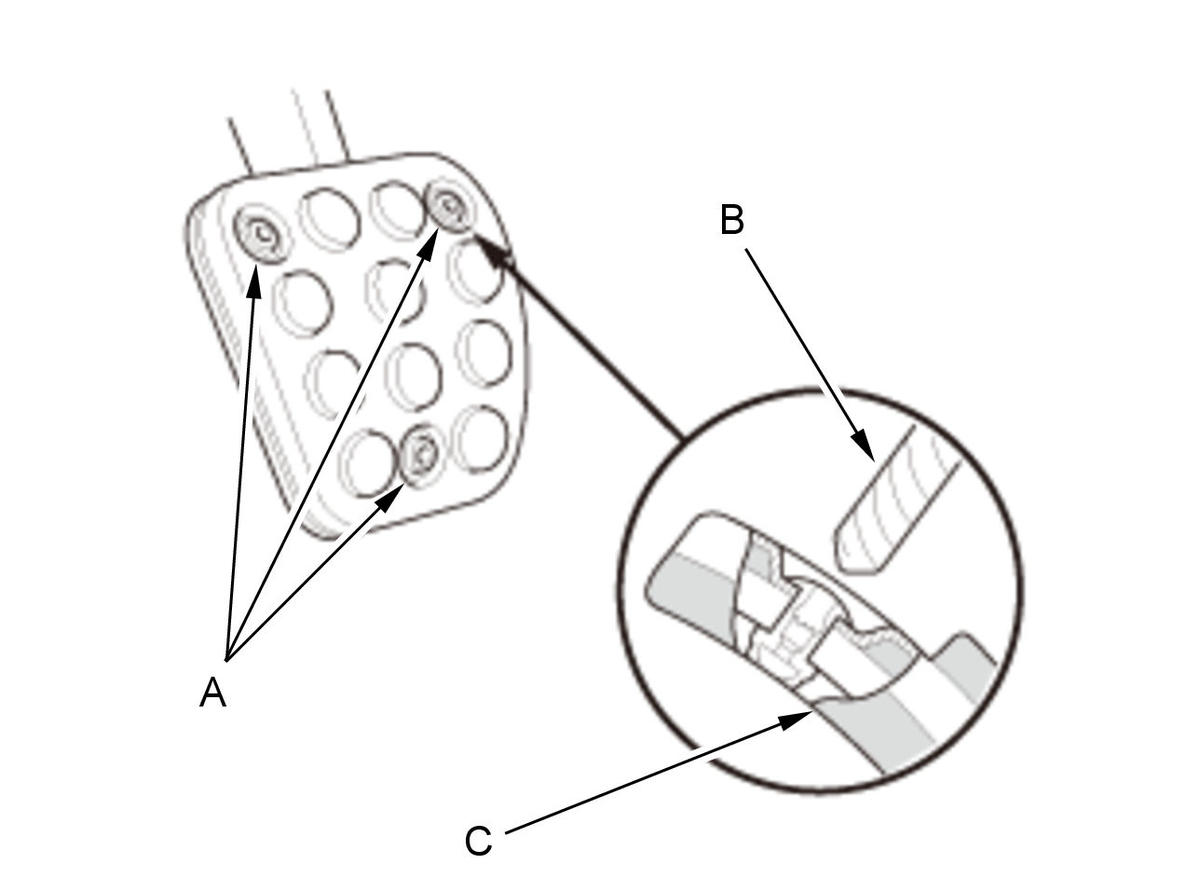

2. Center-punch each of rivets (A).

3. Drill the rivets heads off with a 3 mm (0.12 in) drill bit (B).

NOTE: Do not drill the pedal pad (C).

Courtesy of HONDA, U.S.A., INC.

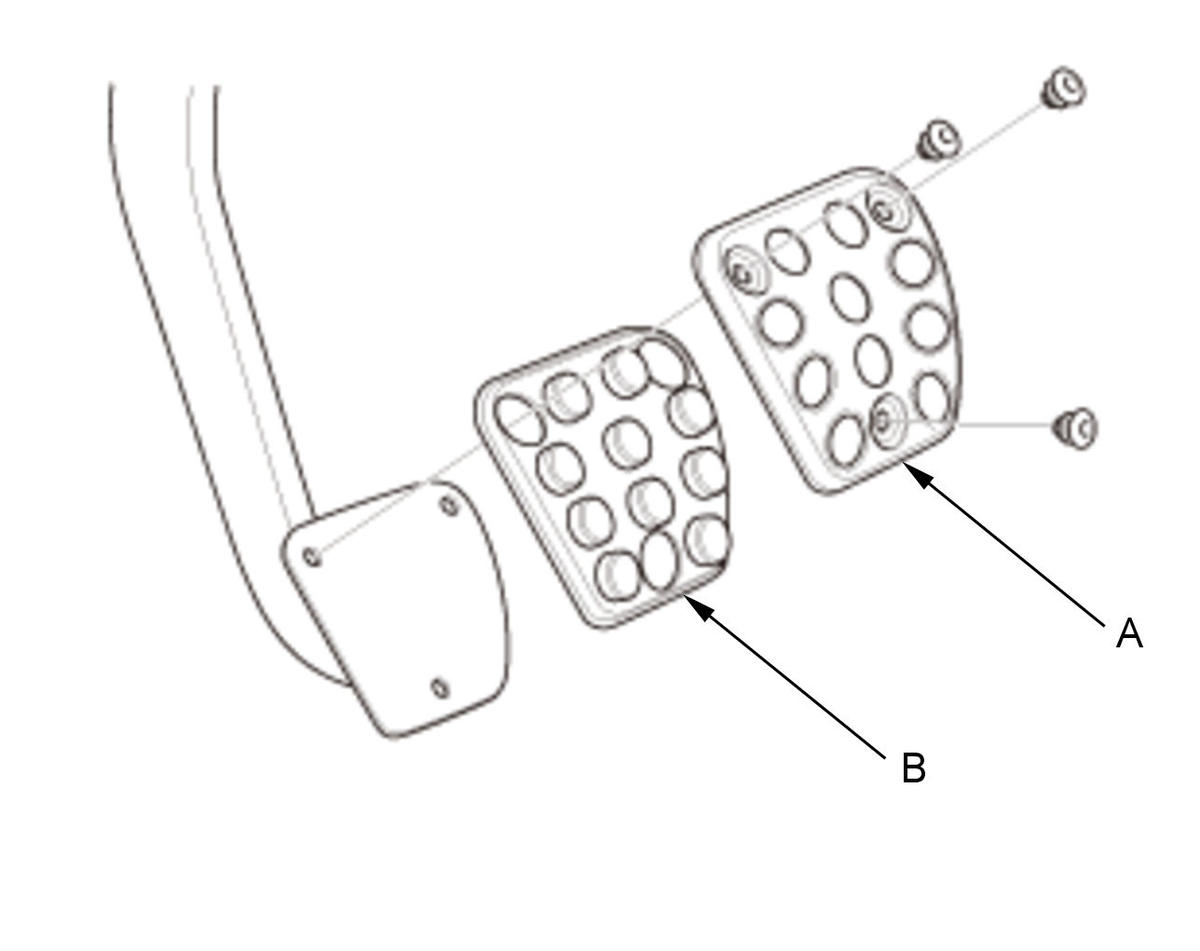

4. Remove the pedal pad cover (A).

5. Remove the pedal cover (B).
