Brake Pedal Pad Cover: Installation

  1. Brake Pedal Pad Cover - Install

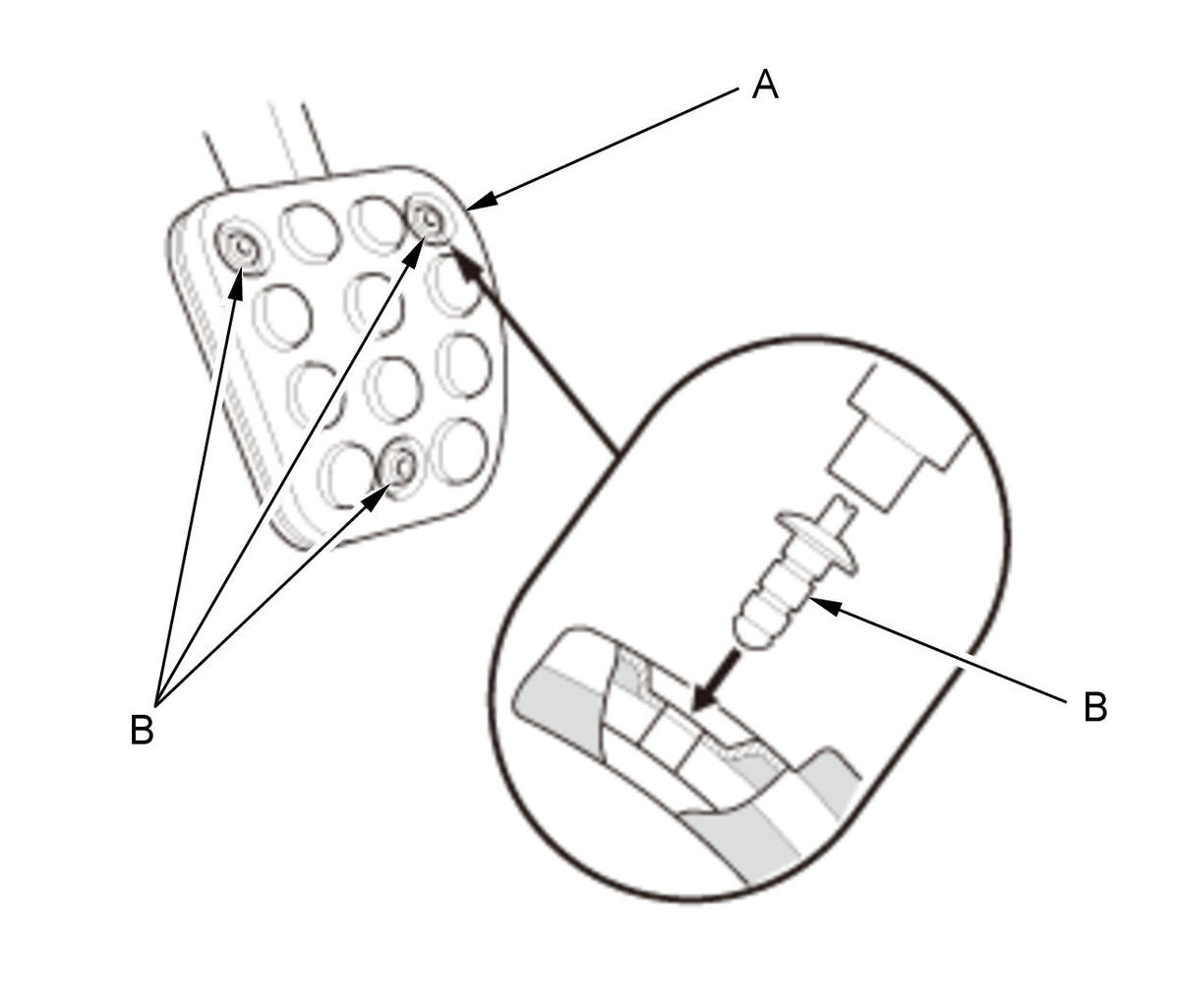

    GHH463801Courtesy of HONDA, U.S.A., INC.
    		 1. Set the pedal cover to the pedal pad cover.

    2. Install the pedal pad cover (A) with the rivets (B) firmly.

    3. Make sure the pedal cover and pad cover are securely fastened on the brake pedal.
