Brake Master Cylinder (2013 2014 2015): Removal

NOTICE:

Do not spill brake fluid on the vehicle; it may damage the paint. If brake fluid does contact the paint, wash it off immediately with water.

NOTE:

• Press the brake pedal several times to deplete the vacuum in the brake booster.
• Be careful when handling the master cylinder. Do not hold it at the piston, or the piston may separate from the body. If the piston separates from the body, then the master cylinder must be replaced. Do not reinsert the piston back into the master cylinder body.
• After removal, plug the end of the hose and joints to prevent spilling brake fluid.

1. Air Cleaner - Remove

   1. Remove the air cleaner .

2. Brake Fluid - Remove

   1. Remove the brake fluid from the master cylinder reservoir with a syringe.

3. Master Cylinder Reservoir Tank - Remove

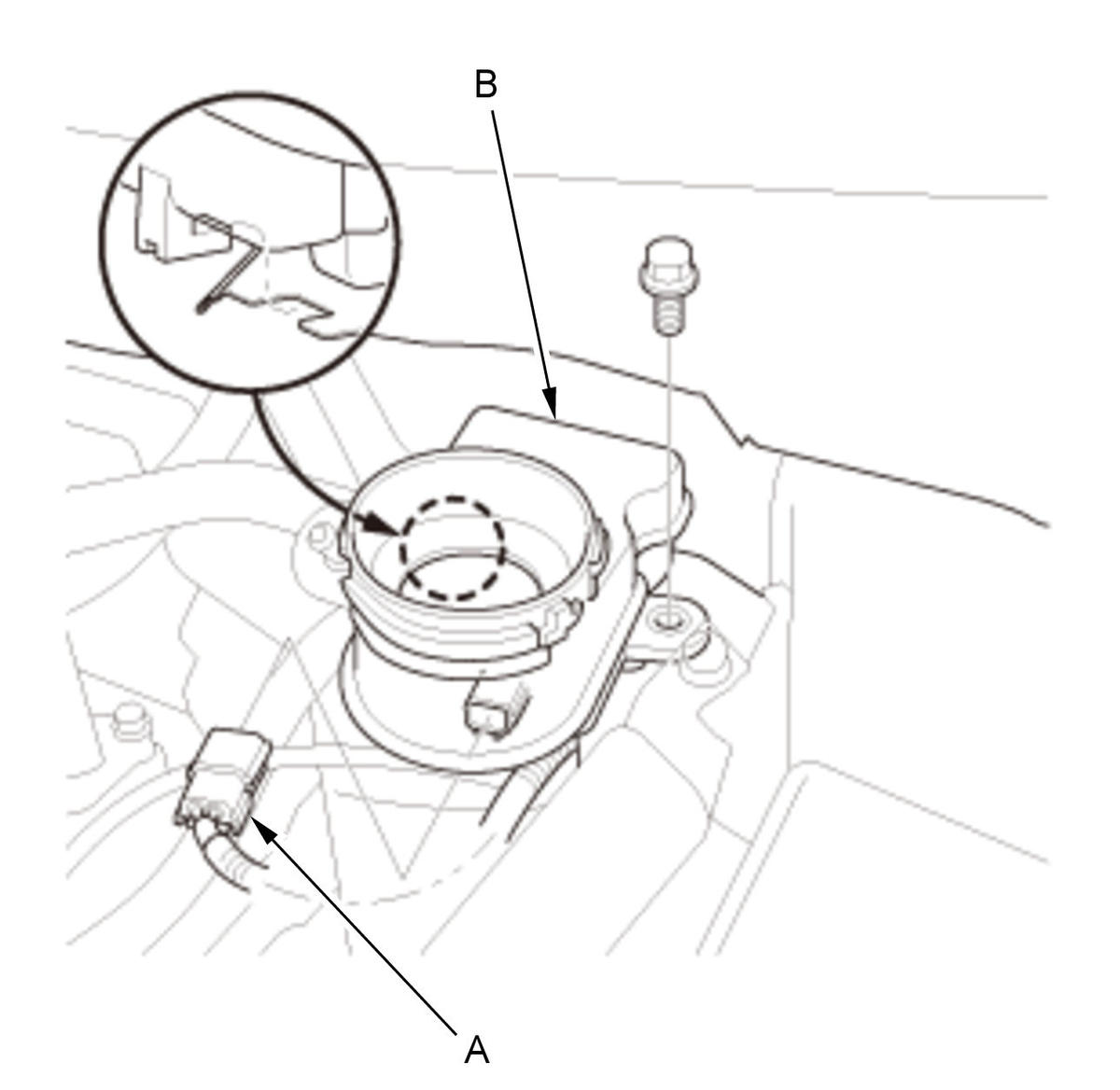

   Courtesy of HONDA, U.S.A., INC.

   1. Disconnect the brake fluid level switch connector (A). 2. Remove the master cylinder reservoir tank (B) from the bracket.

4. Master Cylinder - Remove

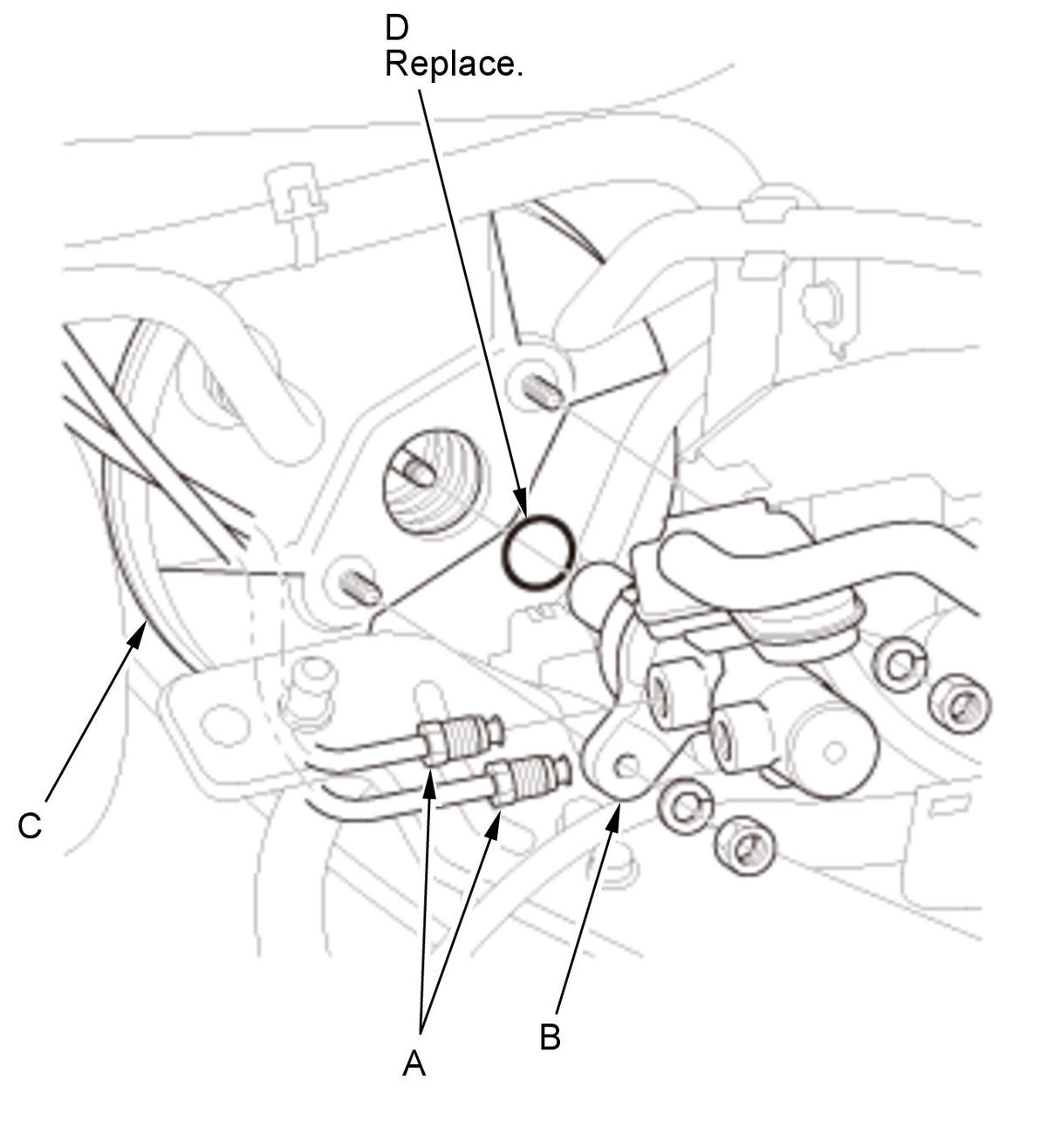

   Courtesy of HONDA, U.S.A., INC.

   1. Disconnect the brake lines (A) from the master cylinder (B). 2. Remove the master cylinder from the brake booster (C). NOTE:  Be careful not to bend or damage the bake lines. 3. Remove the O-ring (D) from the master cylinder.
