Rear Brake Caliper: Reassembly

WARNING:

Frequent inhalation of brake pad dust, regardless of material composition, could be hazardous to your health.

Avoid breathing dust particles.
Never use an air hose or brush to clean brake assemblies. Use an OSHA-approved vacuum cleaner.

NOTICE:

Do not spill brake fluid on the vehicle; it may damage the paint. If brake fluid does contact the paint, wash it off immediately with water.

NOTE:

Clean all parts with brake fluid and air dry; blow out all passages with compressed air.
Before reassembling, check that all parts are free of dirt and other foreign particles.
Make sure no dirt or other foreign matter gets in the brake fluid.
Make sure no grease or oil gets on the brake discs or pads.
Do not reuse the drained brake fluid. Use only new Acura DOT Brake Fluid from an unopened container. Using a non-Acura brake fluid can cause corrosion and shorten the life of the system.
After installing the caliper, check the brake hose and line for leaks, interference, and twisting.
Refer to the Exploded View as needed during this procedure.

Caliper Pin and Pin Boot - Install

Courtesy of HONDA, U.S.A., INC.

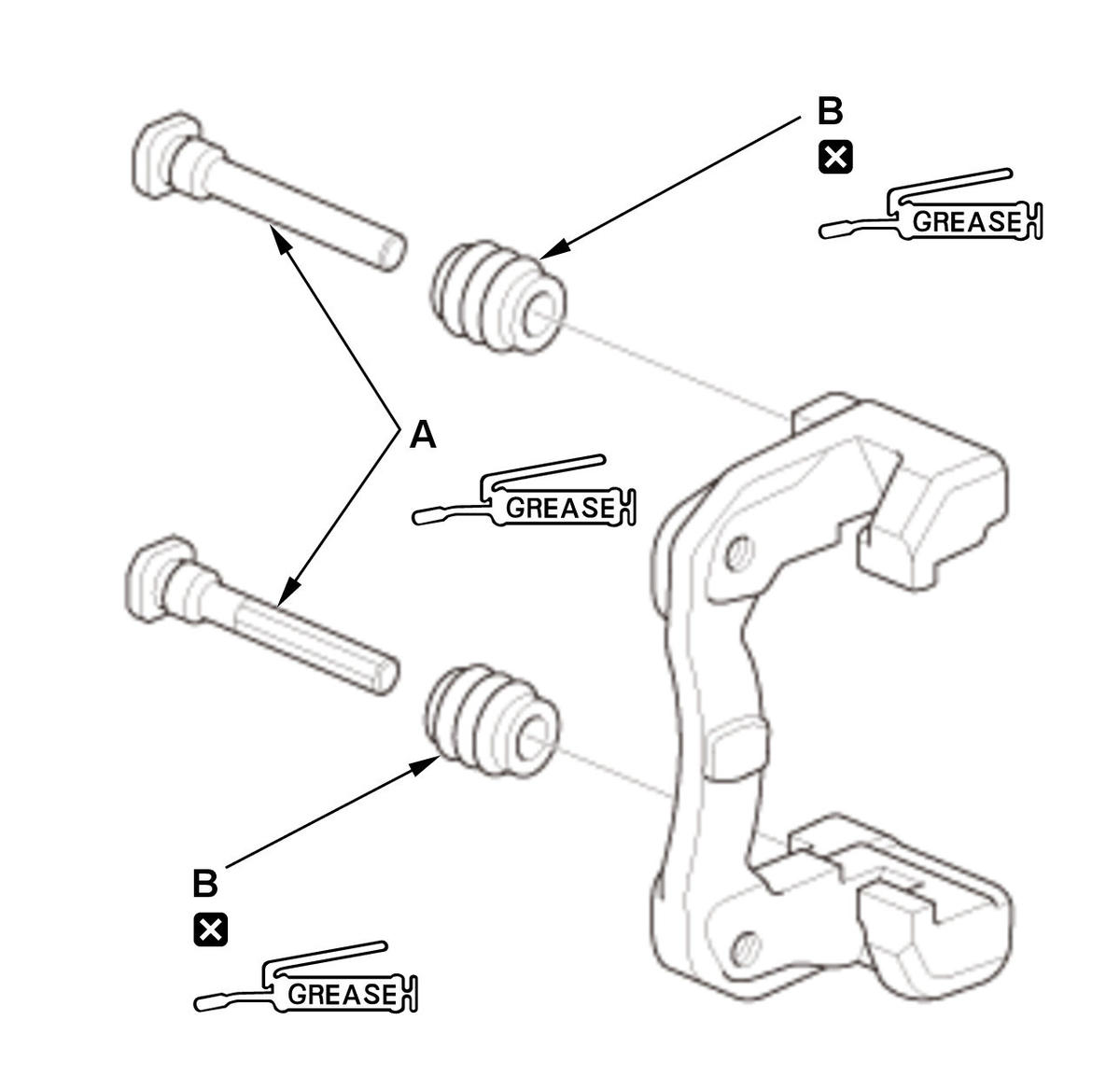

1. Apply a thin coat of Honda silicone grease (P/N 08C30- B0234M) to the caliper pins (A) and the new pin boots (B).

2. Install the pin boots.

3. Install the caliper pins.

NOTE:

Make sure that the caliper pins are installed correctly. The upper caliper pin and the lower caliper pin are different. If these caliper pins are installed in the wrong location, it will cause vibration, uneven or rapid brake pad wear, and possibly uneven tire wear.
Make sure that the pin boots are properly positioned into the grooves of the caliper pin and the grooves of the caliper body.
Remove air from within the pin boots.

Brake Caliper - Reassemble

Courtesy of HONDA, U.S.A., INC.

NOTE: When disassembling the lever and the shaft, assemble them according to the following procedure, referring to the exploded view beforehand, then install them to the caliper.

Install the lever and a spring washer to the shaft.
Apply new sealant (Loctite 569) to the threads of the parking nut, and install it.
Clamp the lever in a vice, and tighten the nut.

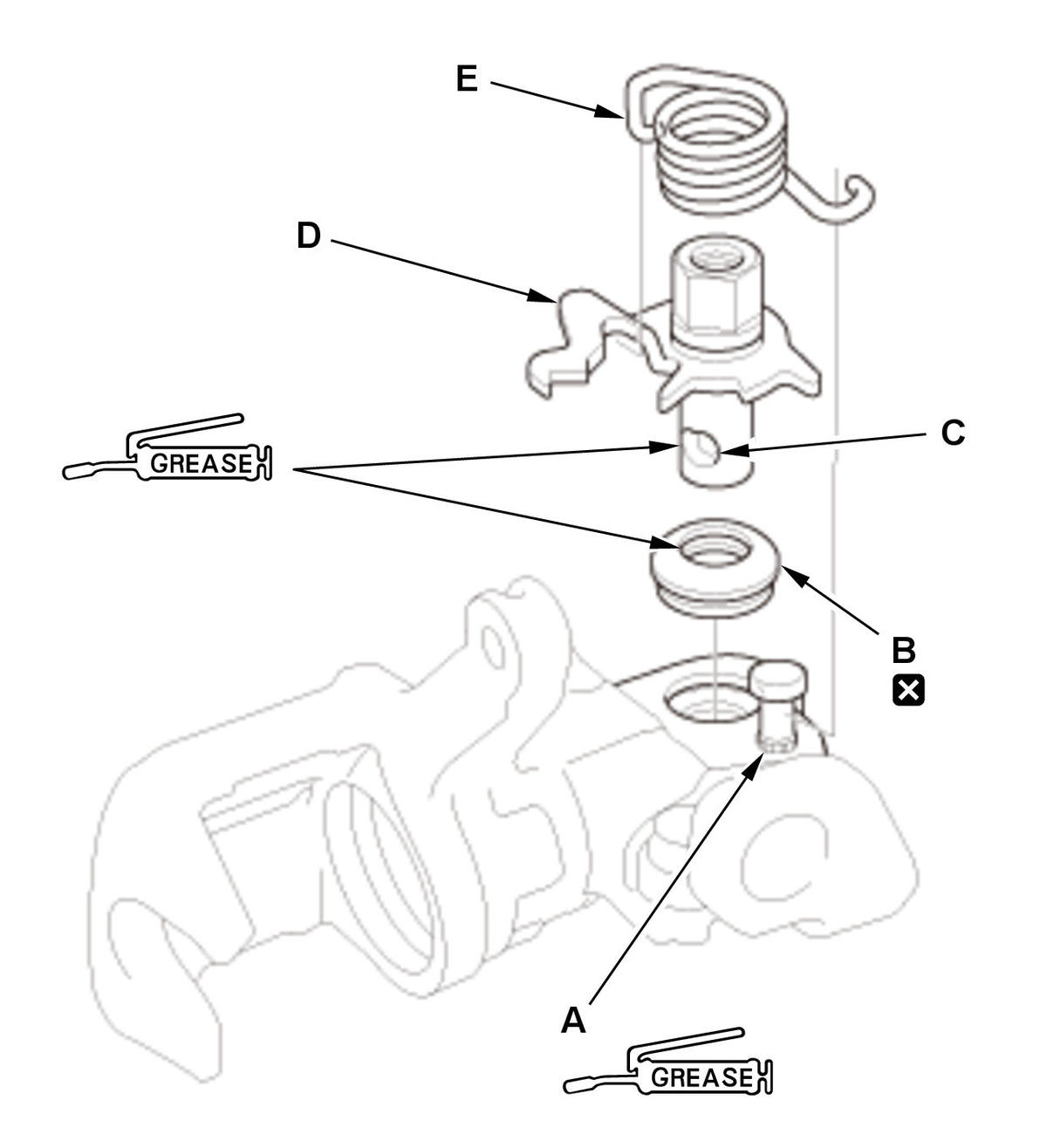

1. Apply a thin coat of Honda silicone grease (P/N 08C30- B0234M) to stop pin (A) of the caliper body.

NOTE: Check if the notch of the stop pin faces the cylinder.

2. Apply a thin coat of Honda silicone grease (P/N 08C30- B0234M) to the seal of a new shaft cover (B).

3. Install the shaft cover.

4. Apply a thin coat of Honda silicone grease (P/N 08C30- B0234M) to the hole (C) in the shaft.

5. Install the lever/shaft (D).

Rotate the shaft slowly when inserting to prevent damage to the seal of the shaft cover.
Fix the lip of the shaft cover to the groove portion of the shaft completely.

6. Install the return spring (E).

Courtesy of HONDA, U.S.A., INC.

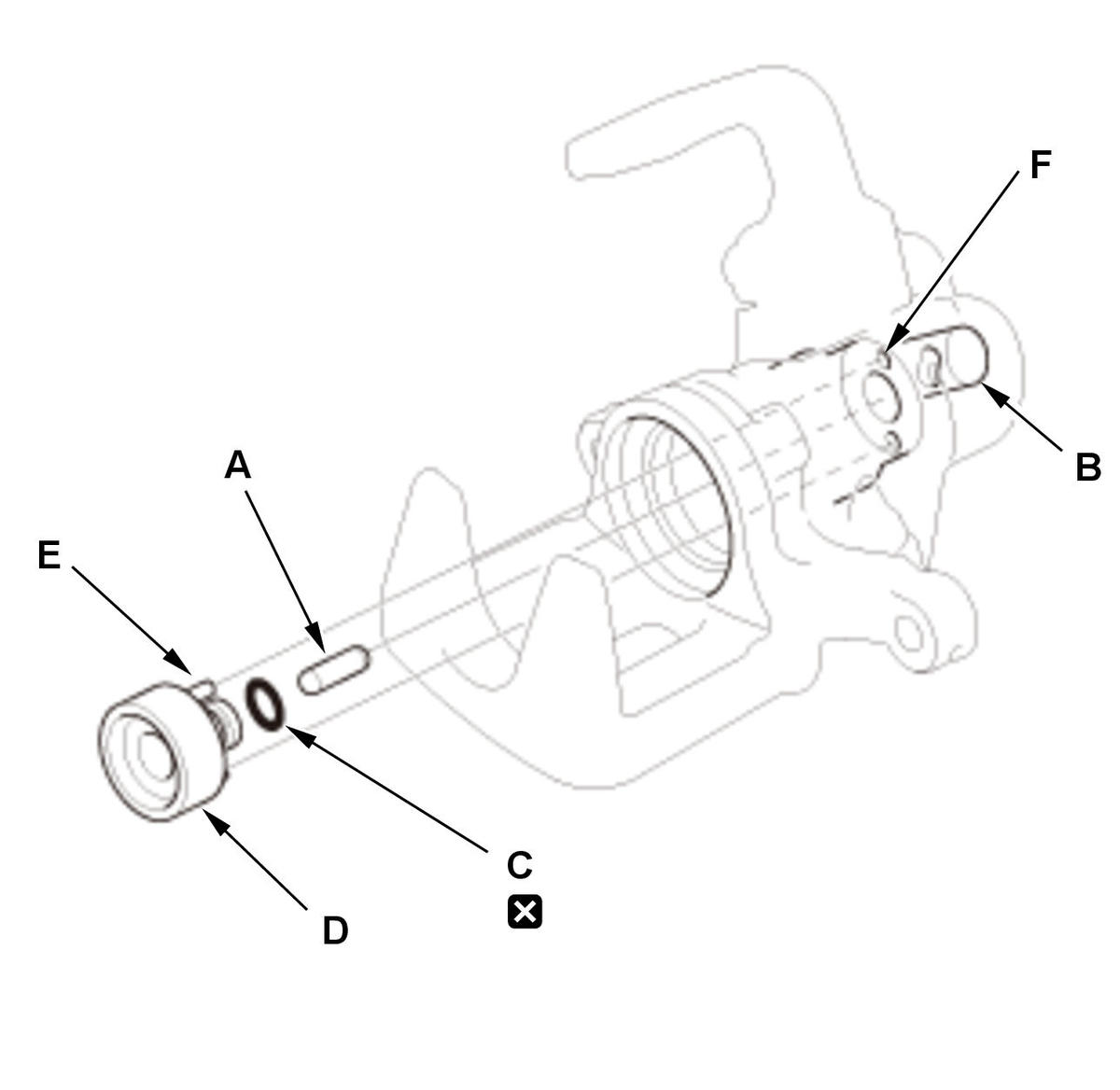

7. Install the rod (A) to the shaft (B) so that it turns toward the center.

8. Install the new O-ring (C) to the sleeve piston (D).

9. Install the two pins (E) of the sleeve piston into the two holes (F) of the caliper body, so that the rod is inserted in the hole in the bottom of the sleeve piston.

Courtesy of HONDA, U.S.A., INC.

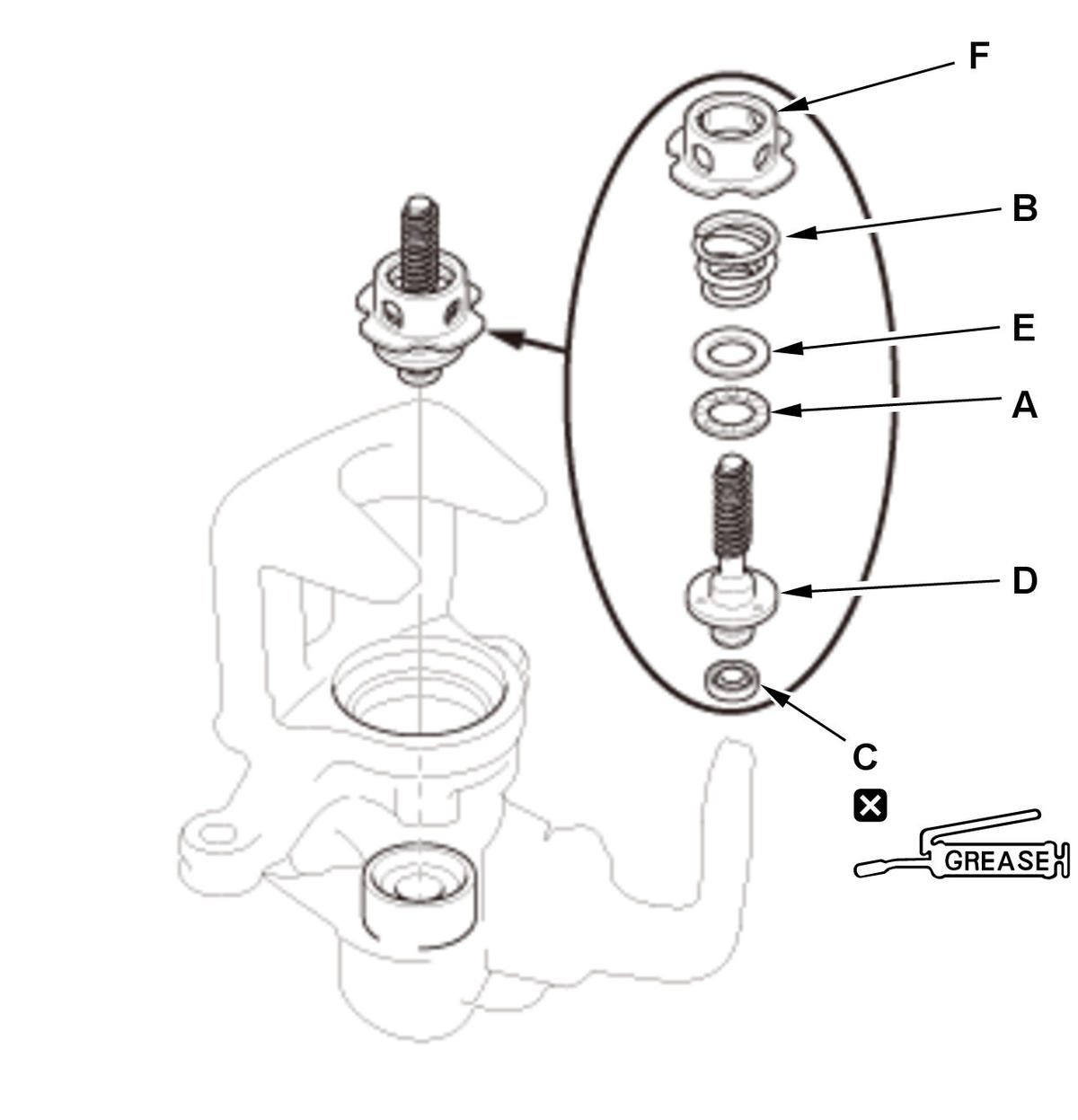

10. Apply a thin coat of Honda silicone grease (P/N 08C30- B0234M) to the new cup (C), and assemble to the adjusting bolt (D).

NOTE: Install the cup with the groove facing toward bearing A.

11. Assemble bearing A, the spacer (E), adjusting spring B, and the spring guide (F).

12. Install them into the caliper body.

Courtesy of HONDA, U.S.A., INC.

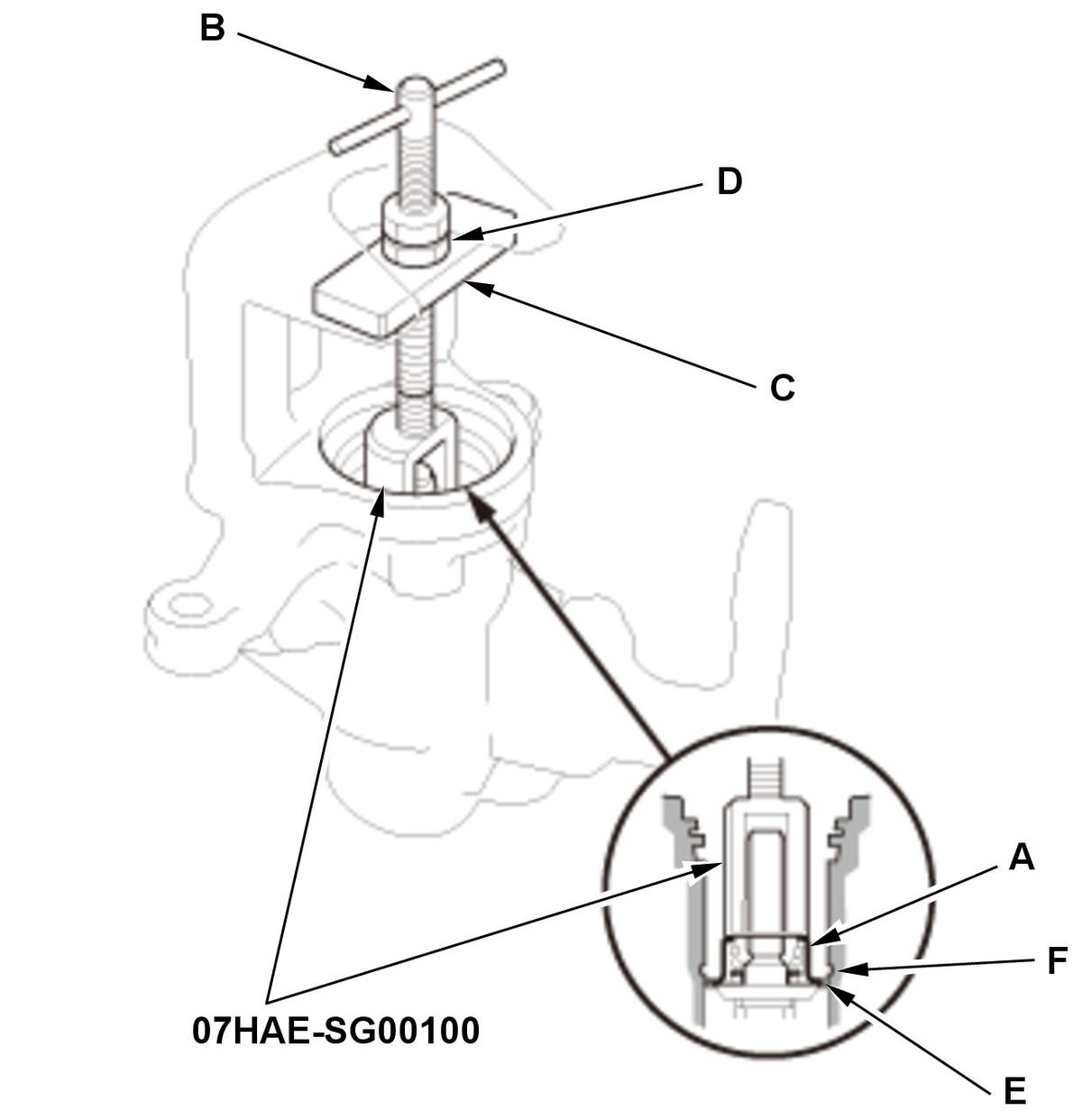

13. Install the rear caliper spring compressor on the spring guide (A) in the caliper body.

14. Turn the shaft (B) clockwise until the plate (C) touches the locknut (D).

15. Check that the bottom (E) of the spring guide is lower than the circlip installation groove (F) in the caliper body.

Courtesy of HONDA, U.S.A., INC.

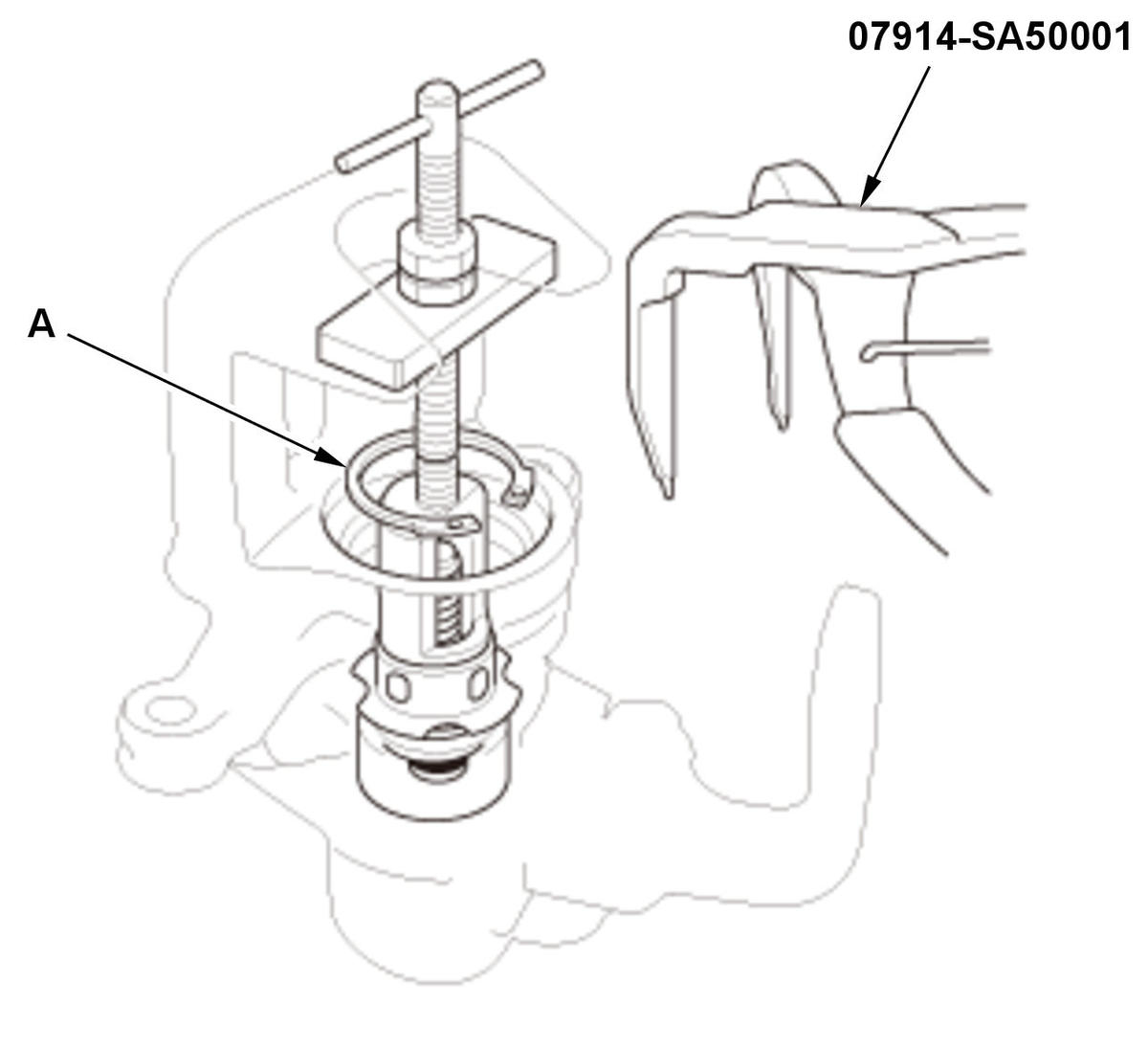

16. Install the circlip (A) with the snap ring pliers.

NOTE: Make sure the circlip securely fits in the groove of the caliper body.

Courtesy of HONDA, U.S.A., INC.

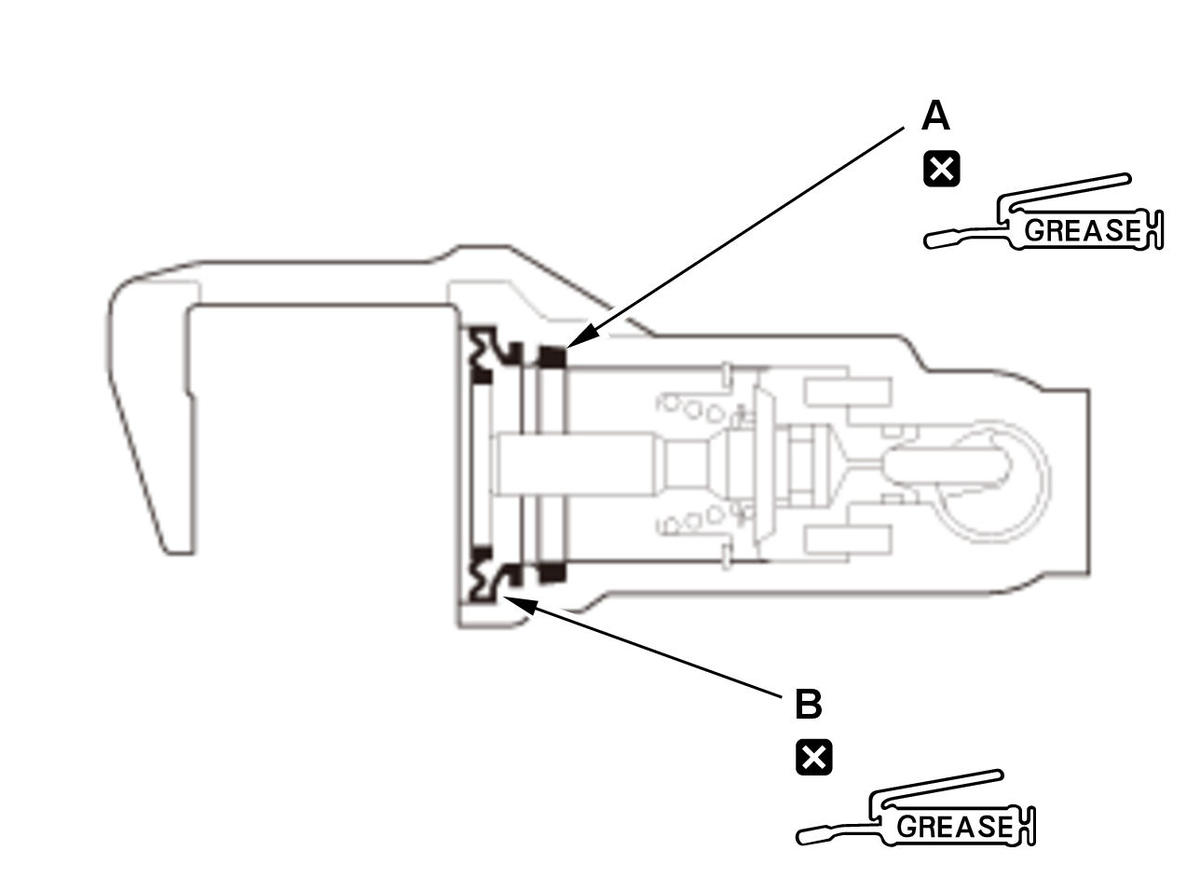

17. Apply a thin coat of Honda silicone grease (P/N 08C30- B0234M) to the new piston seal (A).

18. Install the piston seal.

19. Apply a thin coat of Honda silicone grease (P/N 08C30- B0234M) to the new piston boot (B).

20. Install the piston boot.

Courtesy of HONDA, U.S.A., INC.

21. Apply brake fluid to the outer surface of the piston.

22. Set the piston in place on the caliper body.

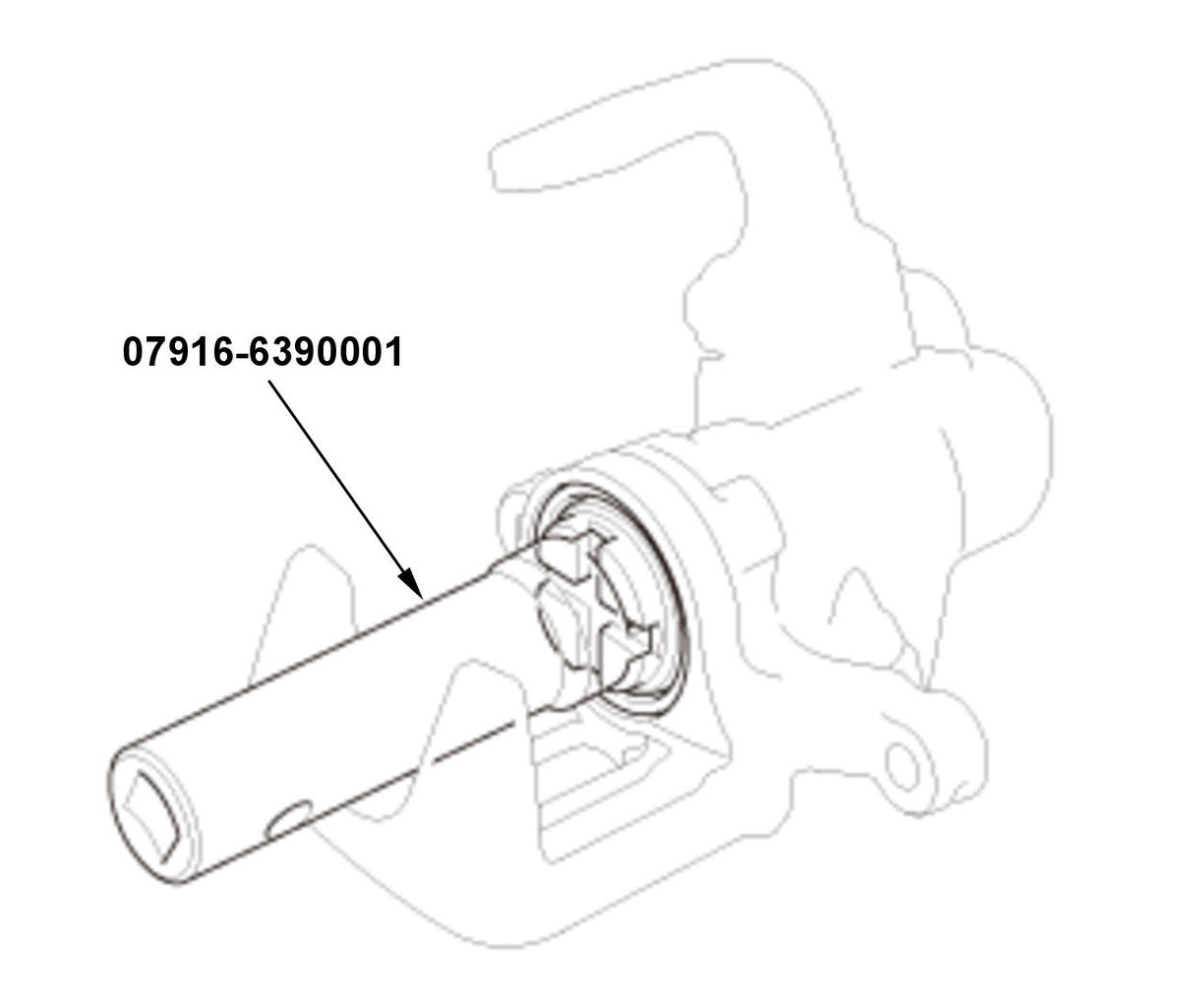

23. Rotate the piston clockwise with the locknut wrench to install it.

NOTE:

Make sure that the piston boot is properly positioned into the groove of the piston.
Be careful not to damage the piston boot when rotating the piston.

Courtesy of HONDA, U.S.A., INC.

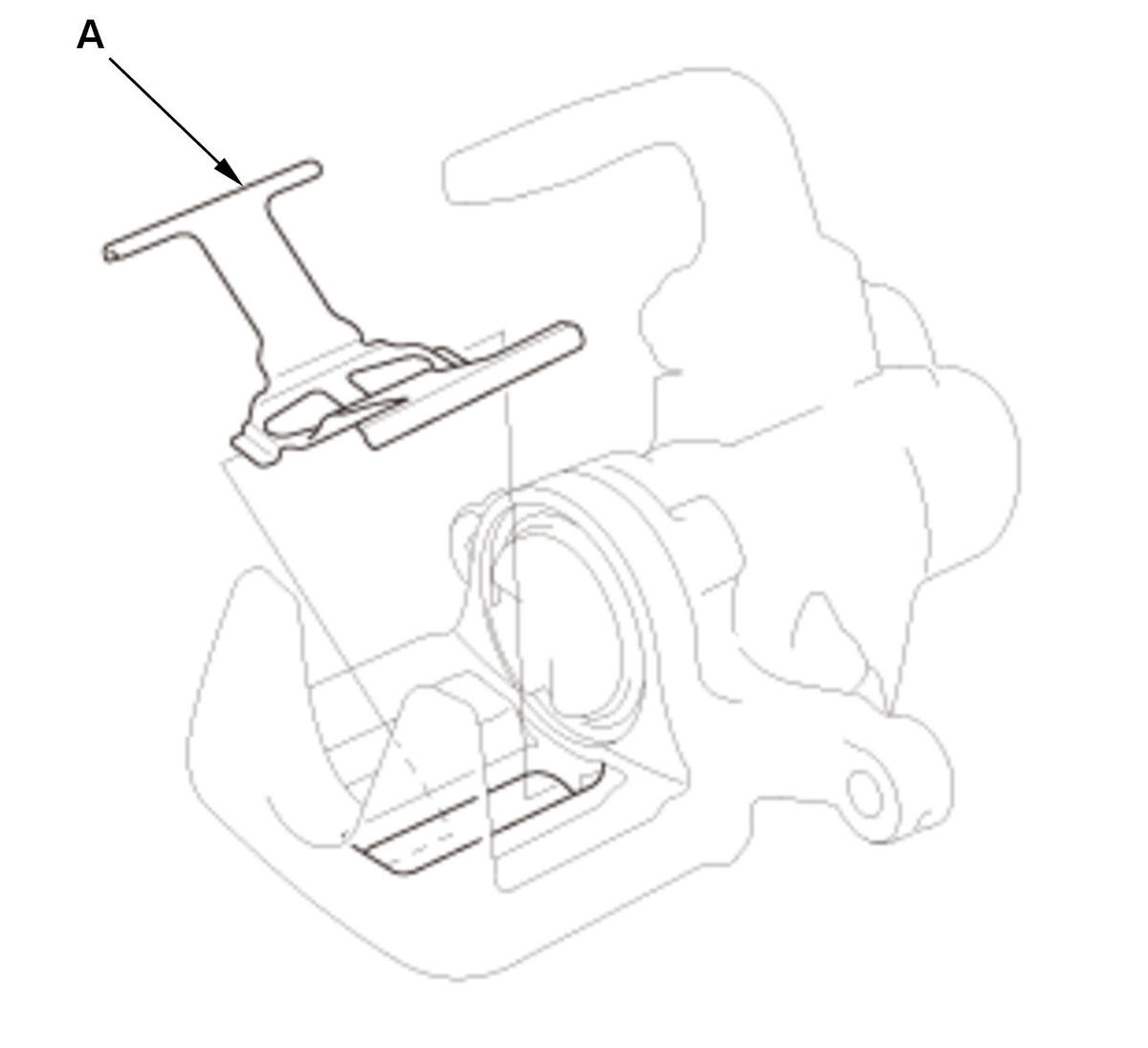

24. Install the pad spring (A).
