Rear Brake Caliper: Disassembly

WARNING:

Frequent inhalation of brake pad dust, regardless of material composition, could be hazardous to your health.

Avoid breathing dust particles.
Never use an air hose or brush to clean brake assemblies. Use an OSHA-approved vacuum cleaner.

NOTICE:

Do not spill brake fluid on the vehicle; it may damage the paint. If brake fluid does contact the paint, wash it off immediately with water.

NOTE:

Clean all parts with brake fluid and air dry; blow out all passages with compressed air.
Make sure no dirt or other foreign matter gets in the brake fluid.
Make sure no grease or oil gets on the brake discs or pads.
Do not reuse the drained fluid. Use only new Acura DOT 3 Brake Fluid from an unopened container. Using a non-Acura brake fluid can cause corrosion and shorten the life of the system.
Coat the piston, the piston seal groove, and the caliper bore with clean brake fluid.
Use recommended greases in the rear caliper set.
After installing the caliper, check the brake hose and line for leaks, interference, and twisting.
Refer to the Exploded View as needed during this procedure.

Brake Caliper - Disassemble

Courtesy of HONDA, U.S.A., INC.

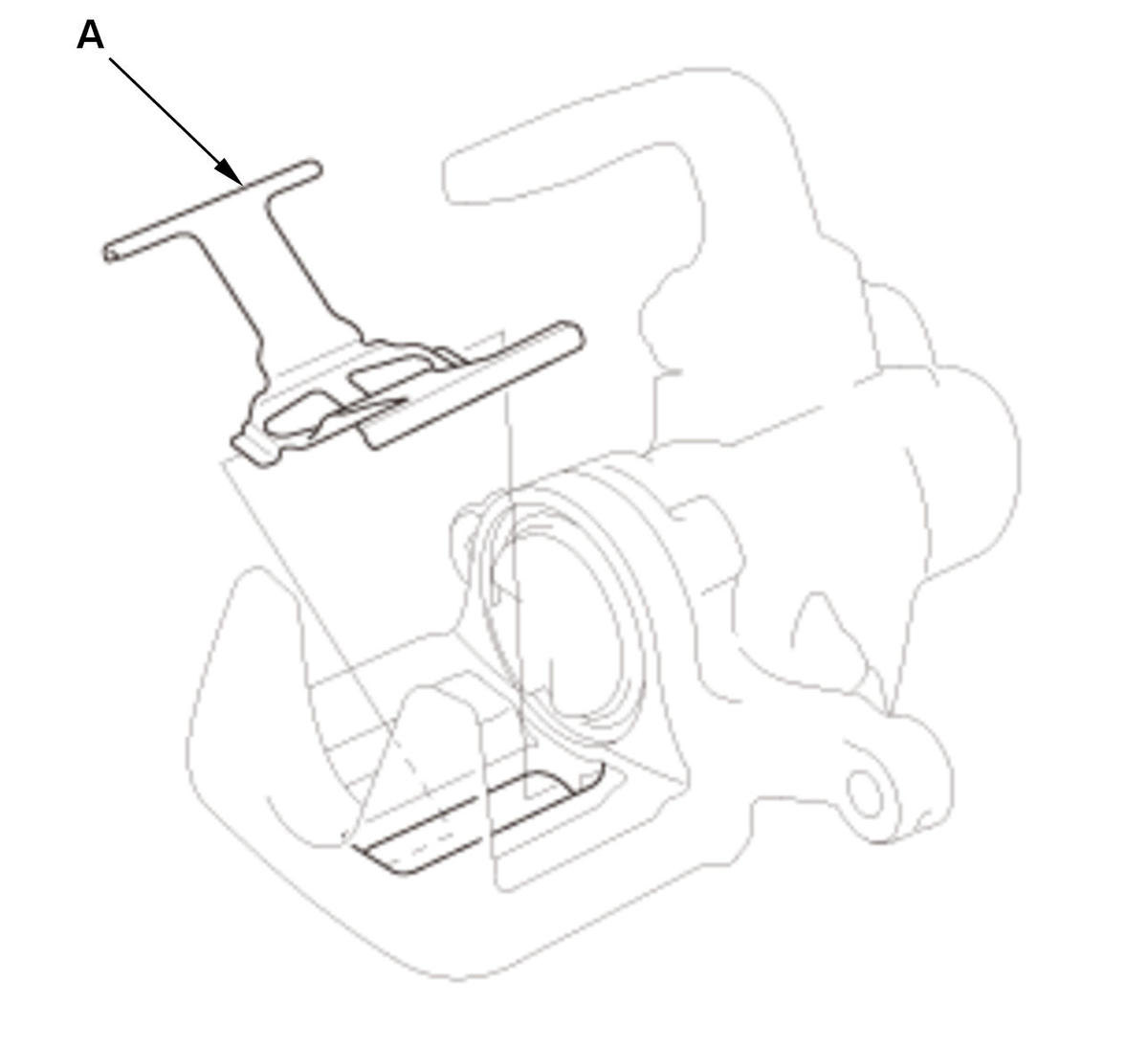

1. Remove the pad spring (A).

Courtesy of HONDA, U.S.A., INC.

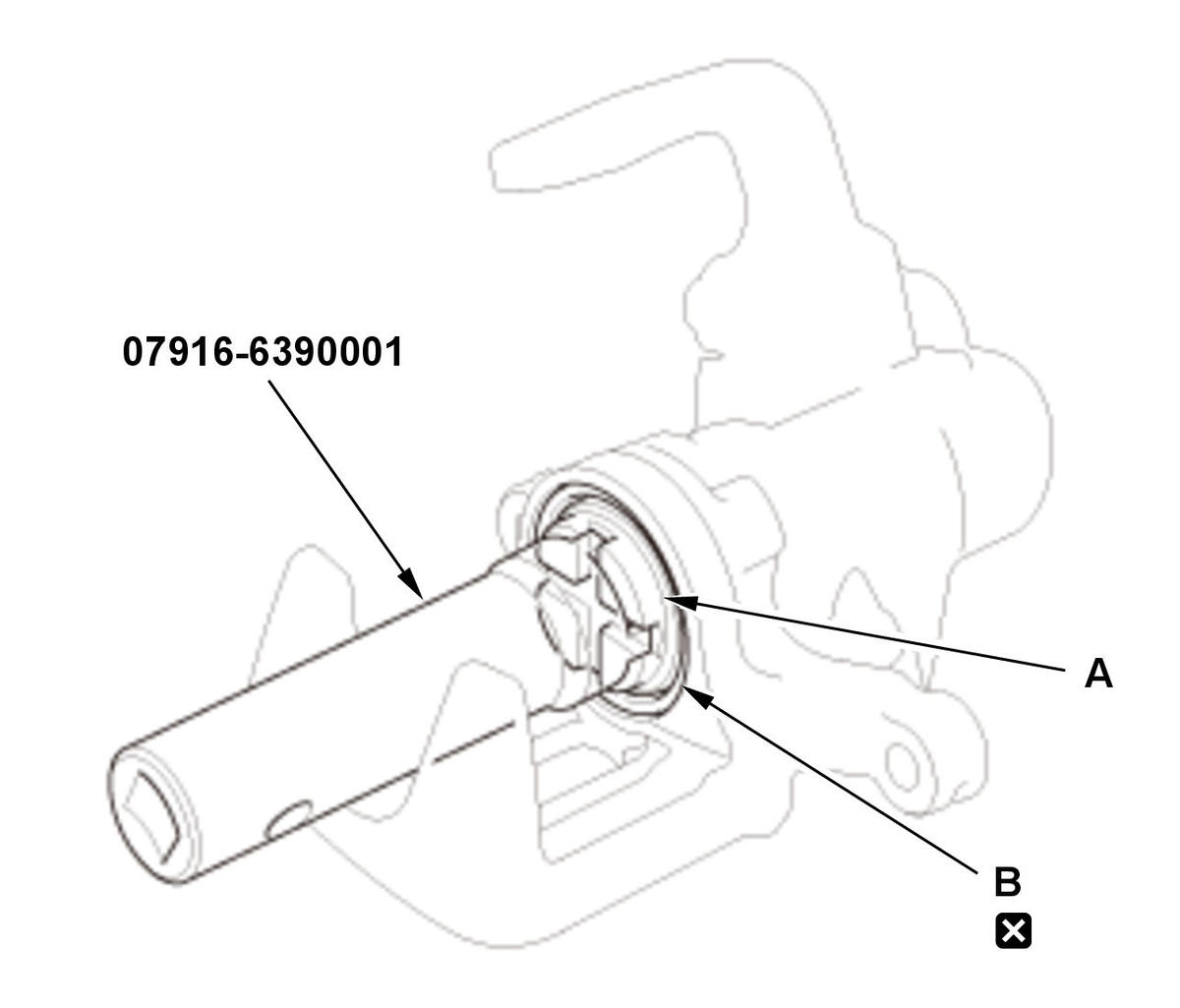

2. Rotate the piston (A) counterclockwise by using the locknut wrench, and remove the piston and piston boot (B).

NOTE: Be careful not to damage the piston.

Courtesy of HONDA, U.S.A., INC.

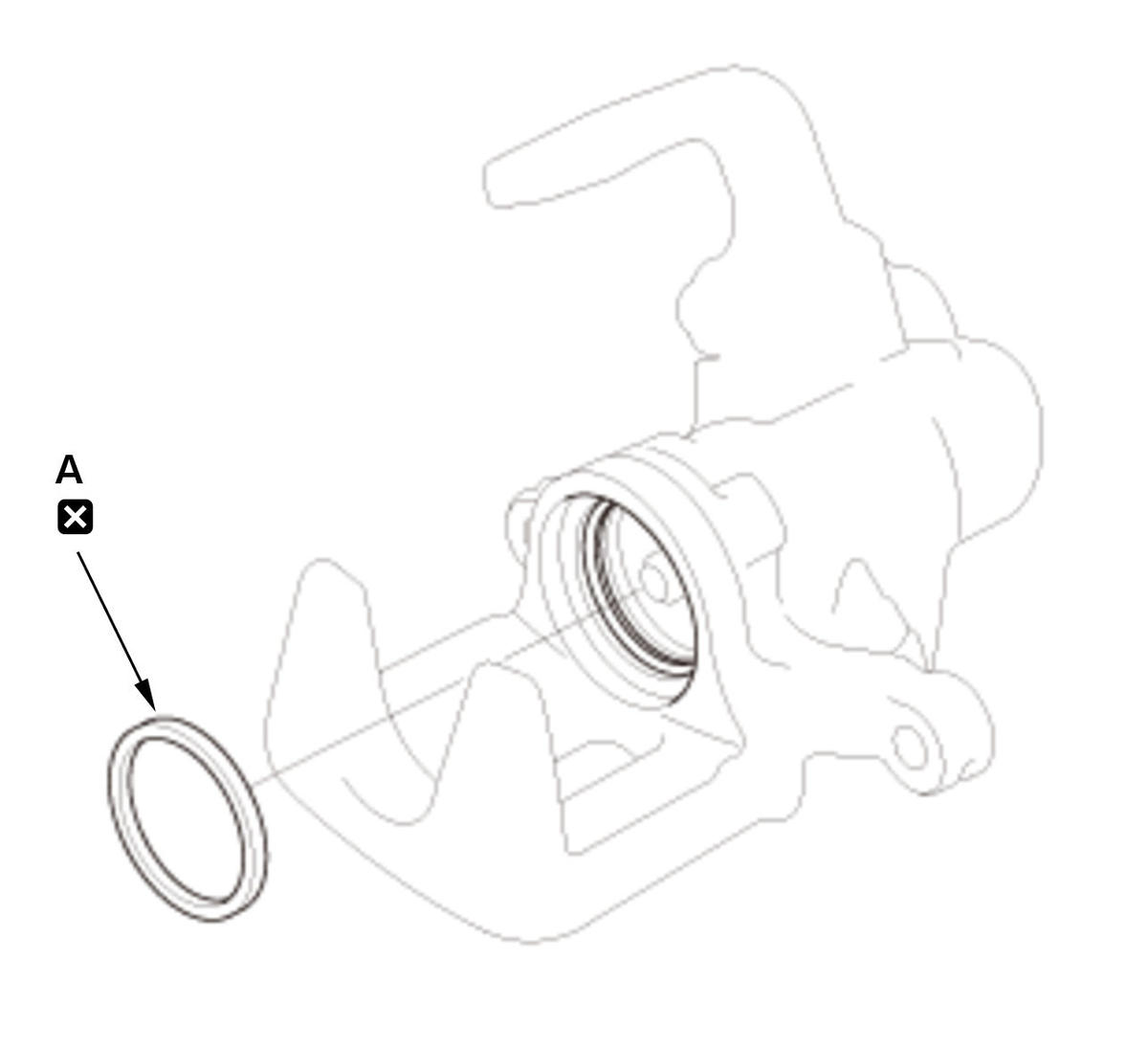

3. Remove the piston seal (A).

NOTE: Be careful not to damage the inner surface of the cylinder wall with the tool.

Courtesy of HONDA, U.S.A., INC.

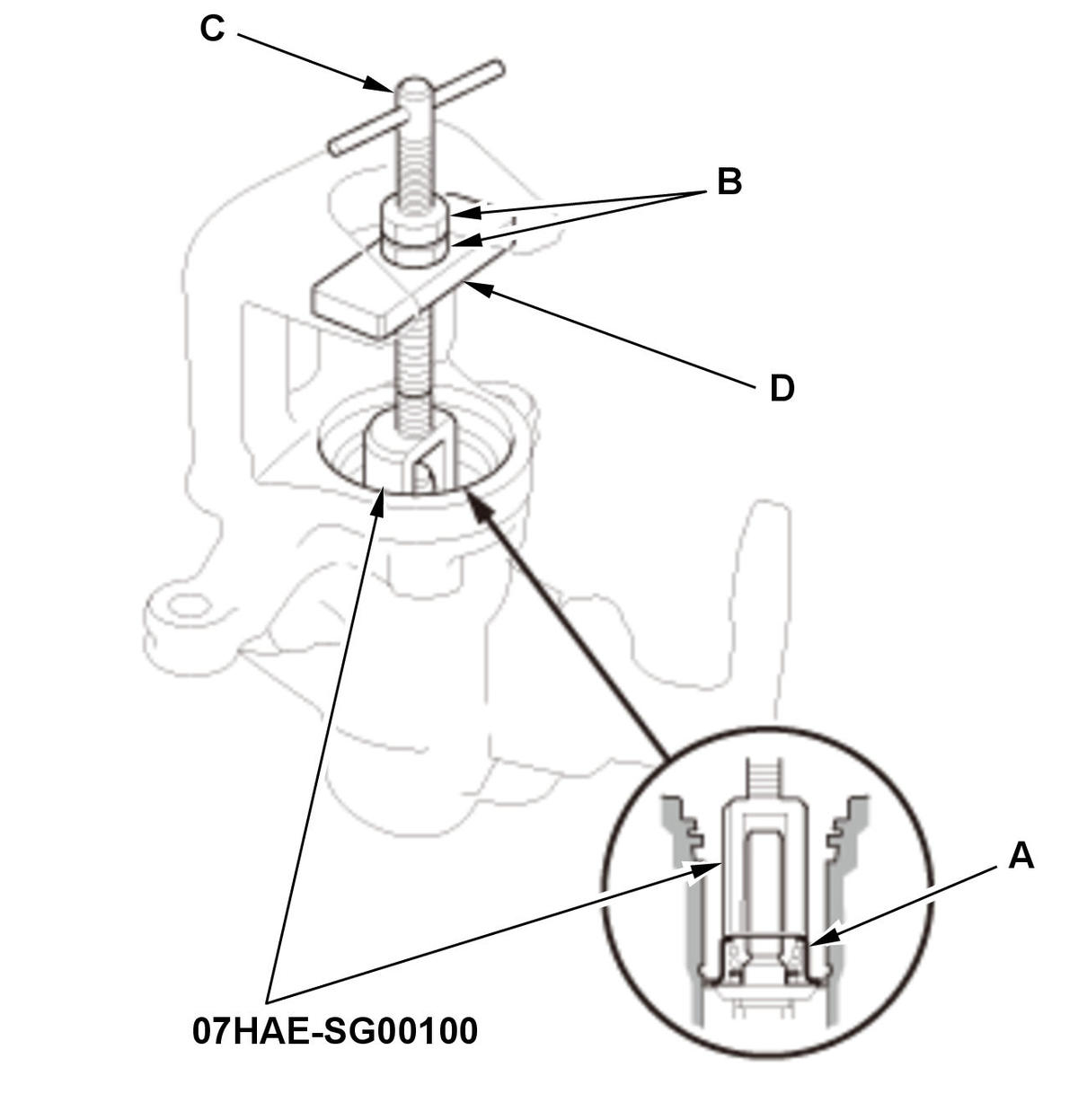

4. Install the rear caliper spring compressor on the spring guide (A) inside of the caliper body.

5. Loosen the locknuts (B) on the top of the shaft (C), and turn the shaft clockwise until the plate (D) touches the caliper body.

Courtesy of HONDA, U.S.A., INC.

6. Turn the lower locknut (A) until it contacts the plate.

7. Turn the shaft 1/4 to 1/2 turn clockwise to compress the adjusting spring B.

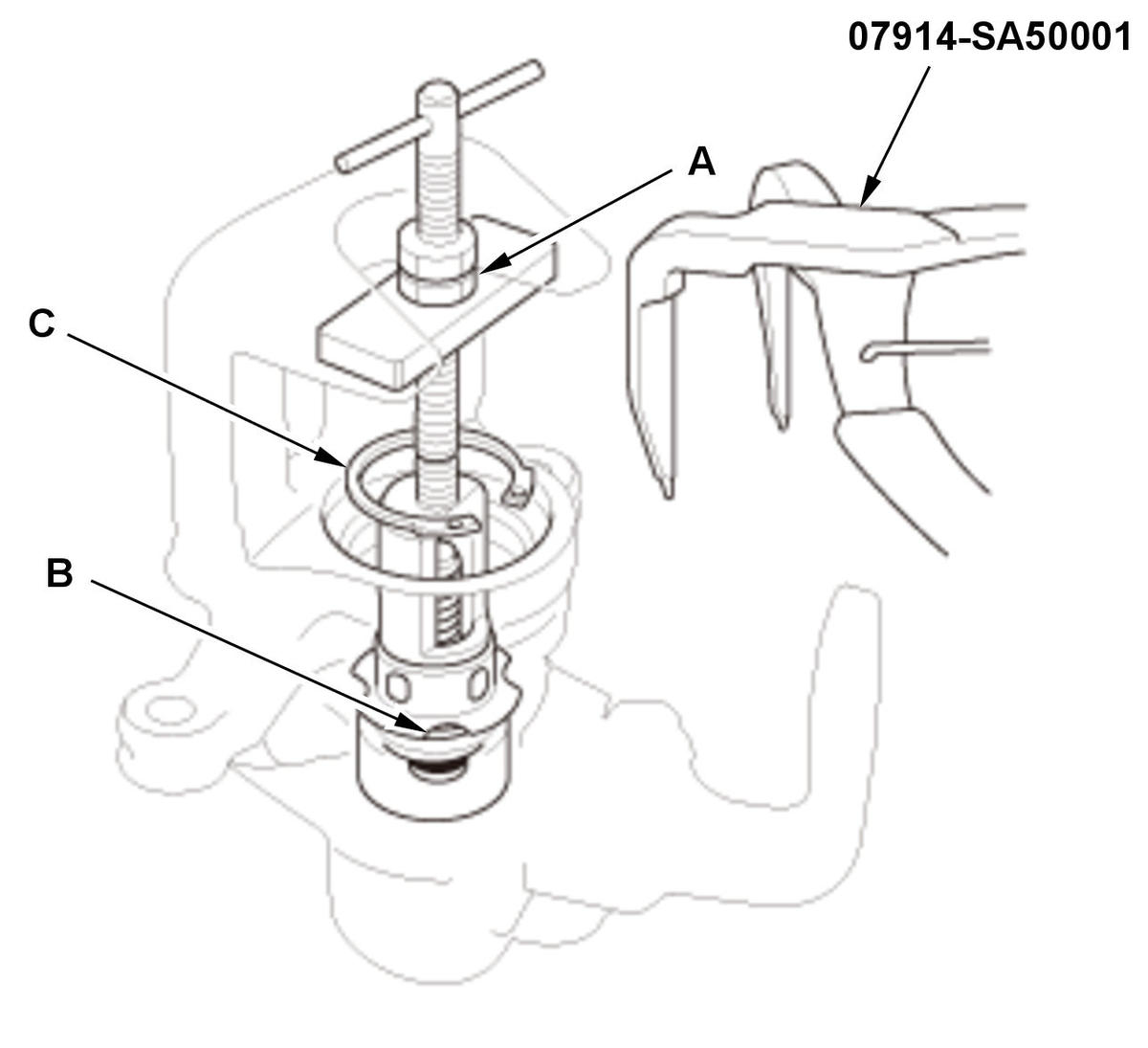

8. Remove the circlip (C).

9. Turn the lower locknut until it contacts the plate again, then lock it in place with the upper locknut.

NOTE: Leave the locknuts in this position for caliper reassembly.

10. Remove the rear caliper spring compressor.

Courtesy of HONDA, U.S.A., INC.

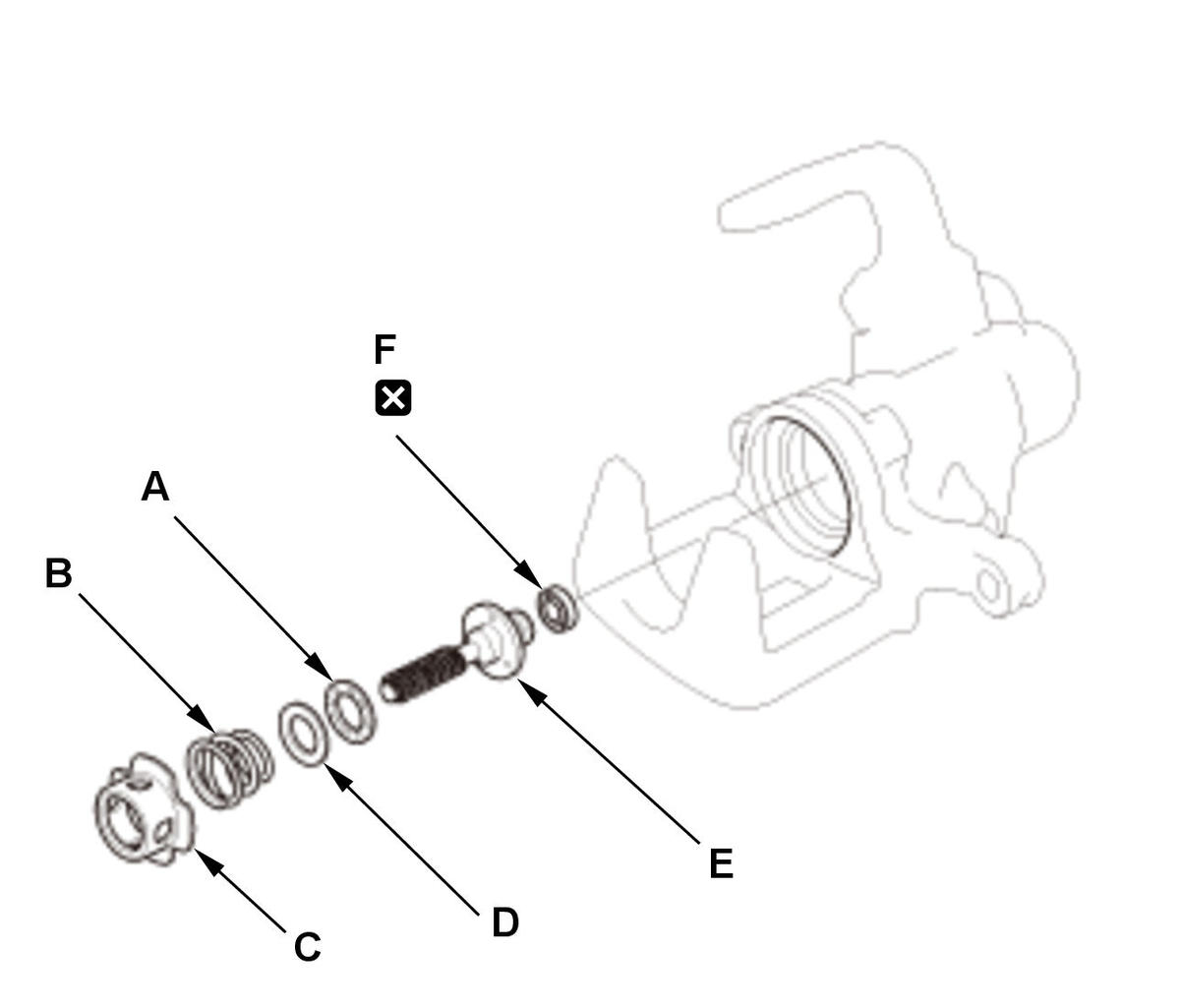

11. Remove the spring guide (C).

12. Remove adjusting spring B.

13. Remove the spacer (D).

14. Remove bearing A.

15. Remove the adjusting bolt (E).

16. Remove the cup (F).

Courtesy of HONDA, U.S.A., INC.

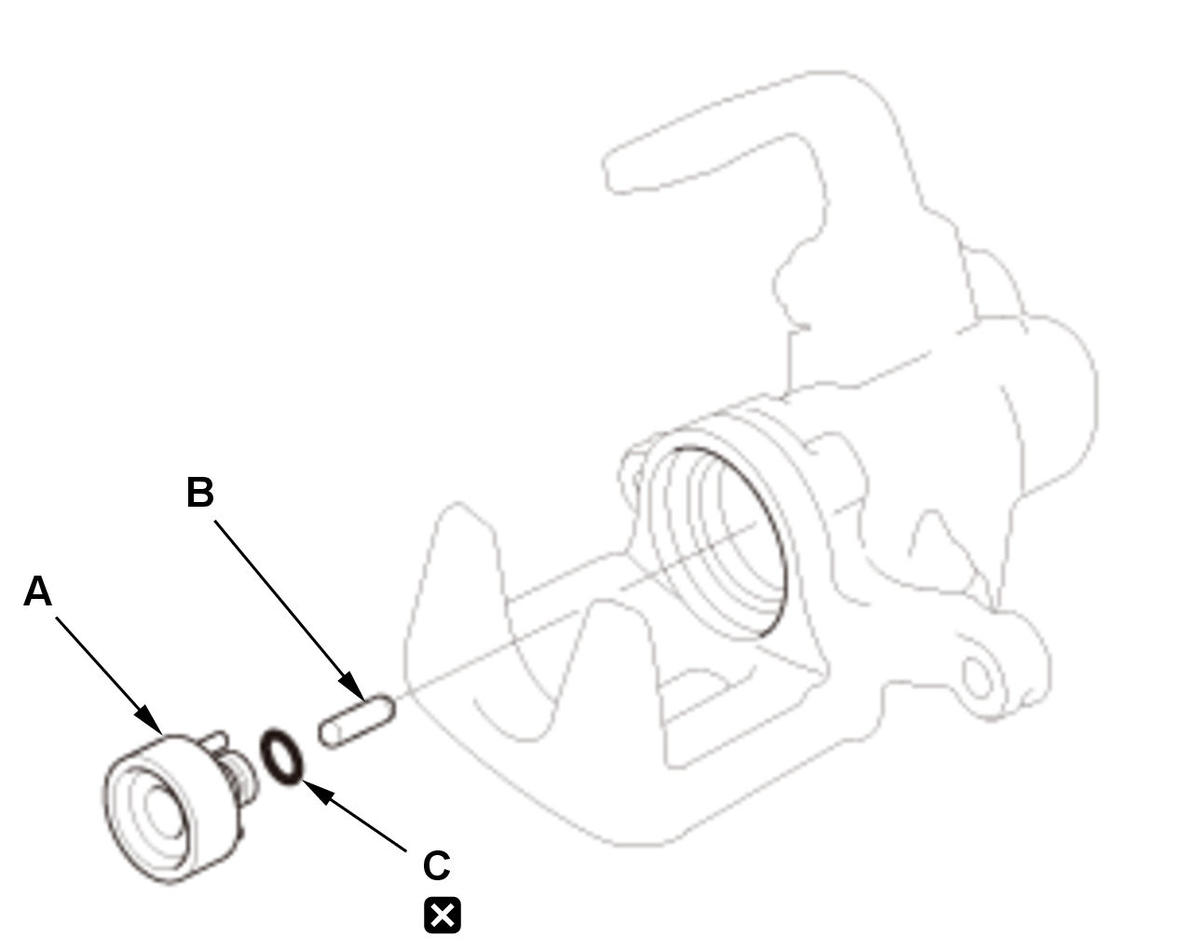

17. Remove the sleeve piston (A).

18. Remove the rod (B).

19. Remove the O-ring (C).

Courtesy of HONDA, U.S.A., INC.

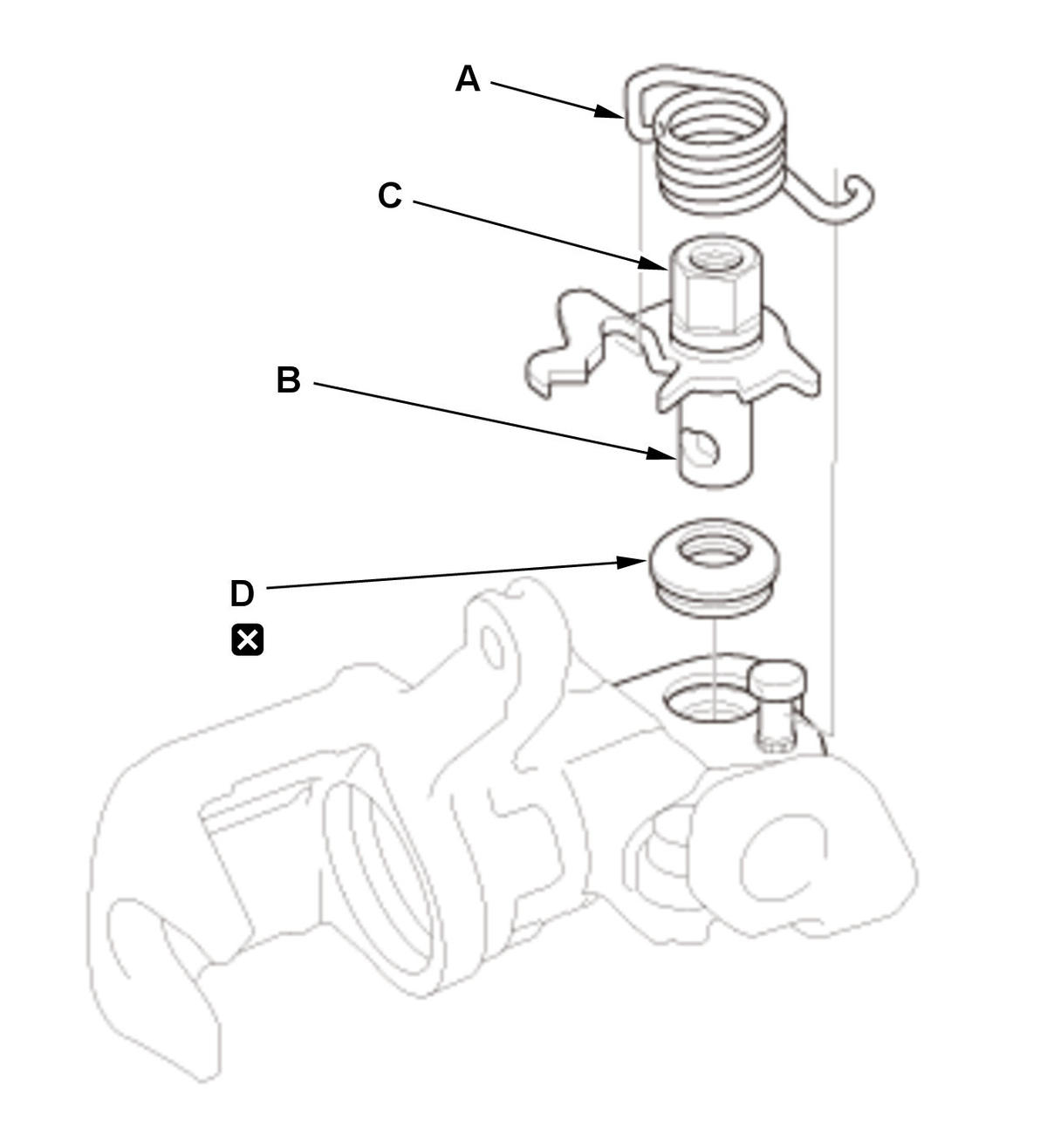

20. Remove the return spring (A).

21. Remove the lever/shaft (B).

NOTE: Do not loosen the parking nut (C) with the shaft attached to the caliper. When disassembling the lever and the shaft, clamp the lever in a vice and loosen the nut.

22. Remove the shaft cover (D).

Caliper Pin and Pin Boot - Remove

Courtesy of HONDA, U.S.A., INC.

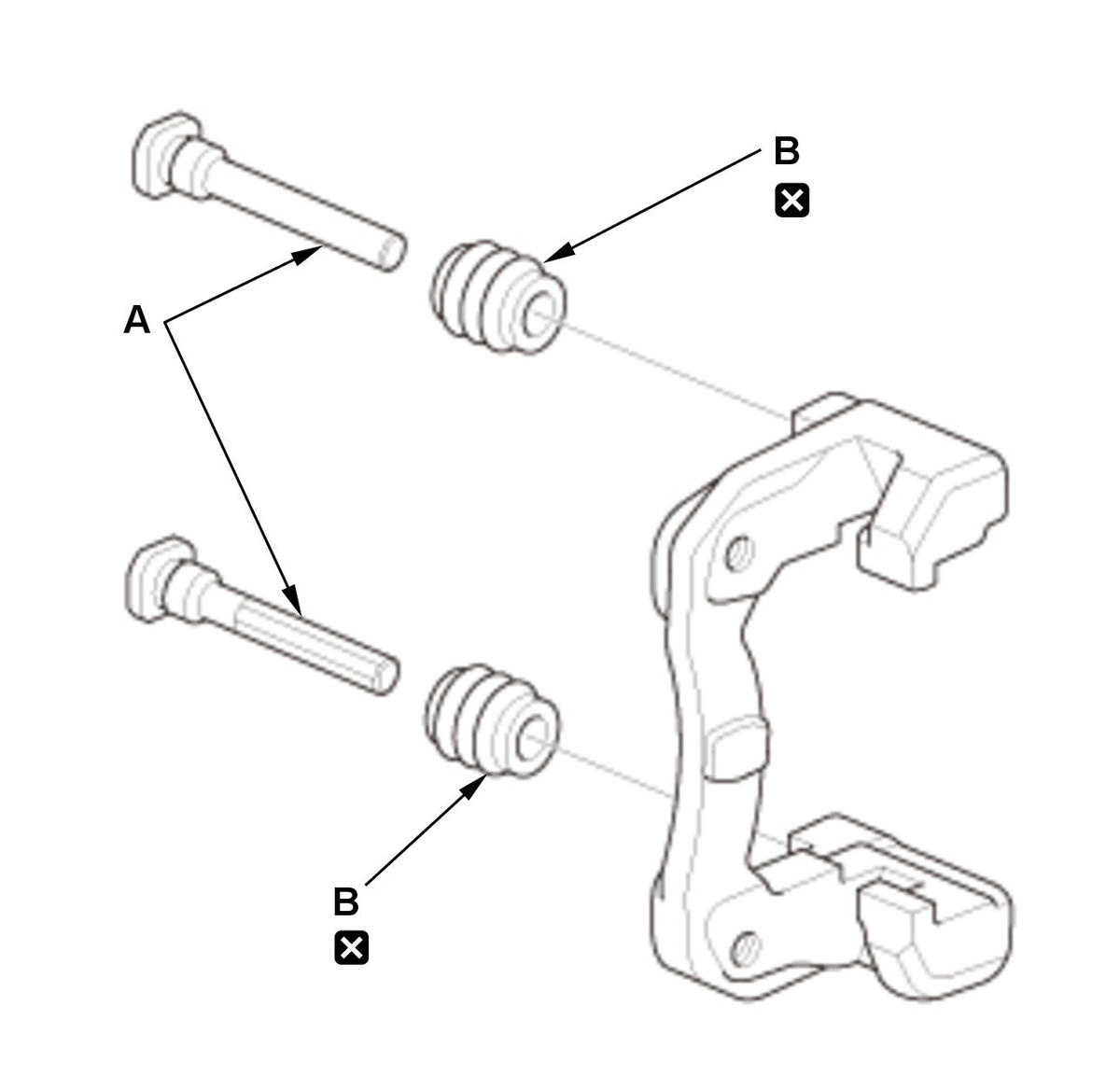

1. Remove the caliper pins (A).

NOTE: The upper and lower caliper pins are different. During installation, make sure the caliper pins are in the proper positions.

2. Remove the pin boots (B).
