Front Brake Caliper (2016 2017 2018 2019 2020 2021 2022)
>>
Exploded View
Exploded View
Front Brake Caliper

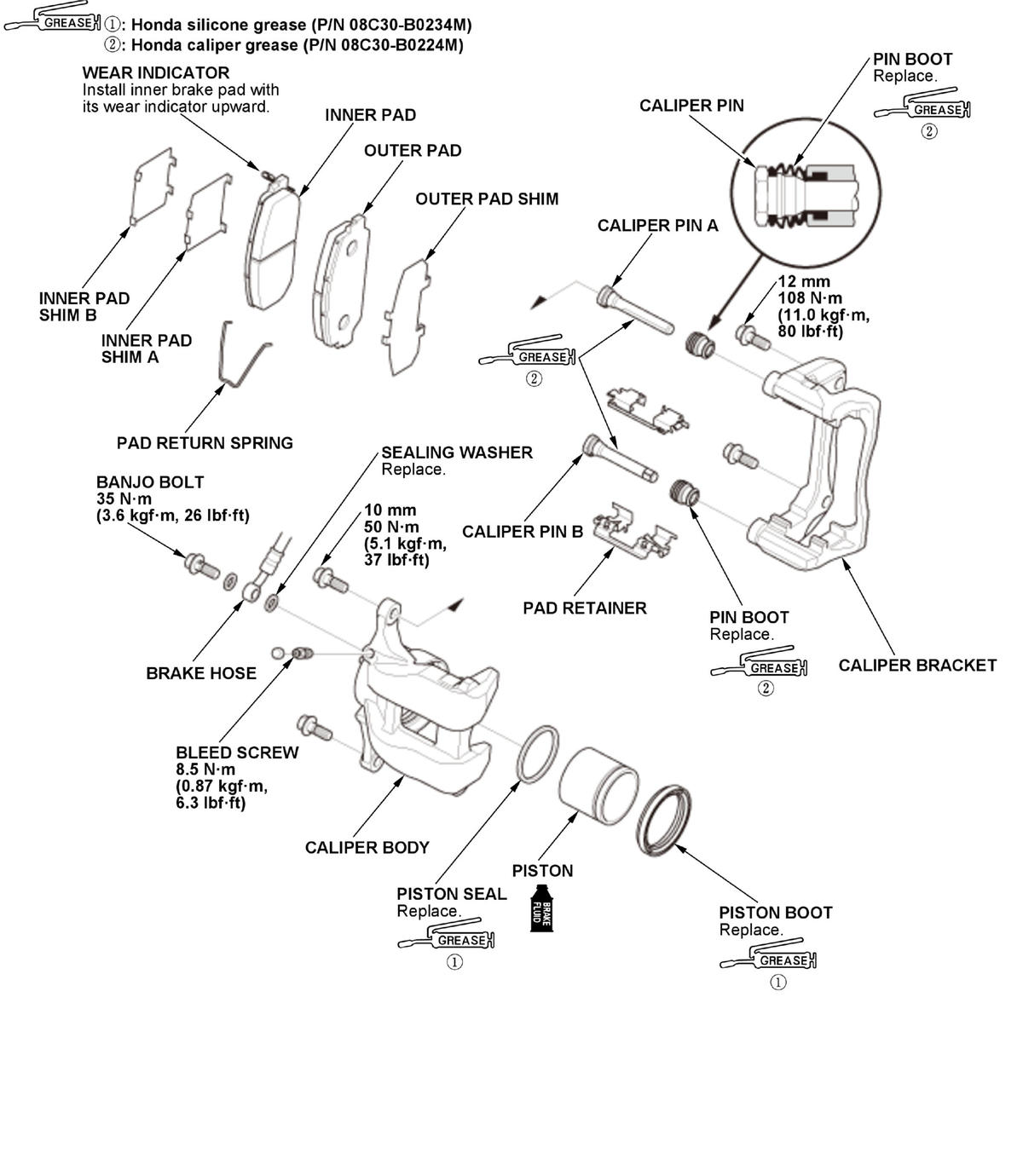

Fig 1: Front Brake Caliper With Torque Specifications
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
