Driver's Seat

Front Seat - Remove

1. Remove the driver's seat .

Driver's Seat Heater - Test

Courtesy of HONDA, U.S.A., INC.

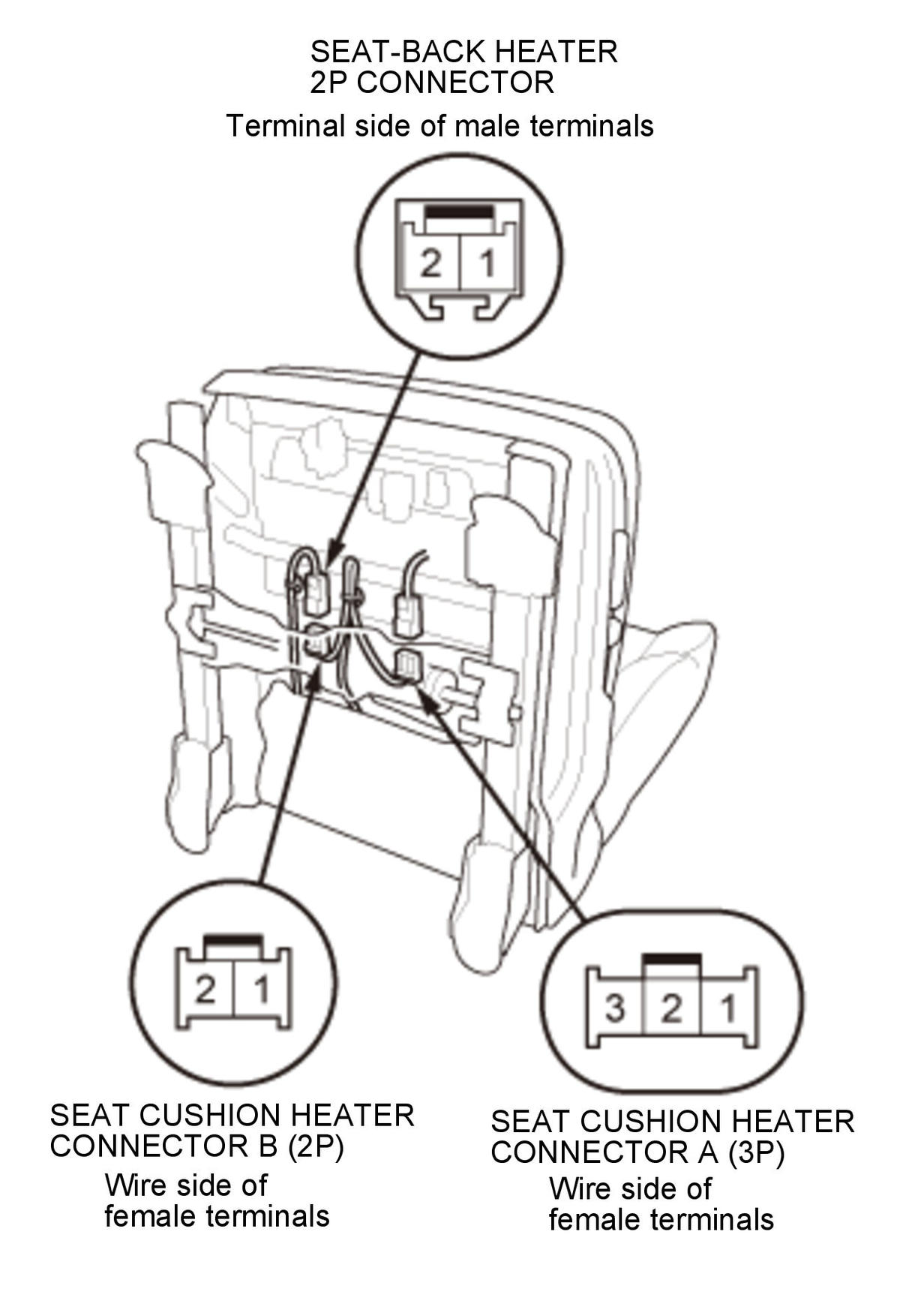

1. Disconnect the seat cushion heater connectors.

2. Check for continuity between seat-back heater connector terminals No. 1 and No. 2. There should be continuity.

3. If there is no continuity, replace the seat-back heater

4. Check for continuity between seat cushion heater connector A terminal No. 1, and seat cushion heater connector B terminal No. 2. There should be continuity.

5. If there is no continuity, replace the seat cushion heater

6. Check for continuity between seat cushion connector A terminal No. 2, and seat cushion heater connector B terminal No. 2. There should be continuity.

7. If there is no continuity, replace the seat cushion heater

8. Check for continuity between seat cushion heater connector A terminal No. 3, and seat cushion heater connector B terminal No. 1. There should be continuity.

9. If there is no continuity, replace the seat cushion heater .

10. Connect the seat cushion heater connectors.

Front Seat - Install

1. Install the driver's seat .
