Front Seat Cushion Heater

Front Seat Cushion Heater - Remove

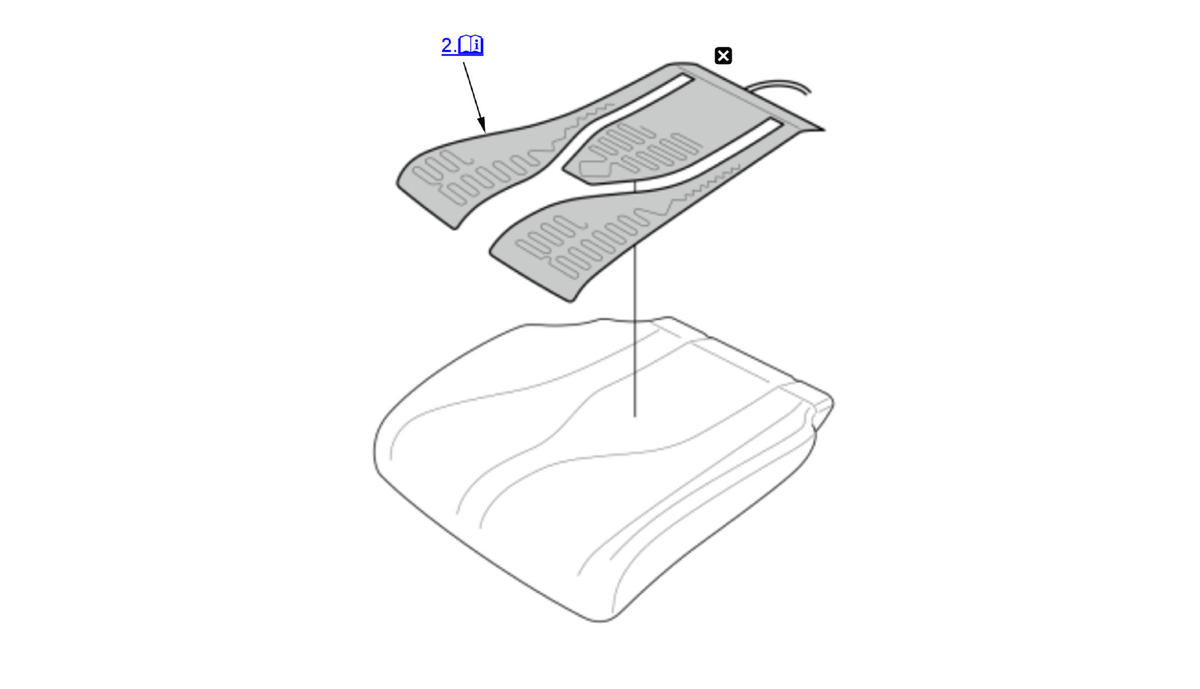

Driver's Seat Cushion Heater

Courtesy of HONDA, U.S.A., INC.

	Detailed information, notes, and precautions
	Replace

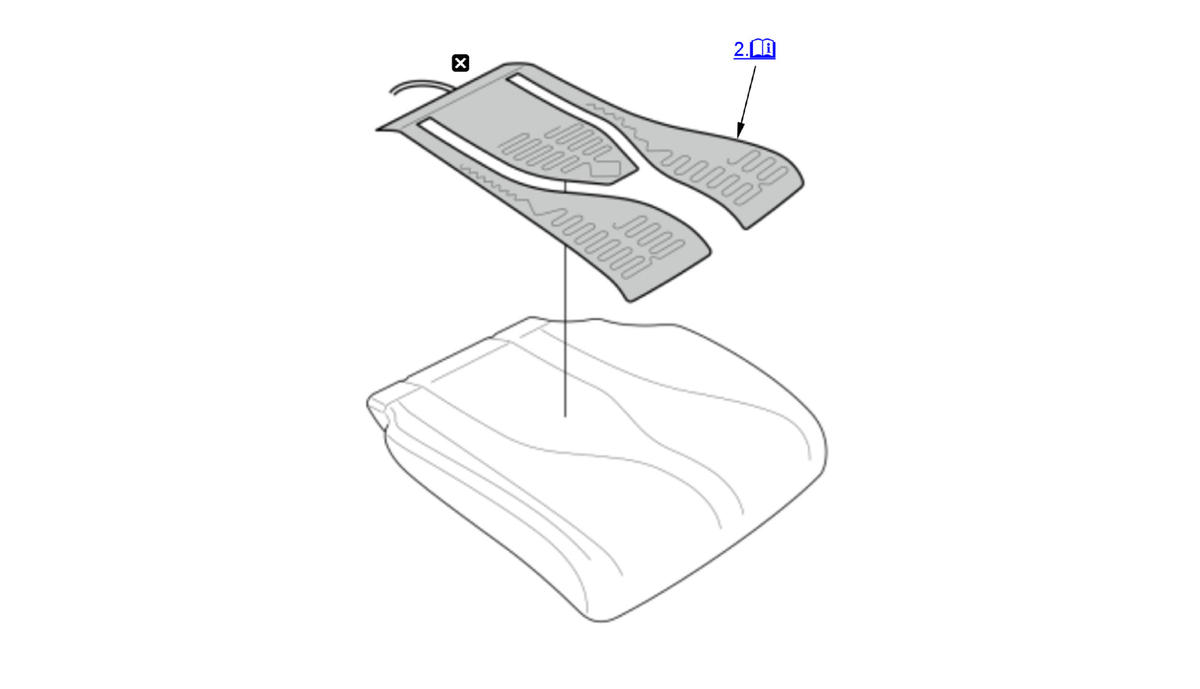

Front passenger's Seat Cushion Heater

Courtesy of HONDA, U.S.A., INC.

	Detailed information, notes, and precautions
	Replace

NOTE: The seat cushion heater is glued to the seat cushion pad. When removing it, take care not to damage the seat cushion pad.

Seat Cushion Heater - Install

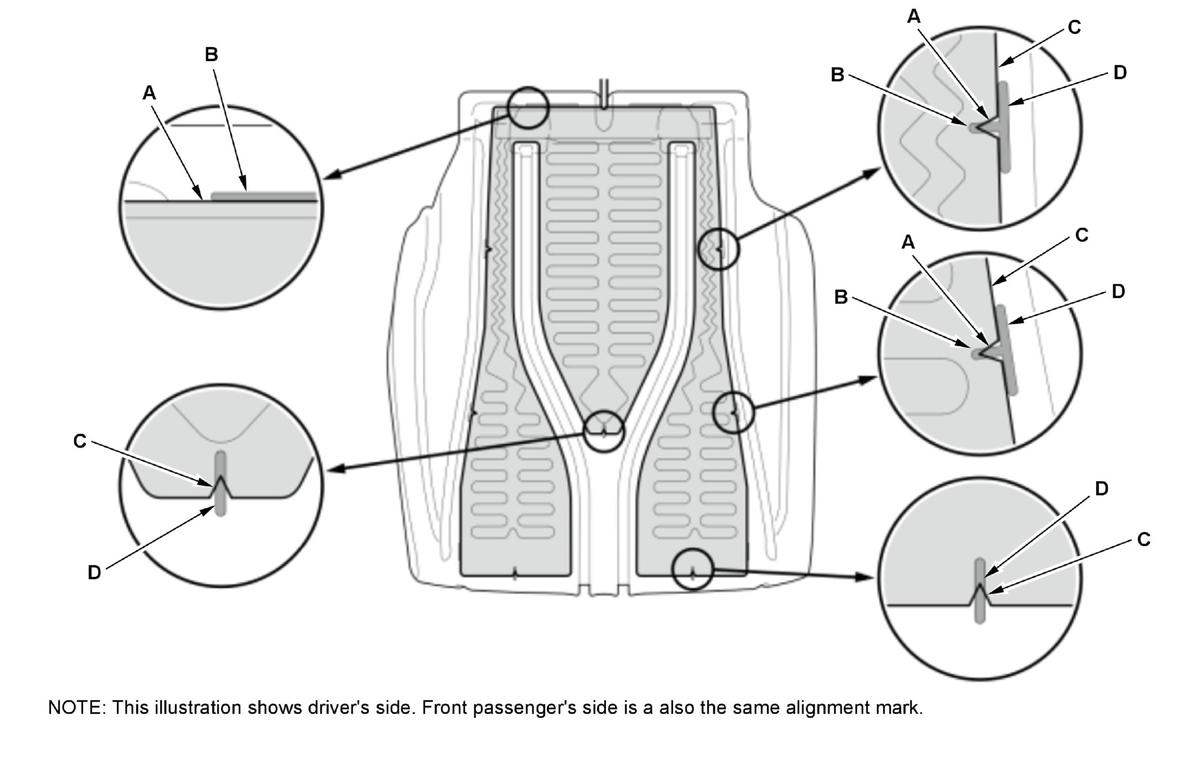

1. Attach the seat cushion heater to the reference position as shown.
NOTE:
- Reference position in the vertical direction: Align the seat cushion heater edge (A) with the edge of the groove (B) of the seat cushion pad.
- Reference position in the horizontal direction: Align the seat cushion heater edge (C) with the edge of the groove (D) of the seat cushion pad.
Courtesy of HONDA, U.S.A., INC.
All Removed Parts - Install

1. Install the parts in the reverse order of removal.
