Front Seat Cushion Heater

  1. Seat Cushion Cover/Pad - Remove
    1. Remove the seat cushion cover/pad .
  2. Seat Cushion Heater - Remove
    Driver's Seat

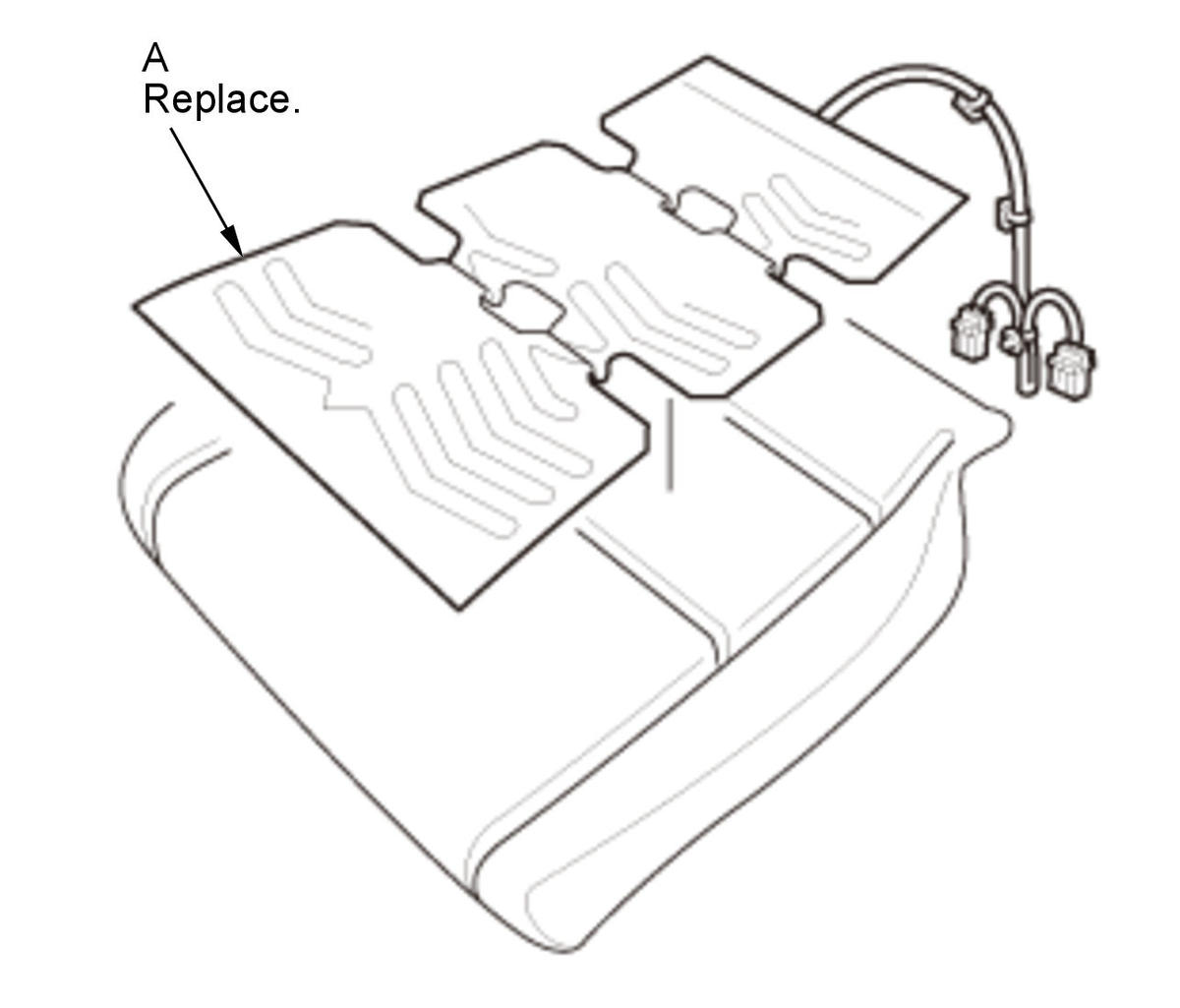

    GHH473783GHH473784Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.

    Front Passenger's Seat

    GHH473783GHH473784Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.
    		 1. Remove the seat cushion heater (A).

    NOTE: The seat cushion heater is glued to the seat cushion pad. When removing it, take care not to damage the seat cushion pad.
  3. Seat Cushion Heater - Install
    Driver's Seat

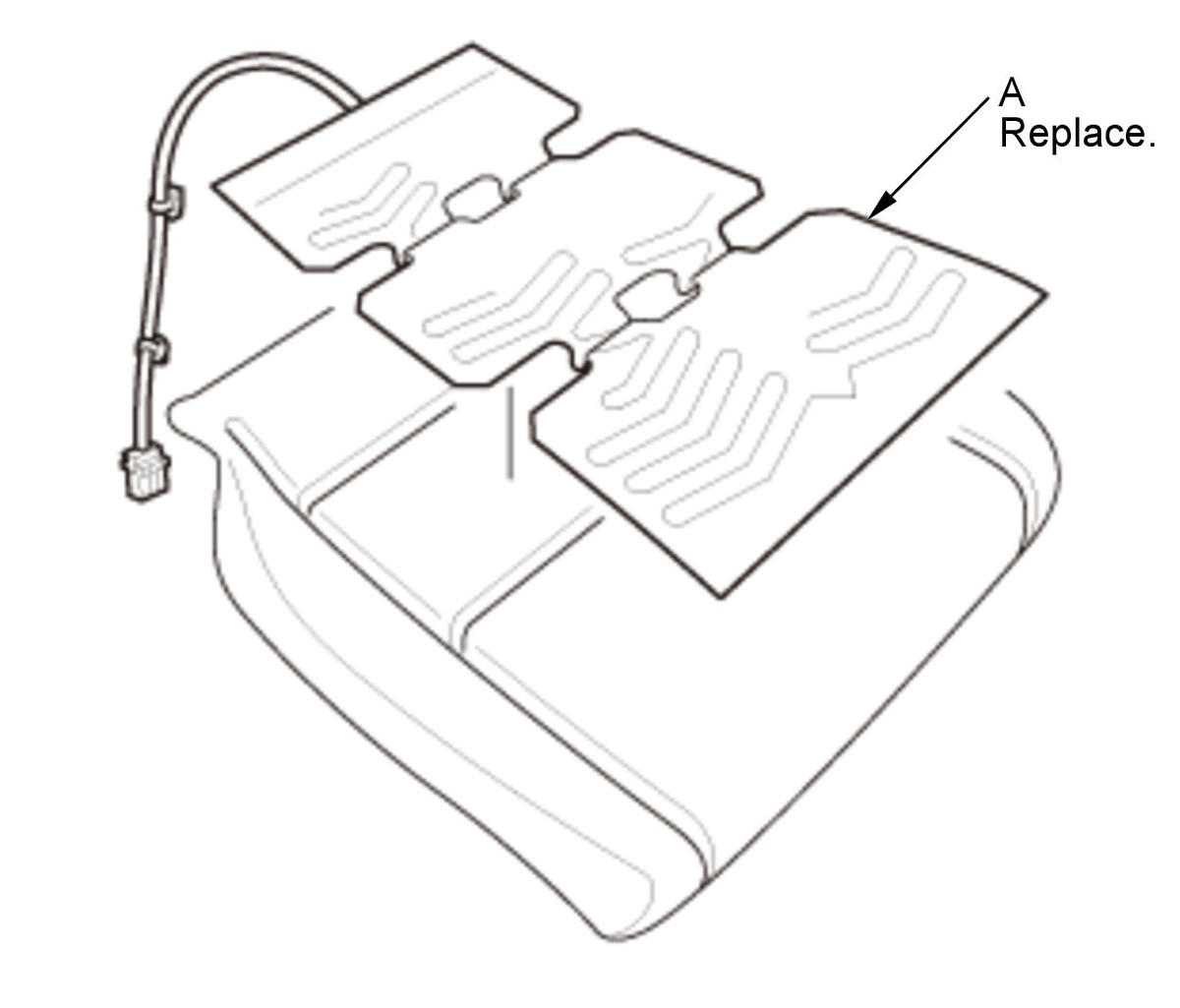

    GHH473785GHH473786Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.

    Front Passenger's Seat

    GHH473785GHH473786Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.
    		 1. Install the seat cushion heater (A).
  4. Seat Cushion Cover/Pad - Install
    1. Install the seat cushion cover/pad .
