Seat Heaters (2019 2020 2021 2022)

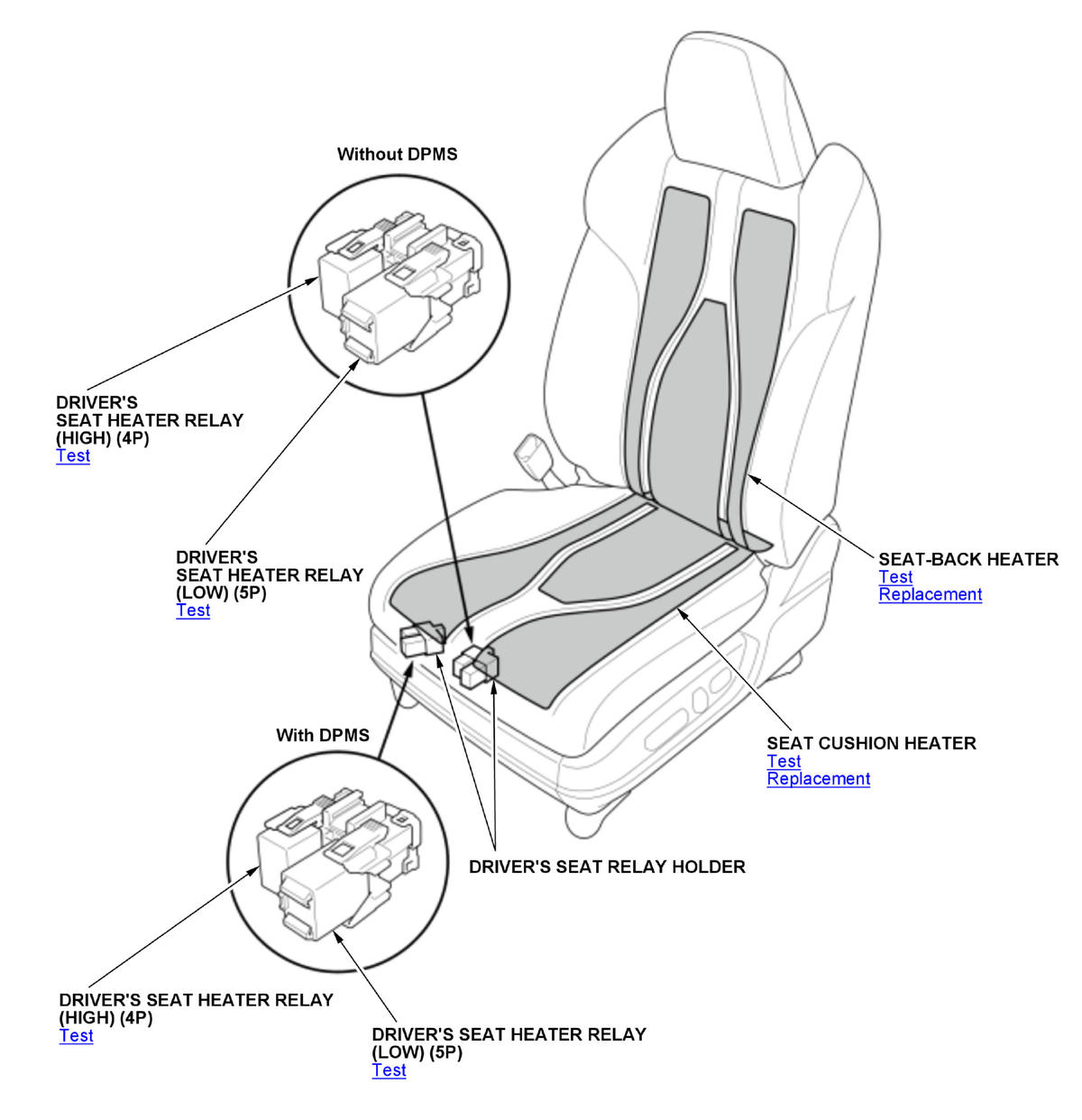

Driver's Seat

GHH473816

Courtesy of HONDA, U.S.A., INC.

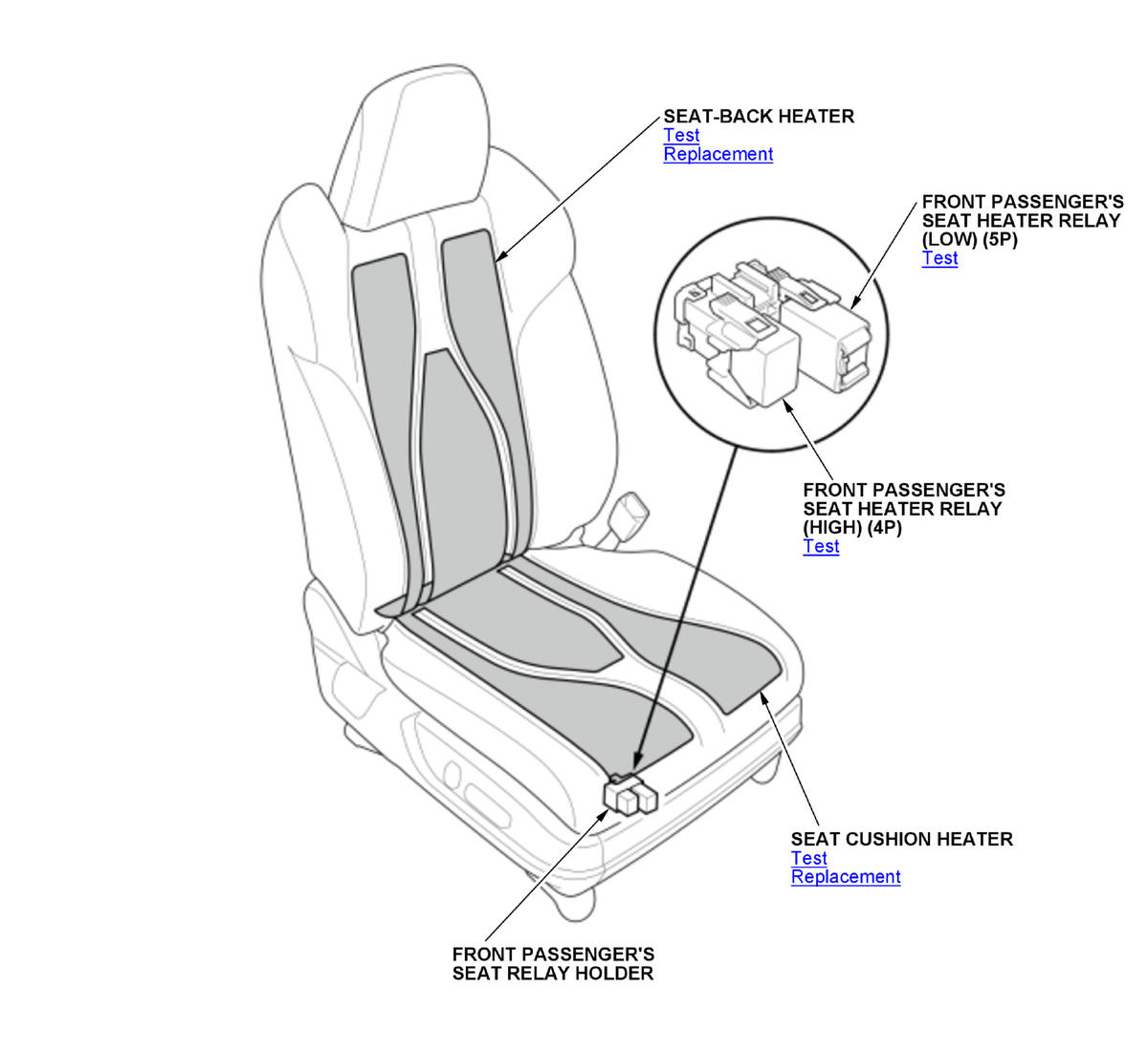

Front Passenger's Seat

GHH473817

Courtesy of HONDA, U.S.A., INC.

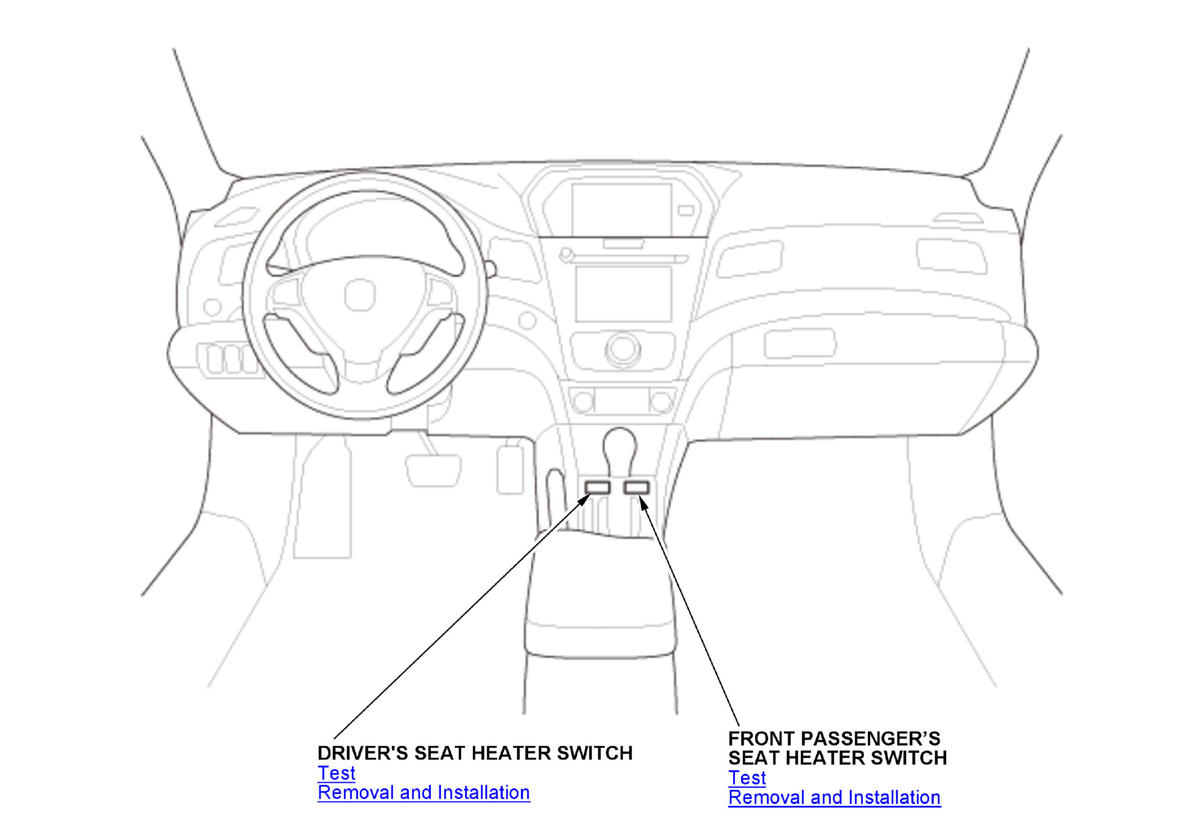

GHH473818

Courtesy of HONDA, U.S.A., INC.
