Seat Heaters (2016 2017 2018)

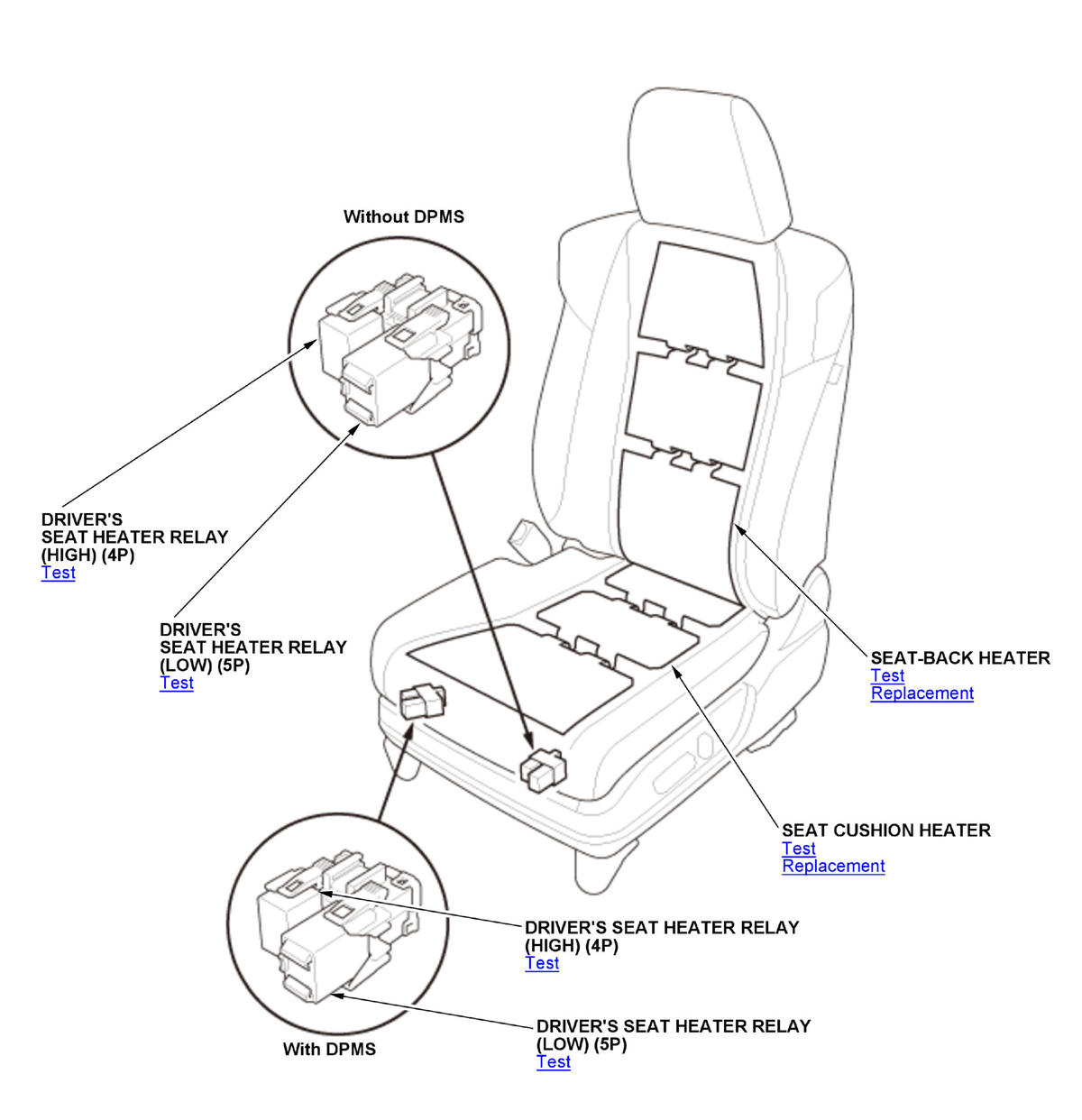

Driver's Seat

GHH473819

Courtesy of HONDA, U.S.A., INC.

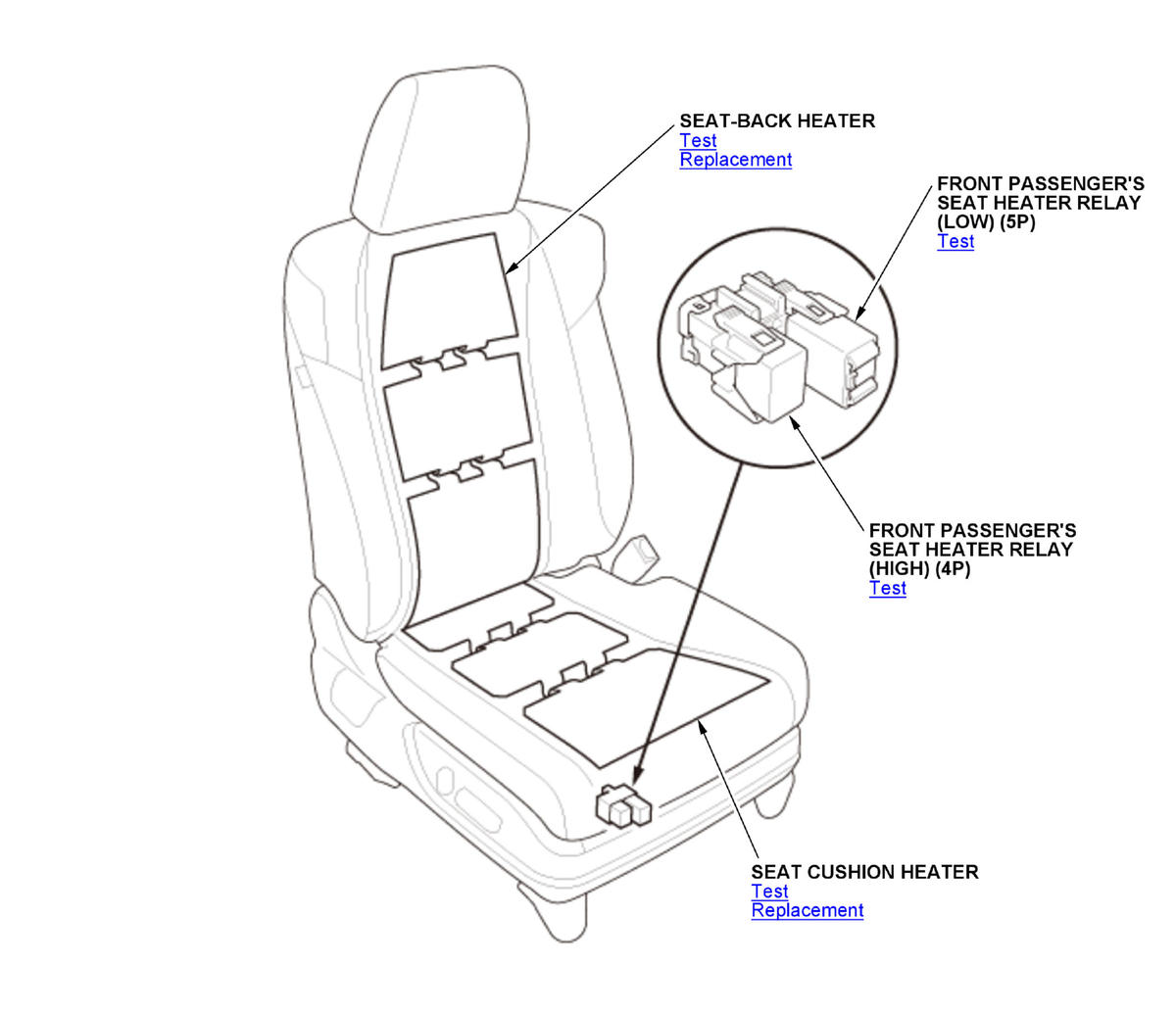

Front Passenger's Seat

GHH473820

Courtesy of HONDA, U.S.A., INC.

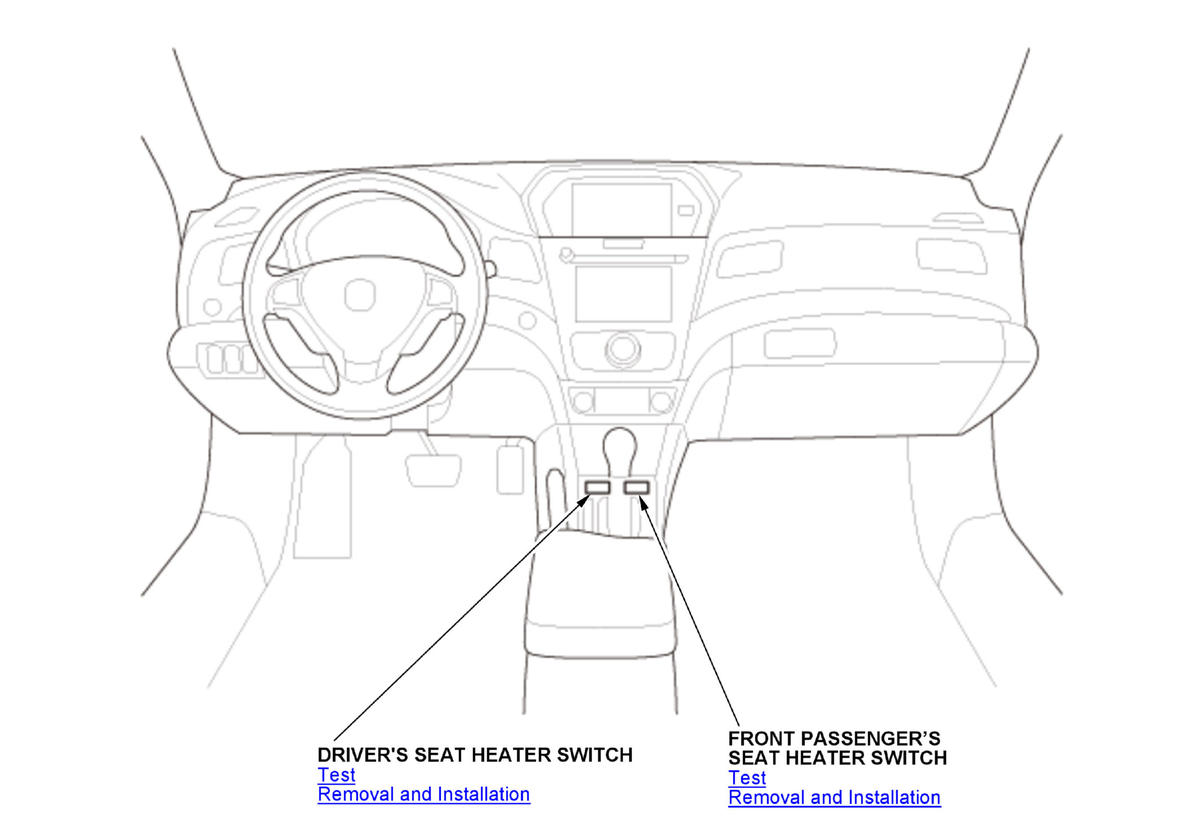

GHH473821

Courtesy of HONDA, U.S.A., INC.
