Seat Heaters (2013 2014 2015)

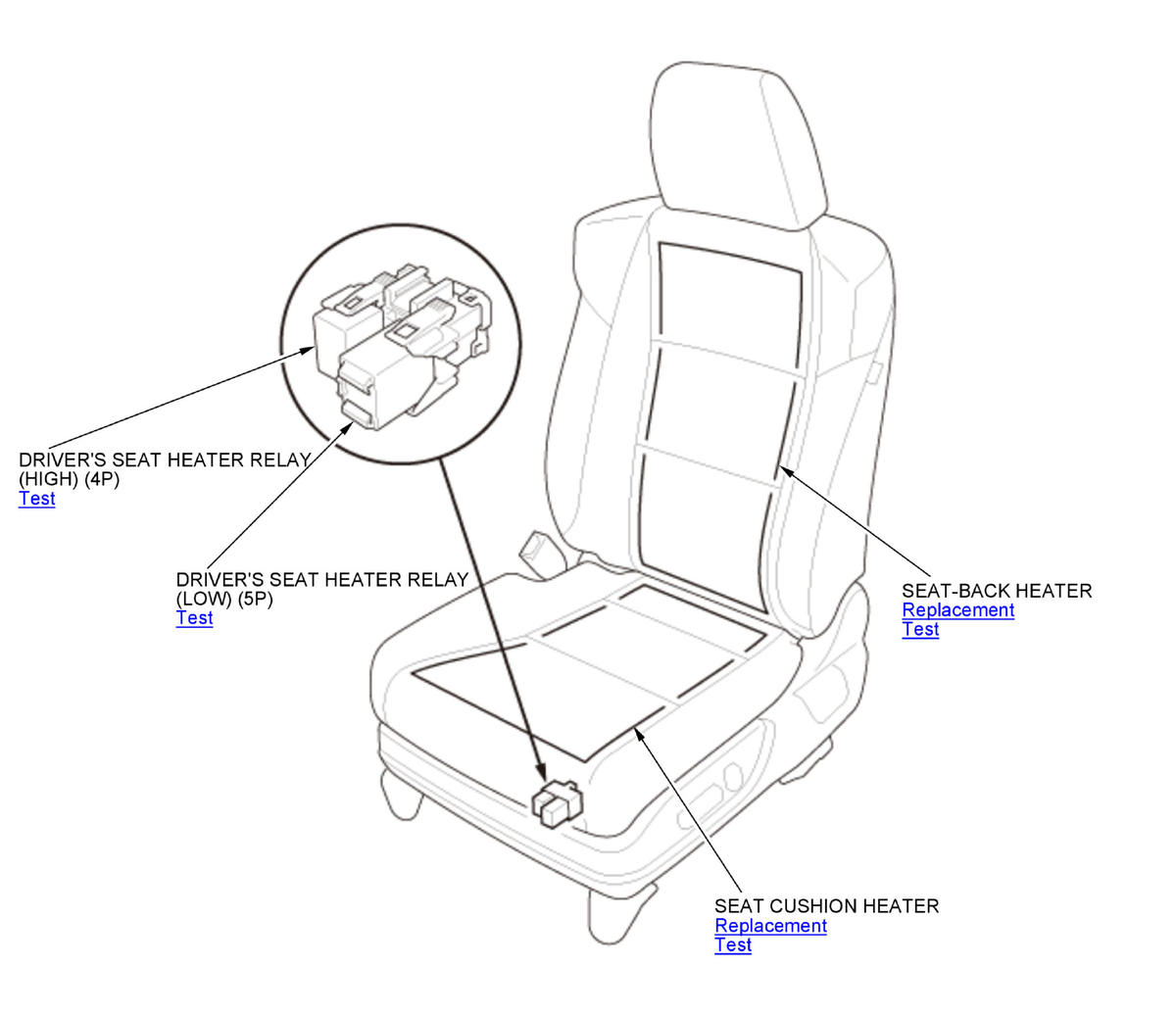

Driver's Seat

GHH473822

Courtesy of HONDA, U.S.A., INC.

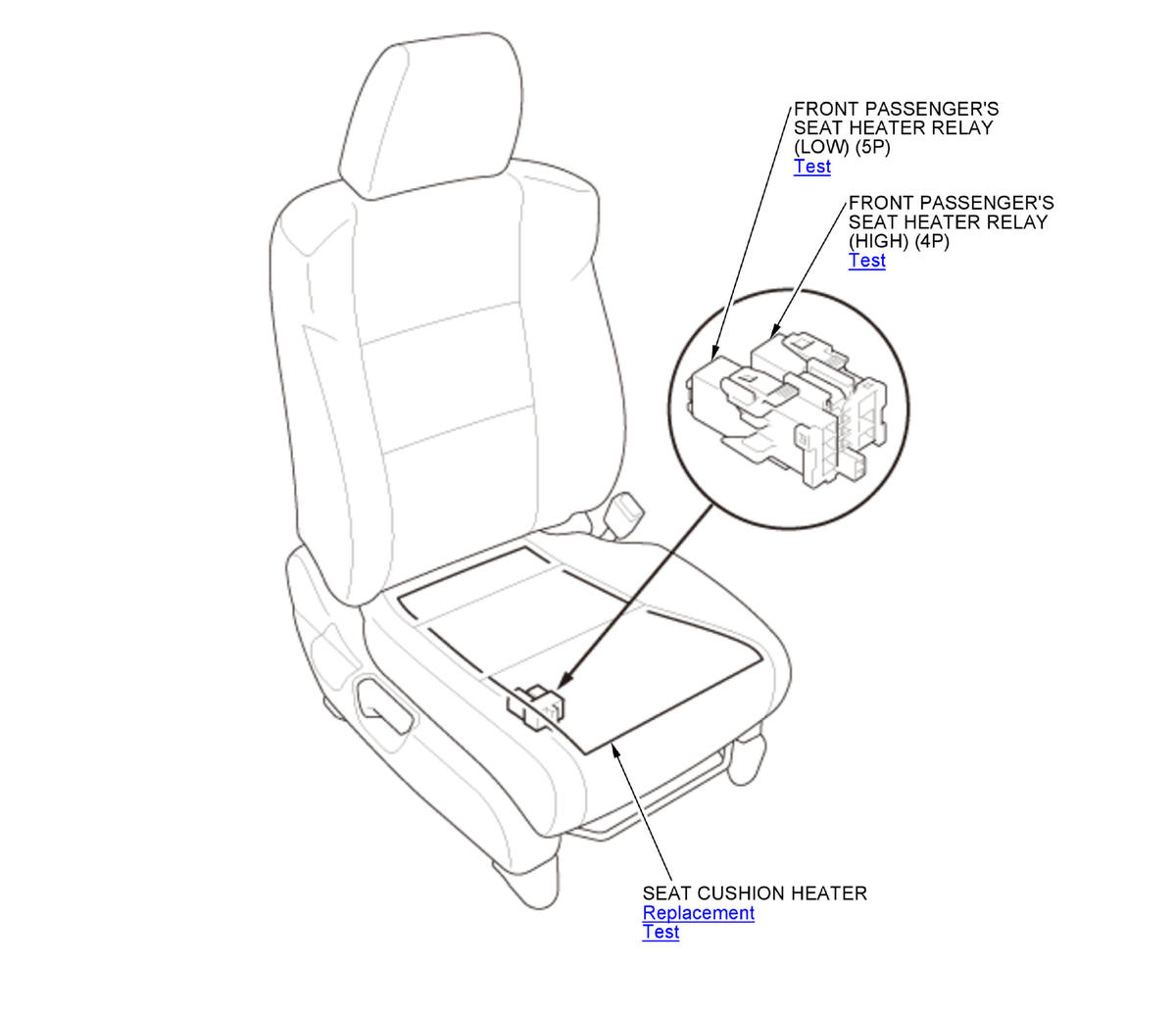

Front Passenger's Seat

GHH473823

Courtesy of HONDA, U.S.A., INC.

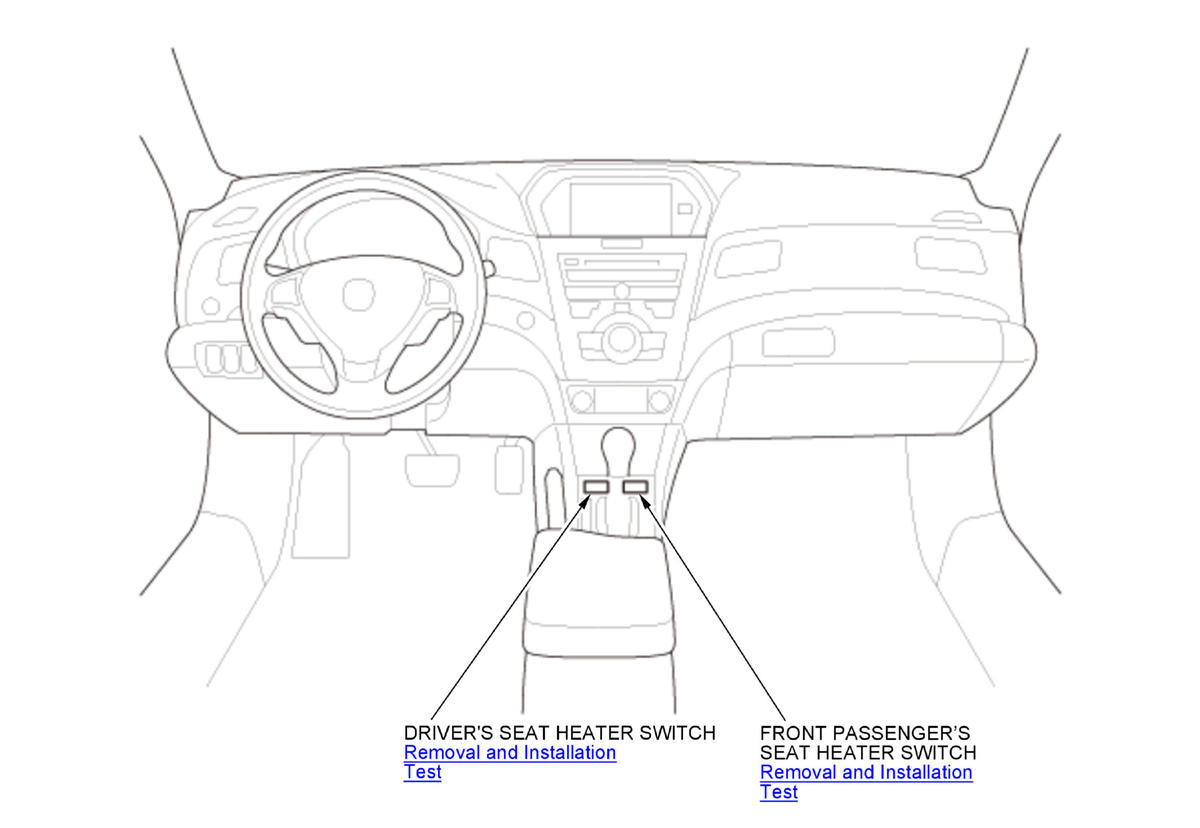

GHH473824

Courtesy of HONDA, U.S.A., INC.
